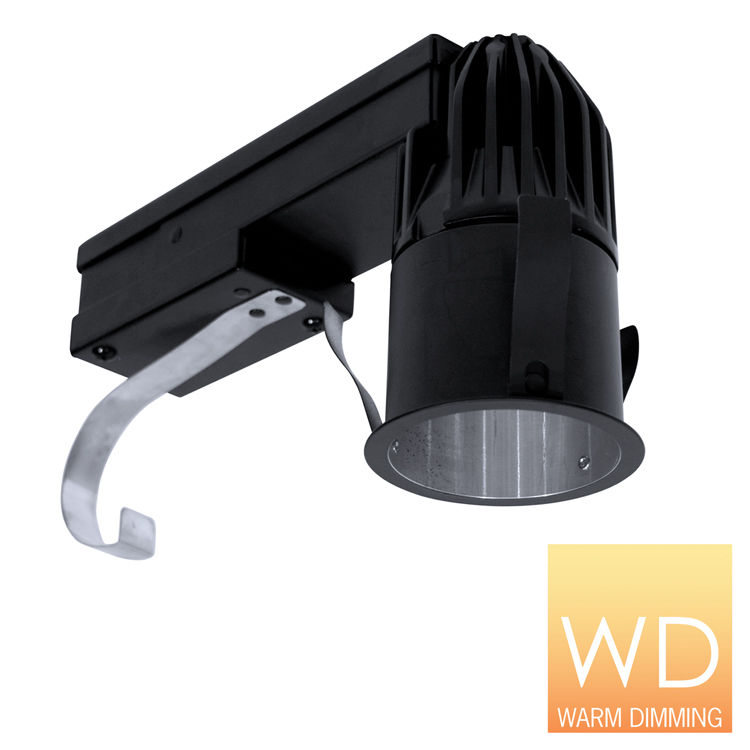

2-In. Warm Dimming LED New Construction and Remodel Downlight
R2RMWD
- Housing requires minimum 3-inch clearance from insulation material; thermal protection provided in case of improper insulation use
- Three (3) steel friction springs provide secure support in ceiling thicknesses from 1/2- to 1-inch. NOTE: Certain regions require the use of a housing mounting frame in conjunction with the R2SQRMWD Housing. The NCF1 new construction mounting frame should be specified when required (ordered separately). Mounting frame features a post installation mechanism that allows 1/4-inch adjustment in all directions, as well as 5-degrees of rotation adjustment to ensure proper alignment.
- Die-cast aluminum Collar and Heatsink, Driver Compartment and Junction Box made from 16-gauge steel; housing has a black painted finish
- Drivers are fully accessible from below the ceiling
- Minimum plenum clearance: 6-inches
- Pre-wired Junction Box with pry-outs; duplex electrical connector also provided to simplify daisy-chain wiring
- Output over voltage, over-current and short circuit protection.
- Warm Dim CCT Ranges from 3000K to 1800K, delivering up to 1000 lumens; 3000K at 100%, 1800K at greater than or equal to 5%
- Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
- Precision Optics produce smooth Spot, Medium, Flood and Wide Flood beam distributions; Optics are interchangeable and can be field replaced
- The Wall Wash Housing/Trim combination utilizes a unique angled Optic mounted to the Trim to create a smooth, uniform beam distribution. The Wall Wash Housing is dedicated for use only with a Wall Wash trim. There is no interchangeability with other housings or optics.
- Many trim options available to complement any design style; see ordering information for details.
Note: R2A and R2RM Series Trims are not compatible with each other. - All R2RM Downlights are available for non-dimming and dimming application; for a list of compatible dimmers, refer to the Dimming Specification Sheet
Product Information
Updated
Updated
Product Features
Color Rendering Index : 90-100
Correlated Color Temperature : Warm Dim: 3000K - 1800K
Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash
Listings : cCSAus,Damp Location,Wet Location,ENERGY STAR® Certified,WSEC ASTM E283,Chicago Plenum CCEA Listed
Lumen Output : 501-1000
Product Shape : Round
Product Type : 2-Inch Downlight
Housing : New Construction,Remodel
Rated Wattage : 13W
Dimmable : Y
Title 24 Compliant : N
