Universal New Construction Downlight

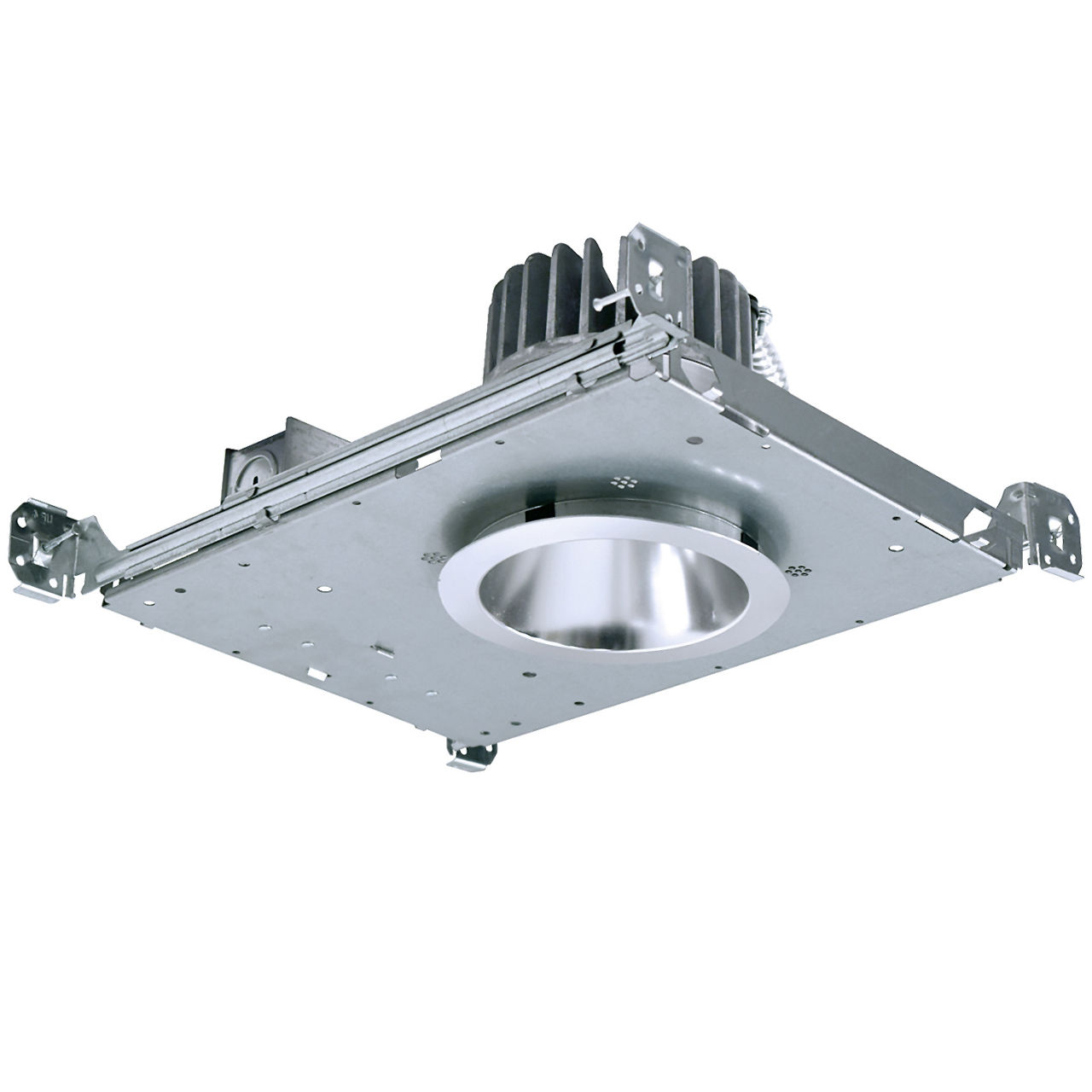

  • Specification Grade Round 16 Gauge Galvanized Steel New Construction Housing with Die-Cast Aluminum Heat Sink
  • Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
  • 2700K, 3000K, 3500K and 4000K CCTs; 80 CRI min., 83 typical; high 90+ CRI available
  • All R4 Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet

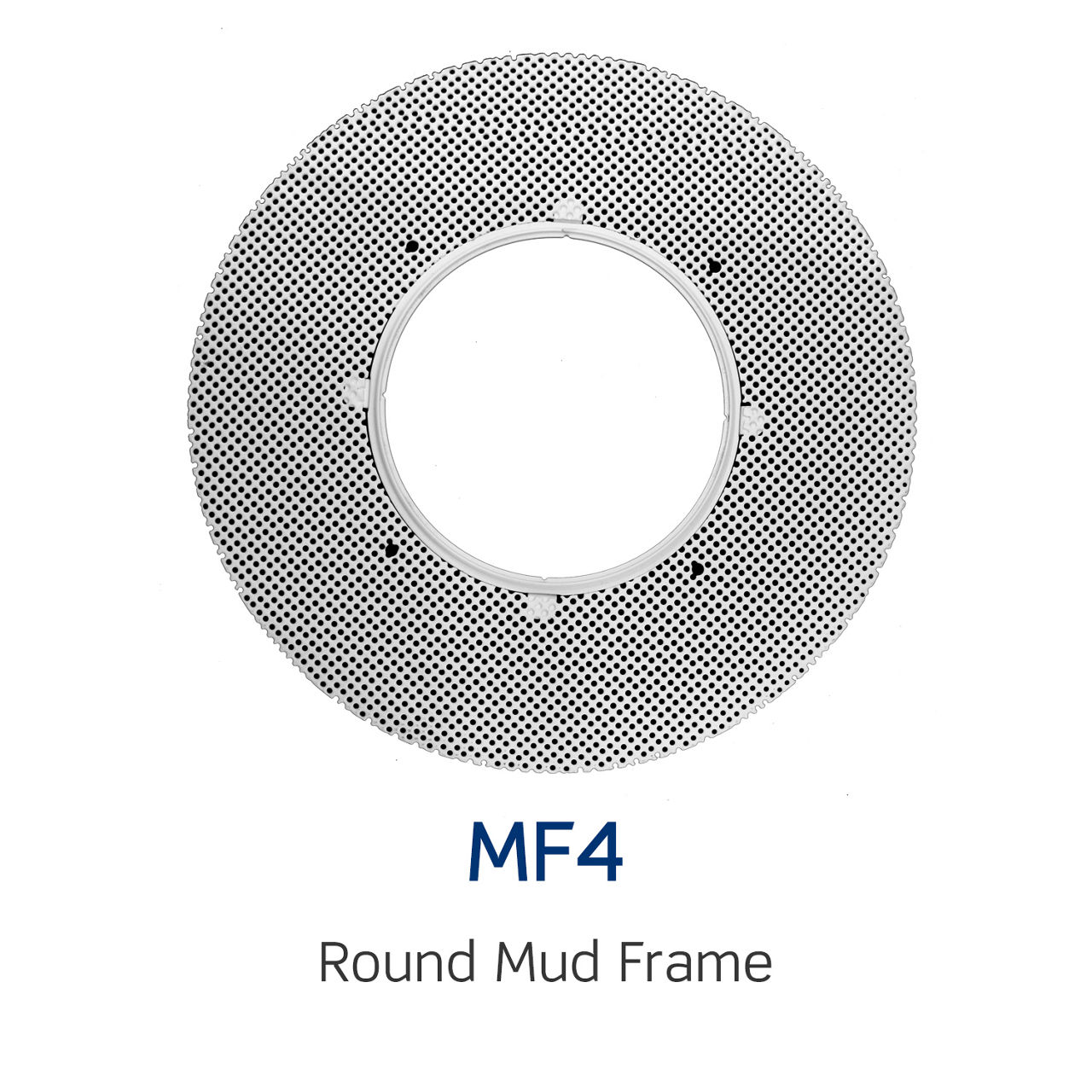

  • Flanged or Trimless Specification Grade Trims available; trimless options require use of a Mud Frame (MF4, ordered separately)

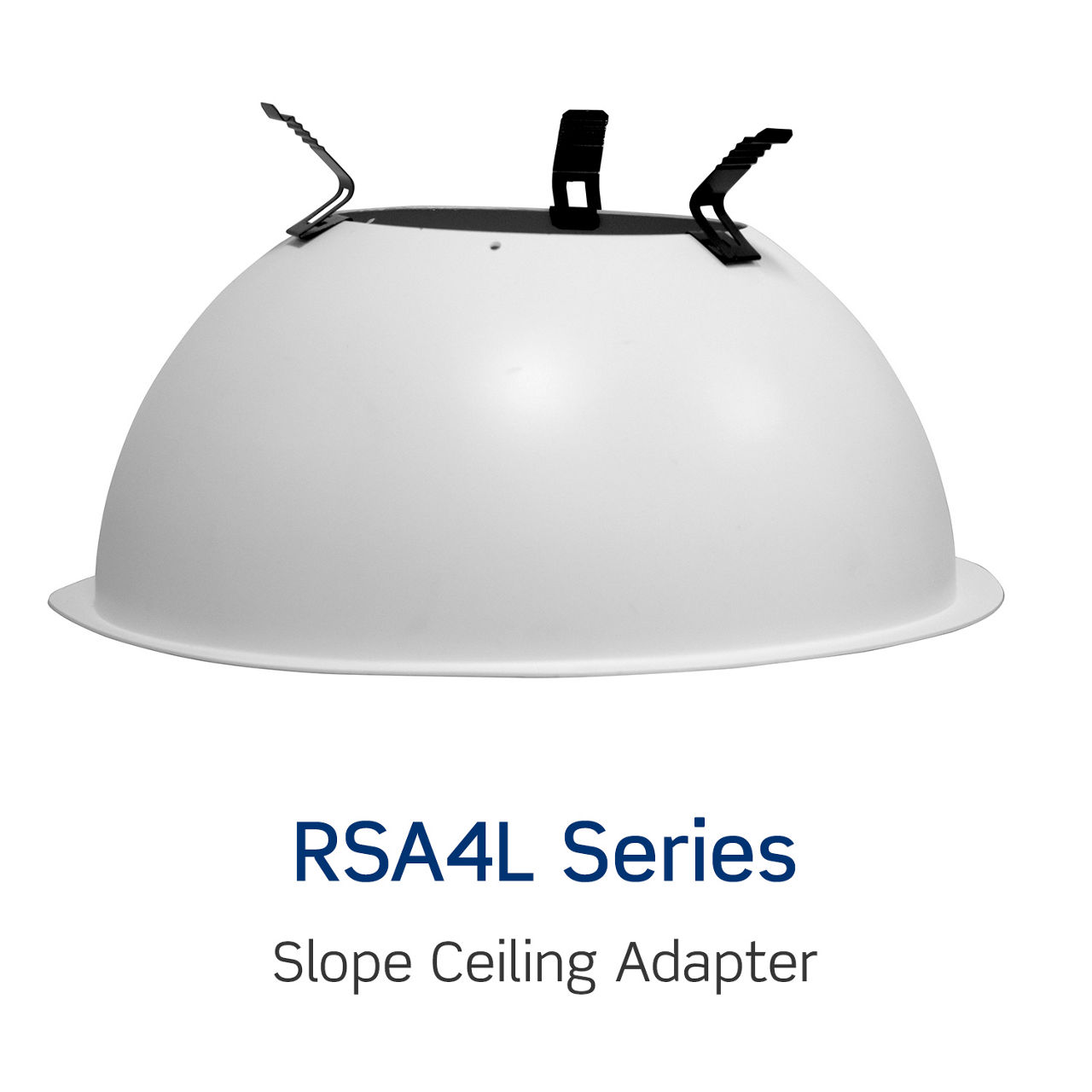

  • Trimless options cannot be used on Remodel Style Housings (R4RM) or with RSA4L Slope Ceiling Adapters
  • cCSAus Certified to UL Standards; Suitable for Damp Locations
  • cCSAus Certified to UL924 Standard for Emergency Lighting when specified with the Emergency Battery Backup option
  • ENERGY STAR® Certified:
    • All wattage/lumen options are ENERGY STAR® Certified

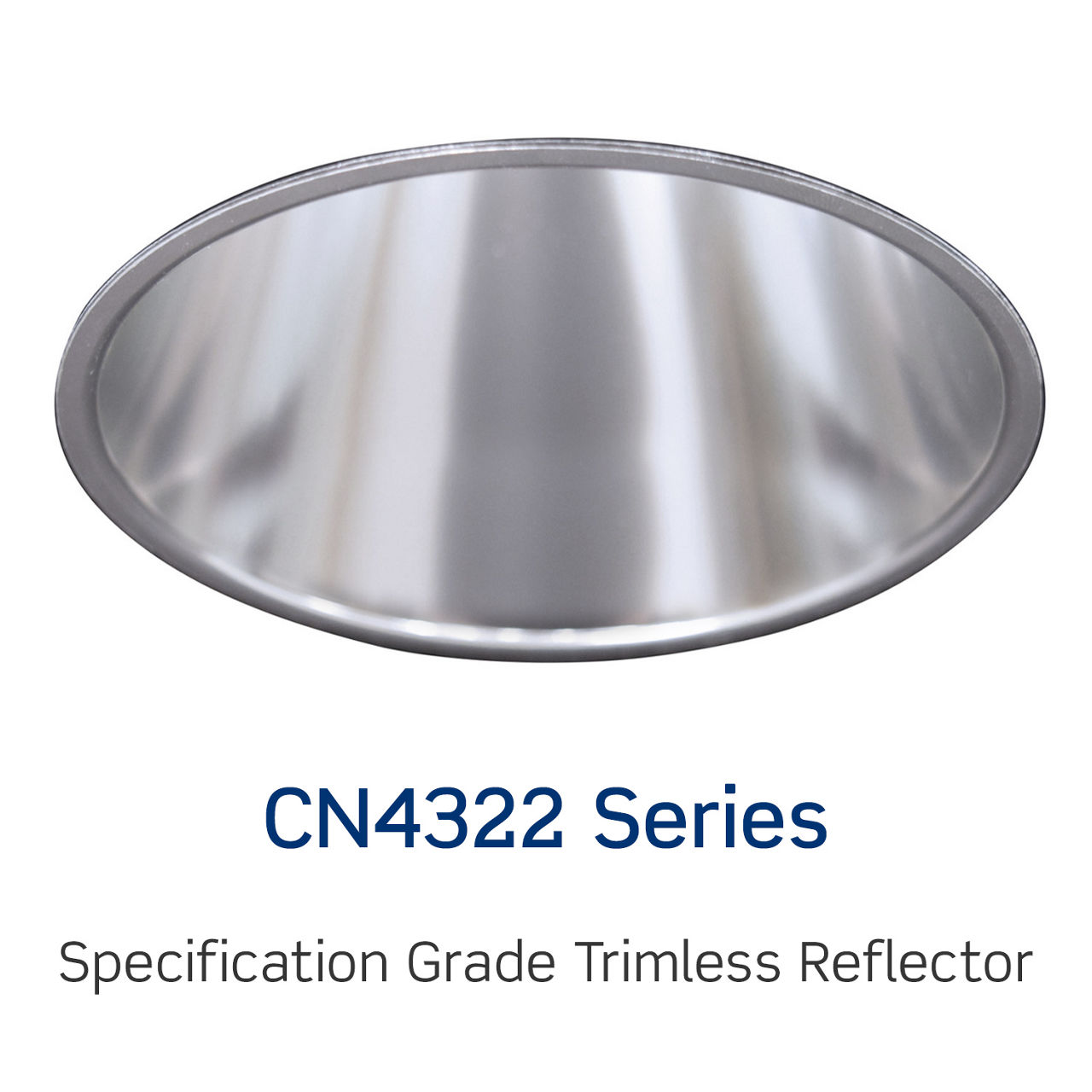

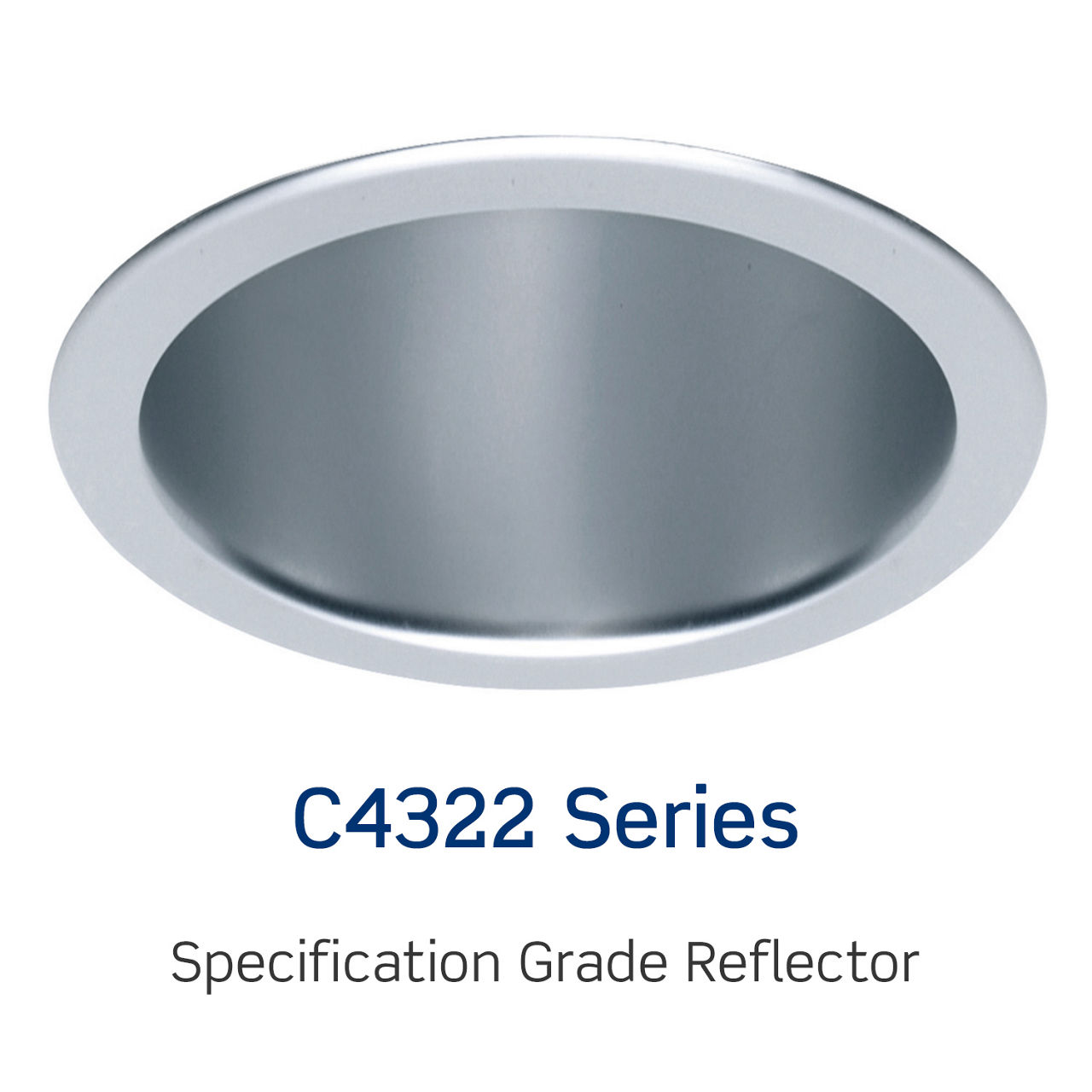

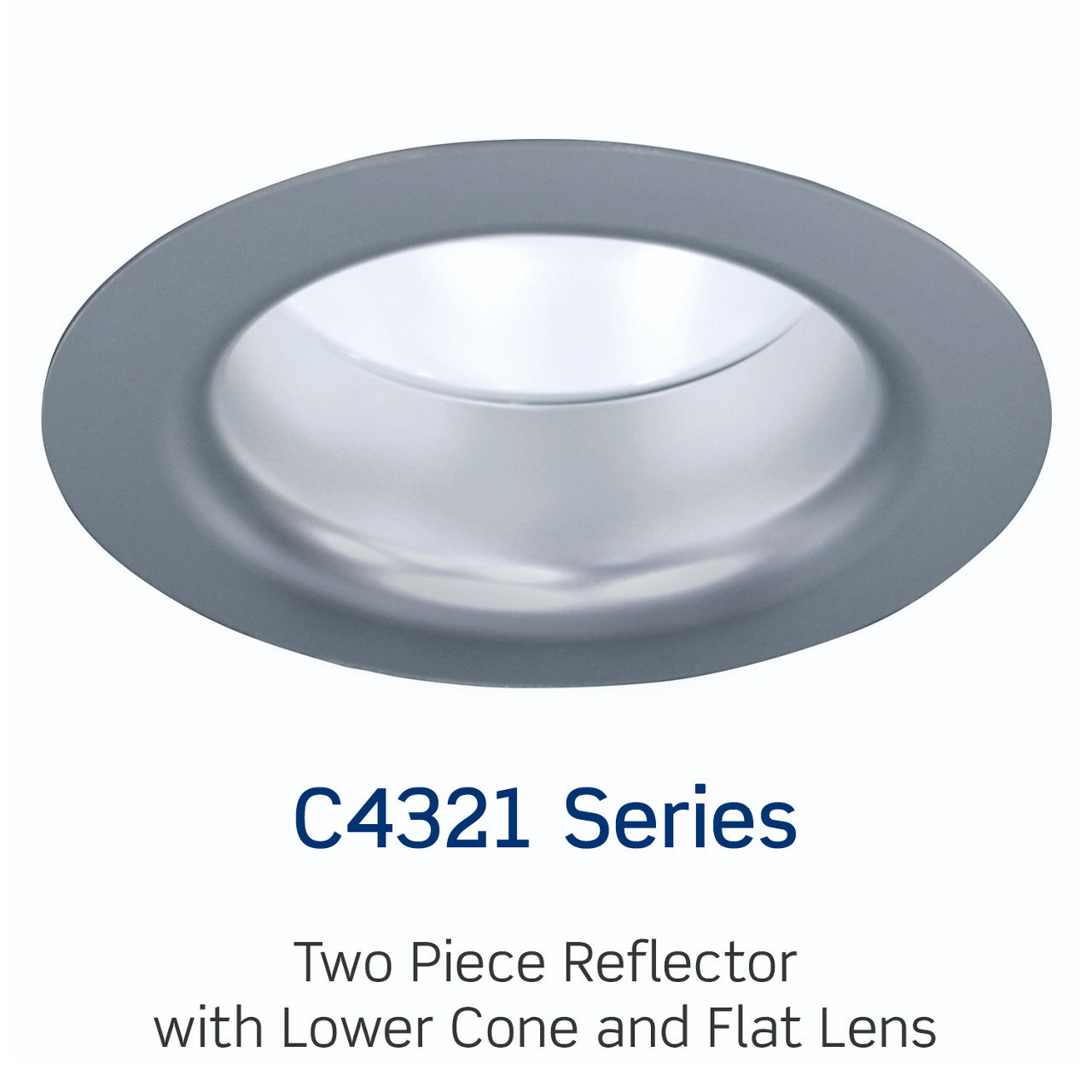

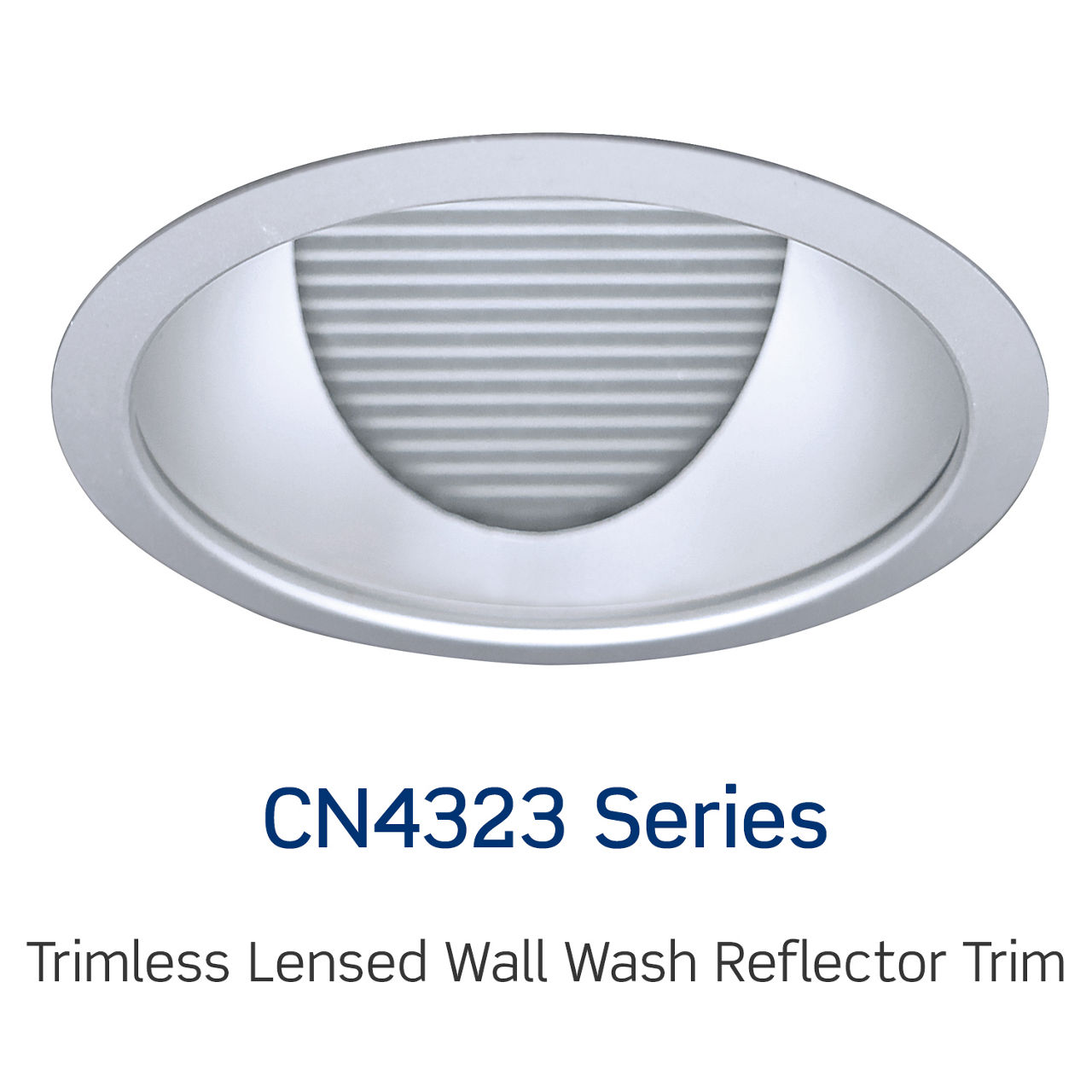

    • ENERGY STAR® Certified Trims: C4322-PL, CN4322-PL, C4322-WHT, CN4322-WHT, C4322-CLR and CN4322-CLR (all beam distributions); –C (Clear Lens) and –SL (Sandblasted Lens) Wet Location approved trim options are not ENERGY STAR® Certified
    • 347V Option, Lutron and eldoLED Dimming Options are not ENERGY STAR® Certified
  • Select Model/Trim Options are eligible for SpeedShip

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Listings : cCSAus Certified|Damp Location|Wet Location|cCSAus Certified to UL924 Standard|ENERGY STAR® Certified

    Lumen Output : 1001-1500|1501-2000|2001-3000|3001-4000|4001-5000

    Product Shape : Round

    Housing : New Construction

    Aperture Size : 4 in
