Gallery Series Luminaires

Blending a simple architectural form with superior performance

banner

Gallery Series Performance LED Track and Canopy Mount Luminaires

High performance track luminaires delivering high outputs and superior beam control

  • Clean aesthetics, simple cylinder form
  • Multiple beam distributions
  • Consistent color rendering
galleryxl expl

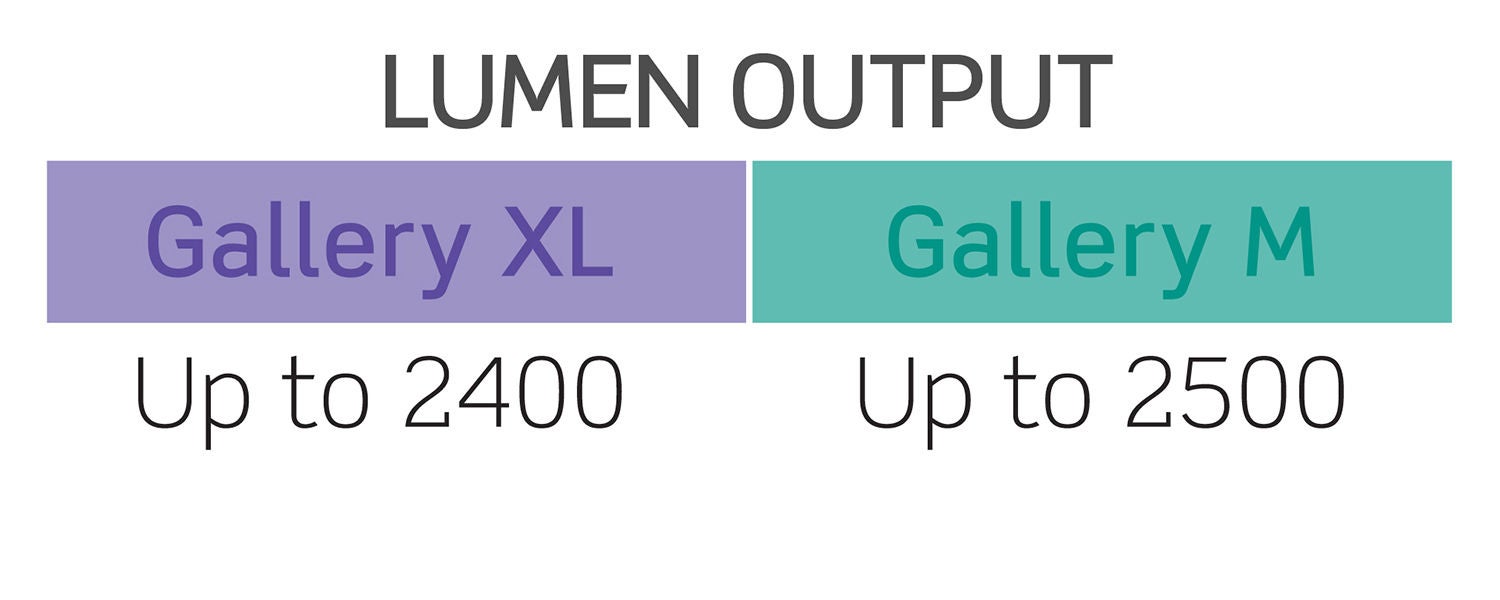

LED Options

Print
Print
Print
  • 2700K, 3000K, 3500K and 4000K CCTs; 80 CRI min., 83 typical; high CRI of 90+ available
  • Excellent fixture-to-fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Designed to perfectly emulate natural light sources with precise color rendering by CIE or IES standards
  • 2700K, 3000K, 3500K and 4000K CCTs; all with 95 CRI
  • Extraordinary color consistency within a 1x2-step MacAdam ellipse
  • Light that Warms as it Dims
  • CCT Range from 3000K to 1800K (3000K at full brightness to 1800K when dimmed to <5%), CRI of 95
  • Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
Print
Print
Print

Field Changeable Optic System

Customize performance to fit the application

  • Precise beam control ensures that even at lower aiming angles the luminaire is glare free and quiet in the ceiling.
  • Superior optics have been designed to bring theater grade beam control to traditional gallery and commercial luminaires.
ctl93-94-comp
  • The Gallery XL uses a precision engineered Dual Lens Optic for the Very Narrow Spot and Narrow Spot beam distributions to provide a tight beam angle and field to highlight target objects with minimal stray illumination.
  • Specular Aluminum Reflectors are used for the remaining beam distributions that have been optically engineered for even illumination and comfort.
ctl93-94-comp

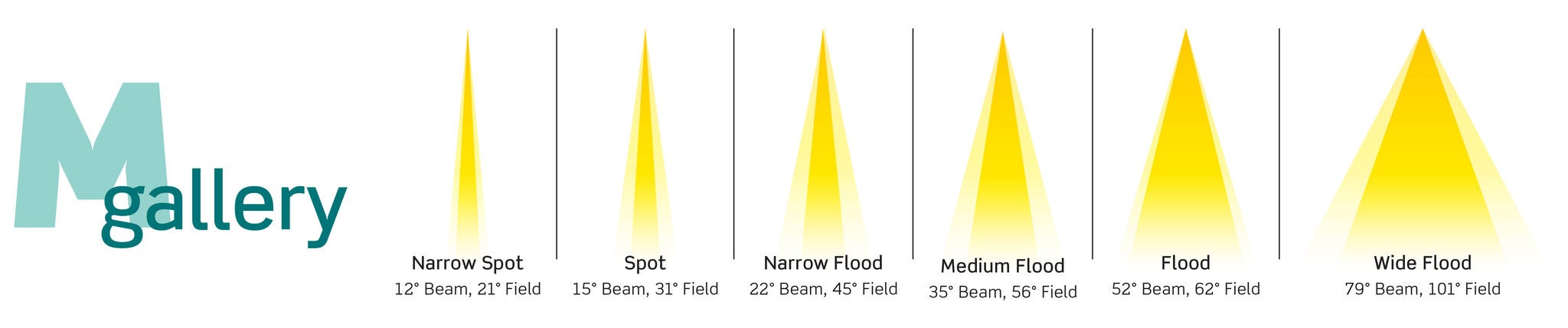

  • The Gallery M uses molded TIR optics engineered to deliver tight beam and glare control with minimal field.

Full collection of accessories available to produce a myriad of filtering and framing effects

Included Locking Ring allows the Luminaire to accept up to two (2) pieces of media (Filter/ Lens or Louver), one (1) Snoot, or one (1) Barn Door Assembly plus one (1) piece of media (Filter/Lens or Louver)

ctl

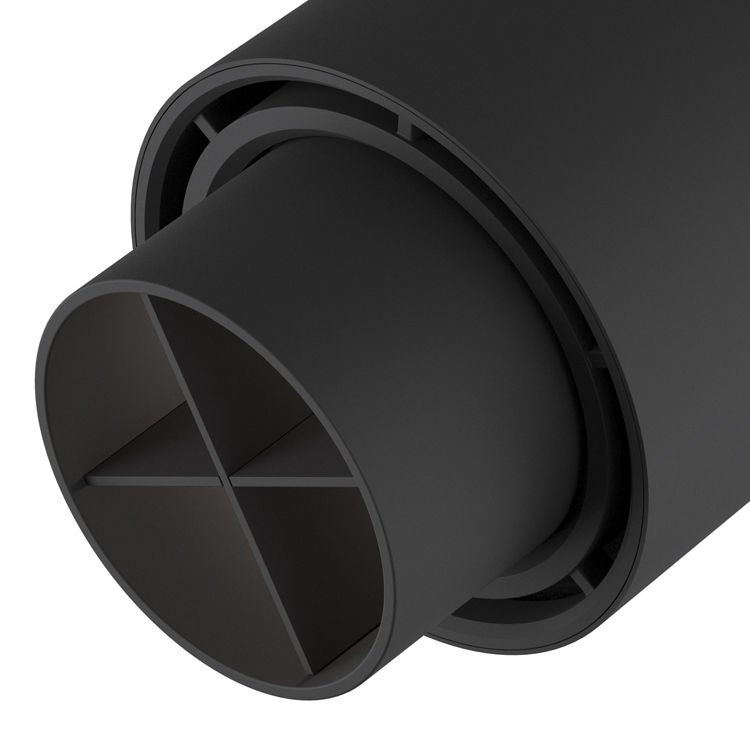

Snoot
ctl
Barn Doors
ctl

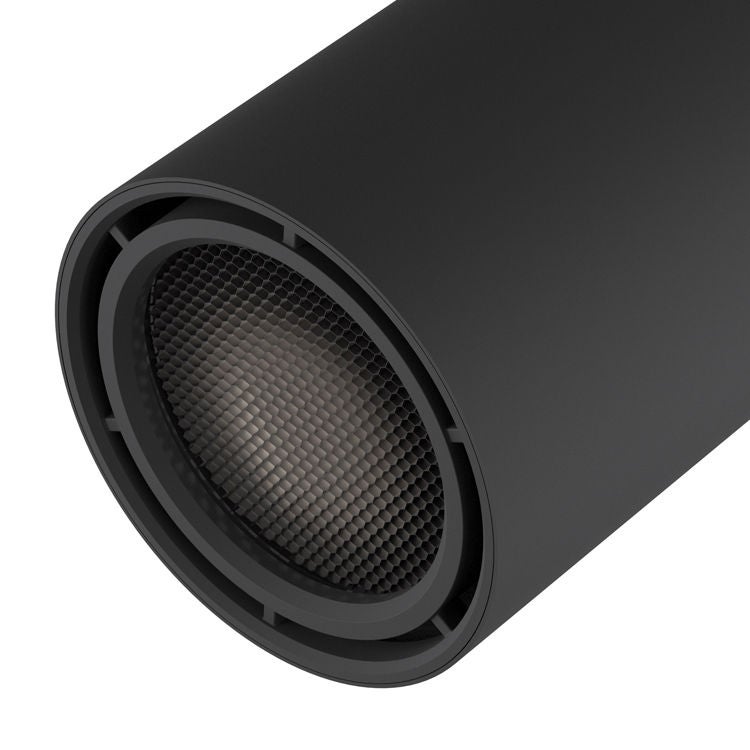

Honeycomb Louver
ctl

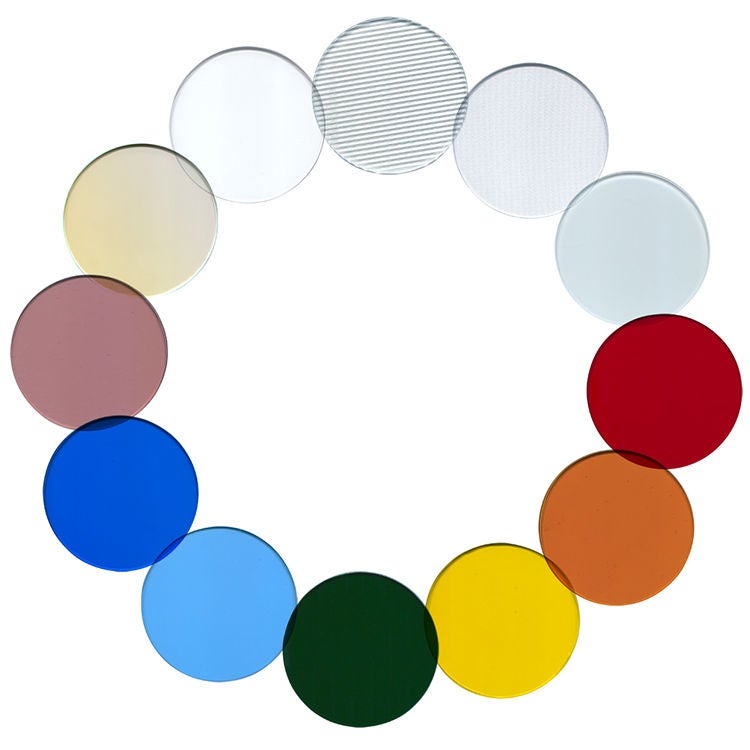

Filters & Lenses

Mounting Options

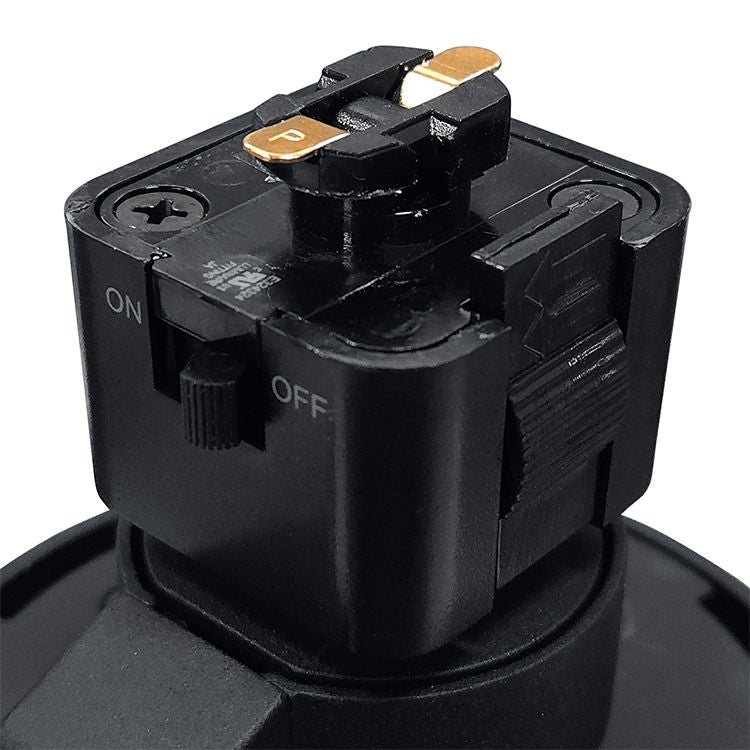

ctl

CTL

Compatible with:

  • ConTech LT/LT2 Single Circuit/Two Circuit Track Systems
  • ConTech Luxbeam Track System
  • Juno®2 Trac-Master™ System
    Juno is a registered trademark of Juno Lighting
retail

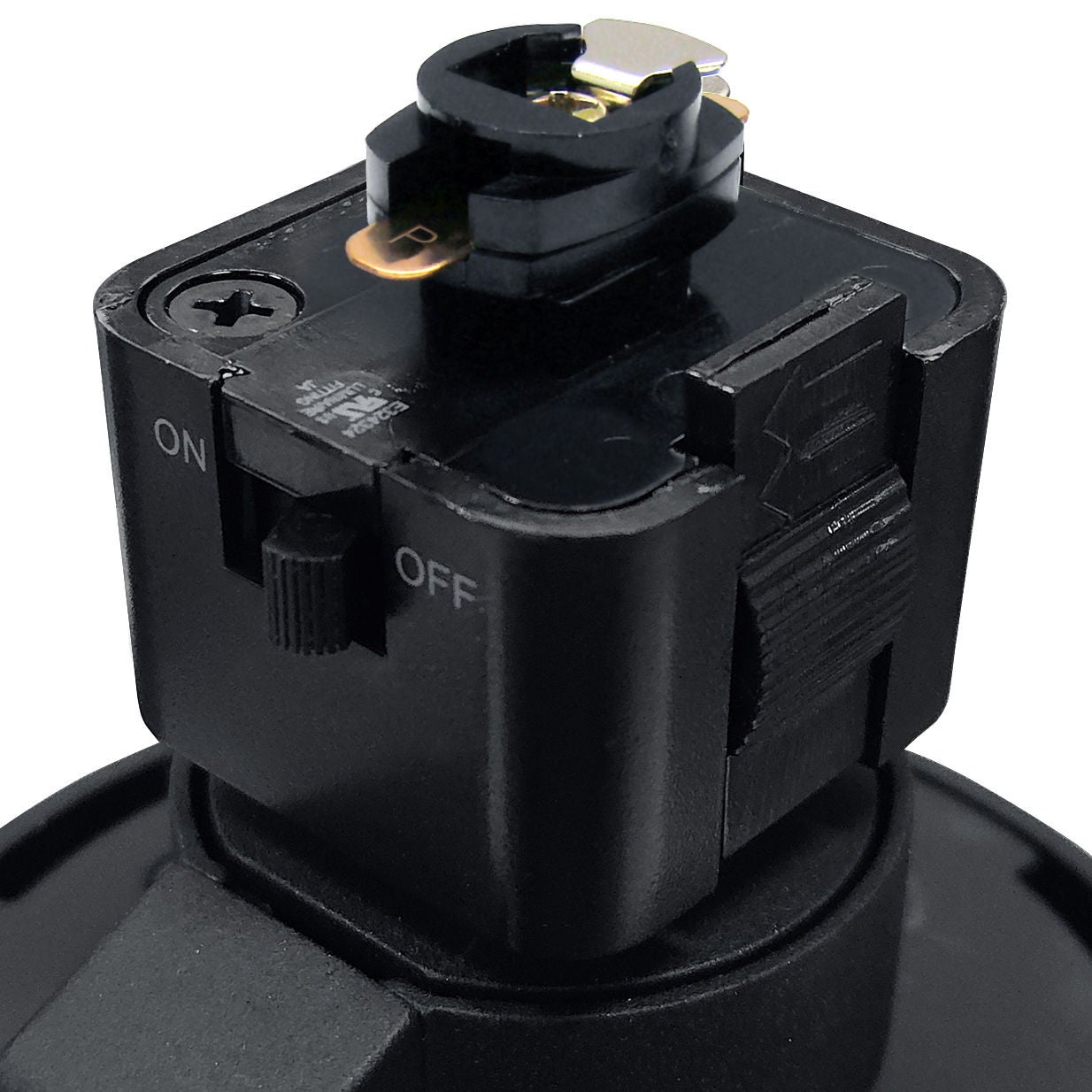

HTL

Compatible with:

  • Halo3 Power-Trac and Lazer Track Systems
    Halo is a registered trademark of Cooper Lighting
grocery

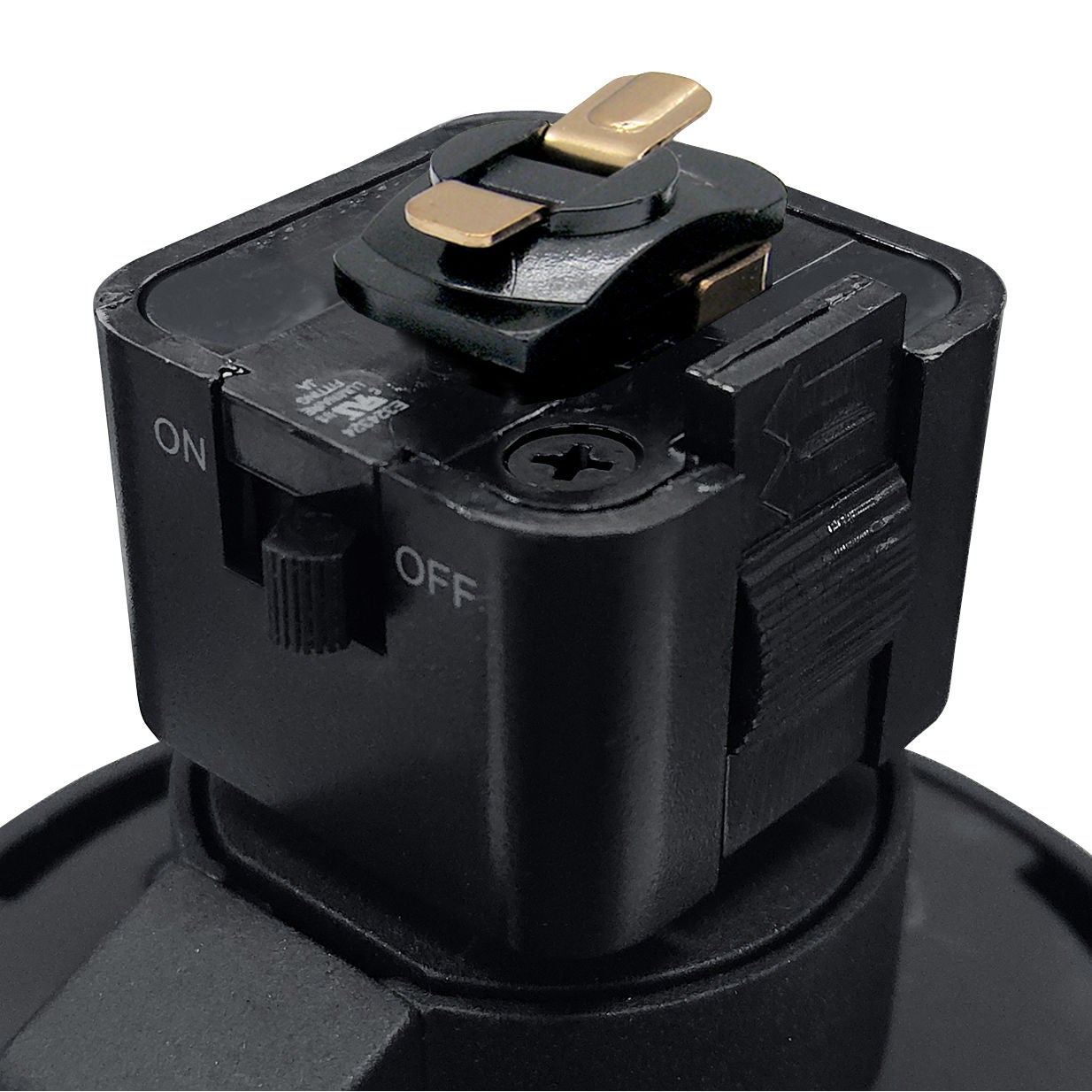

LTL

Compatible with:

  • Lightolier4 Lytespan® System
    Lightolier is a registered trademark of Philips Lighting

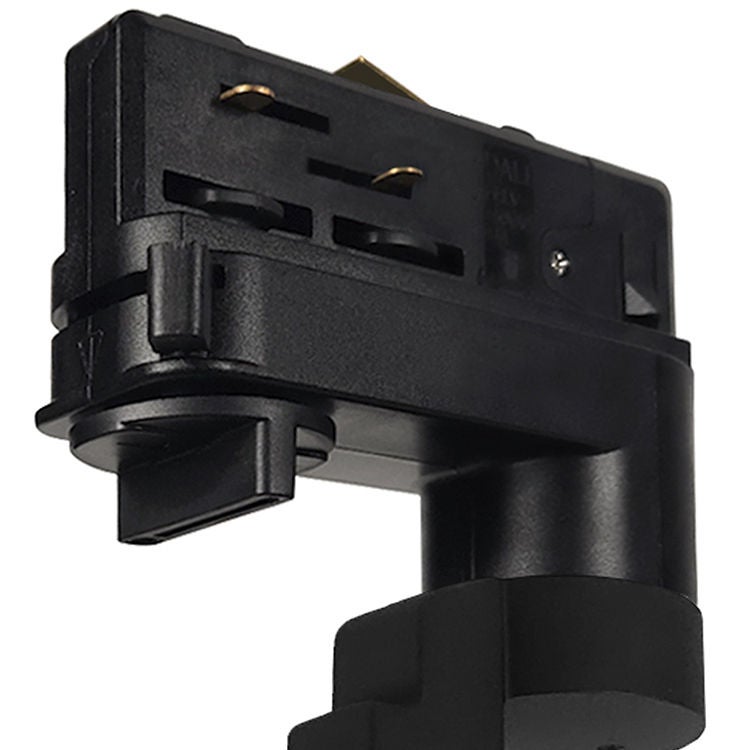

NCTL

Compatible with:

  • Nordic Aluminum Inc. TEK100 Track Systems
  • ConTech can switch out the adapter for compatibility with other Nordic Track Systems

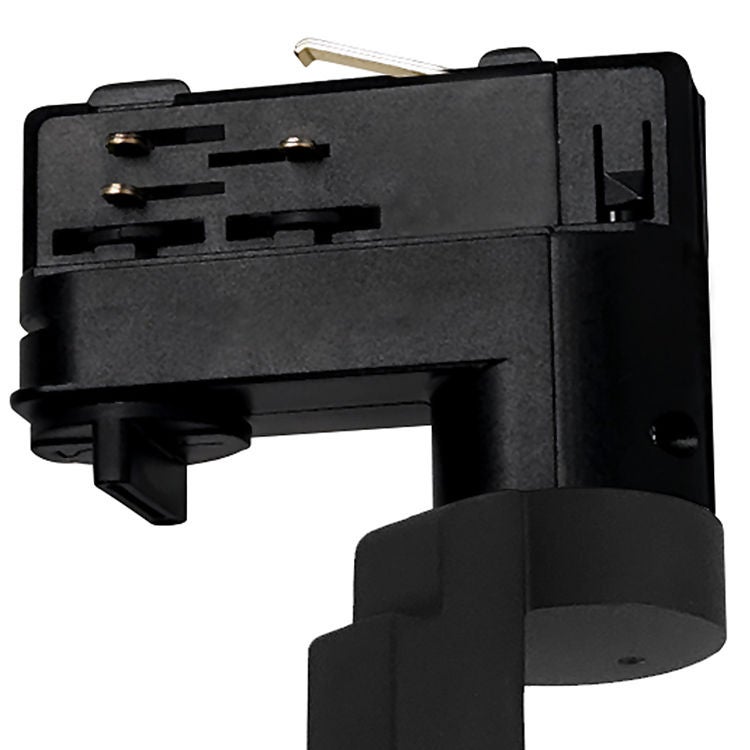

OTL

Compatible with:

  • ConTech Lighting's O2CD 0-10V Dimming Track System
canopy mount

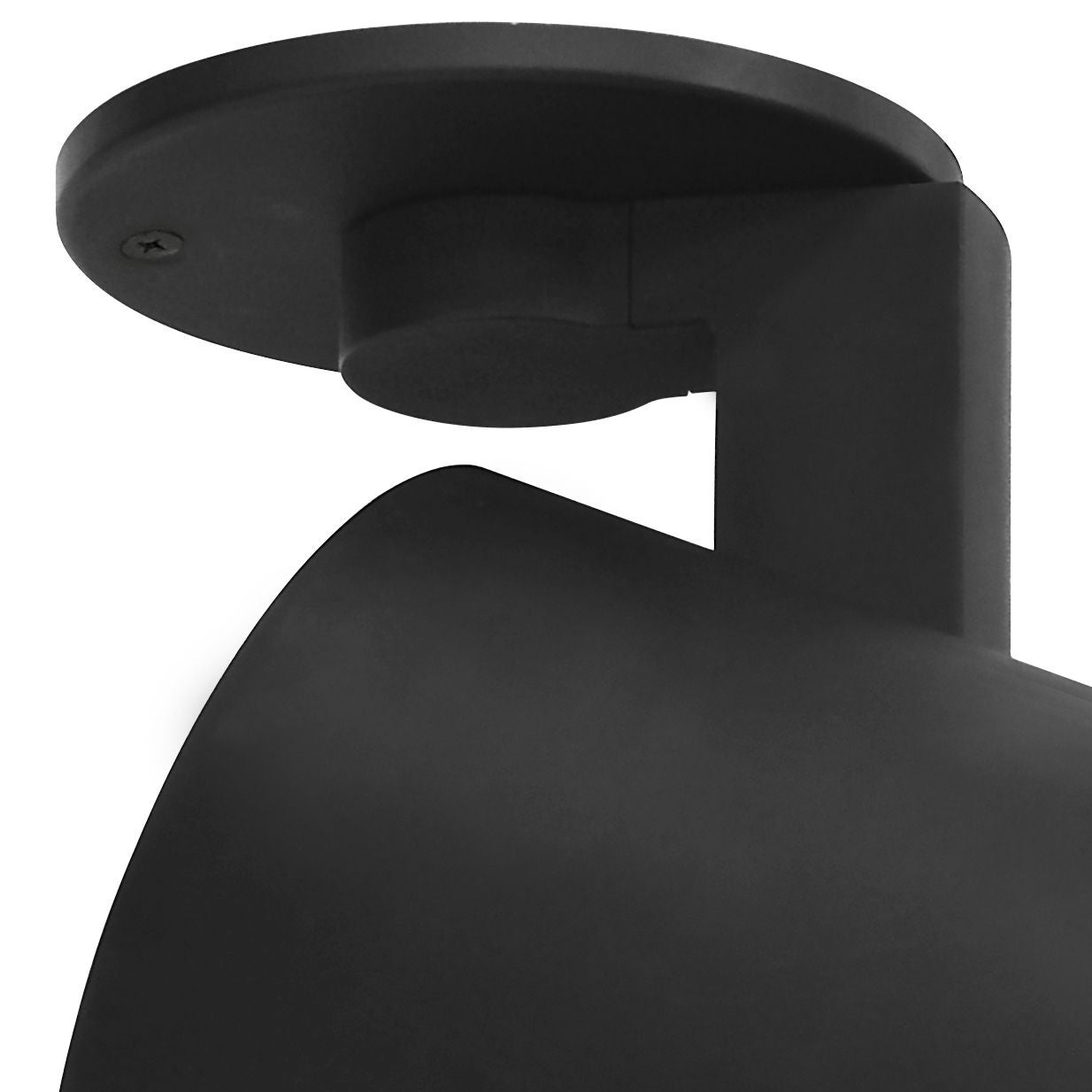

Canopy Mount

  • 4-1/2–Inch Mono-Point Canopy Housing
  • Approved for Ceiling or Wall Mounting

Ideal for

gallery
grocery
retail
conf center

GALLERIES & MUSEUMS

High Color Rendering options with a variety of beam angles to highlight items of varied colors, size and form

GROCERY

High efficacy track luminaire with multiple beam options to bring focus to produce, end-caps and other high volume merchandise areas

RETAIL

Varied outputs, color temperatures, beam angles and track adapters to fit into any merchandising application

CONFERENCE CENTERS

Flexibility and performance for environments with dynamic uses and light level needs
