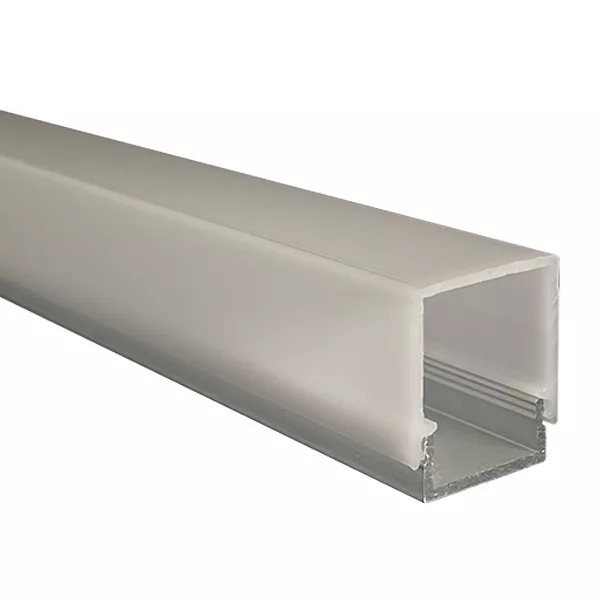

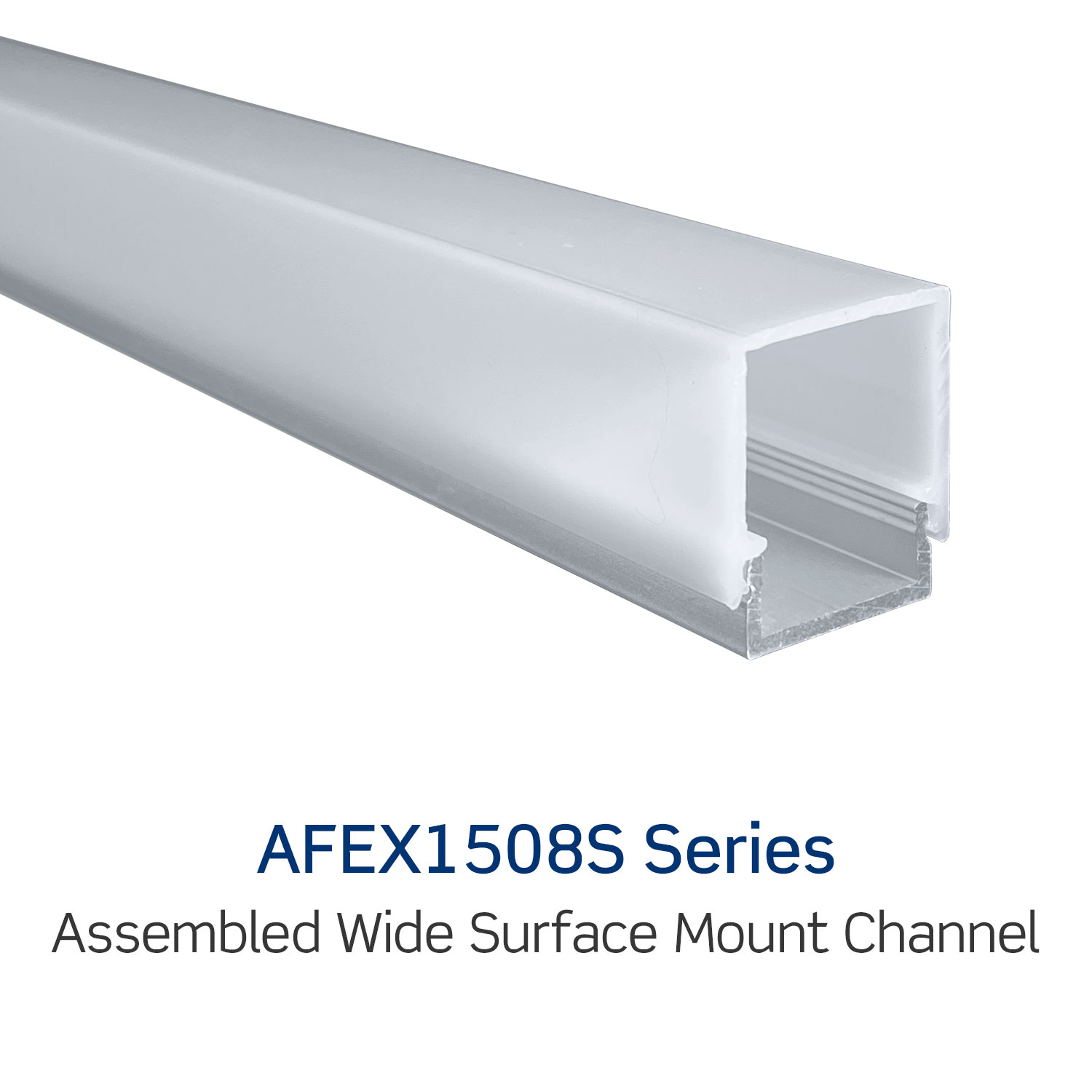

Wide Surface Mounting Channel
AFEX1508S

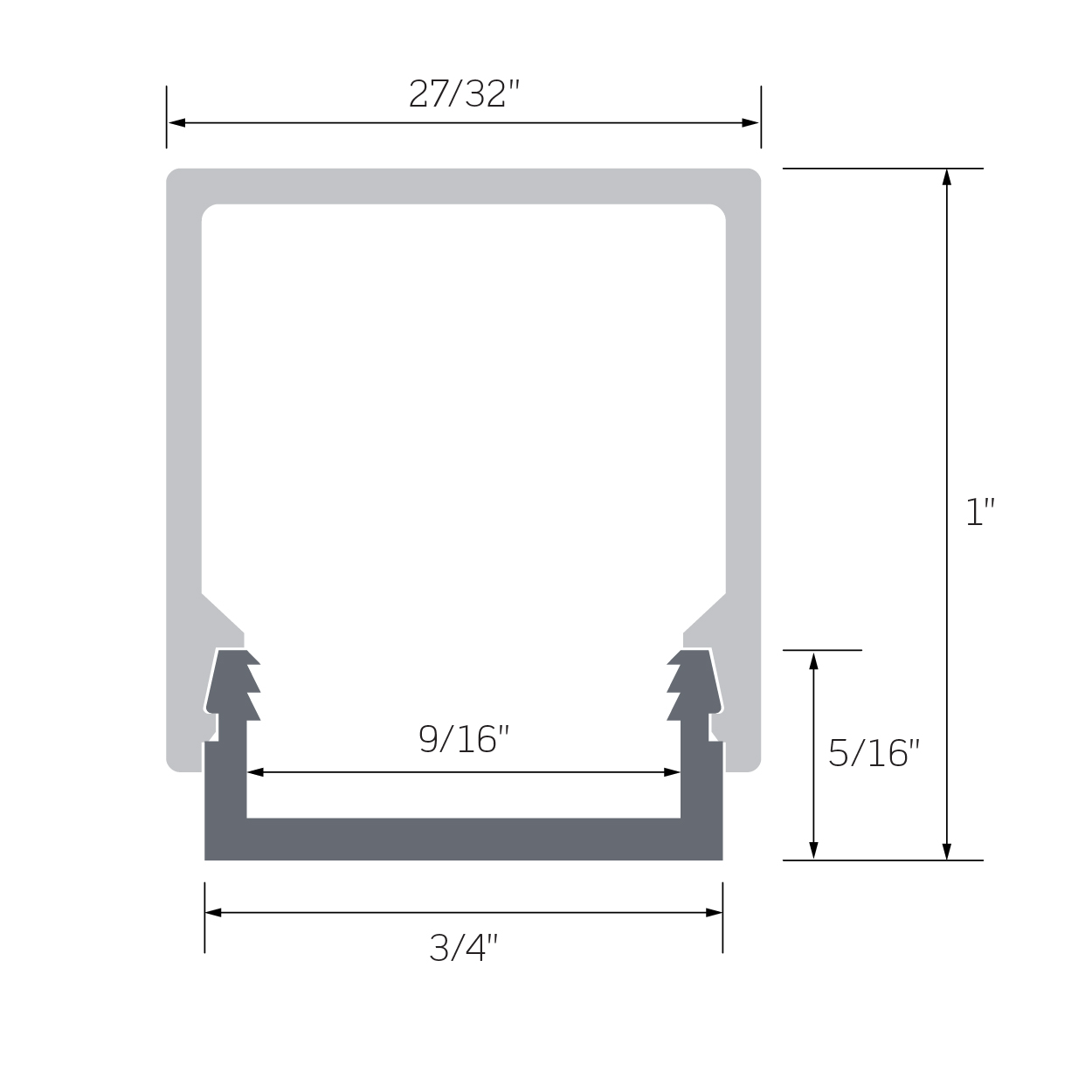

- 3/4-Inch Wide Surface Mount Channel for use with any Specflex Strip Light series with no pixelation
- Provides excellent heat sinking and protection to the LEDs while ensuring a clean, straight run

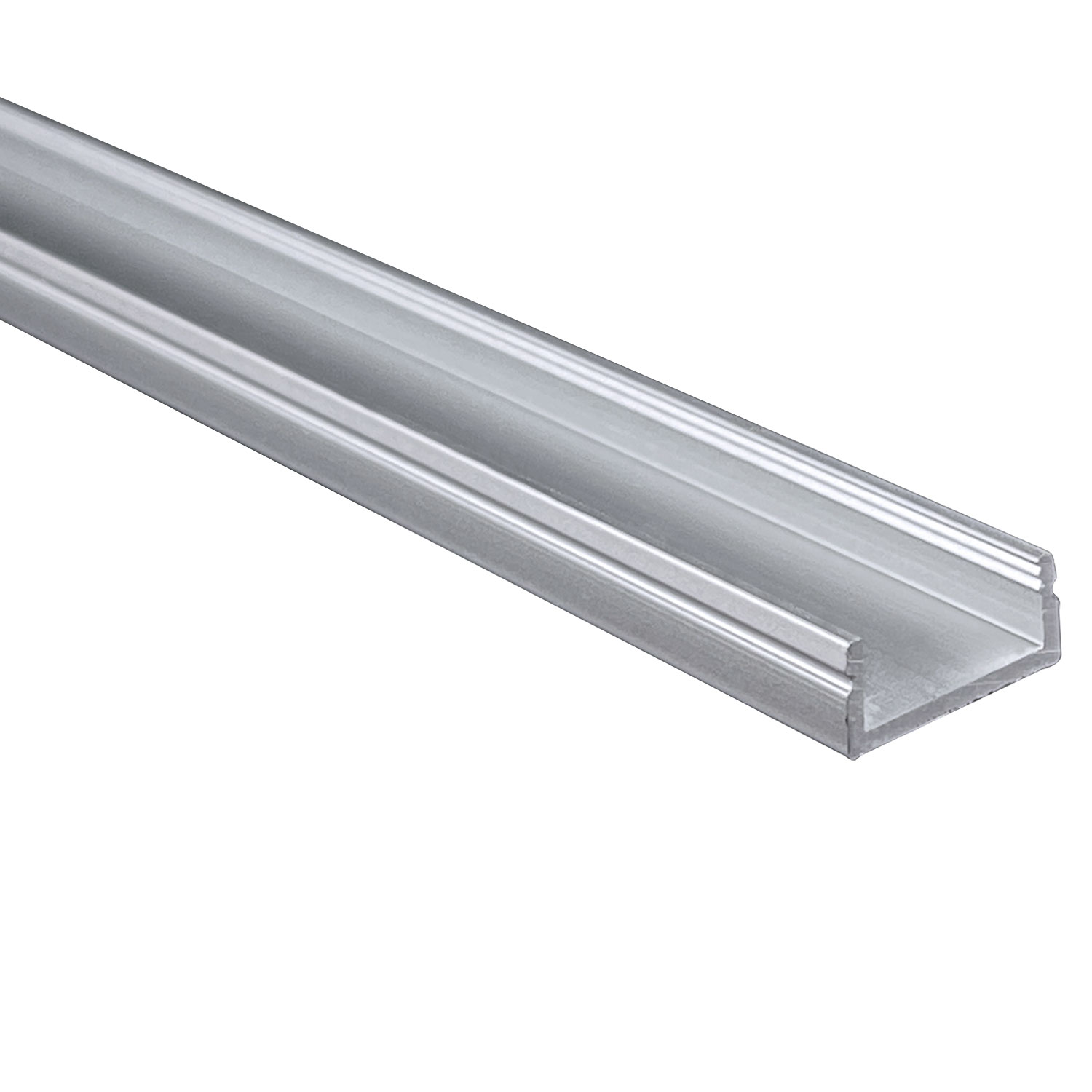

- Anodized Satin Aluminum Channel available in 48- and 72-inch lengths (4- and 6-foot)

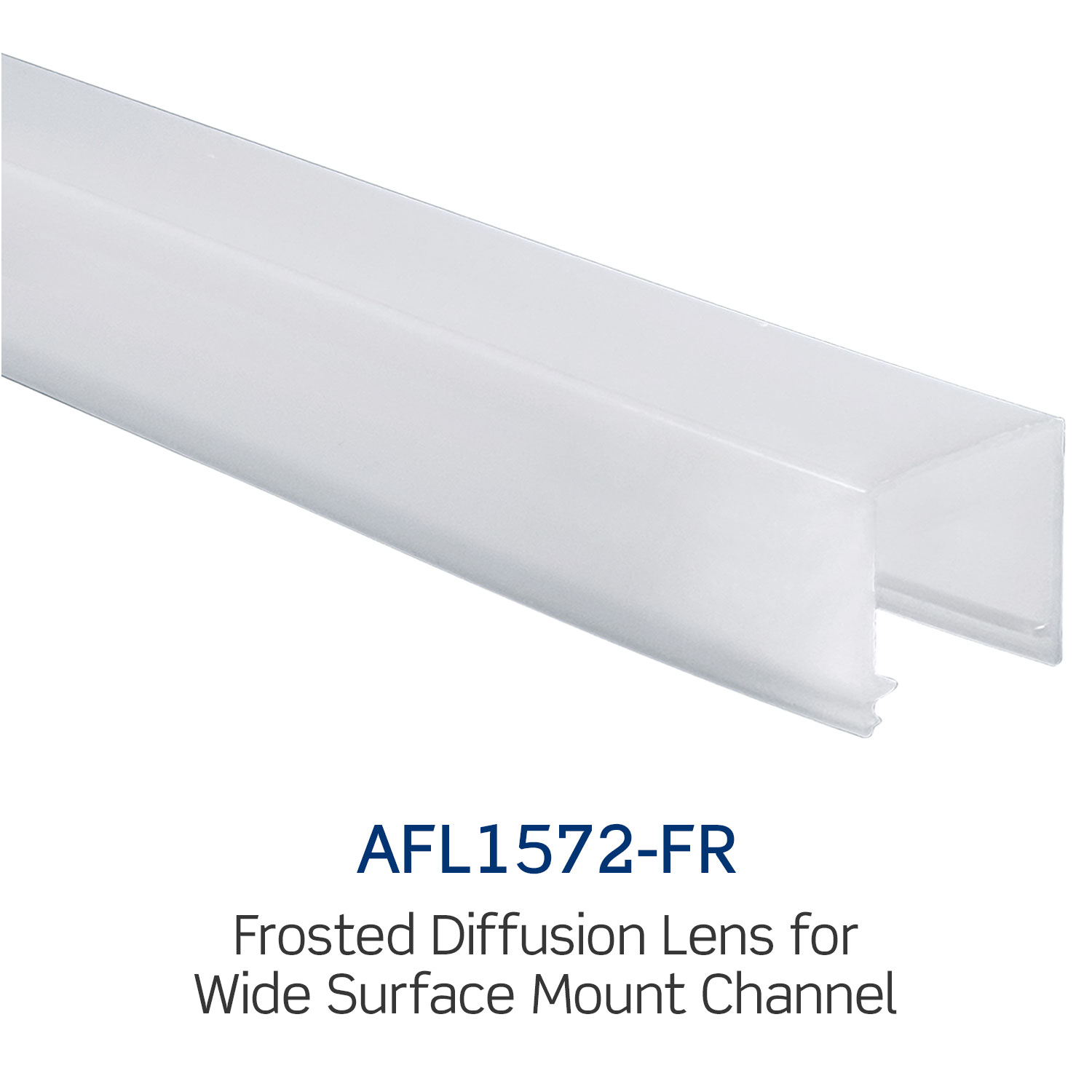

- Frosted Diffusion Lens (AFL1572-FR) softens glare and removes pixelation
- Mounting Clips and Endcaps are not available; Channel can be mounted using 3M™ Double-Sided Adhesive or Screw and Wall Anchor
- Compatible with:
- Static Color AFSS42 Series
- Medium Density AFSS48 Series
- High Efficacy AFSS48-7H Series
- High Density AFSS73 Series
- Continuous COB AFSSCN Series
- RGB AFSD36 Series
- RGBW AFSD58
- Both Dry and Wet Location
- For 24V SpecFlex Series Strip Lighting only
Specifications
Resources
Technical Information
Product Features
Product Type : Mounting Channel
Mounting Type : Surface
Product Category : Strip Light
Works With : AFSS42,AFSS48,AFSS48-7H,AFSS73,AFSSCN,AFSD36,AFSD58
Feature : Wide
