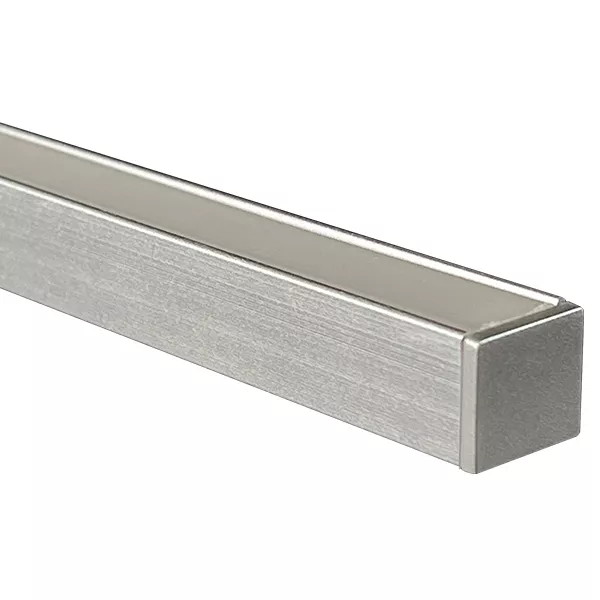

Narrow Surface Mounting Channel

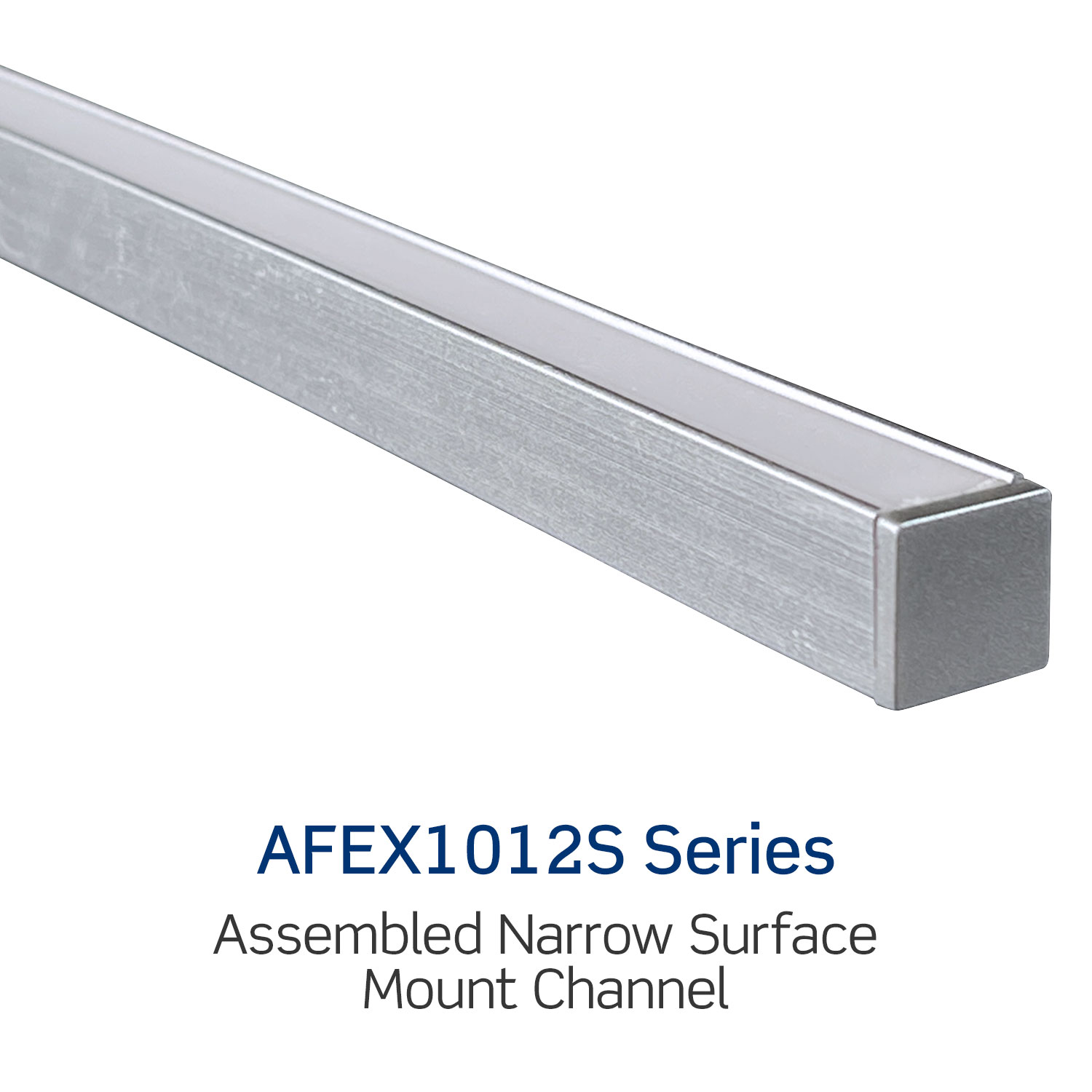

AFEX1012S Series

  • Provides excellent heat sinking and protection to the LEDs while ensuring a clean, straight run

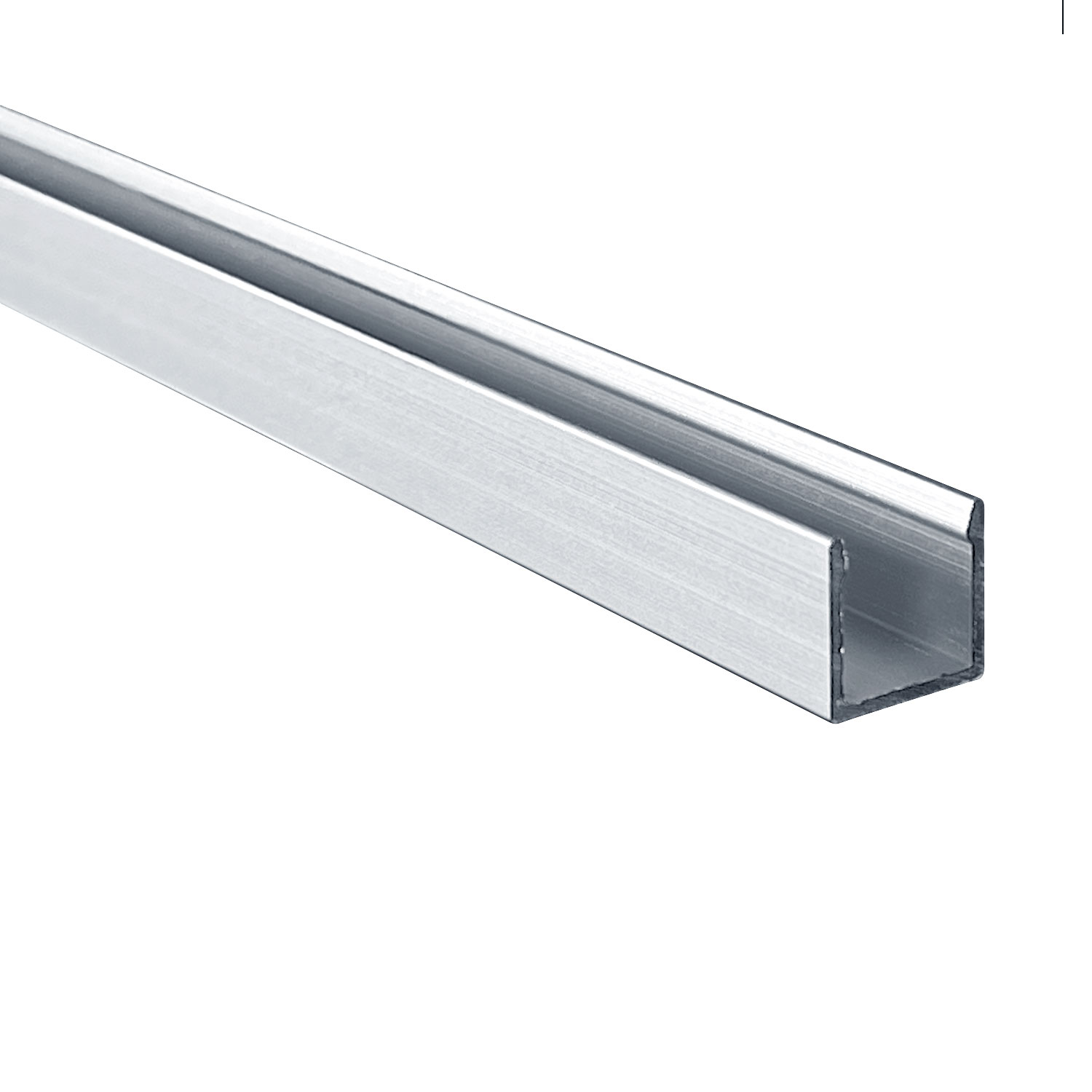

  • Anodized Satin Aluminum Channel; 72-Inches long
  • Components:

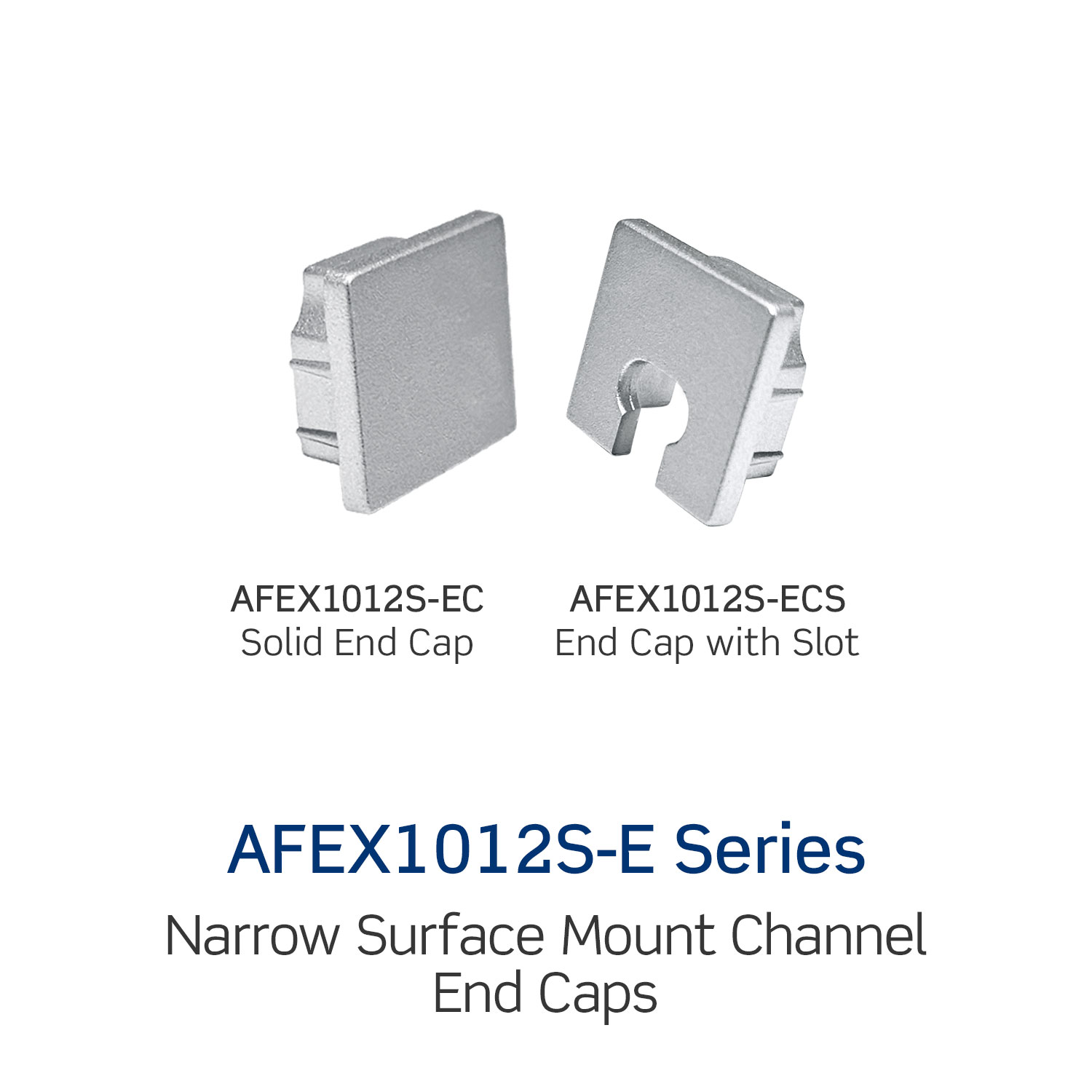

    AFEX1012S-EC: Solid Endcap, Grey
    AFEX1012S-ECS: Slotted Endcap, Grey
    - ABS Grey Plastic
    - Ordered individually

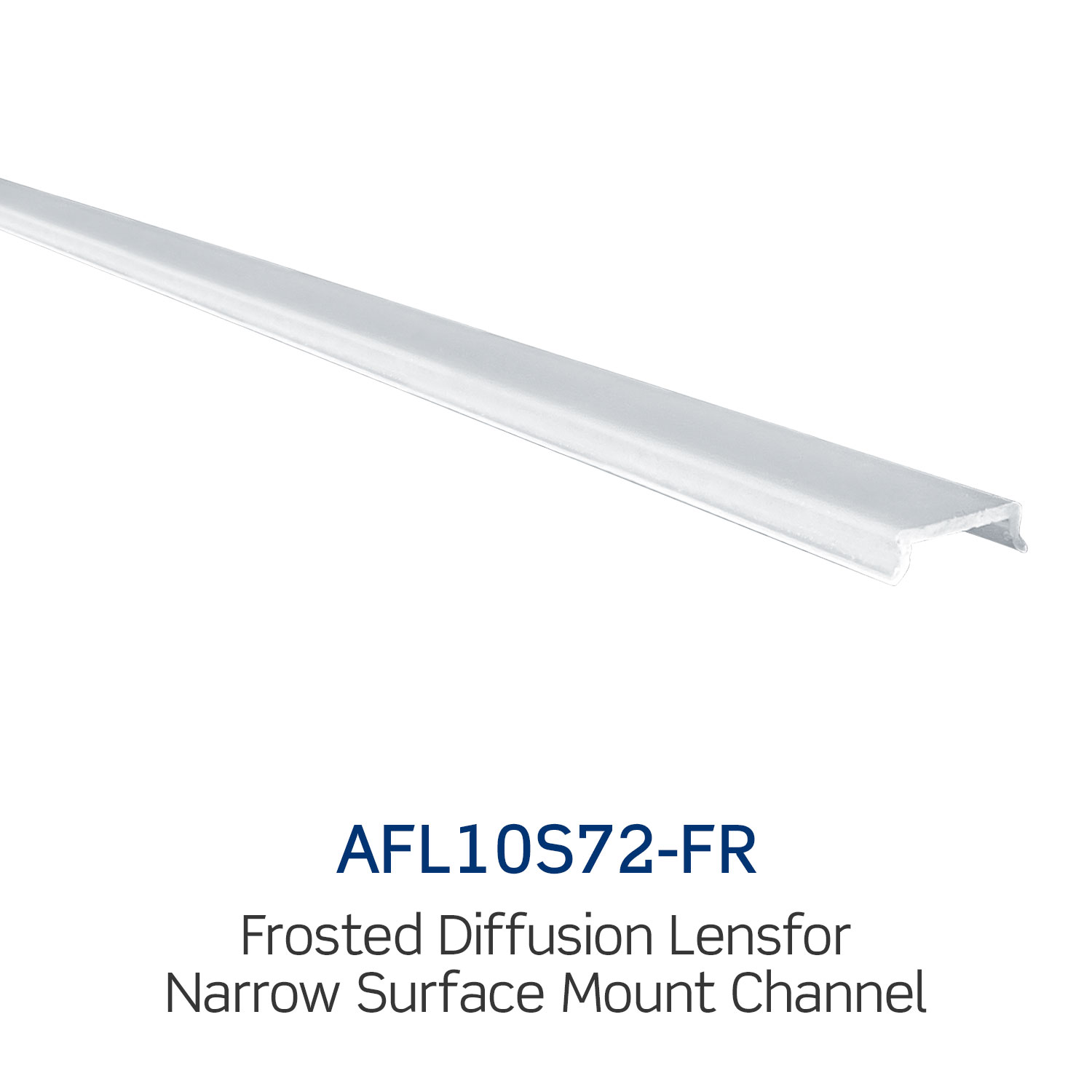

    AFL10S72-FR: Frosted Diffusion Lens
  • Mounting Clips are not available for the Narrow Surface Channel; use 3M™ Double-Sided Adhesive or Screw and Wall Anchor
  • Compatible with:
    DRY LOCATION - AFSS48 Series, AFSS48-7H Series, AFSS73 Series, AFSSCN Series, AFSS42 Series, AFSD36 Series, and AFSD58 Series
  • For 24V SpecFlex Series Strip Lighting only; not compatible with Screw-Tight Connectors

Product Information

  • Product Features

    Product Type : Mounting Channel

    Mounting Type : Surface

    Series Compatibility : SpecFlex

    Product Category : Strip Lighting

    Works With : AFSS48,AFSS48-7H,AFSS73,AFSSCN,AFSS42

    Feature : Narrow

    Environment : Dry Location
