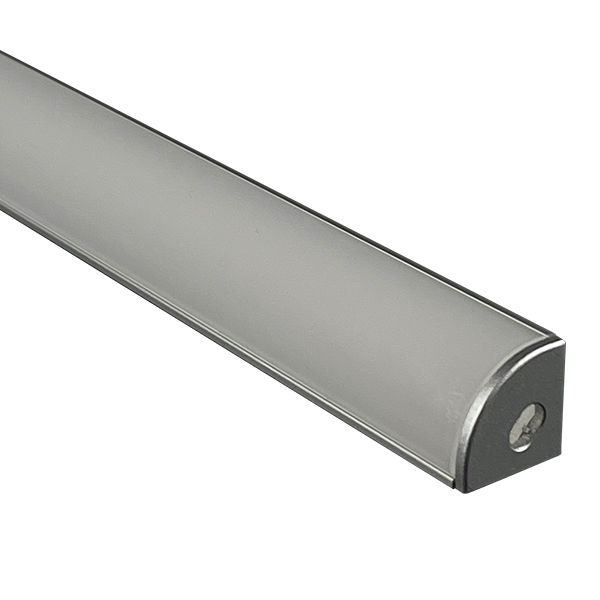

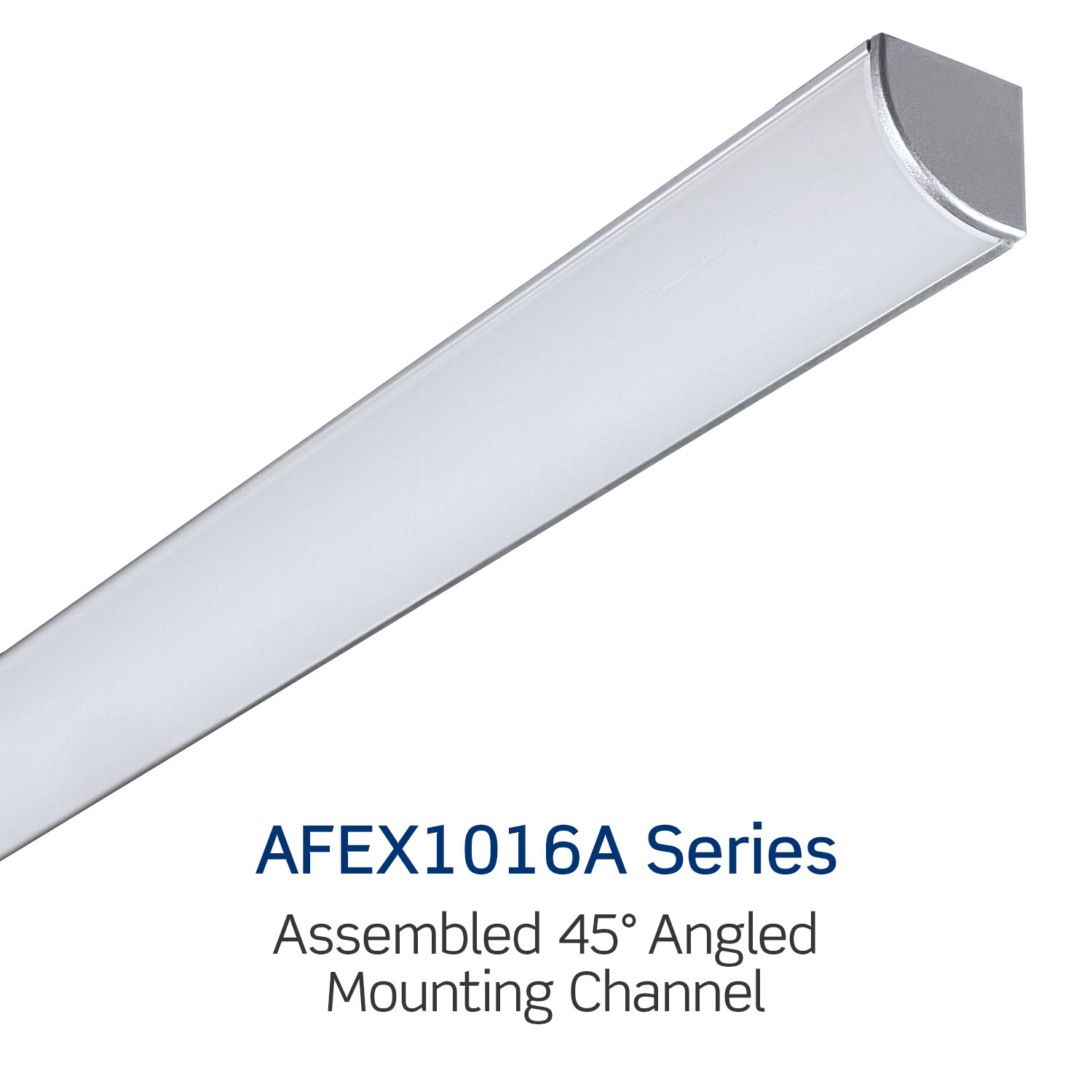

45° Angled Surface Mounting Channel
AFEX1016A Series
- Provides excellent heat sinking and protection to the LEDs while ensuring a clean, straight run

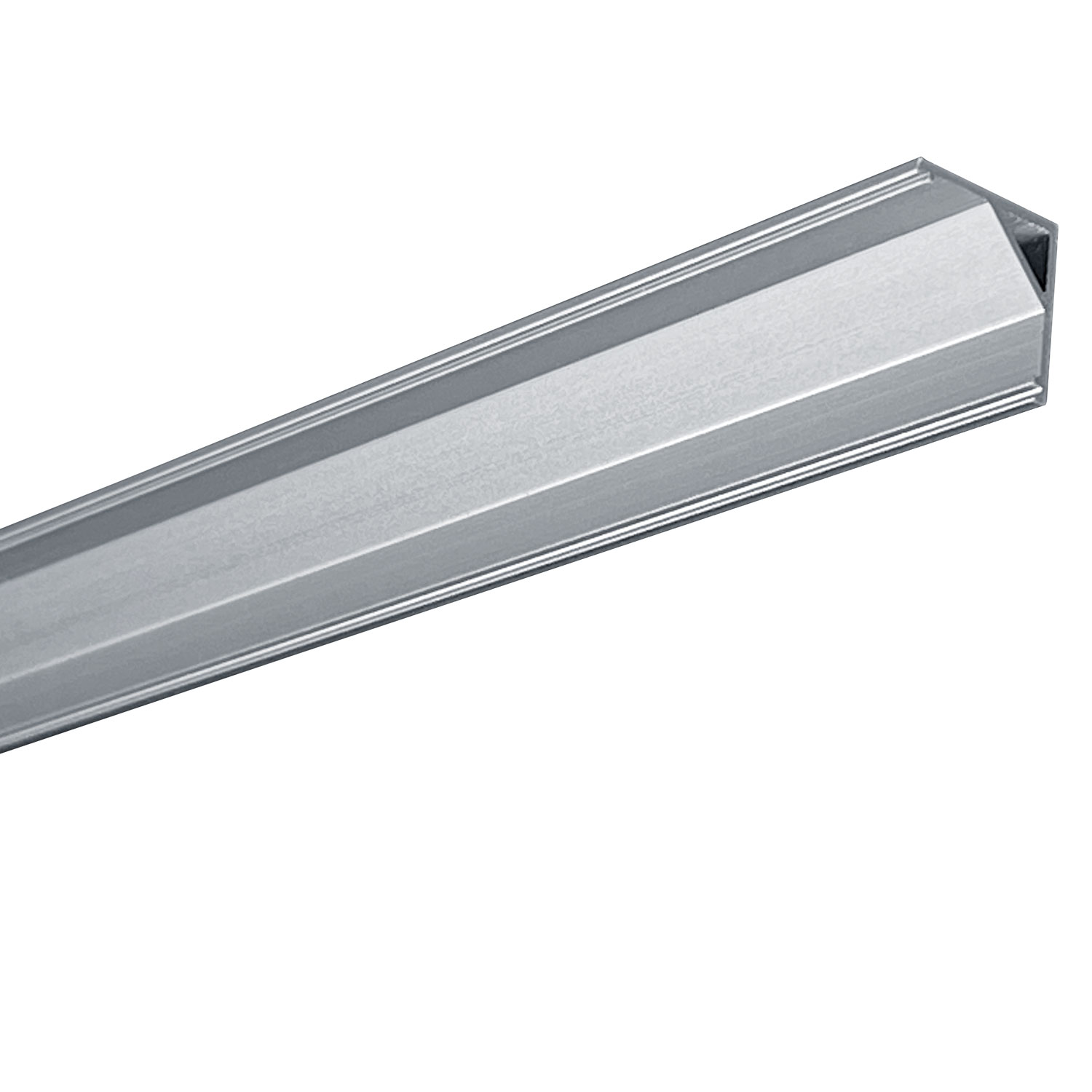

- Anodized Satin Aluminum Channel; 72-Inches long
- Components (Ordered Separately):

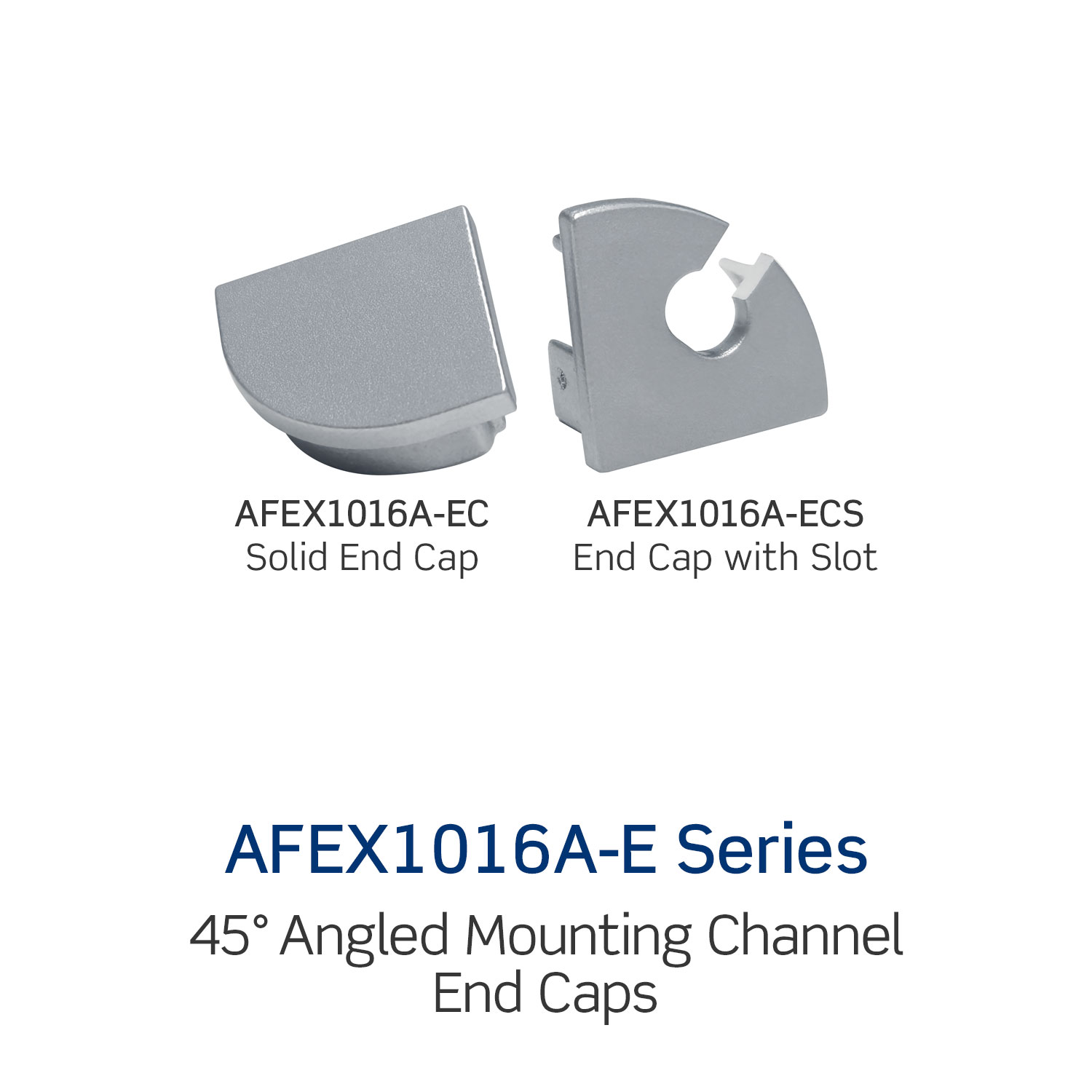

AFEX1016A-EC: Solid Endcap, Grey
AFEX1016A-ECH: Slotted Endcap, Grey
- ABS Grey Plastic
- Ordered individually

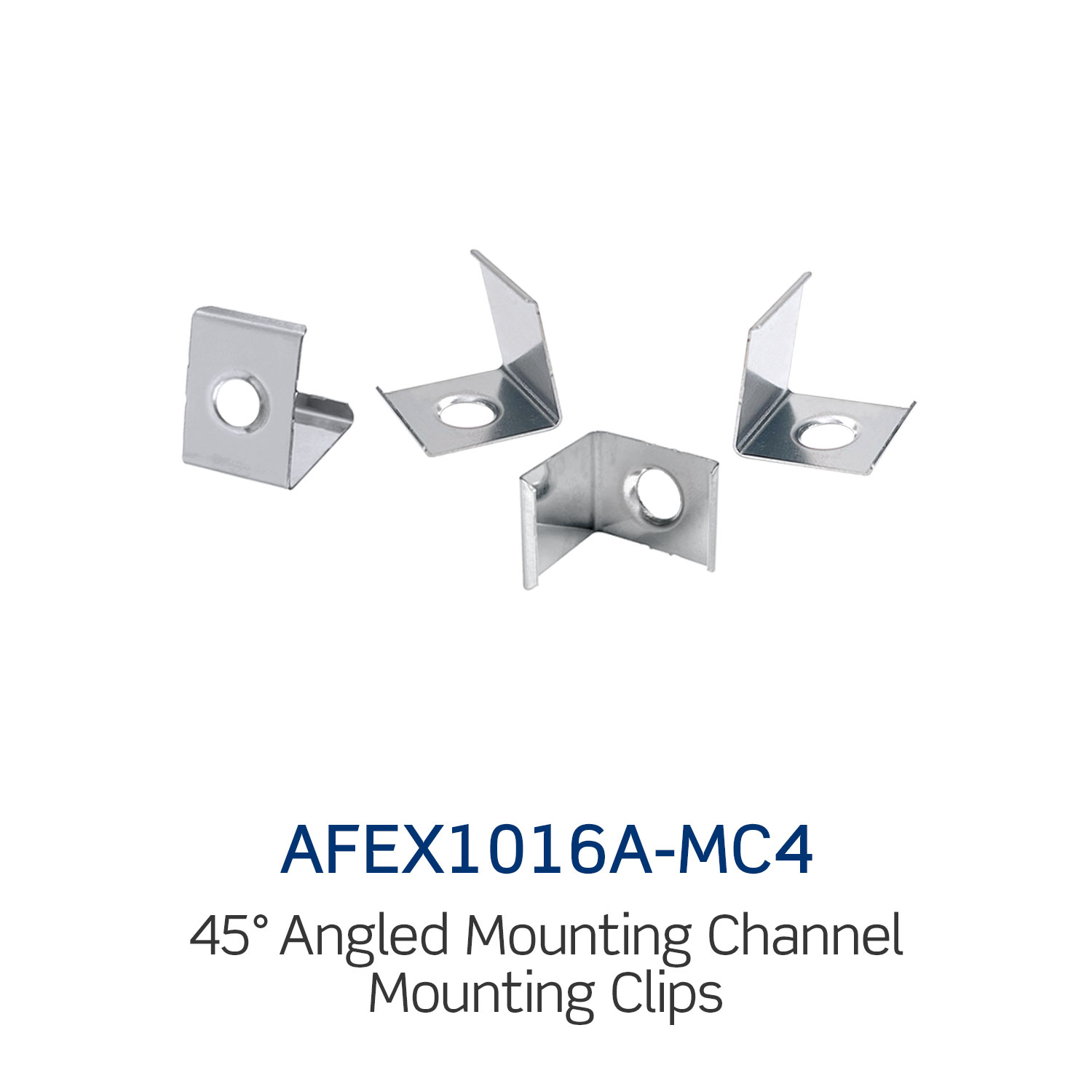

AFEX1016A-MC4: Standard Mounting Clips
- Stainless Steel, set of four (4)
- 24-Inches between Clips recommended for most applications

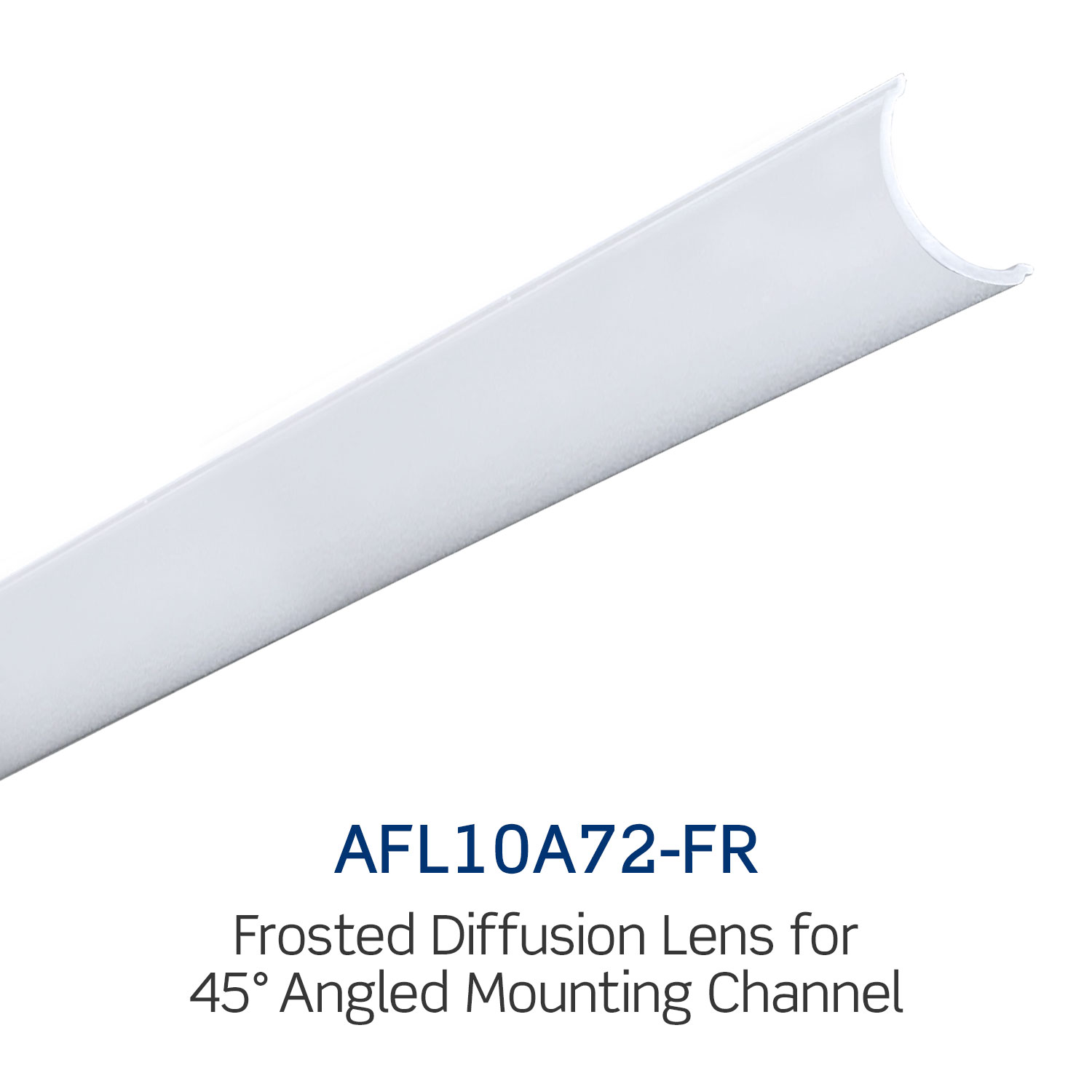

AFL10A72-FR: Frosted Diffusion Lens - Compatible with:
DRY LOCATION - AFSS48 Series, AFSS48-7H Series, AFSS73 Series, AFSSCN Series, and AFSS42 Series - For 24V SpecFlex Series Strip Lighting only; not compatible with Screw-Tight Connectors
Product Information
Updated
Product Features
Product Type : Mounting Channel
Mounting Type : Surface
Series Compatibility : SpecFlex
Product Category : Strip Lighting
Works With : AFSS48,AFSS48-7H,AFSS73,AFSSCN,AFSS42
Feature : Angled
Environment : Dry Location
