Beam Focusing Mounting Channel
AFEX1112BEAMS Series

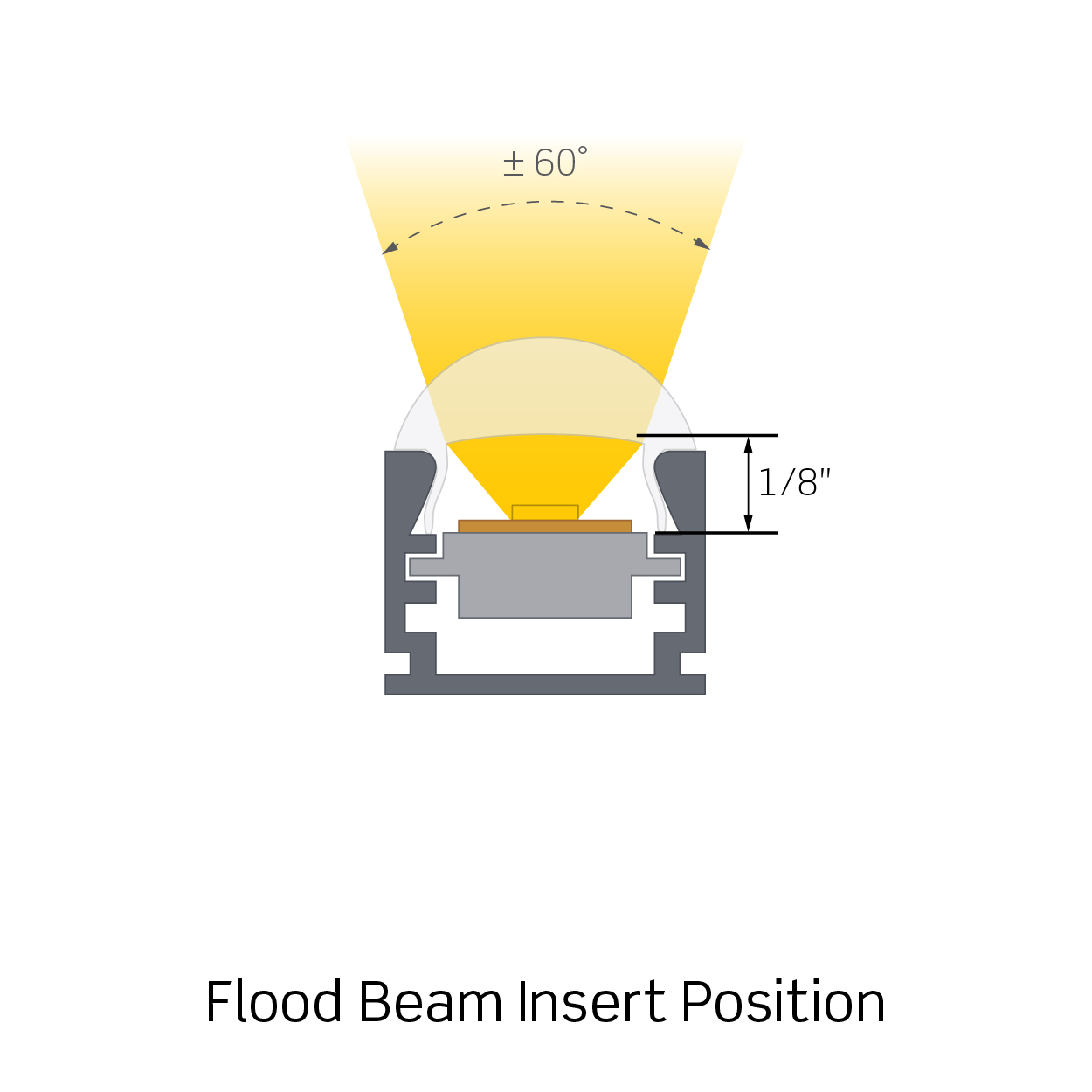

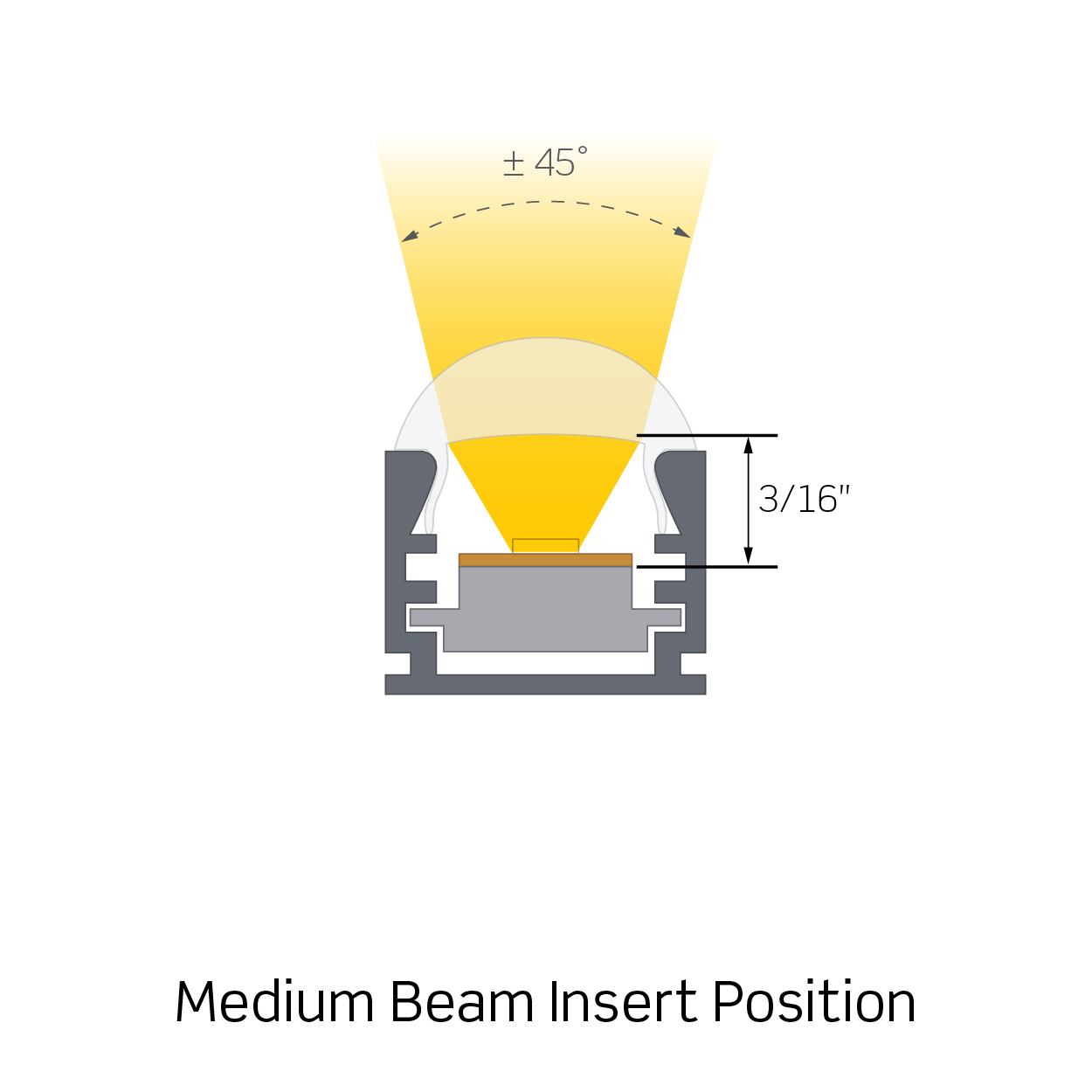

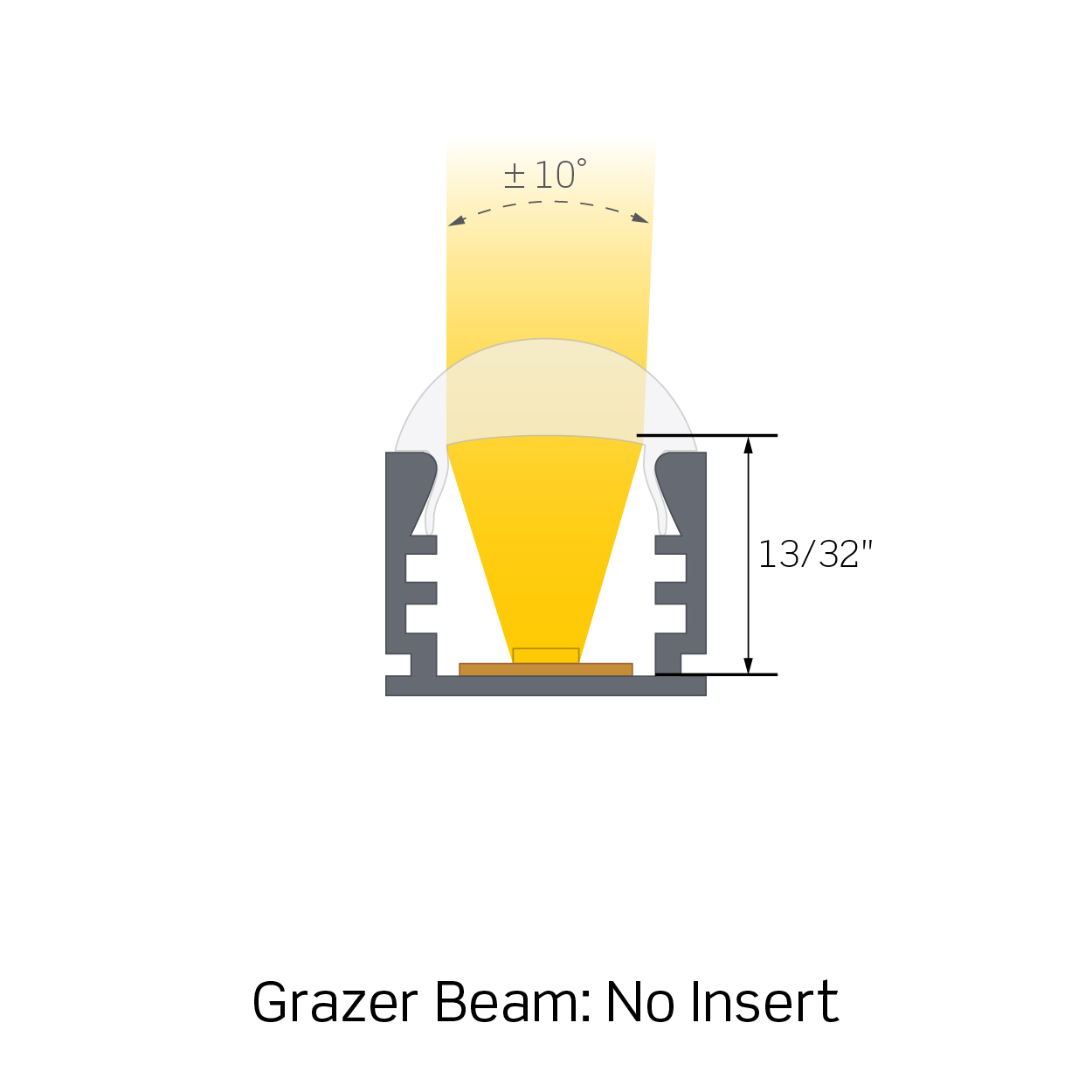

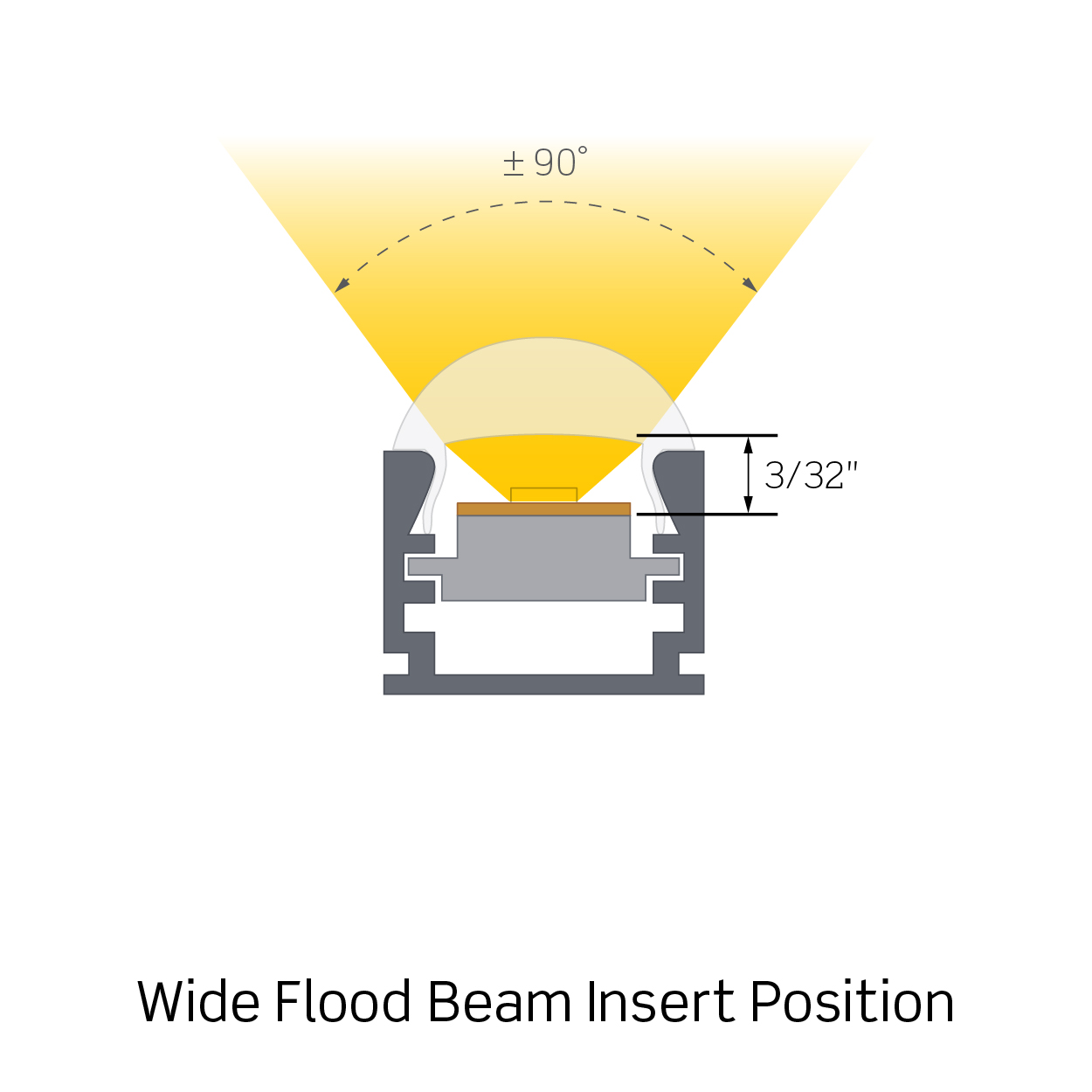

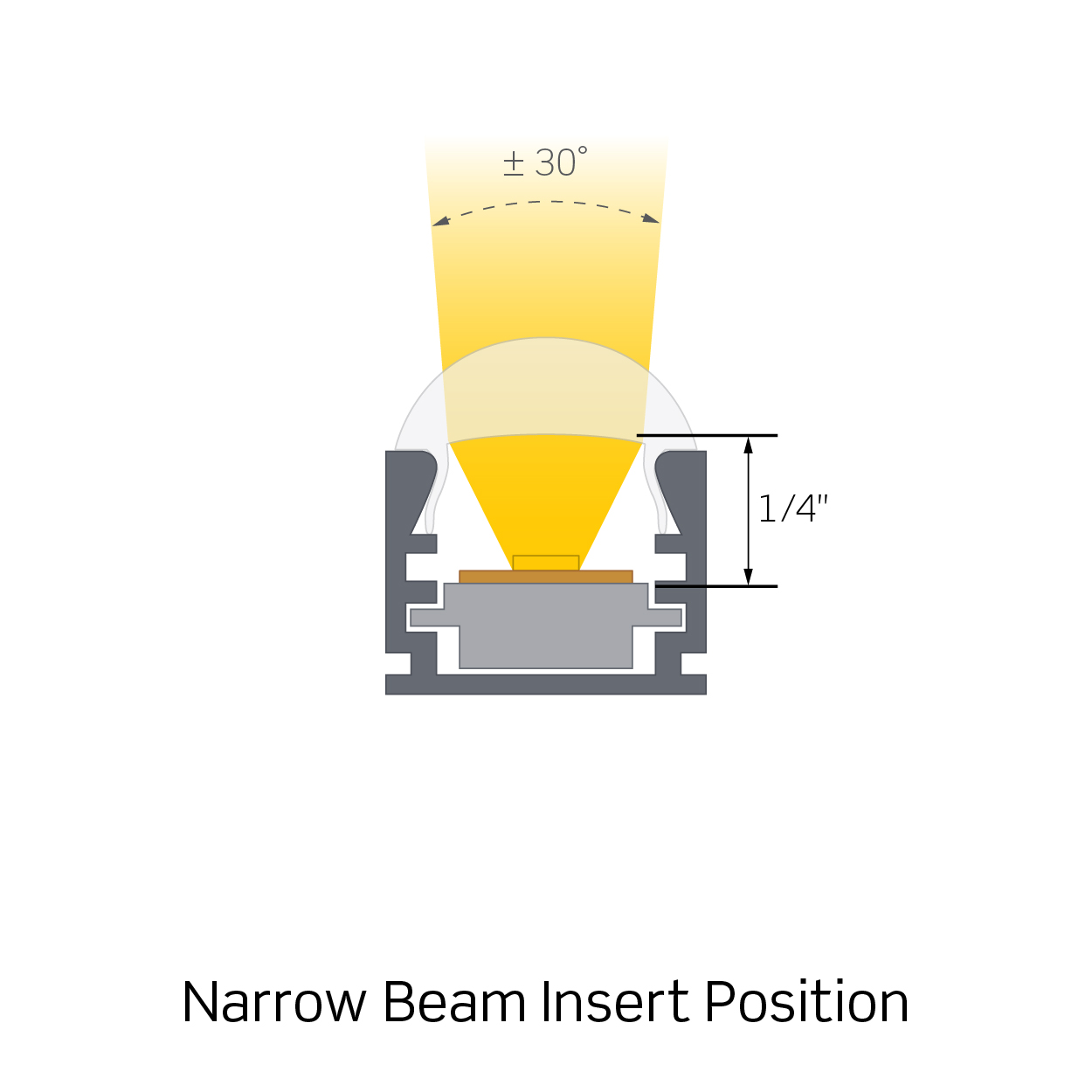

- The Channel and Adjustable Insert can be configured to create one (1) of five (5) different beam spreads: Grazer, Narrow, Medium, Flood, and Wide Flood

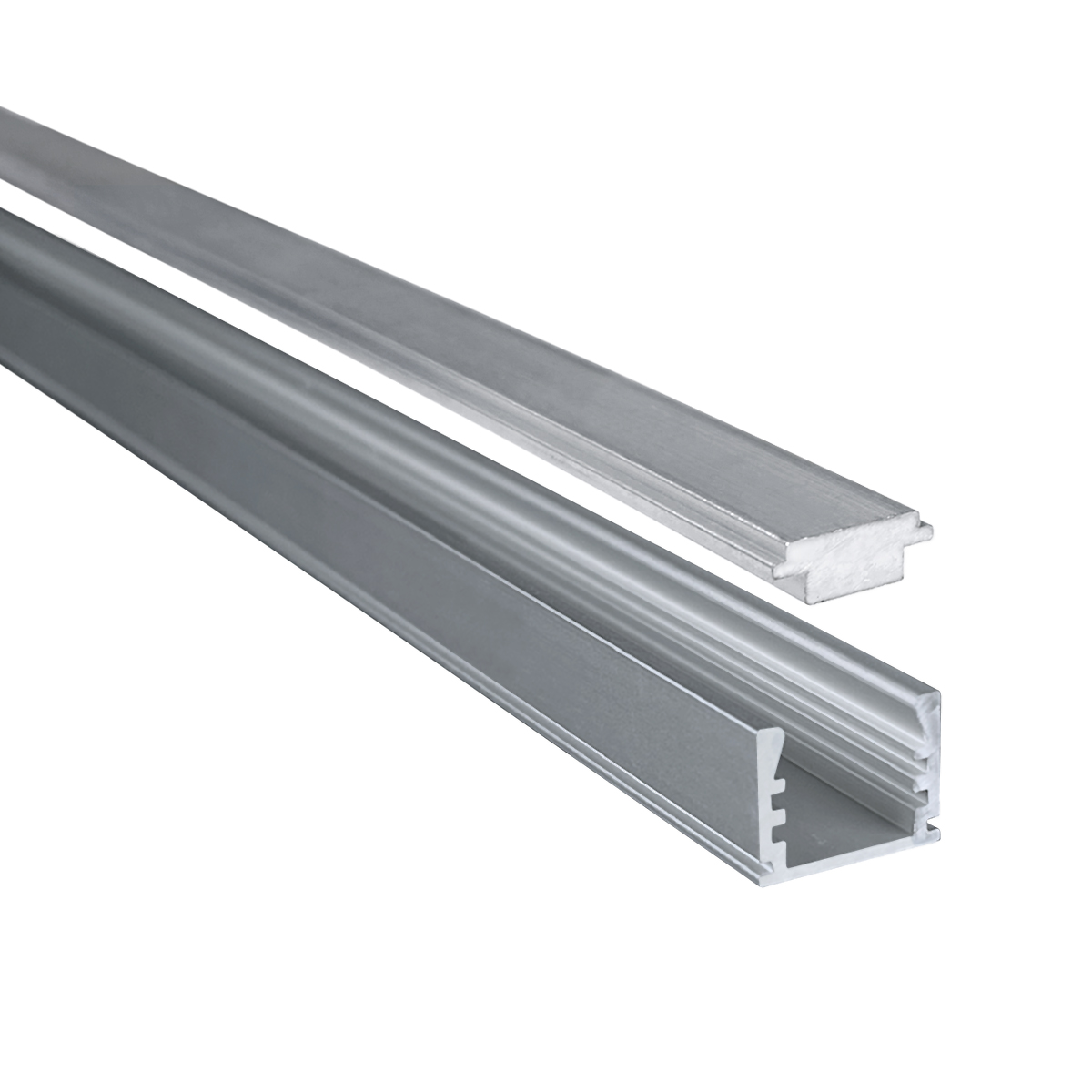

- Adjustable Insert/Mezzanine is included with the Channel
- The smaller the distance between the Adjustable Insert/Strip Light and the Optic, the wider the beam angle
- Once the beam spread is chosen, it cannot be adjusted

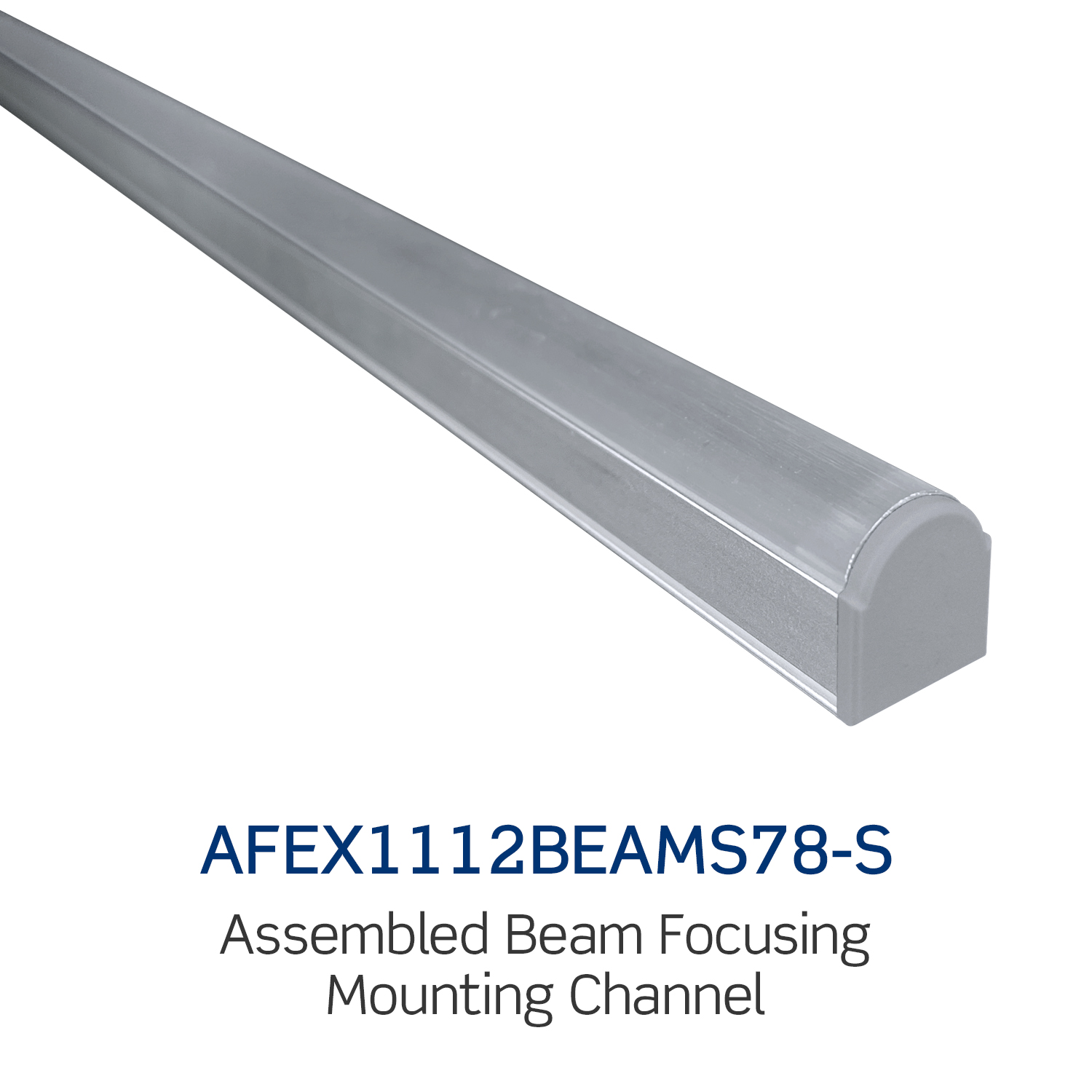

- Anodized Satin Aluminum Channel; 78-Inches long
- Components (Ordered Separately):

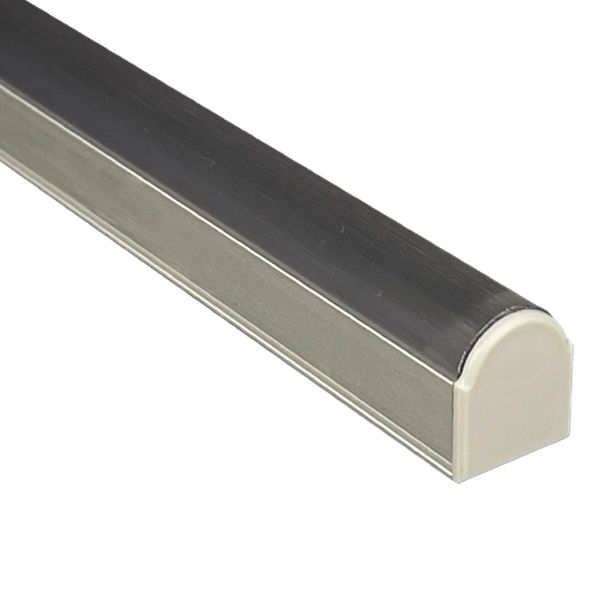

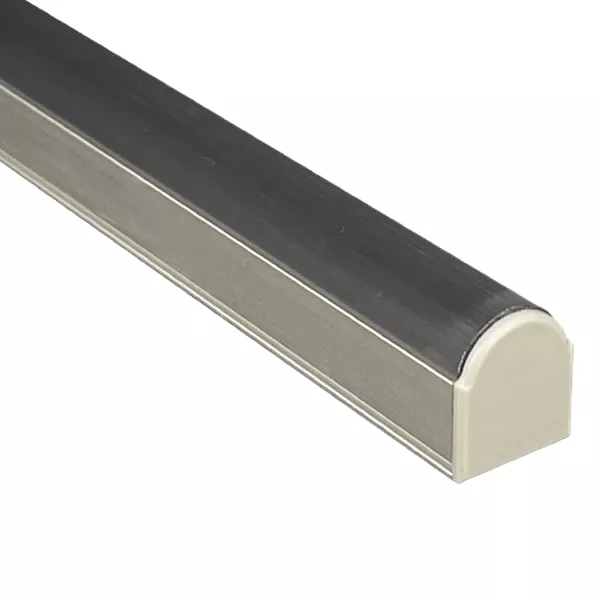

AFEX1112BEAMS-EC: Solid Endcap, Grey
AFEX1112BEAMS-ECH: Open Endcap, Grey
- ABS Grey Plastic
- Ordered individually

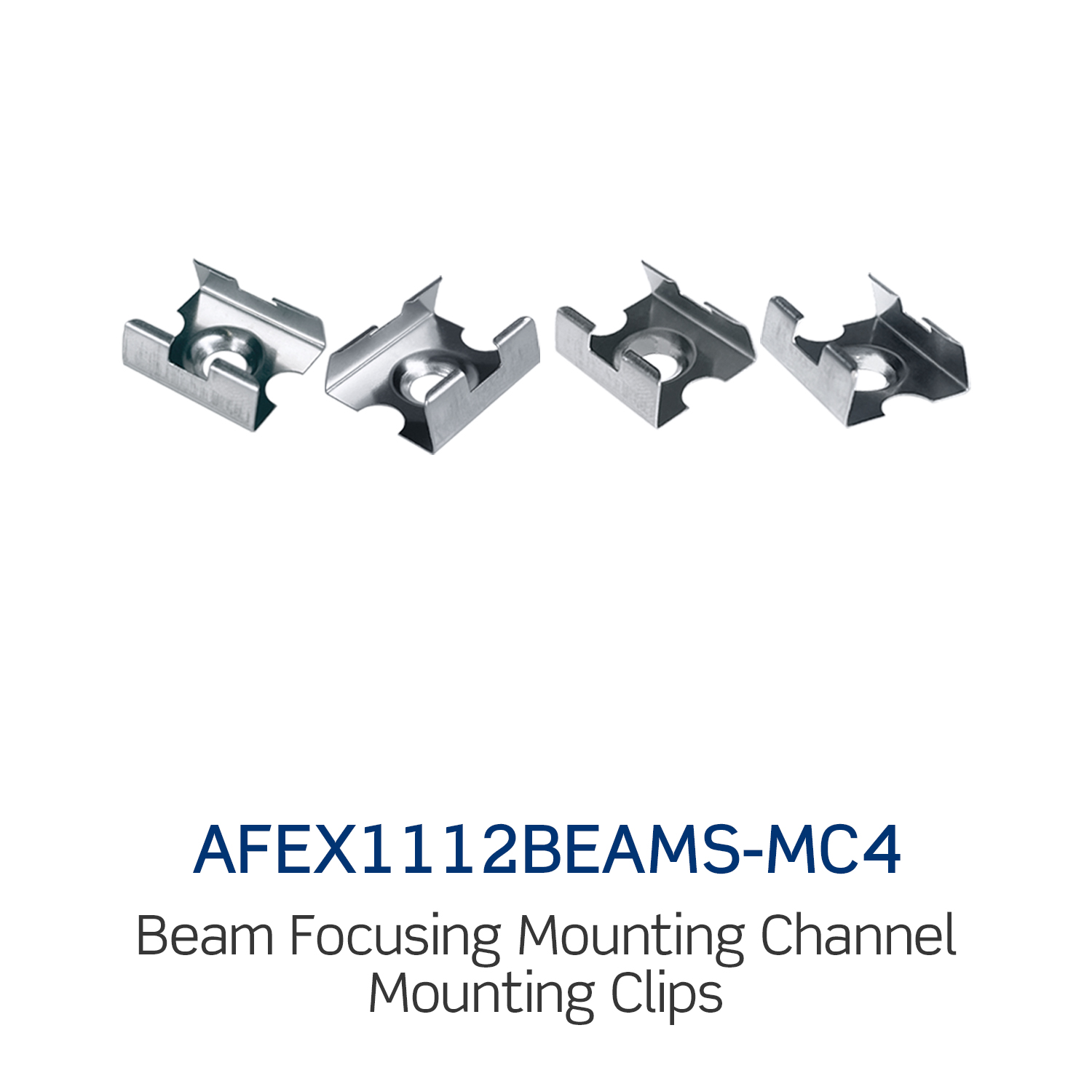

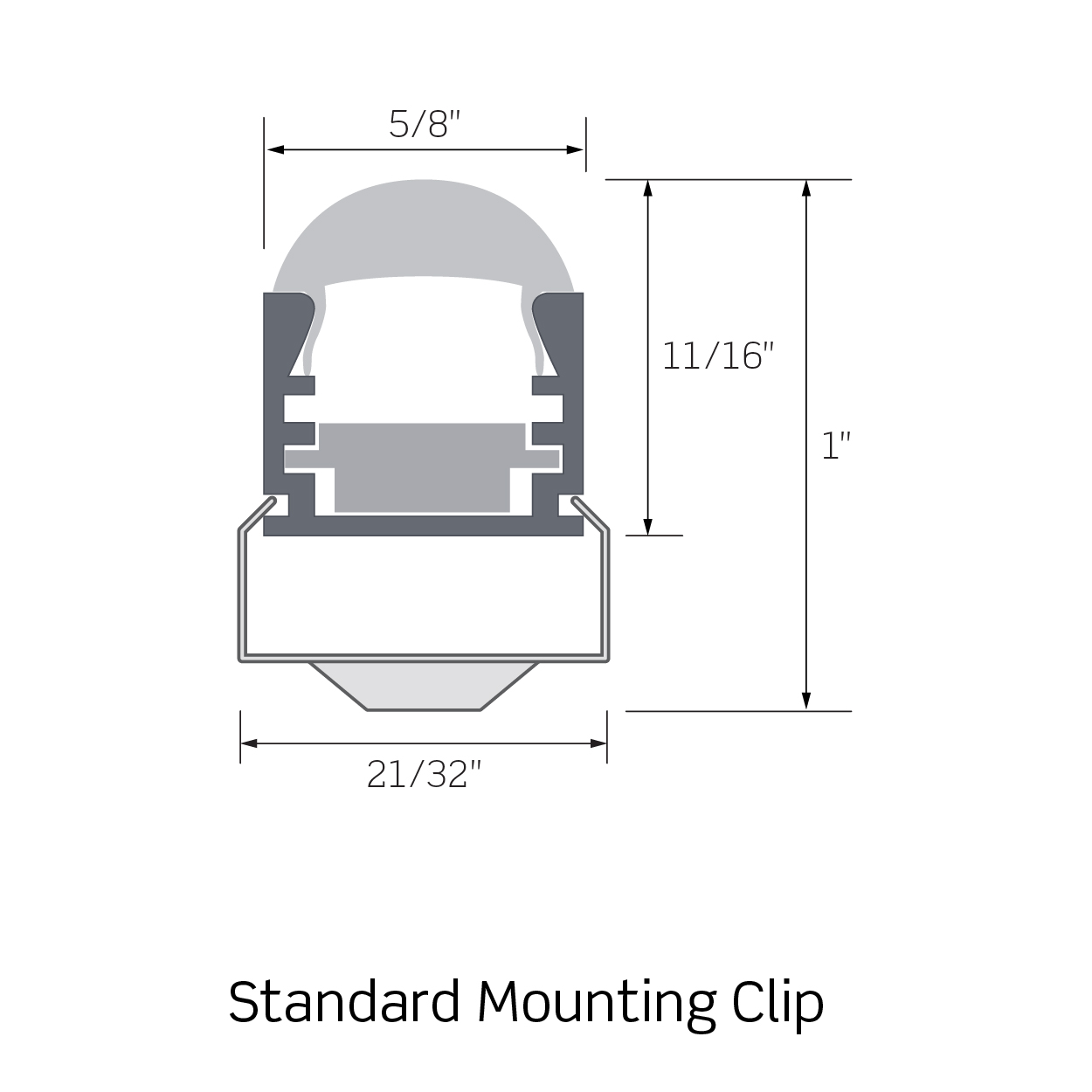

AFEX1112BEAMS-MC4: Standard Mounting Clips

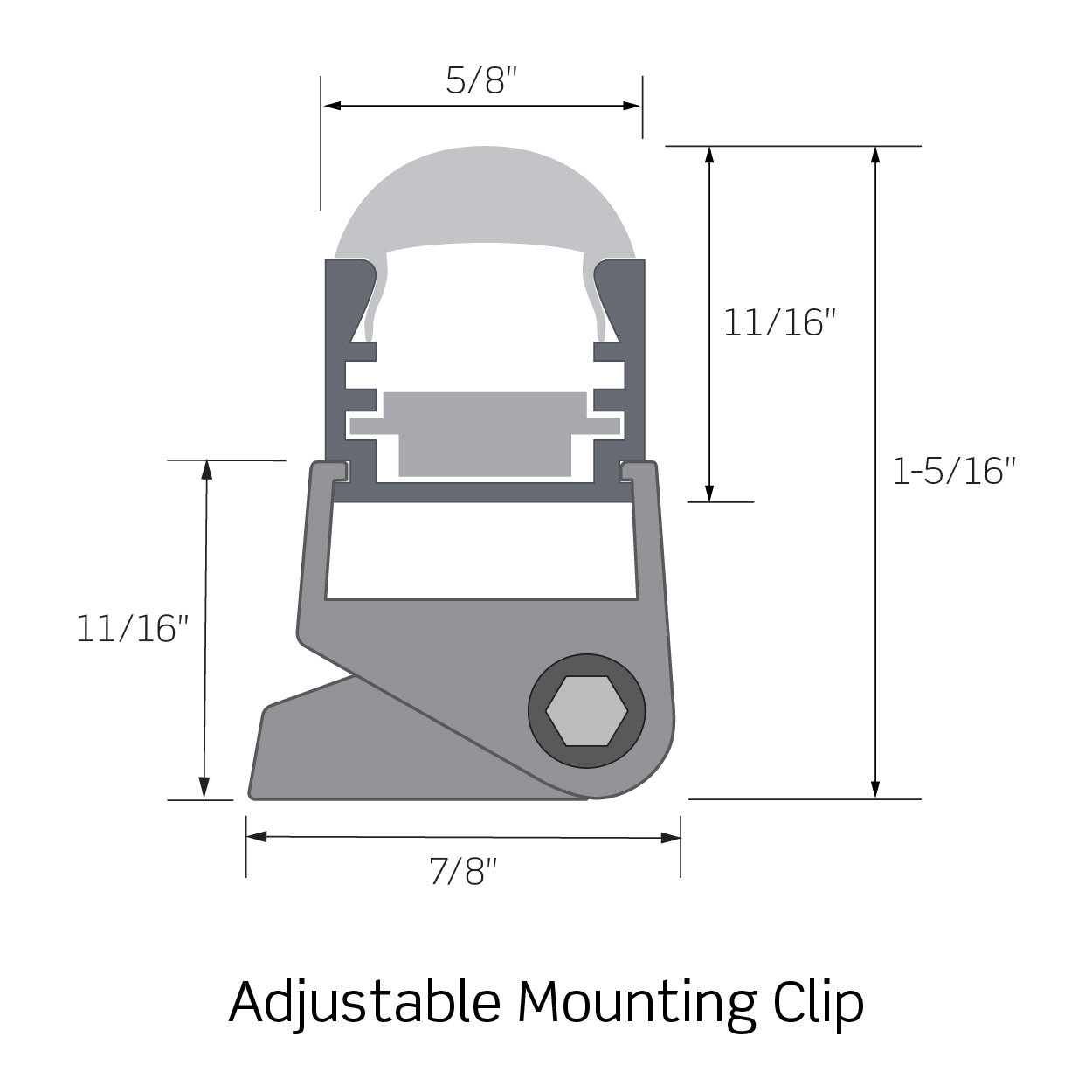

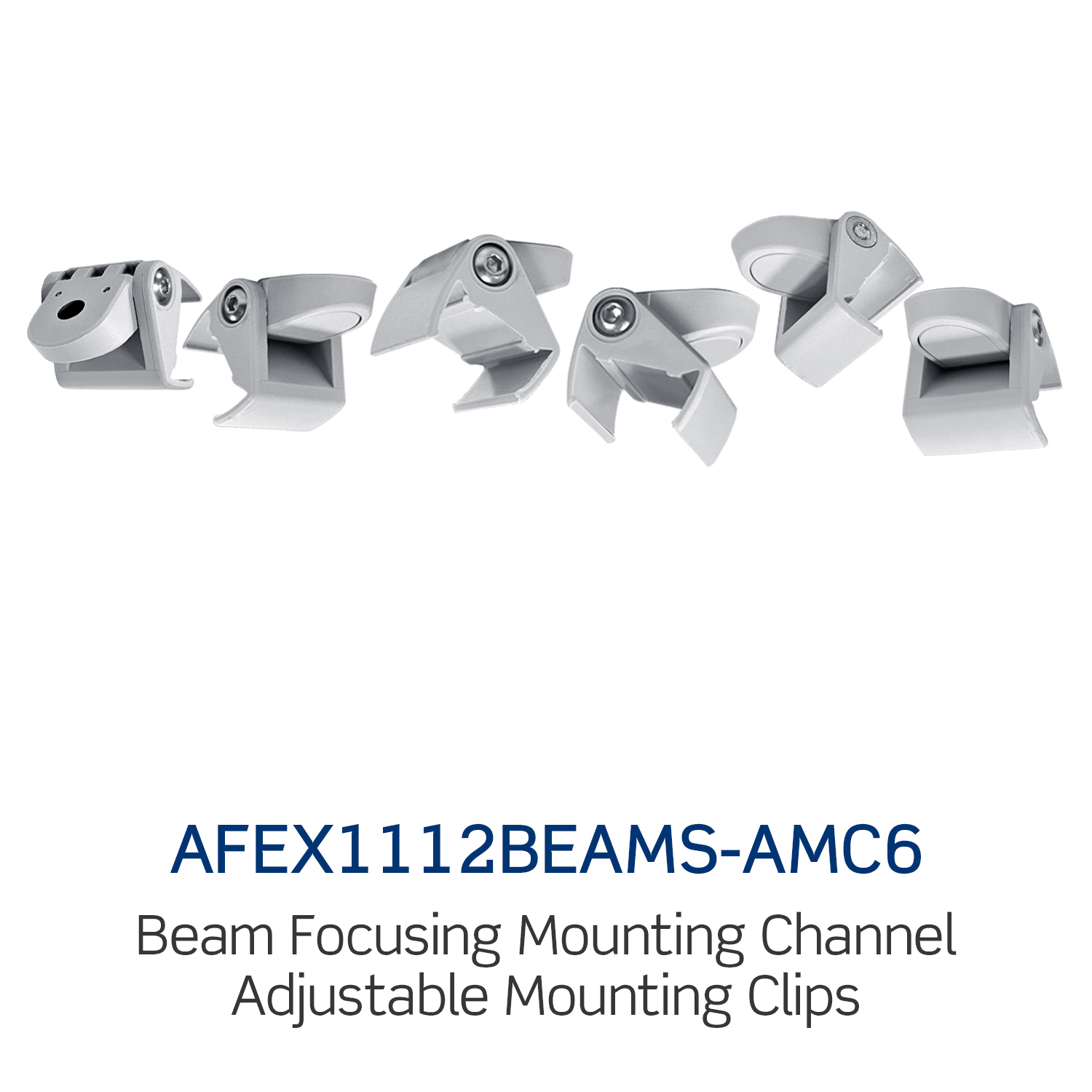

AFEX1112BEAMS-AMC6: Adjustable Mounting Clips
- Standard Clips are Stainless Steel, Adjustable Clips are ABS Plastic
- 24-Inches between clips recommended for most applications

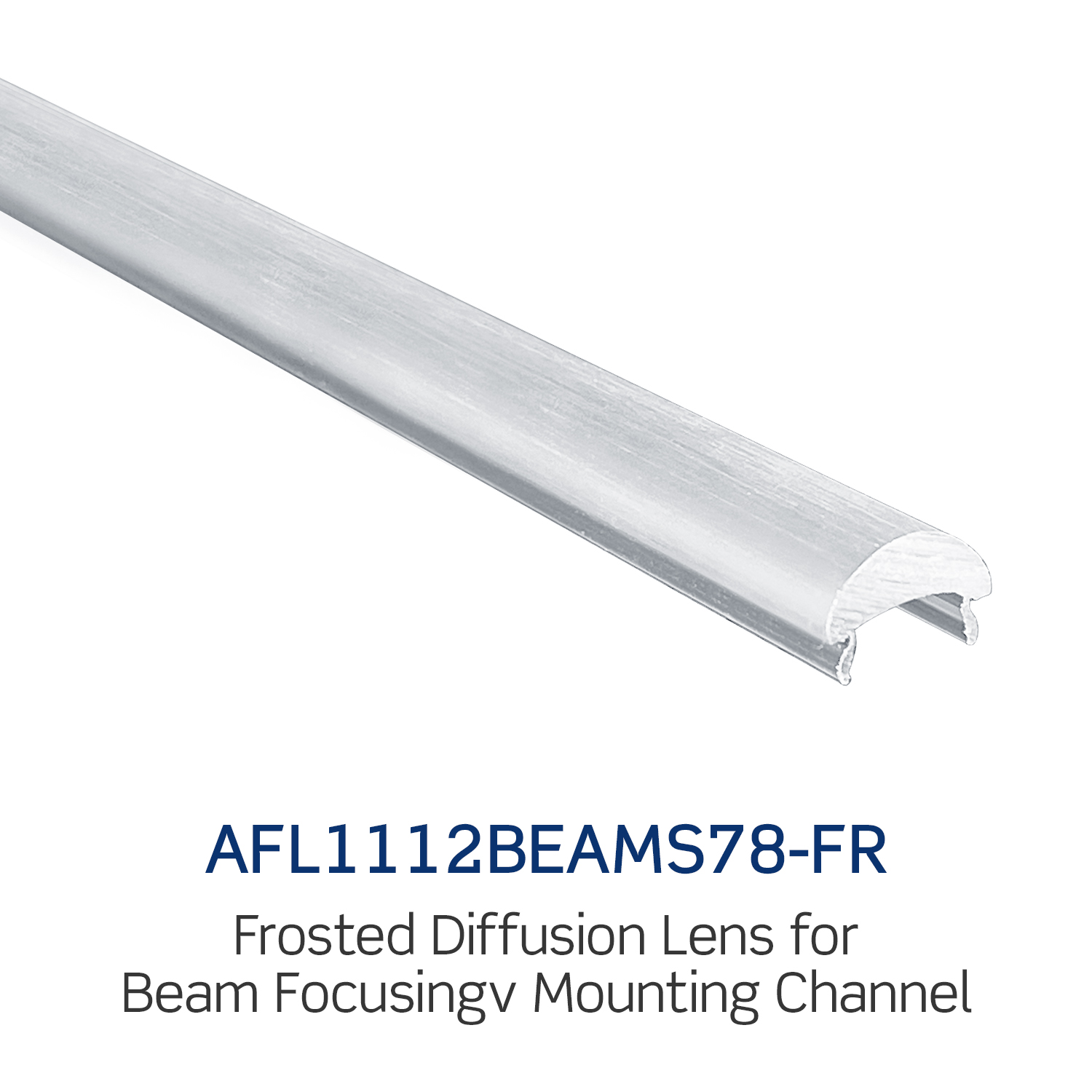

AFL1112BEAMS78-FR: Beam Focusing Optic, Frosted - Compatible with:
DRY LOCATION - AFSS48 Series, AFSS48-7H Series, AFSS73 Series, AFSSCN Series, and AFSS42 Series - For 24V SpecFlex Series Strip Lighting only; not compatible with Screw-Tight Connectors
Product Information
Updated
Product Features
Product Type : Mounting Channel
Mounting Type : Surface
Series Compatibility : SpecFlex
Product Category : Strip Lighting
Works With : AFSS48,AFSS48-7H,AFSS73,AFSSCN,AFSS42
Feature : Beam Focusing
Environment : Dry Location
