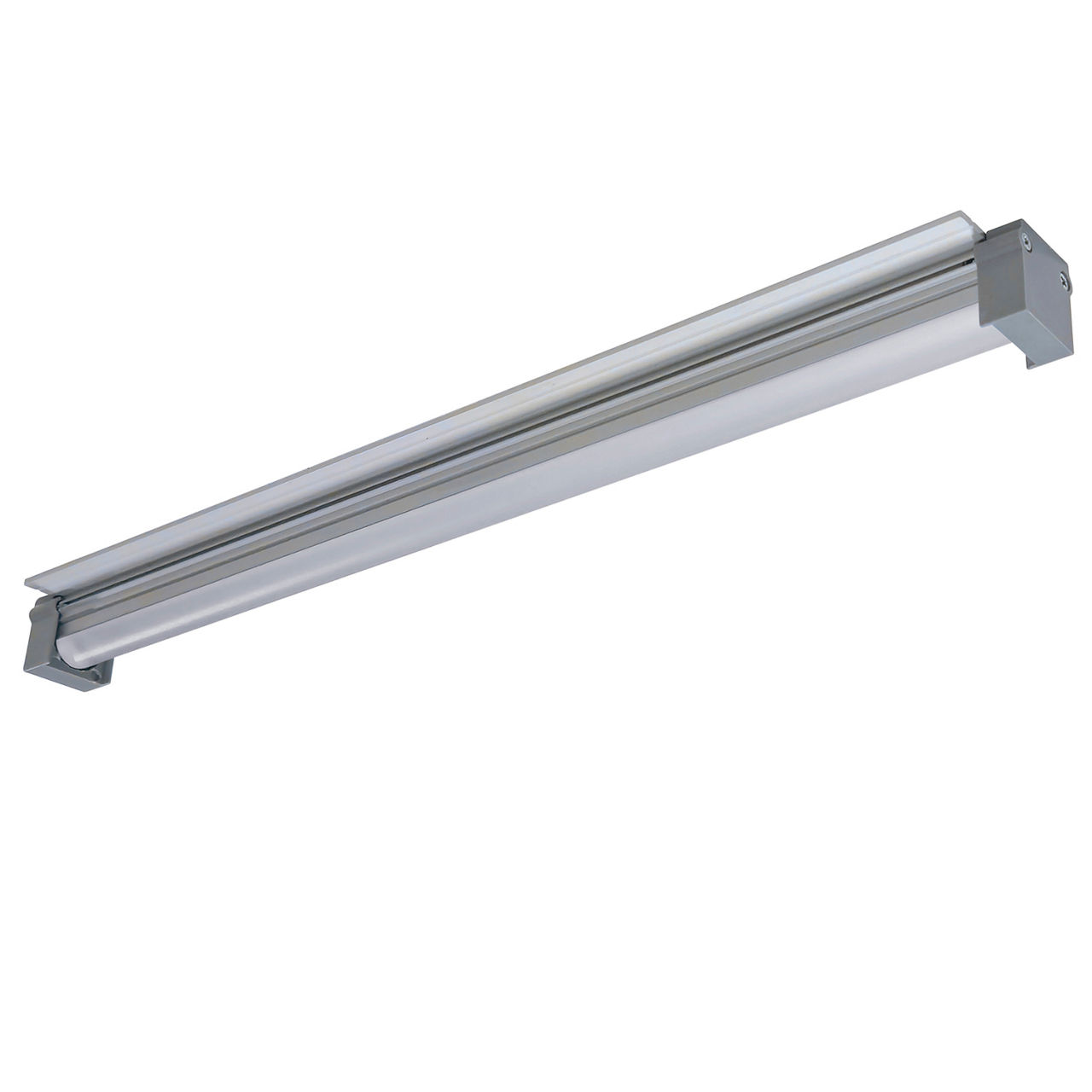

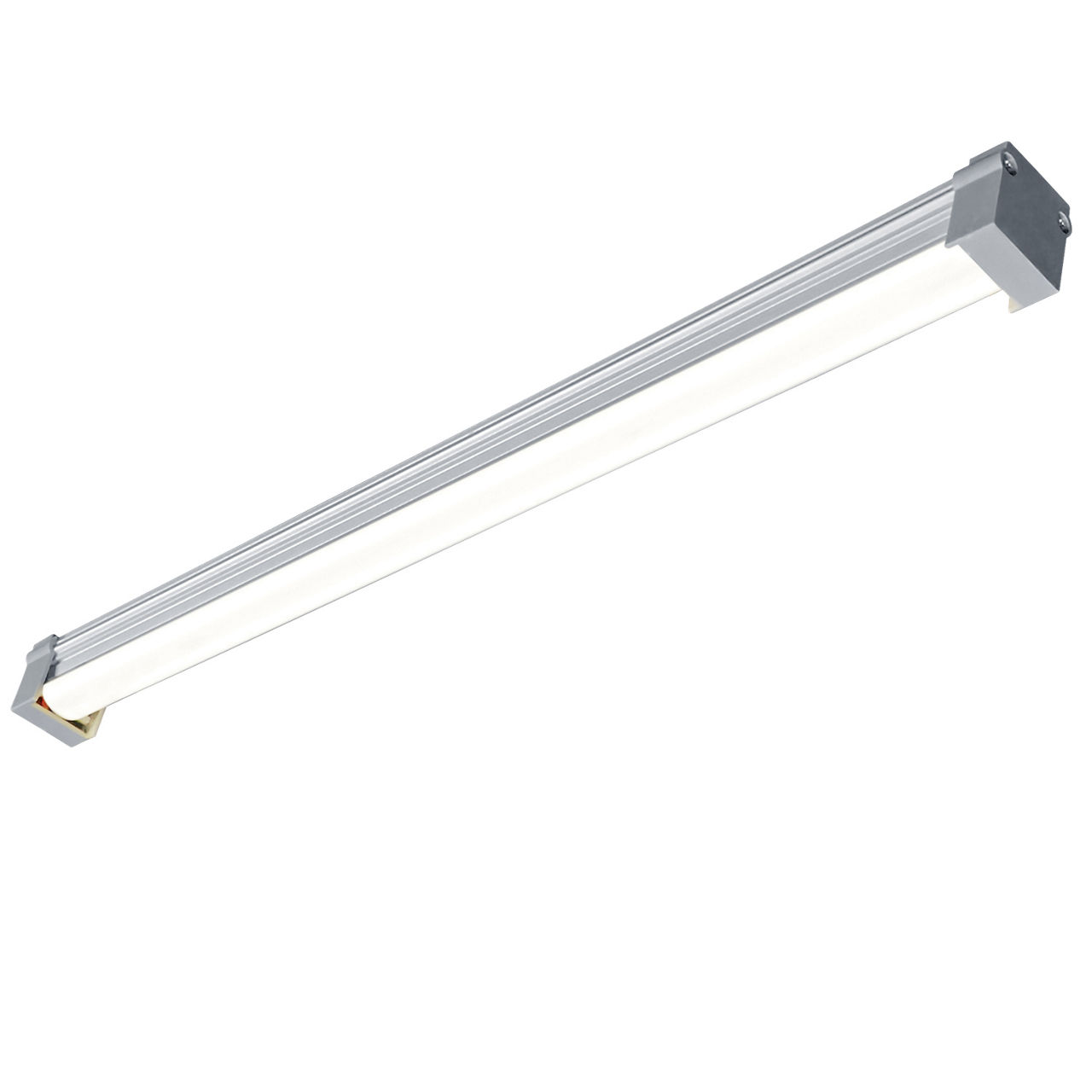

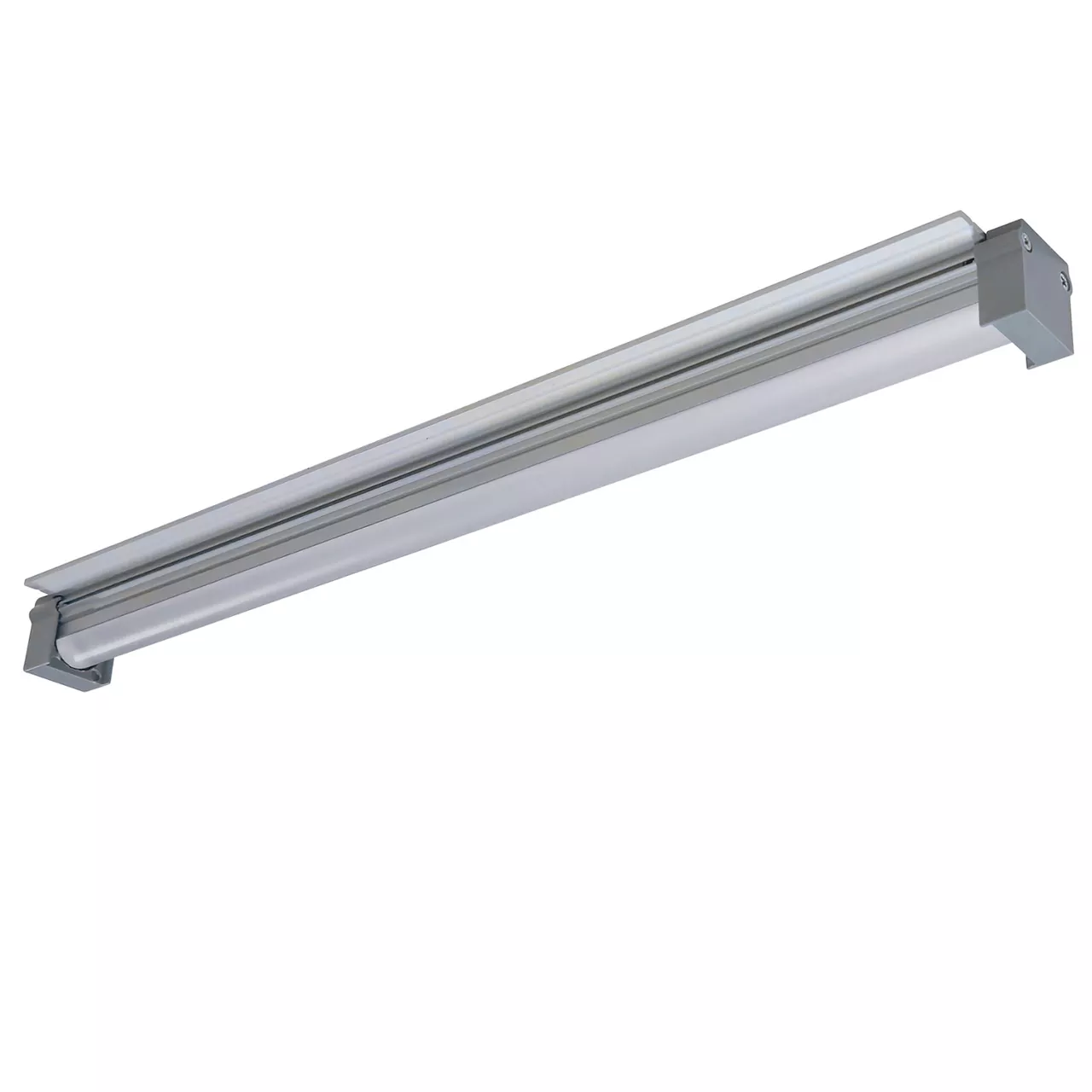

Slot Linear Luminaire
AFLSPVN

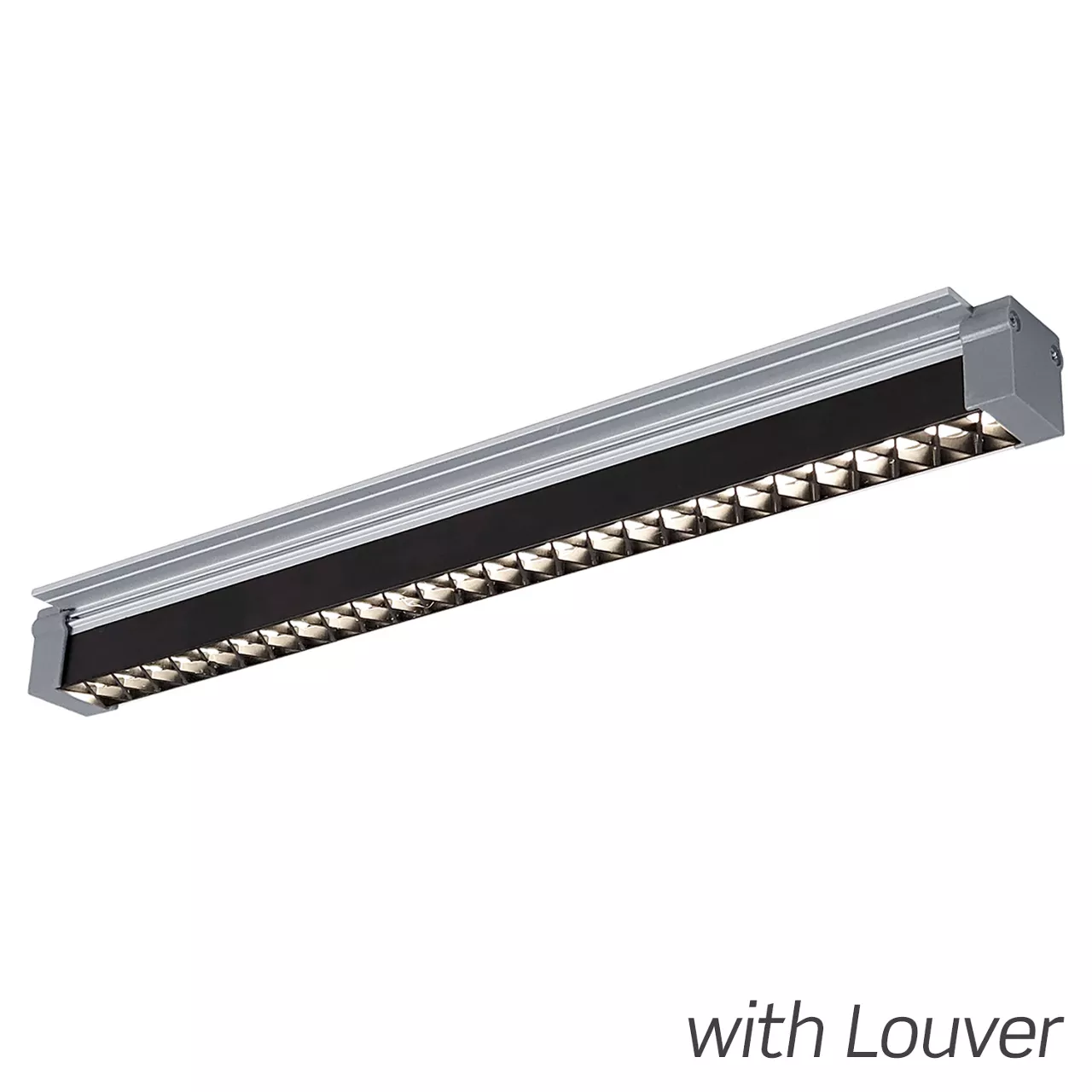

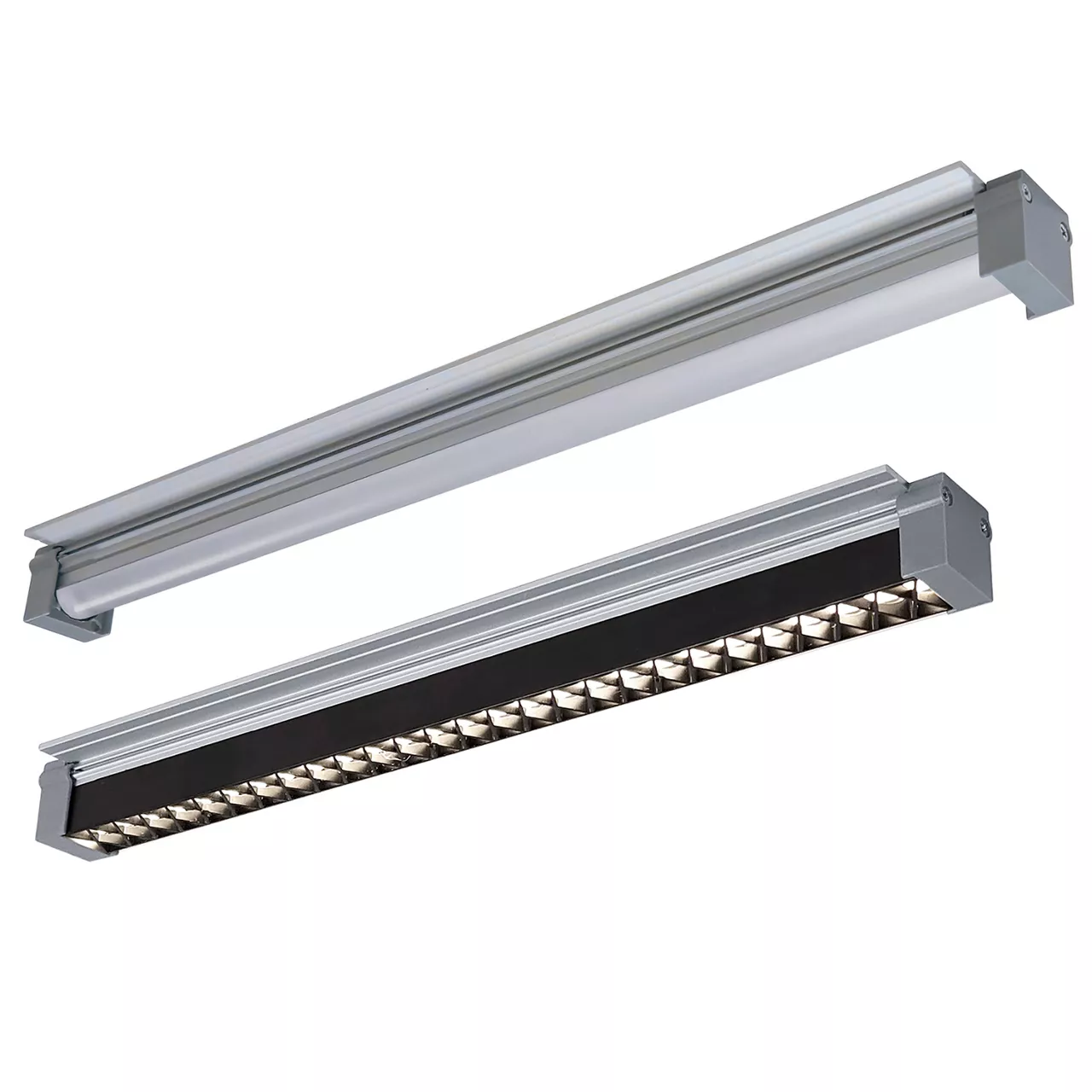

with Louver accessory for glare control
- Unique Channel Design enables simple installation and alignment without the need for secondary mounting clips

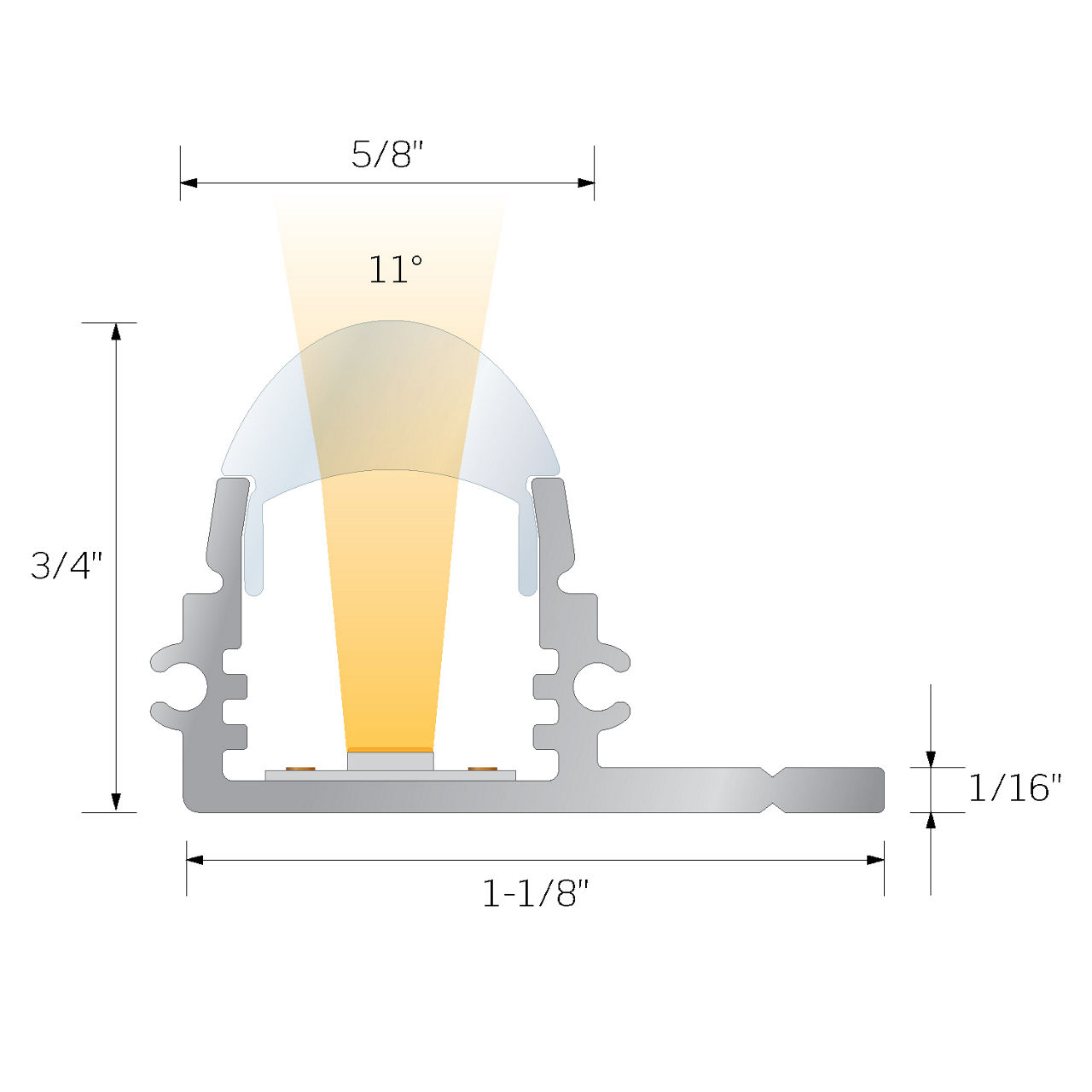

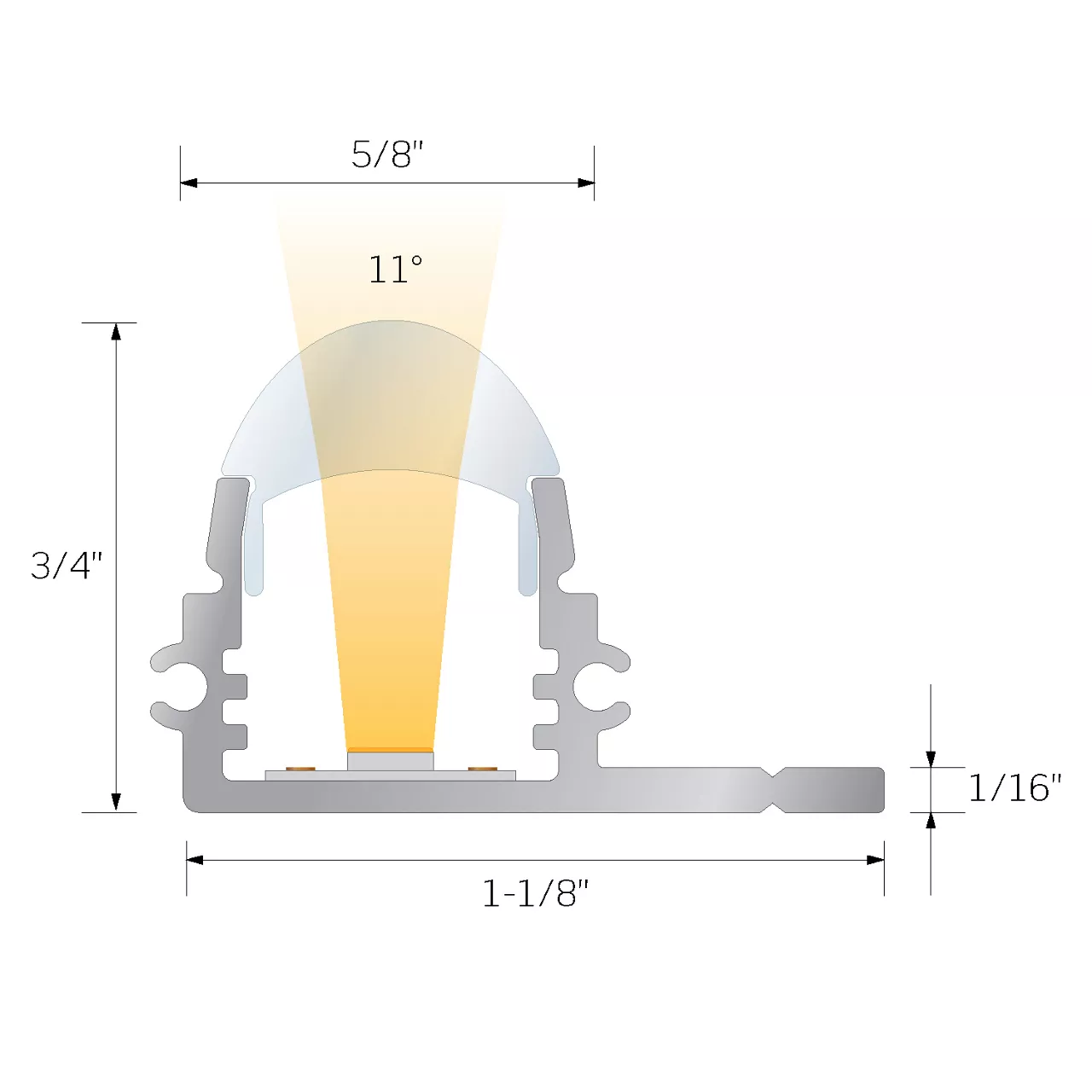

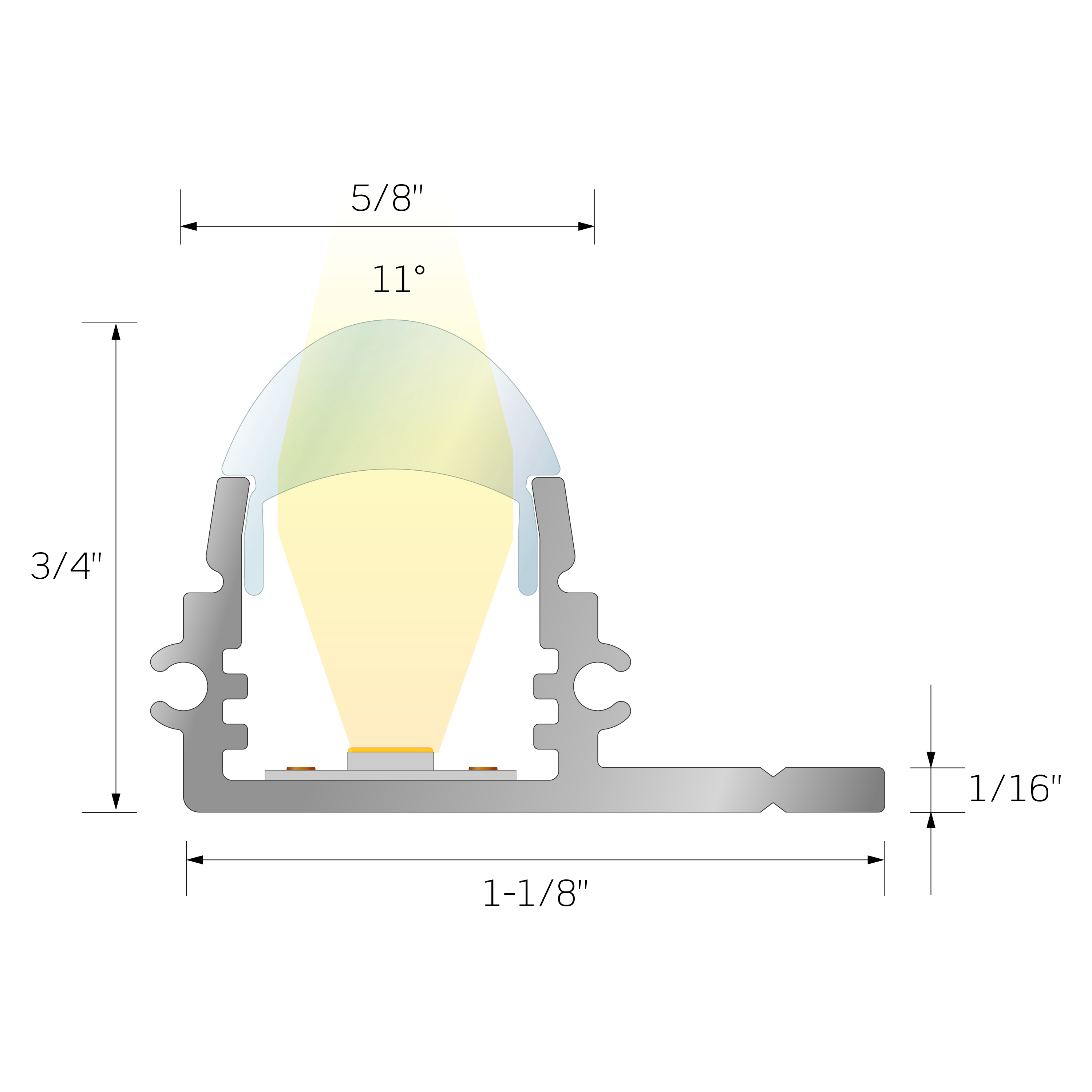

- 11° Beam spread perfect for grazing applications

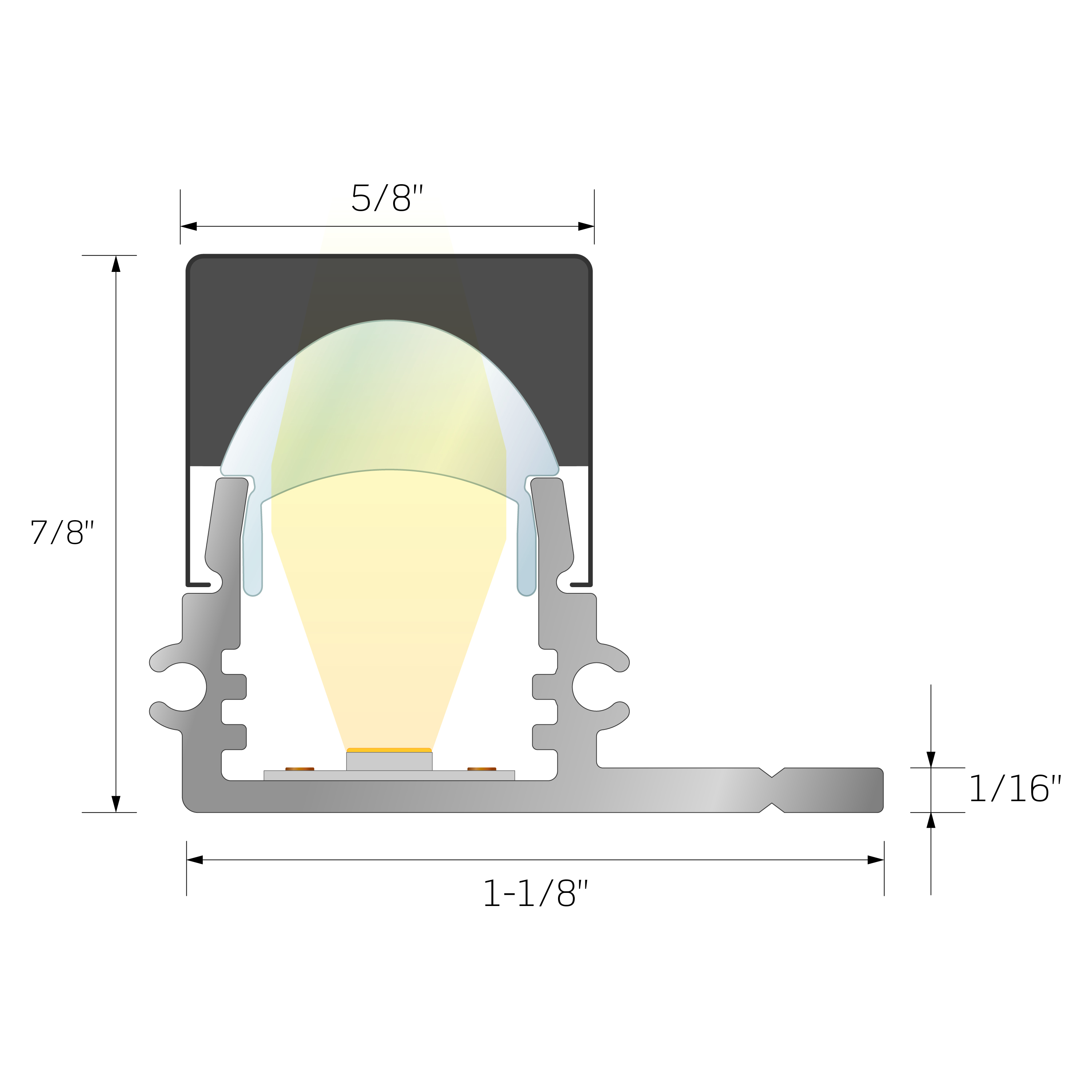

- Louver accessory available for glare control
- Excellent color rendering and consistency: 90+ CRI within <2 SDCM
- 6W per Foot; up to 393Lm per foot without Louver, 169Lm per foot with Louver
- Select from six (6) nominal lengths or build to size in 2− inch intervals up to 72– inches (minimum length: 3− inches)
- In-line Connectors available for seamless joins of up to 16.4− feet
- 0-10V and Phase (Forward/Reverse) Dimmable
Specifications
Instruction Sheet
IES
Technical Information
Product Features
Color Rendering Index : 90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
LED Manufacturer/Type : Grazer
Listings : Dry Location,cCSAus Listed
Lumens per Foot : 393
Mounting : Wall,Ceiling
Product Type : Linear,Strip Lighting
Wattage per Foot : 6W
Max Run Length : 16.4-Ft.
Dimming Technology : Forward/Reverse Phase,0-10V
