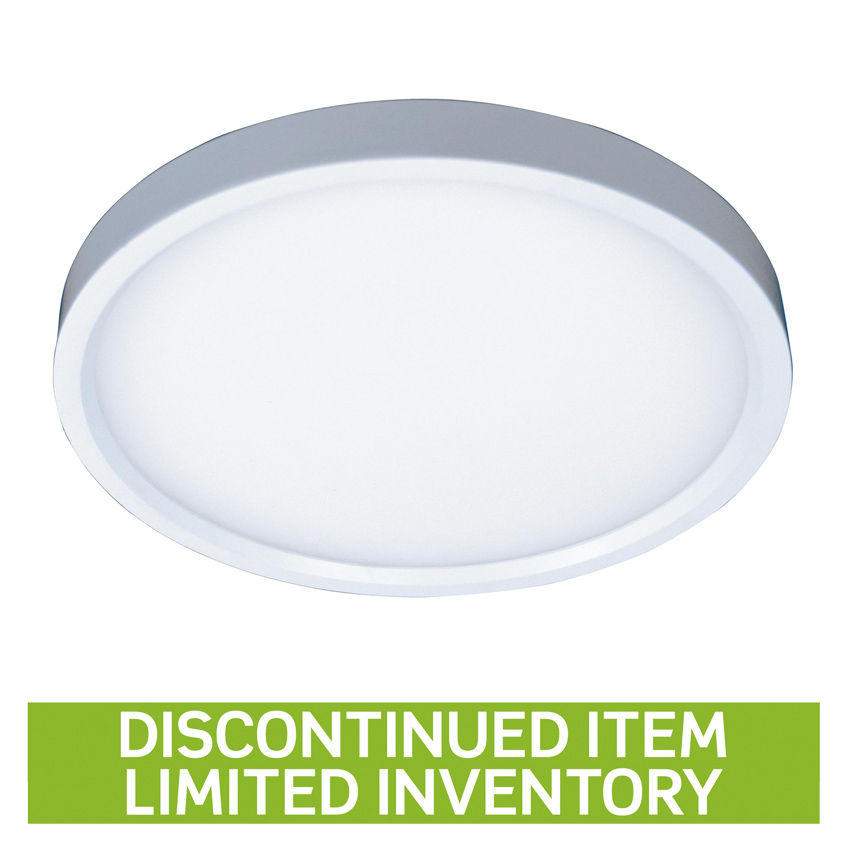

5" and 7" Round ArchiThin Surface Mount Downlights

ASMR

  • Available in 5- or 7- inch cast aluminum Round frame, White Finish
  • Slim architectural design with optical diffusion lens providing even illumination
  • Edge-lit LED configuration for low glare light pattern
  • Mounts to NEC approved 4- inch Round or Octagon Junction Box with minimum depth of 2-1/8- inch
  • Easy installation with Driver pre-assembled on Mounting Plate
  • 5- inch Round: 12W, 890 Delivered Lumens;
    7- inch Round: 17W, 1280 Delivered Lumens
  • Color Temperature of 3000K, 90 CRI
  • 120-277V Integrated Drivers with Triac/ELV or 0-10V Dimming
  • cETLus Listed
  • Suitable for Wet Locations (Covered Ceiling)
  • ENERGY STAR® Certified
  • Can be used to comply with the 2019 Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
  • Suitable for use in closets when installed in accordance with NFPA® 70, NEC® Section 410.16(A)(1) and 410.2
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Light Source : LED

    Lumen Output : 501-1000|1001-1500

    Product Shape : Round

    Product Type : Ceiling Mount

    Size : 5in|7in
