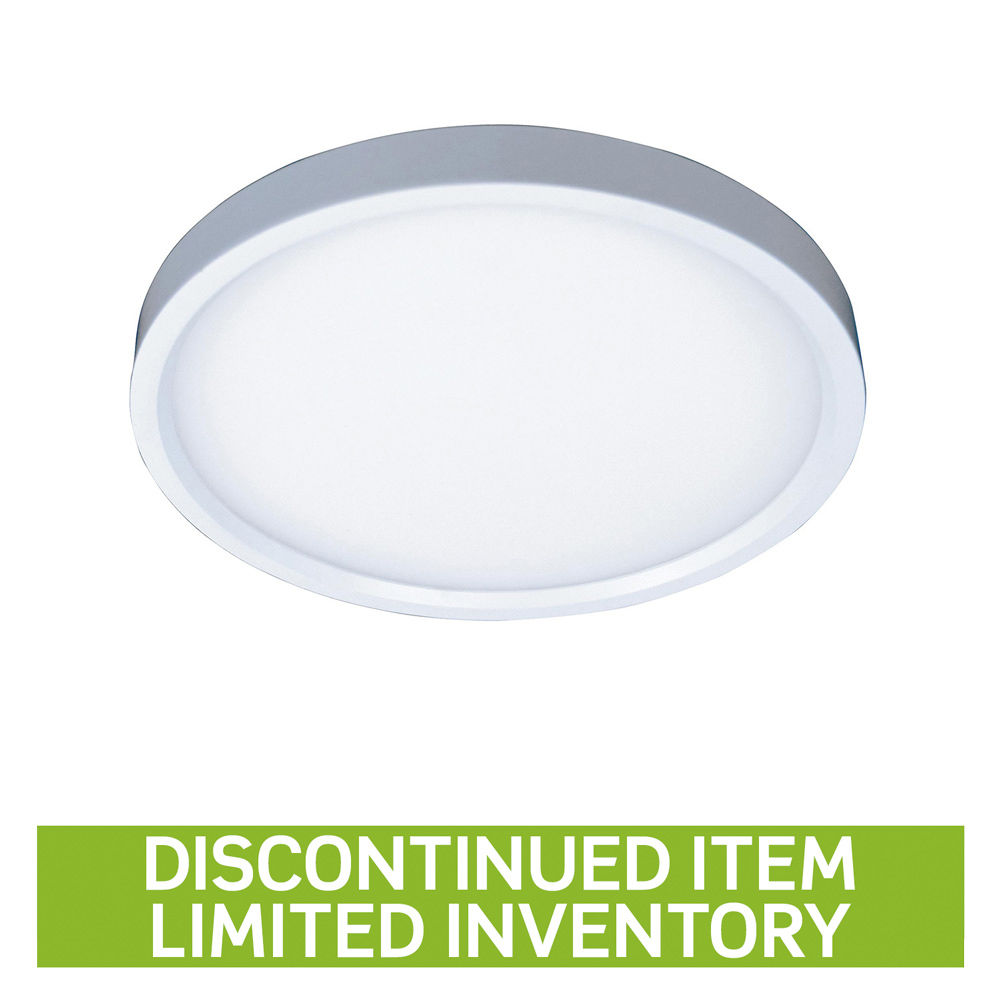

9" Round ArchiThin Surface Mount Downlights

ASMR9

  • Slim architectural design with optical diffusion lens providing even illumination
  • Edge-lit LED configuration for low glare light pattern
  • 9-Inch Round cast aluminum frame, acrylic (PMMA) lens, White Finish
  • 20W, 1725 Delivered Lumens
  • Standard color temperature: 3000K, 90 CRI
  • 120-277V Integrated Drivers with Triac, ELV or 0-10V Dimming
  • Mounts to NEC approved 4- inch Round or Octagon Junction Box with minimum depth of 2-1/8- inch
  • Easy installation with Driver pre-assembled on Mounting Plate
  • cETLus Listed
  • Suitable for Wet Locations (Covered Ceiling)
  • ENERGY STAR® Certified
  • Can be used to comply with the 2019 Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
  • Suitable for use in closets when installed in accordance with NFPA® 70, NEC® Section 410.16
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Light Source : LED

    Lumen Output : 1501-2000

    Product Shape : Round

    Product Type : Ceiling Mount

    Size : 9in
