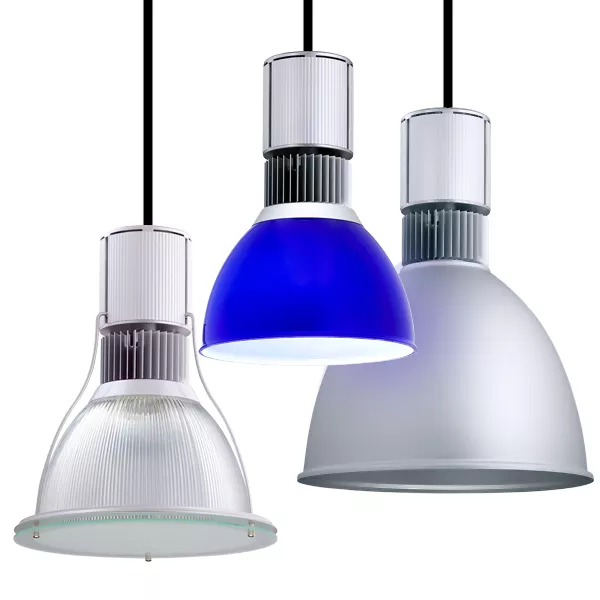

Champion Pendant Luminaires: Decorative Series

CPL

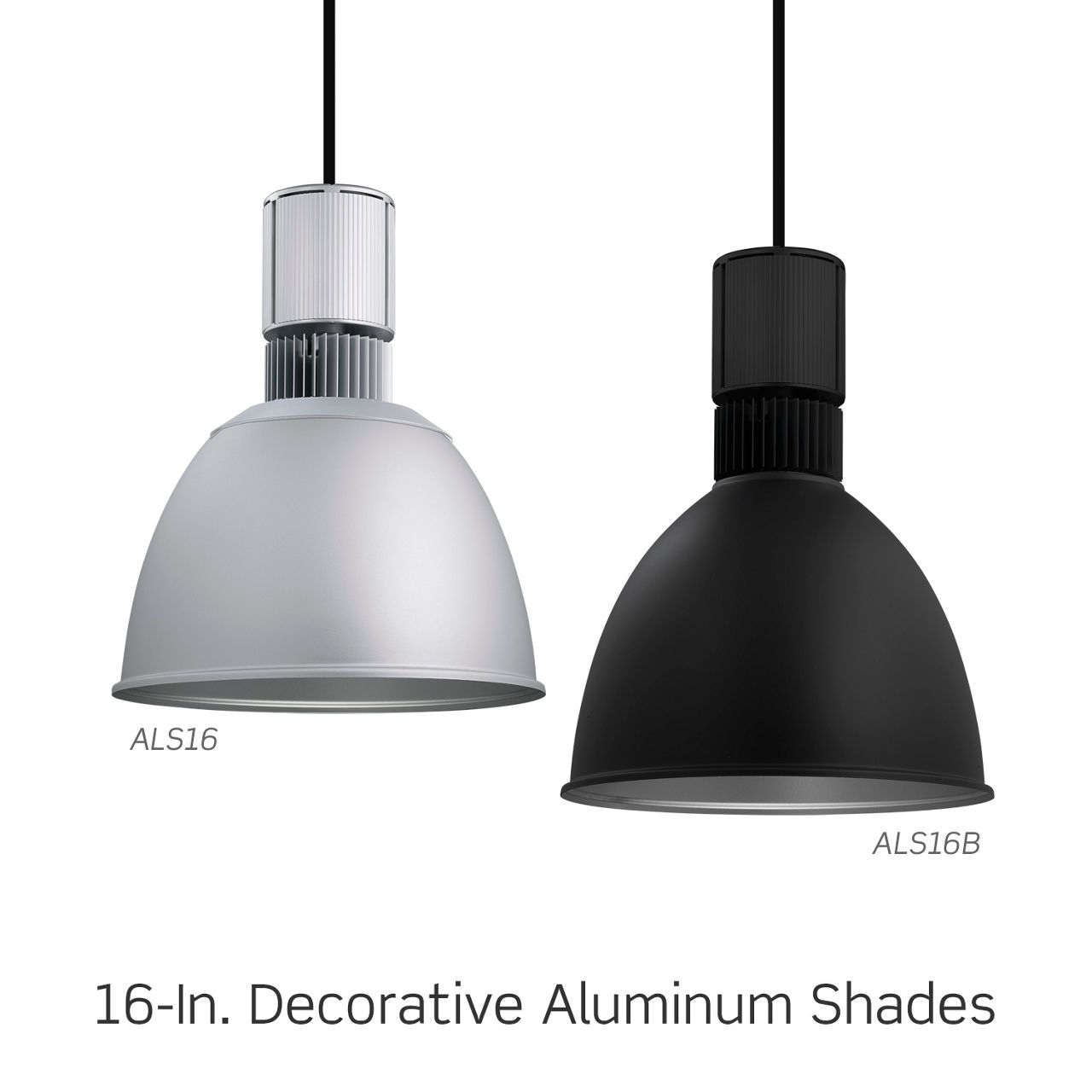

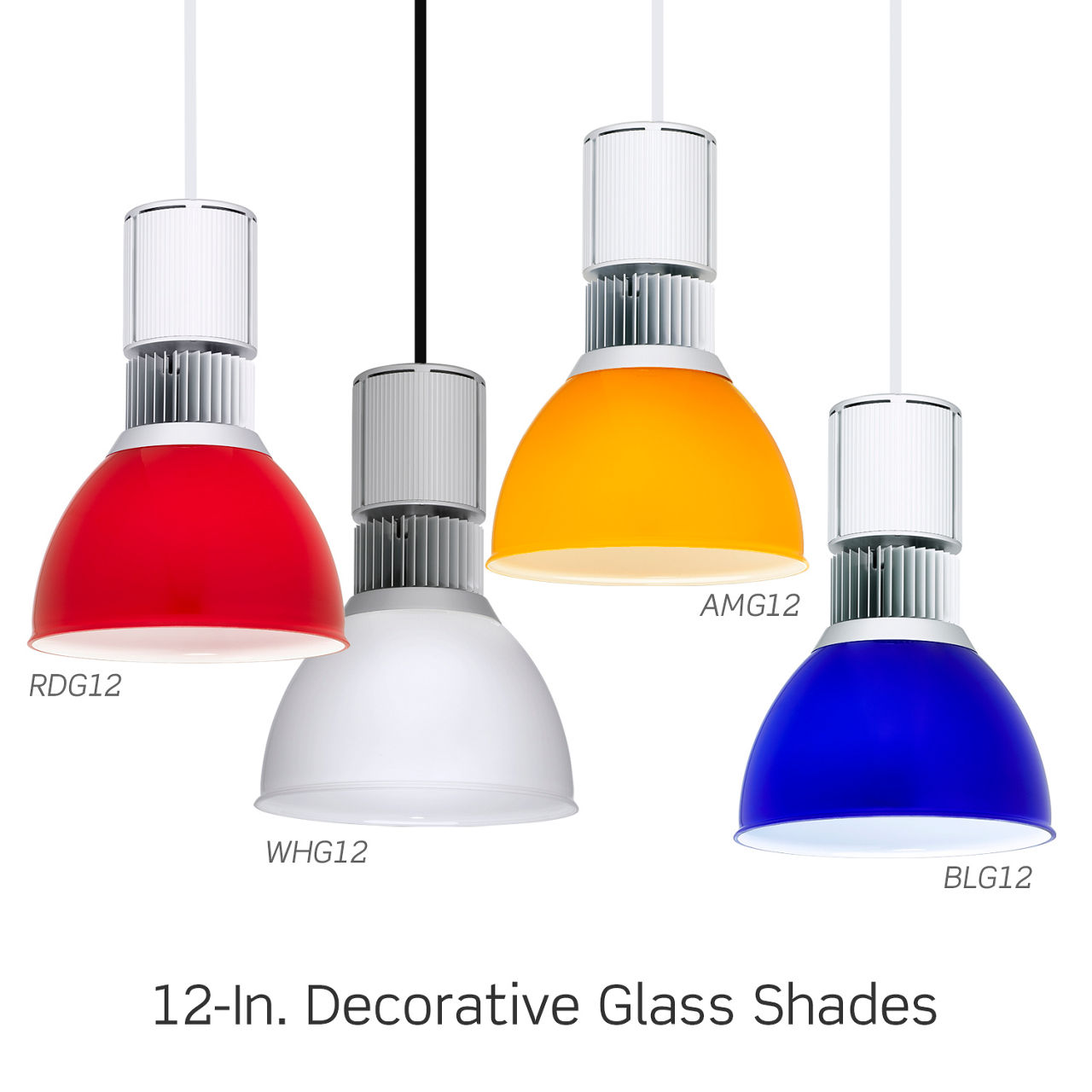

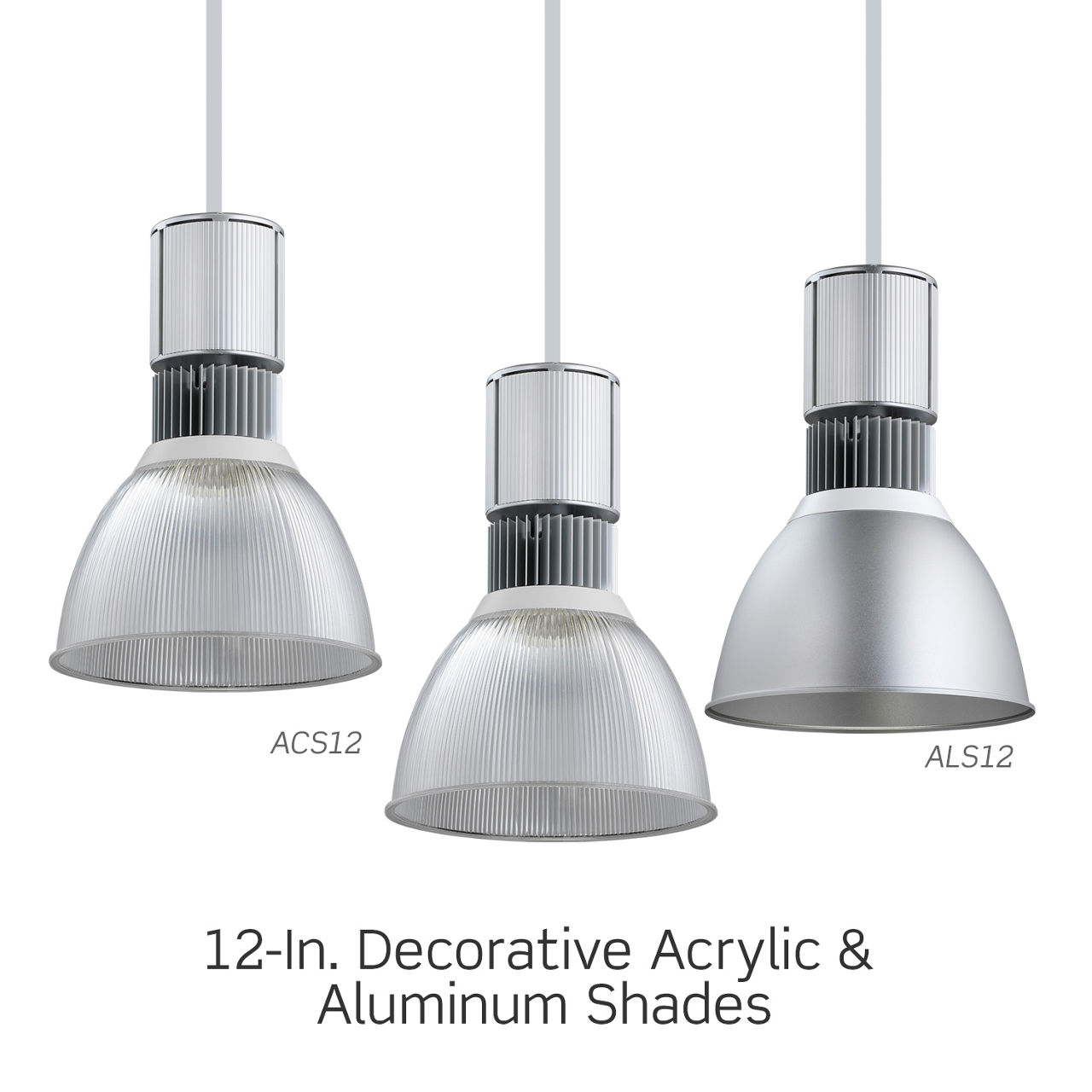

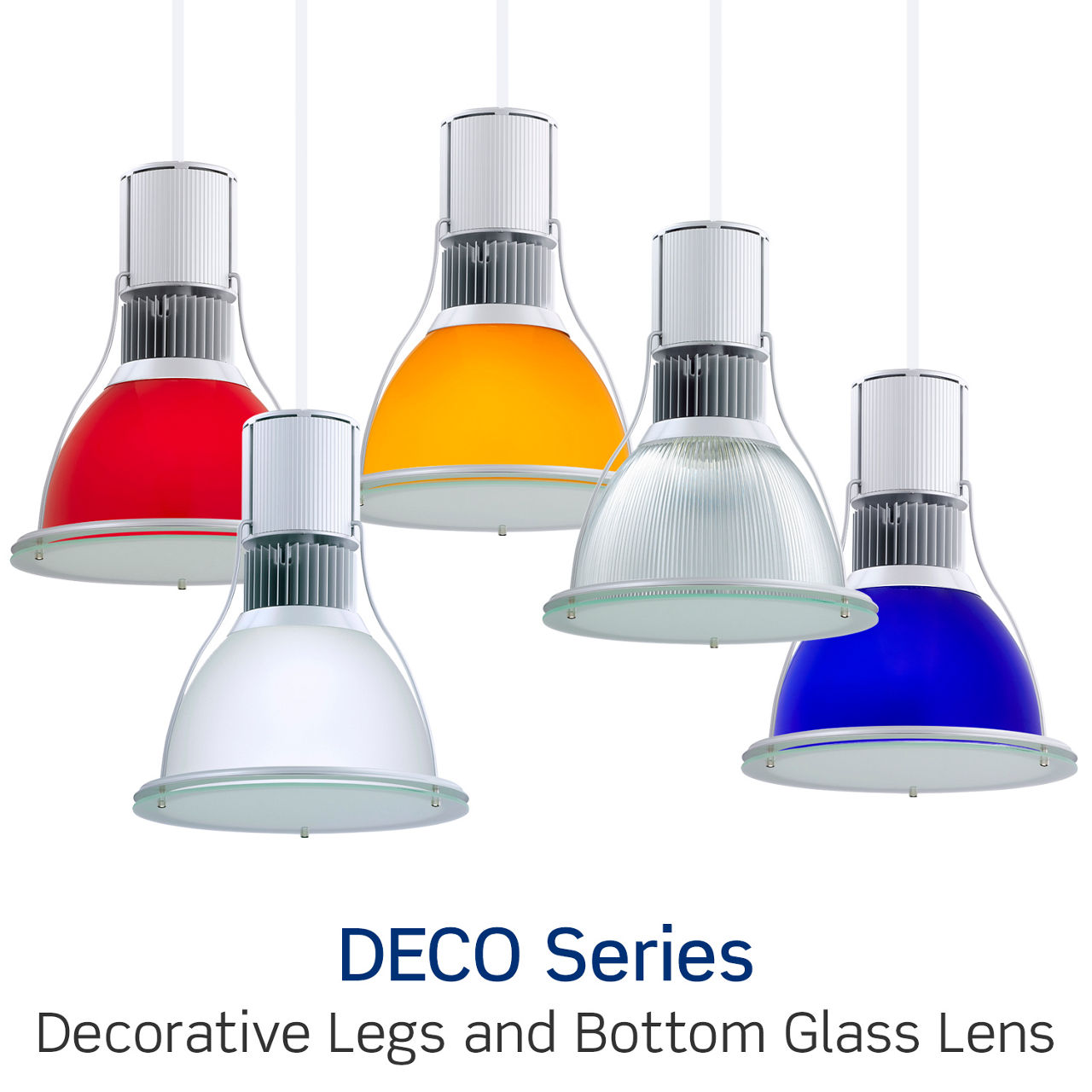

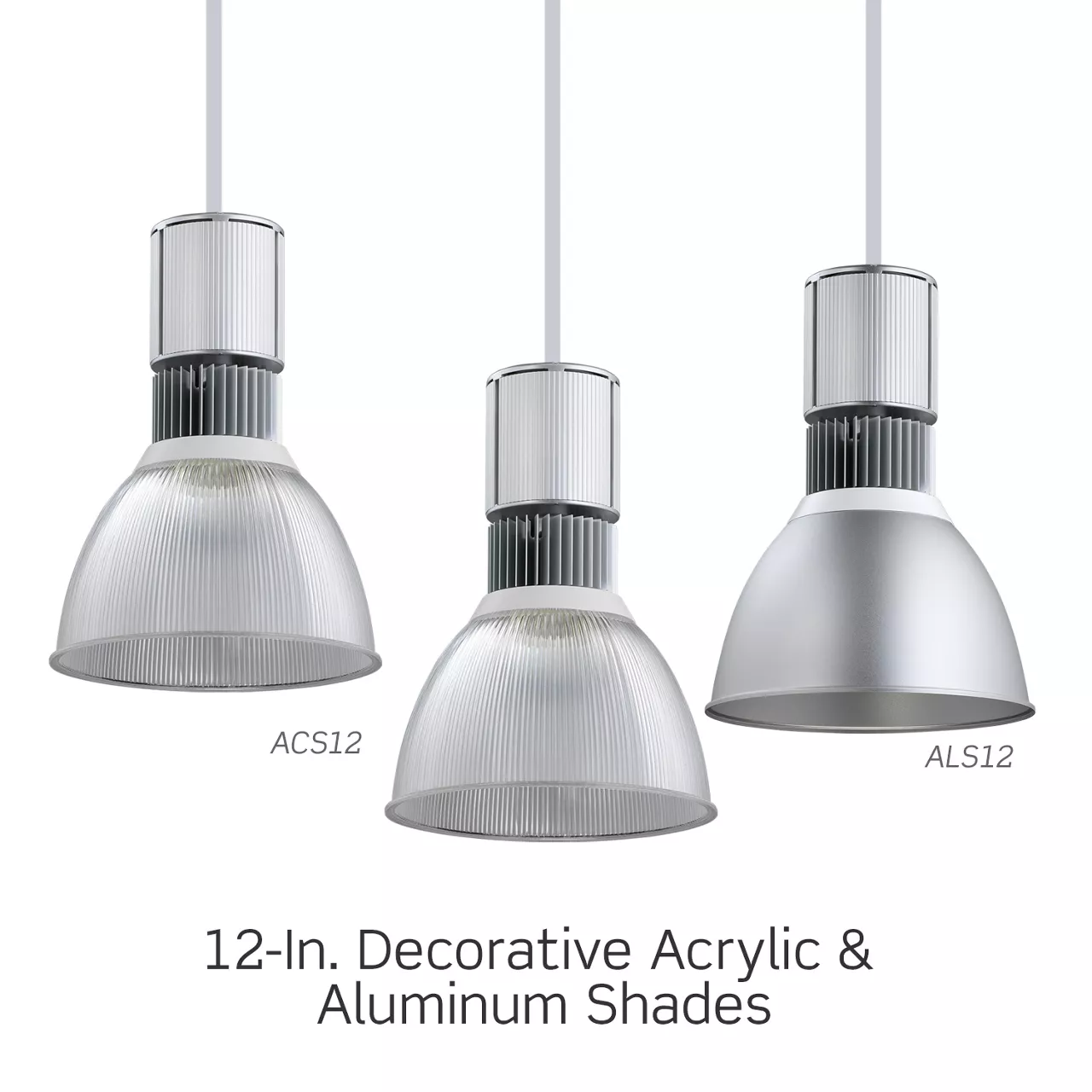

  • A collection of shade options: 12-Inch Decorative Colored Gass, Acrylic or Almuminum Shades with optional Decorative Legs, as well as 16-Inch Aluminum Shades
  • High output LED Module is available in 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical
  • Installation options: Cable or Stem Monopoint Ceiling Canopies or Eye Hook with Cord and Plug
    • Flexible Cable installation includes a 120- inch field adjustable Flexible Cable
    • For Stem installation, a ceiling Canopy with swivel for use on ceilings with up to a 45- degree slope and 6- inch Stem are included for CPL2 through CPL6. CPL7 Rigid Stem Canopy Mount includes Swivel Canopy and 36-inch stem, CPL7 Rigid Stem Remote Mount includes Canopy and 6-inch stem. Extra Stem lengths must be ordered separately as needed.
    • Cord and Plug mounting options limited to CPL2 and CPL3 Models only
  • Additional Rigid Stem lengths are sold separately, ranging from 6- to 48- inches long
  • Maximum Stem Length: 10 feet with use of coupling option
  • CPL7 Must be suspended at least 3 feet from Canopy
  • All CPL fixtures are available for non-dimming and dimming applications. CPL2 and CPL3 luminaires are standard with a Universal Driver capable of TRIAC/ELV/0-10V Dimming down to 10%. CPL4 through CPL7 Luminaires are standard with a Driver  capable of 0-10V Dimming down to 10%.
  • Remote Mount Emergency Battery Backup option available

Product Information

  • Product Features

    Color Rendering Index : 80-89

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Light Source : LED

    Listings : cCSAus|Damp Location|Energy Star

    Lumen Output : 2001-3000|3001-4000|4001-5000|5001-10000

    Mounting : 3/4 inch Rigid Conduit|Flex Cable|Hook/Cord/Plug|Rigid Stem

    Product Type : CPL Champion Pendant Luminaires: Decorative Series

    Shade Diameter : 12 in|16 in
