Performance Series

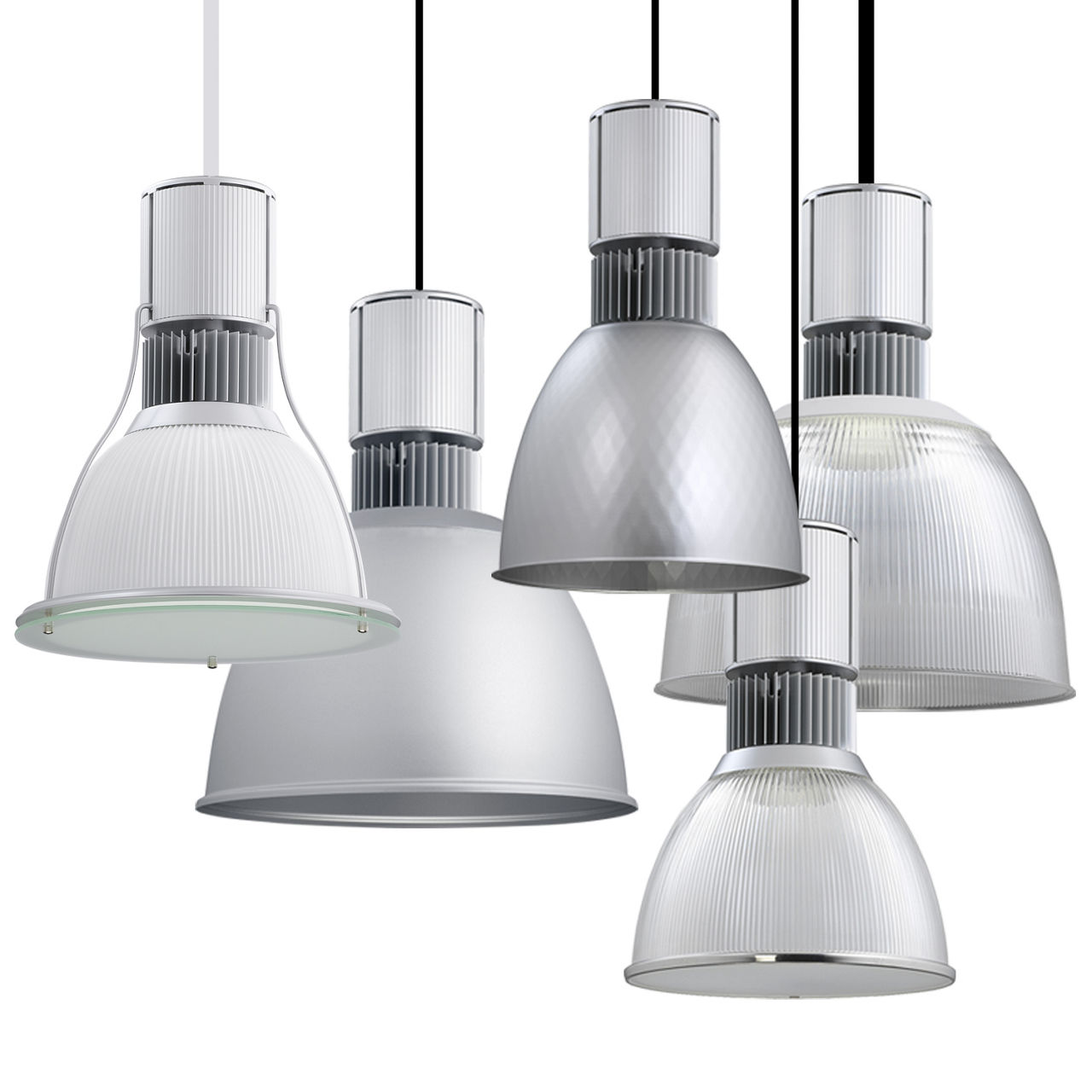

CPL Champion Pendant Luminaire
- Decorative design and simple installation with a thin Ceiling Canopy and a compact Driver Housing/Heat Sink

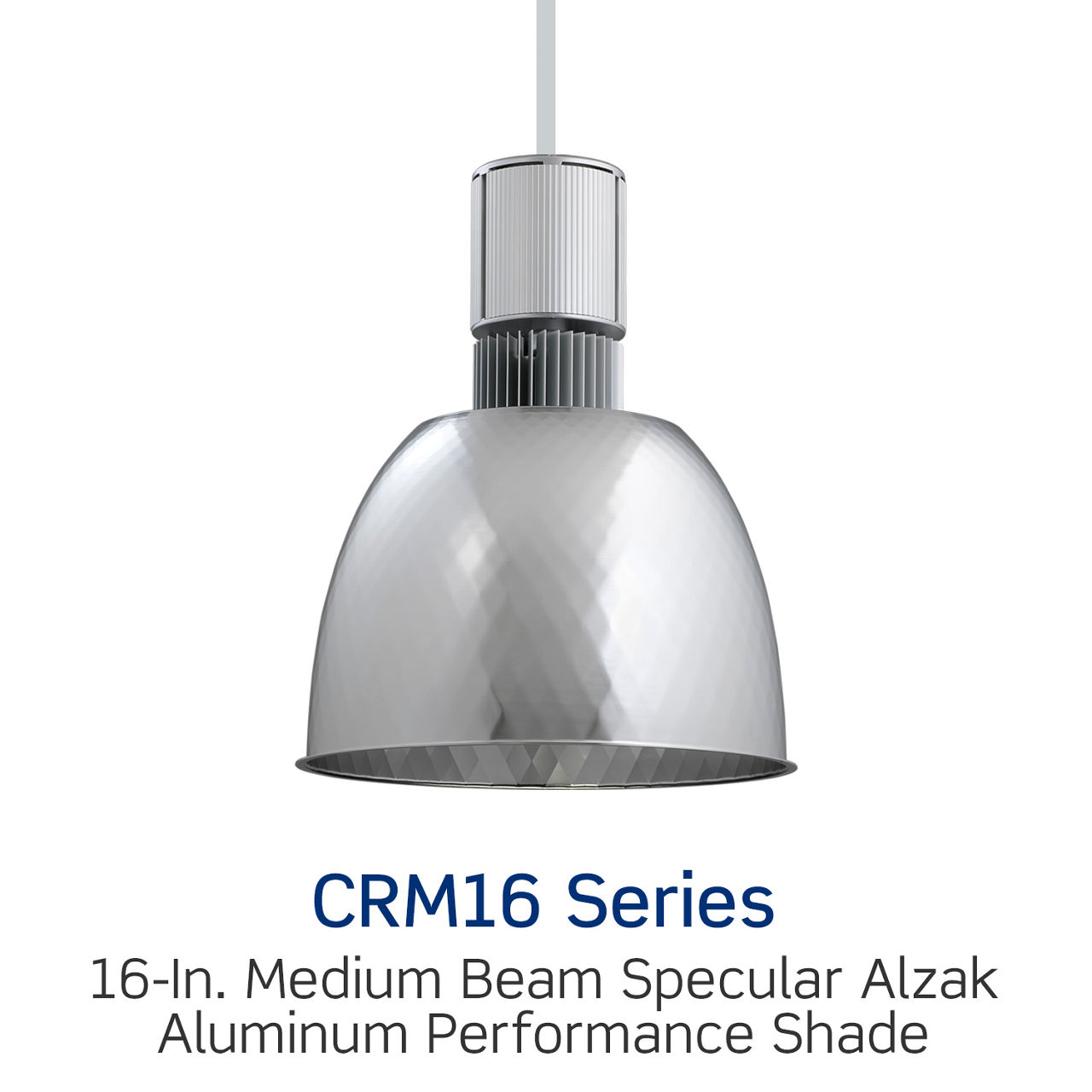

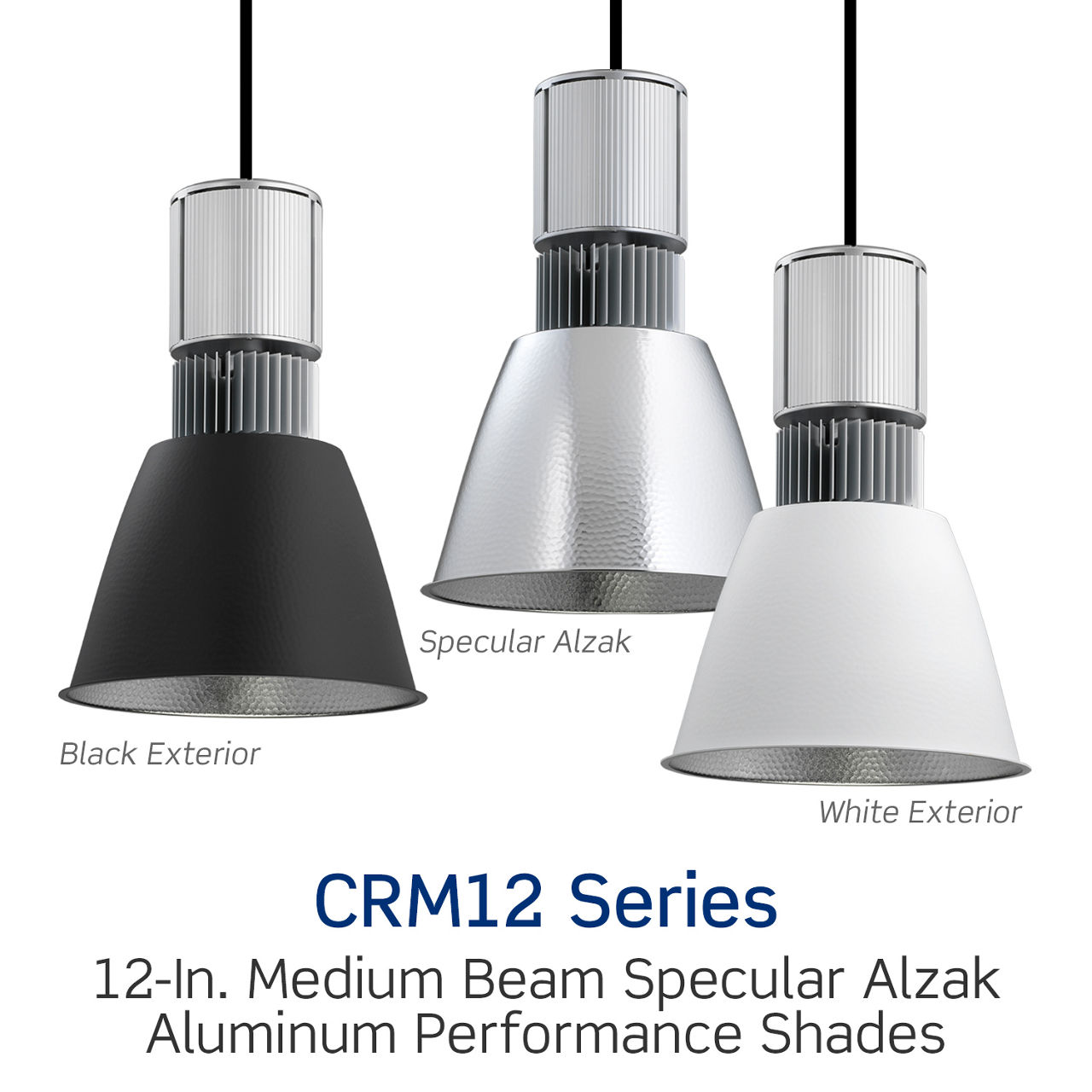

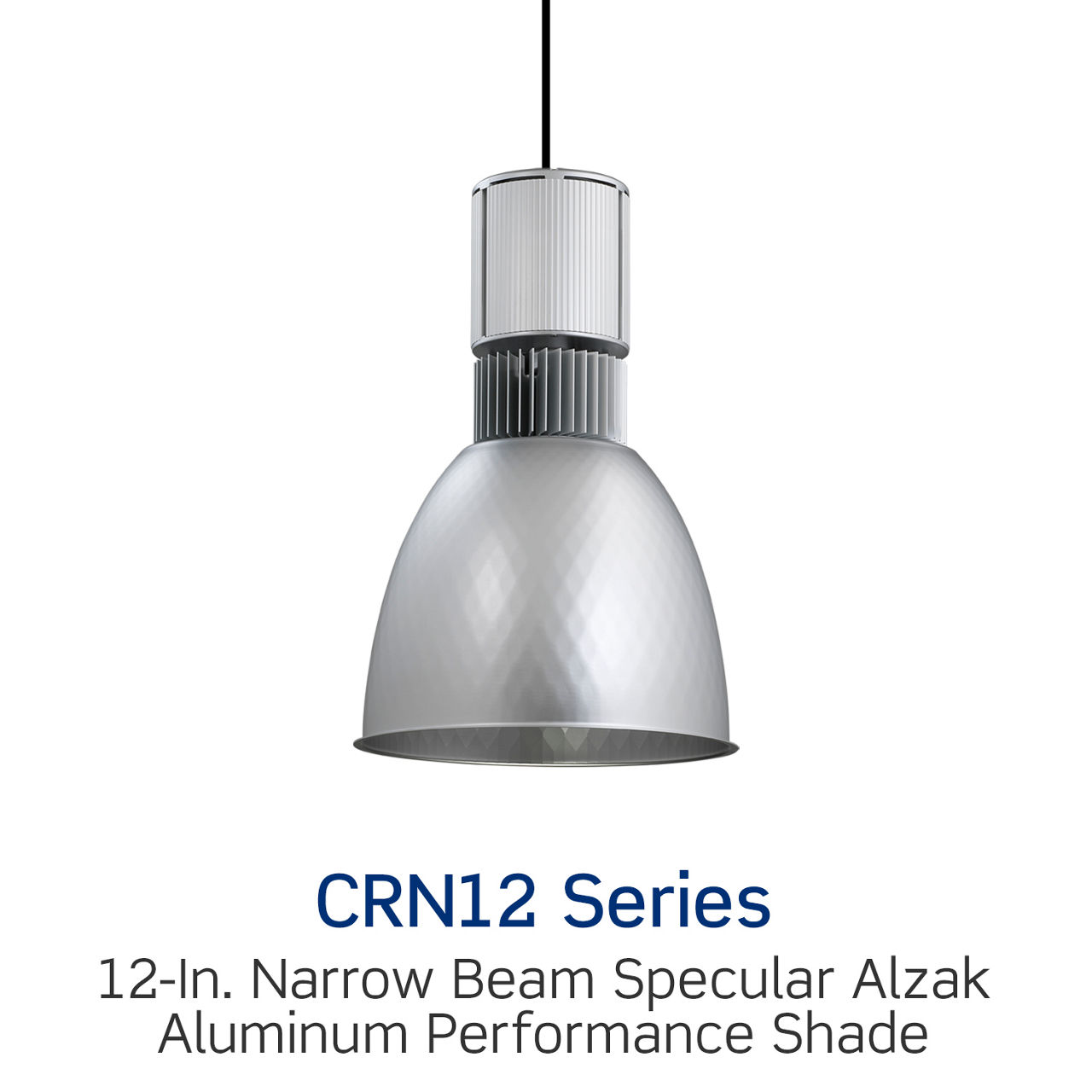

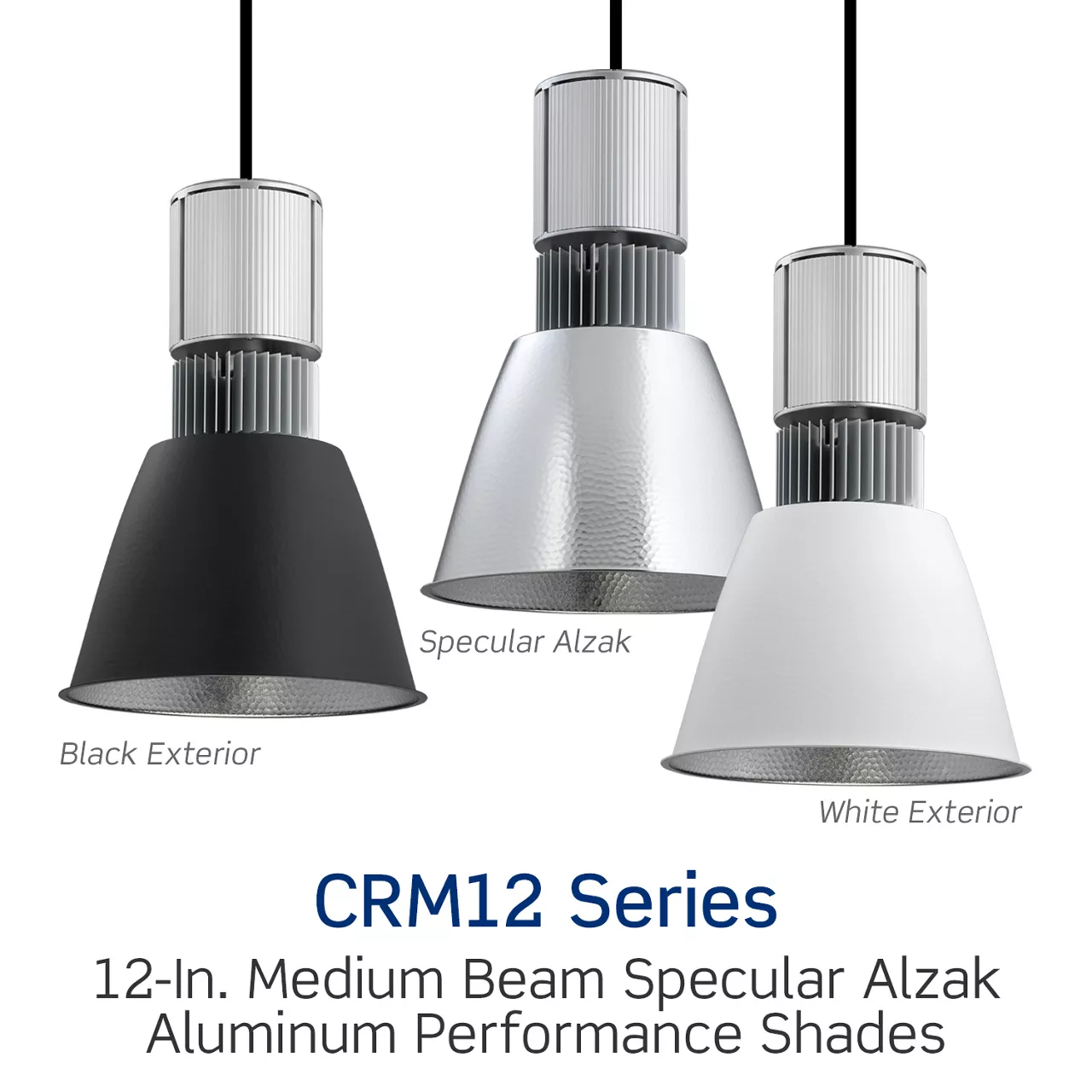

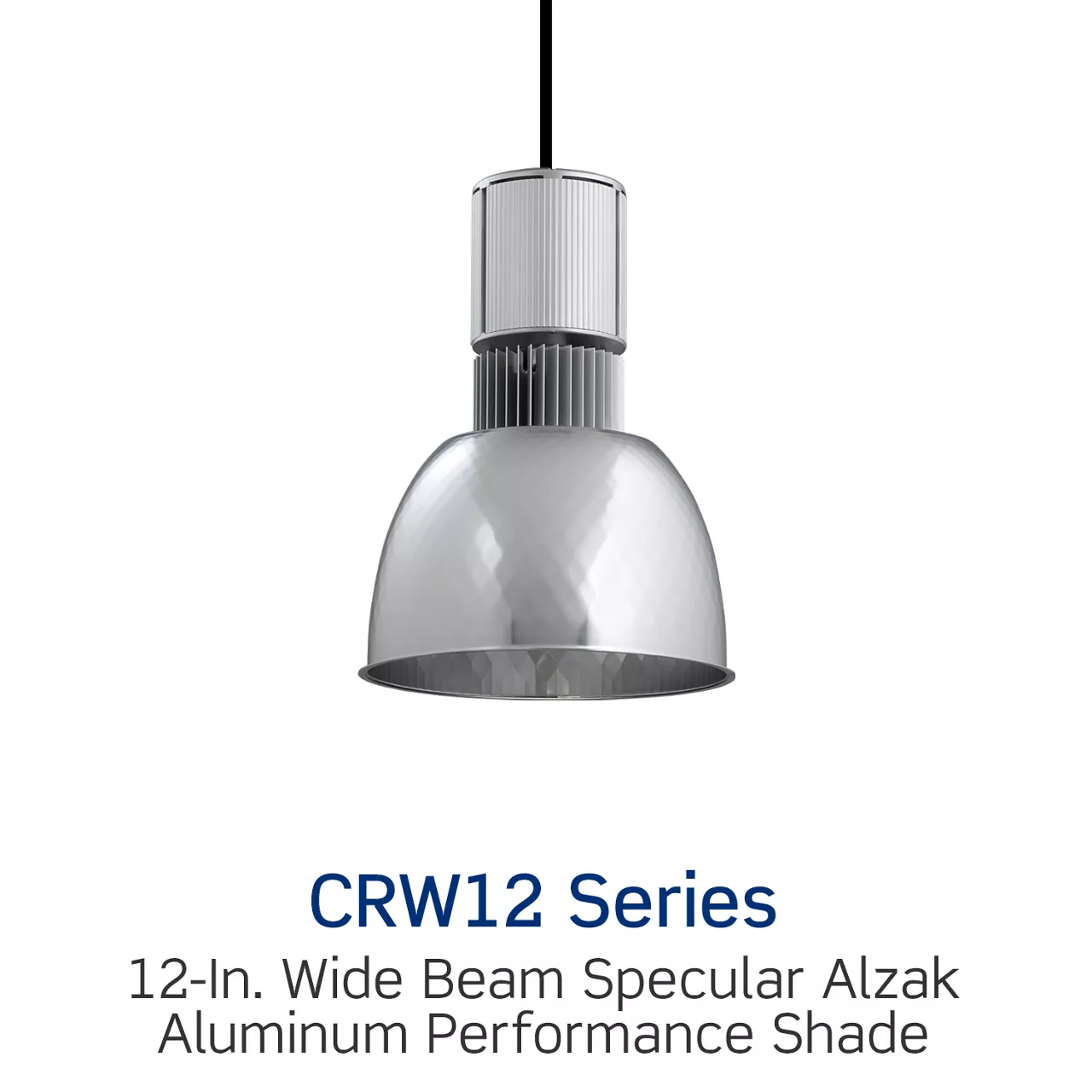

- 12- and 16-inch Specular Metal Reflectors

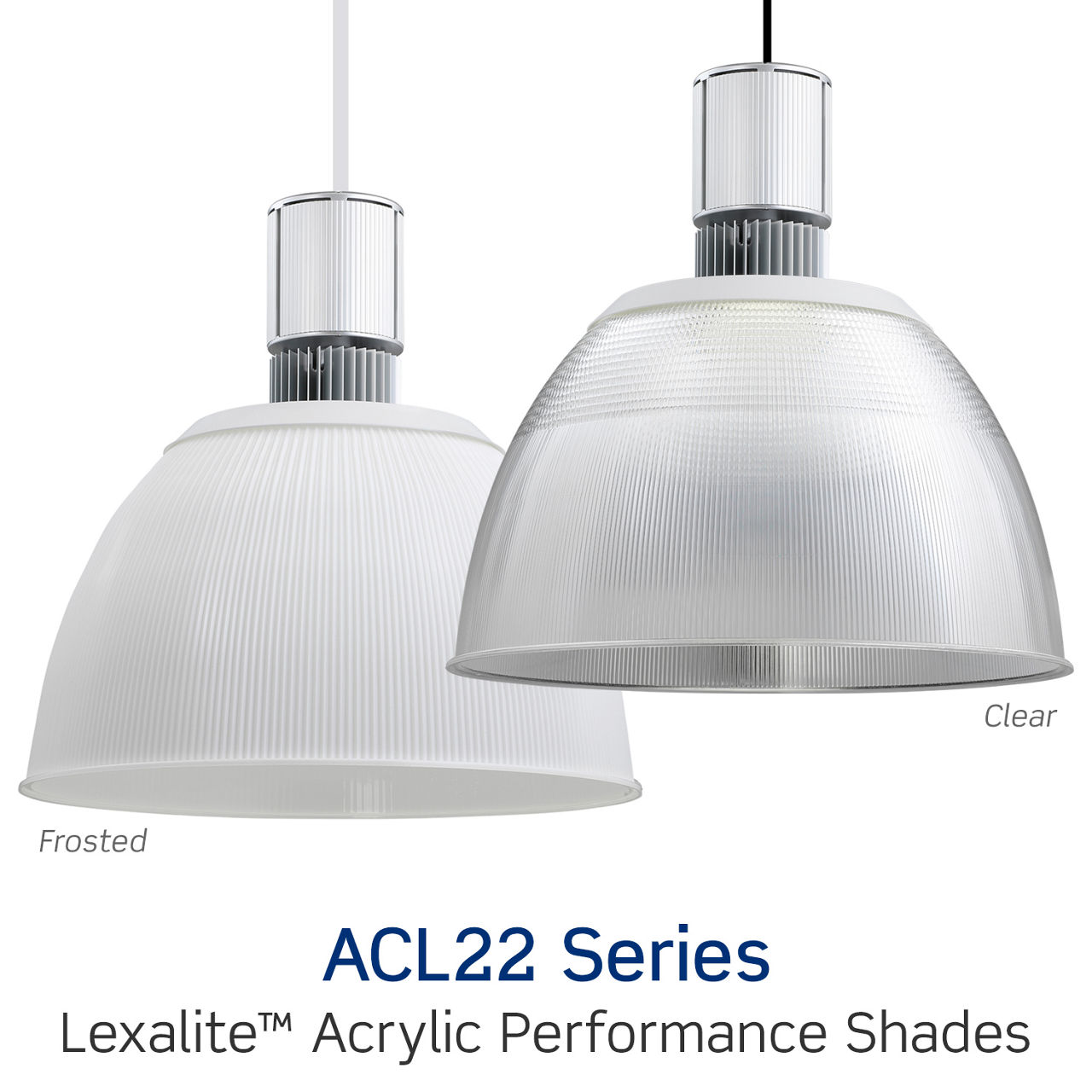

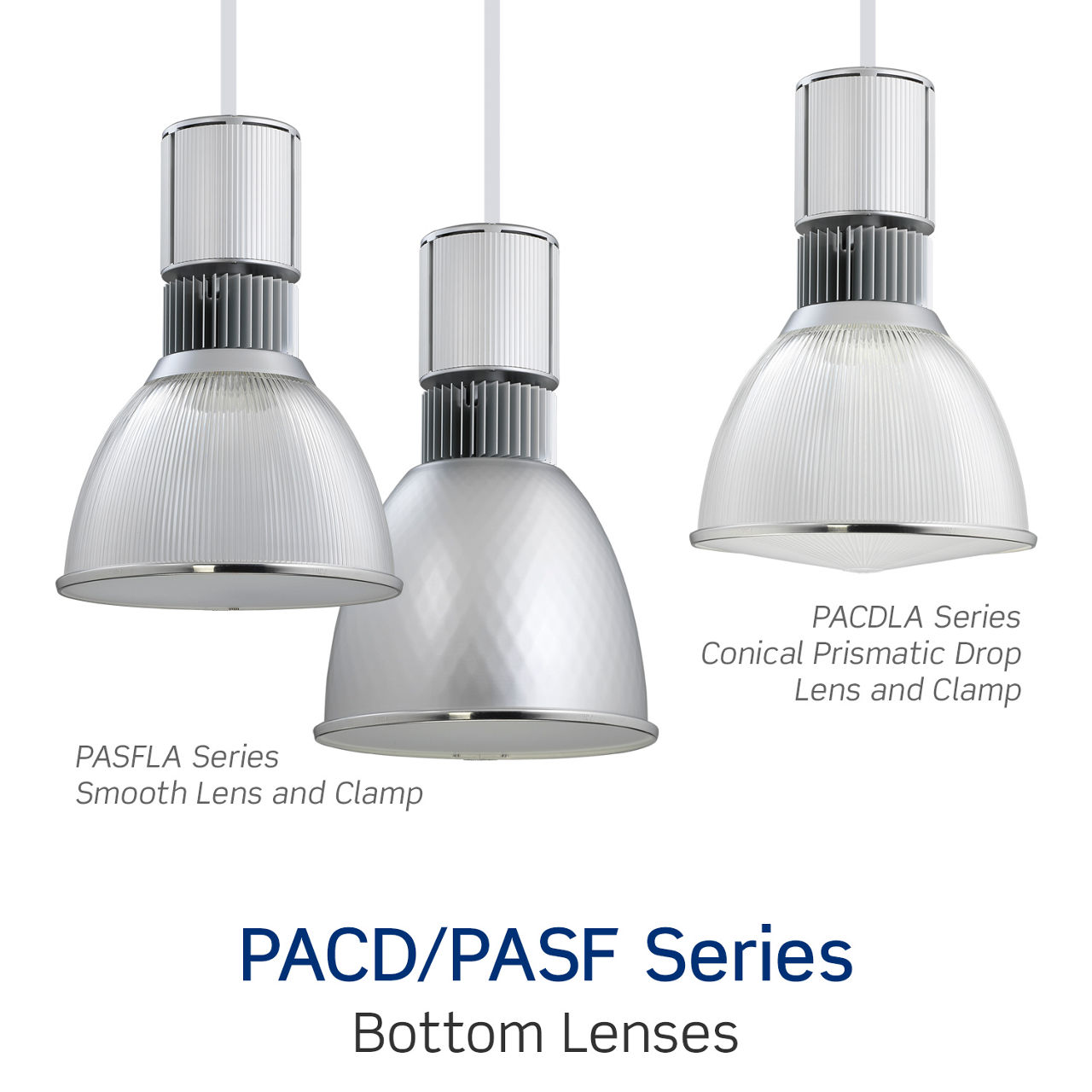

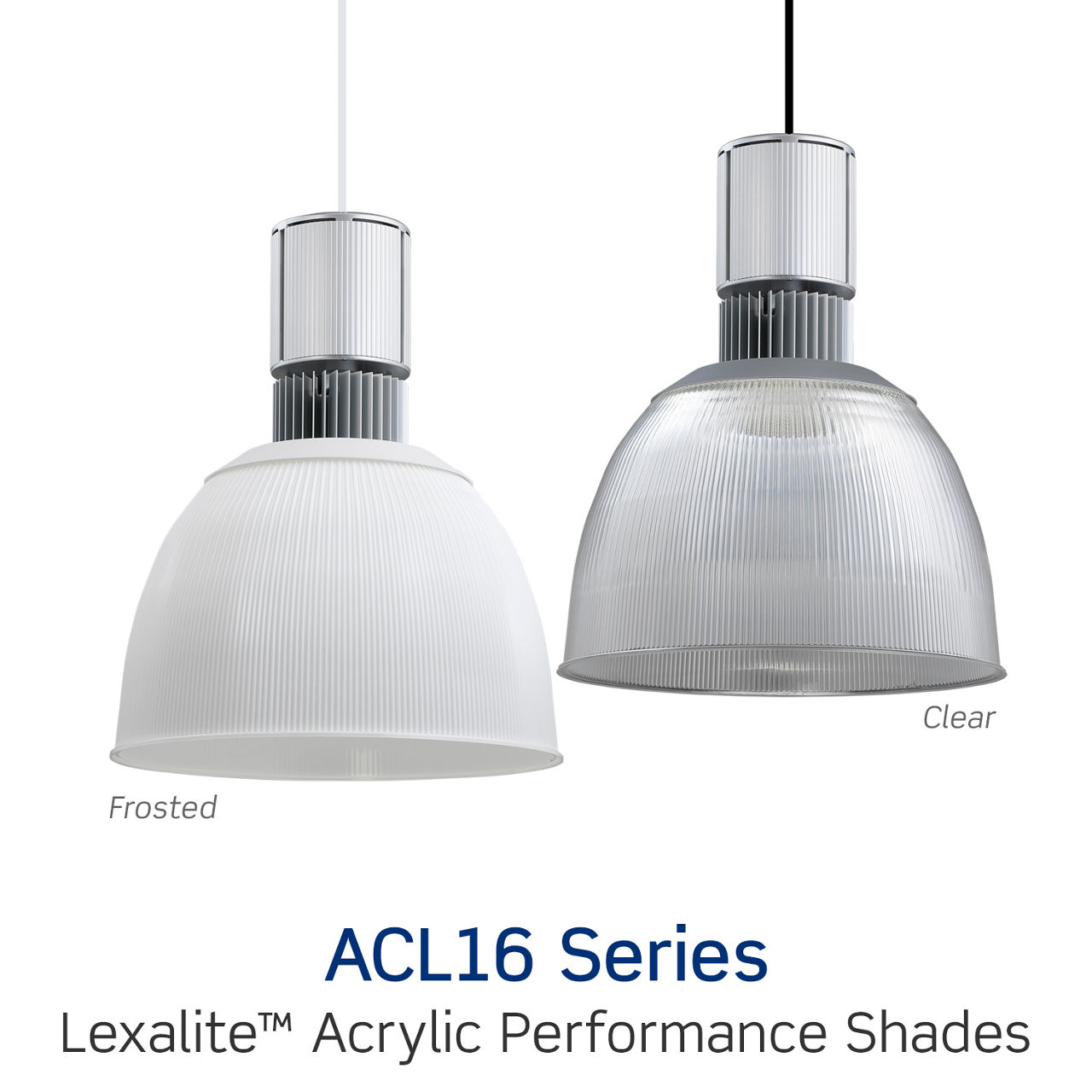

- 12- and 16-inch Acrylic Lenses available in several beam spreads

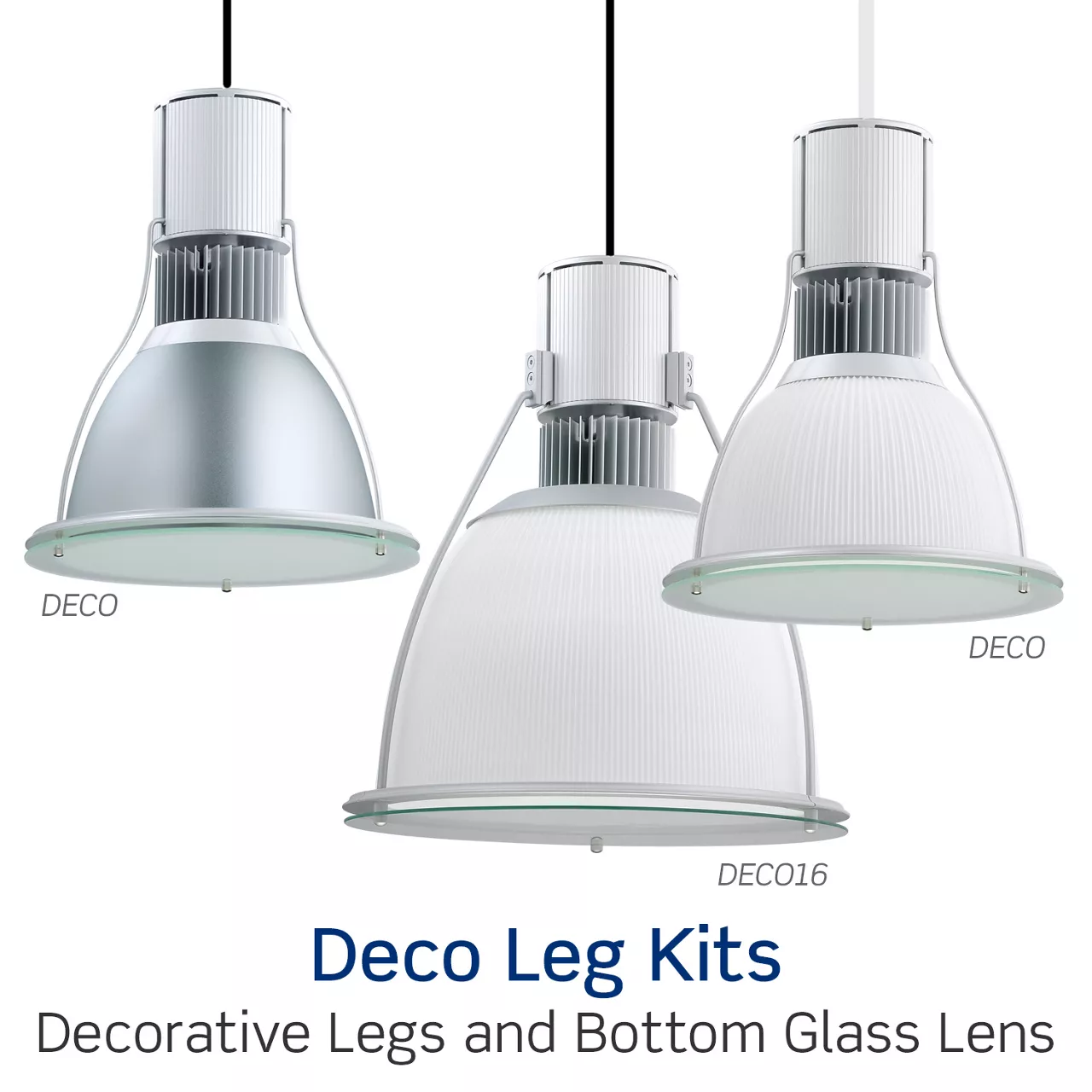

- Optional Decorative Leg Kits available
- High output LED Module is available in 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical
- Installation options: Cable or Stem Monopoint Ceiling Canopies or Eye Hook with Cord and Plug
- Flexible Cable installation includes a 120- inch field adjustable Flexible Cable
- For Stem installation, a ceiling Canopy with swivel for use on ceilings with up to a 45- degree slope and 6- inch Stem are included for CPL2 through CPL6. CPL7 Rigid Stem Canopy Mount includes Swivel Canopy and 36-inch stem, CPL7 Rigid Stem Remote Mount includes Canopy and 6-inch stem. Extra Stem lengths must be ordered separately as needed.
- Cord and Plug mounting options limited to CPL2 and CPL3 Models only
- Additional Rigid Stem lengths are sold separately, ranging from 6- to 48- inches long
- Maximum Stem Length: 10 feet with use of coupling option
- CPL7 Must be suspended at least 3 feet from Canopy
- All CPL fixtures are available for non-dimming and dimming applications. CPL2 and CPL3 luminaires are standard with a Universal Driver capable of TRIAC/ELV/0-10V Dimming down to 10%. CPL4 through CPL7 Luminaires are standard with a Driver capable of 0-10V Dimming down to 10%.
- Remote Mount Emergency Battery Backup option available
Product Information
Product Features
Color Rendering Index : 80-89
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Light Source : LED
Listings : cCSAus,Damp Location
Lumen Output : 2001-3000,3001-4000,4001-5000,5001-10000
Mounting : 3/4 inch Rigid Conduit,Flex Cable,Hook/Cord/Plug,Rigid Stem
Product Type : CPL Champion Pendant Luminaires: Performance Series
Shade Diameter : 12 in,16 in,22 in
