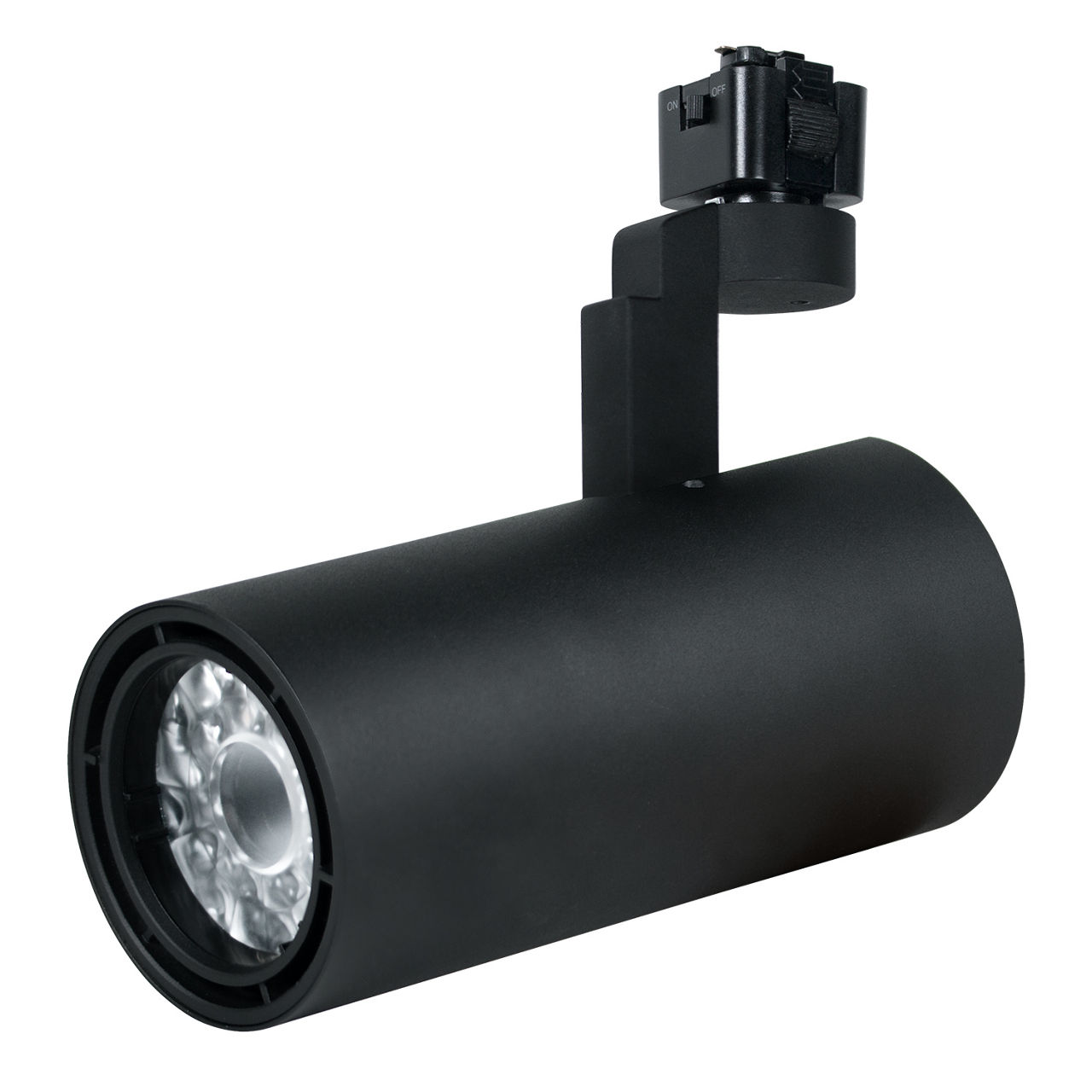

Gallery M Track Luminaire with Adjustable Beam
CTL93
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- Seven (7) position, field adjustable optic with three (3) different beam range options, the increments in the adjustments average 4-degrees per increment
- Engineered to provide superior glare control through the full range of beam spreads
- 3-1/2-Inch diameter flat-back cylinder constructed of die-cast aluminum, cylindrical body providing thermal management
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; a high CRI of 90+ is available
- 120V Forward Phase or Reverse Phase Dimming is standard for all wattage options, for dimmer compatibility and performance, refer to Specification sheet
- Standard ConTech “CTL” track luminaires are cCSAus certified as-is for use with ConTech Lighting’s LT/LT2 Single Circuit/Two Circuit Track and Luxbeam Systems as well as Juno® Lighting Trac-Master™ Systems
- By changing the prefix of the part number, ConTech can install inserts which make our fixtures compatible with other track manufacturers' systems, consult factory for details
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Mounting : Track Mount
Compatible with : ConTech LT Single Circuit Track,ConTech LT2 Two Circuit Track,ConTech Luxbeam Track System,Juno® Lighting Trac-Master™ Systems,Halo® Power-Trac System,Halo® Lazer Track,Lightolier® Lytespan® System
Environment : Dry Location
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Variable Spot,Variable Medium,Variable Flood
Wattage : 11W - 20W,21W - 30W,31W - 40W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000
Voltage : 120V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming
