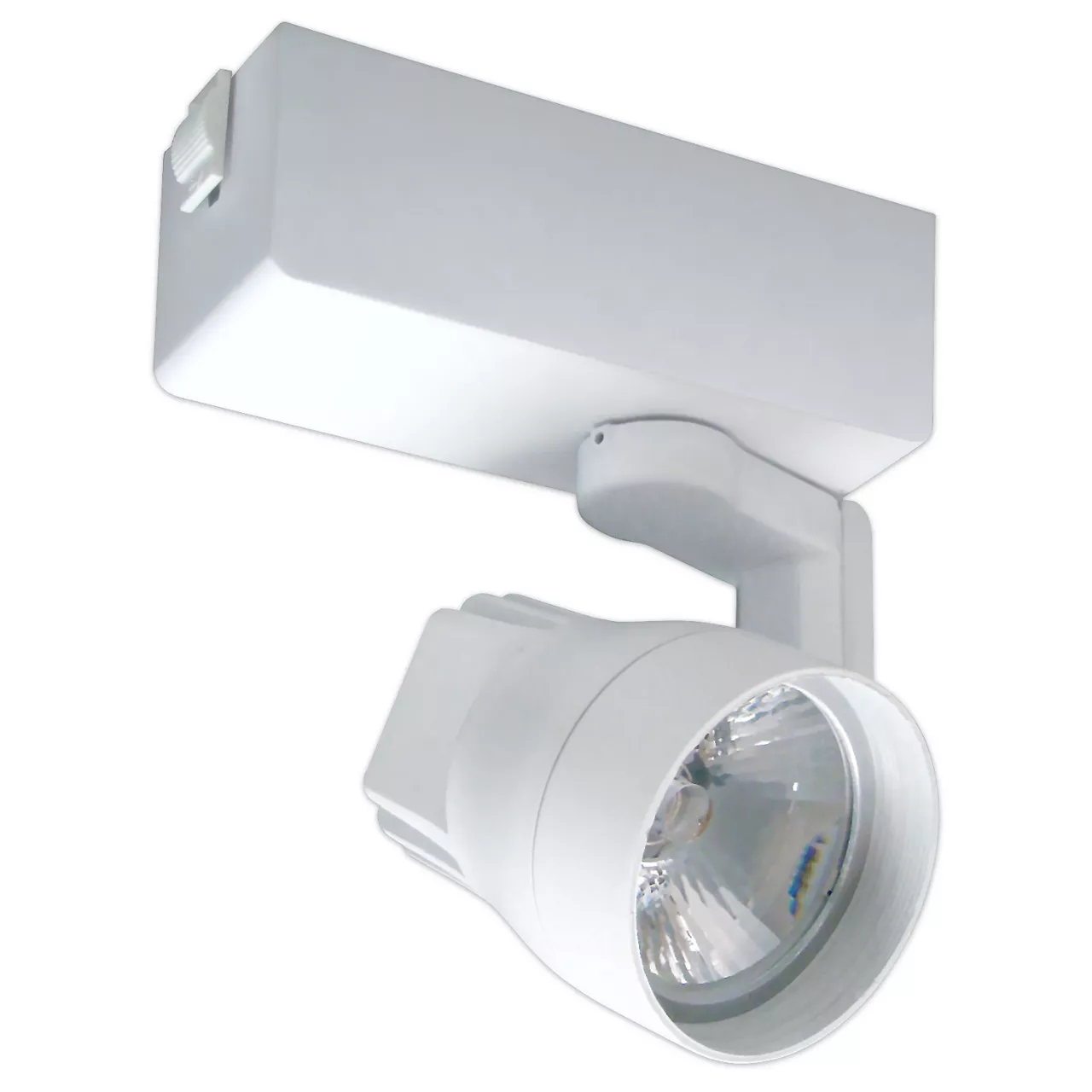

O2 Mini Horizontal Mount Track Luminaire

CTL806 H

  • Constructed of die-cast aluminum, the heat-sink and driver housing provide a sleek, modern look
  • Available in three wattage/lumen packages: 10W/1000Lm, 14W/1400Lm and 20W/1800Lm
  • Precision engineered, acrylic molded optics provide superior beam control and can be easily changed in the field
  • Available in 10° Spot, 28° Medium and 48° Flood beam distributions; optics are optically engineered to provide a smooth uniform beam, maximizing output and minimizing glare
  • Lockable, precision aiming adjustment: 360°+ aiming horizontal rotation and 90° vertical rotation, 250° vertical rotation, 35° upward tilt (both directions)
  • A 3000K Crisp White LED option is available, delivering 90+ CRI with additional violet wavelengths that enhance white visibility
  • Excellent fixture-to-fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Dimming is standard and allows smooth illumination down to 10%
  • For dimmer compatibility, refer to the Dimming Specification Sheet
  • The FA-43 Snoot/Accessory Holder can accept up to two (2) LF16 60MM lenses or FA-16 60MM Black Honeycomb Louvers
  • Integral ON/OFF switch and track polarity indicator are standard
  • cCSAus Certified to UL standards on base models; Suitable for Dry Locations
  • DLC Listed for all models except Crisp White
  • 10W High CRI series can be used to comply with the 2016 Title 24 Part 6 JA8 high efficacy LED light source requirements

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Driver Orientation : Horizontal

    Light Distribution Detail : Flood,Medium,Spot

    Light Source : LED

    Light Source Features : Crisp White

    Lumen Output : 1001-1500,1501-2000

    Product Type : Track Head
