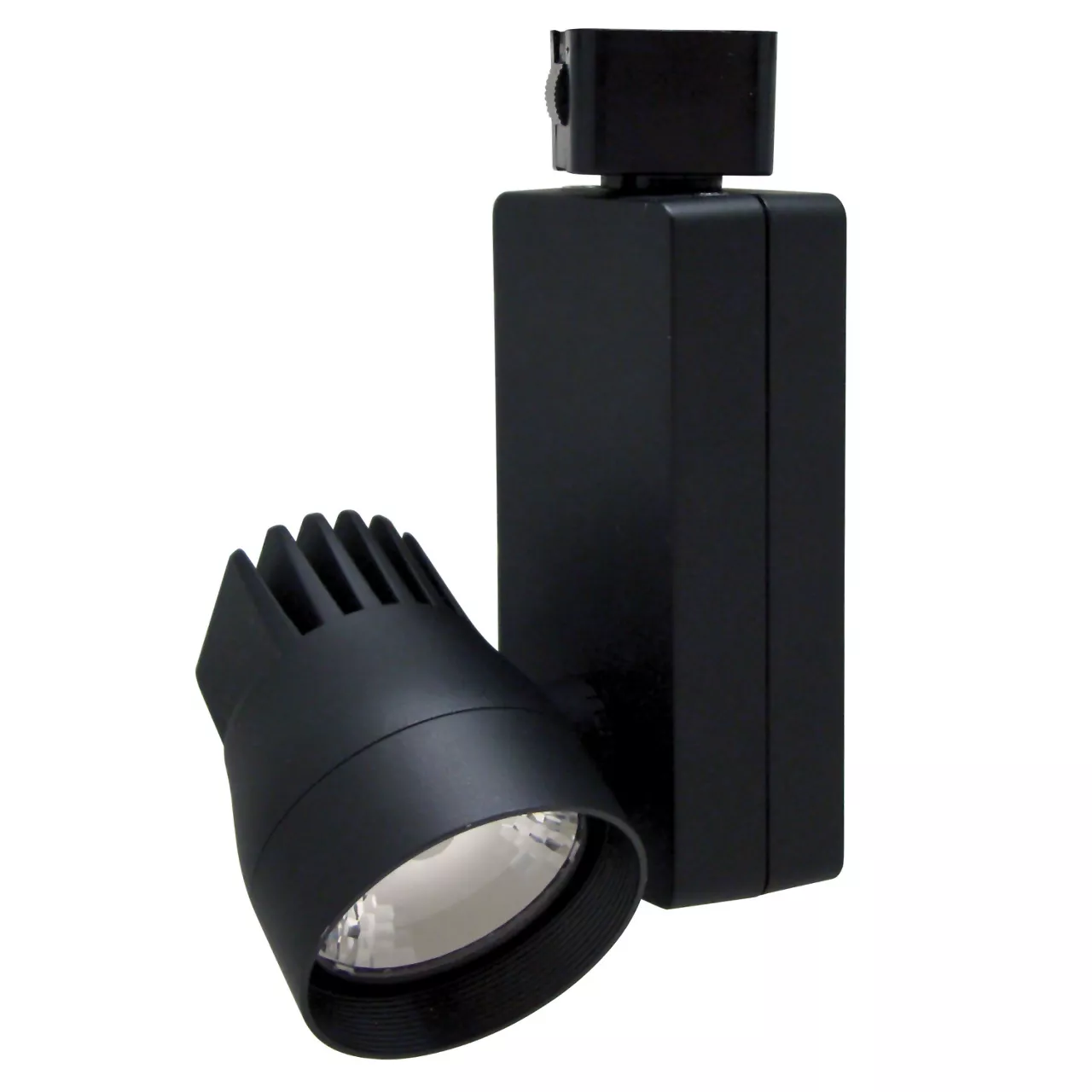

O2 Mini Vertical Mount LED Track Luminaire

CTL806 V

  • Constructed of die-cast aluminum, heat-sink and driver housing providing a sleek modern look
  • Available in three wattage/lumen packages: 10W/1000Lm, 14W/1400Lm and 20W/1800Lm
  • Precision engineered acrylic molded optics provide superior
    beam control
  • Lockable aiming adjustment: 360°+ aiming horizontal rotation, 315°+ vertical rotation; head may be aimed straight upward
  • Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI 80 min., 83 typical; high CRI 90+ available
  • A 3000K Crisp White LED is available, delivering 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Excellent fixture-to-fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Available in 12° Spot, 28° Medium and 39° Flood beam distributions; optics have been optically engineered to provide a smooth uniform beam, maximizing output and minimizing glare
  • Optics can be easily changed in the field for optimal flexibility
  • Dimming is standard for all wattage options and allows smooth illumination down to 10% for dimmer compatibility, refer to Dimming Specifications sheet
  • The FA-43 Snoot/Accessory Holder can accept up to (2) LF16 60MM lenses or FA-16 60MM Black Honeycomb Louvers
  • Integral ON/OFF switch and track polarity indicator are standard
  • cCSAus Certified to UL standards on base models; Suitable for dry locations
  • ENERGY STAR® Certified for all fixture variations except Crisp White
  • DLC Listed for all models except Crisp White
  • 10W High CRI series can be used to comply with the 2016 Title 24 Part 6 JA8 high efficacy LED light source requirements
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Driver Orientation : Vertical

    Light Distribution Detail : Flood|Medium|Spot

    Light Source : LED

    Light Source Features : Crisp White

    Lumen Output : 1001-1500|1501-2000

    Product Type : Track Head
