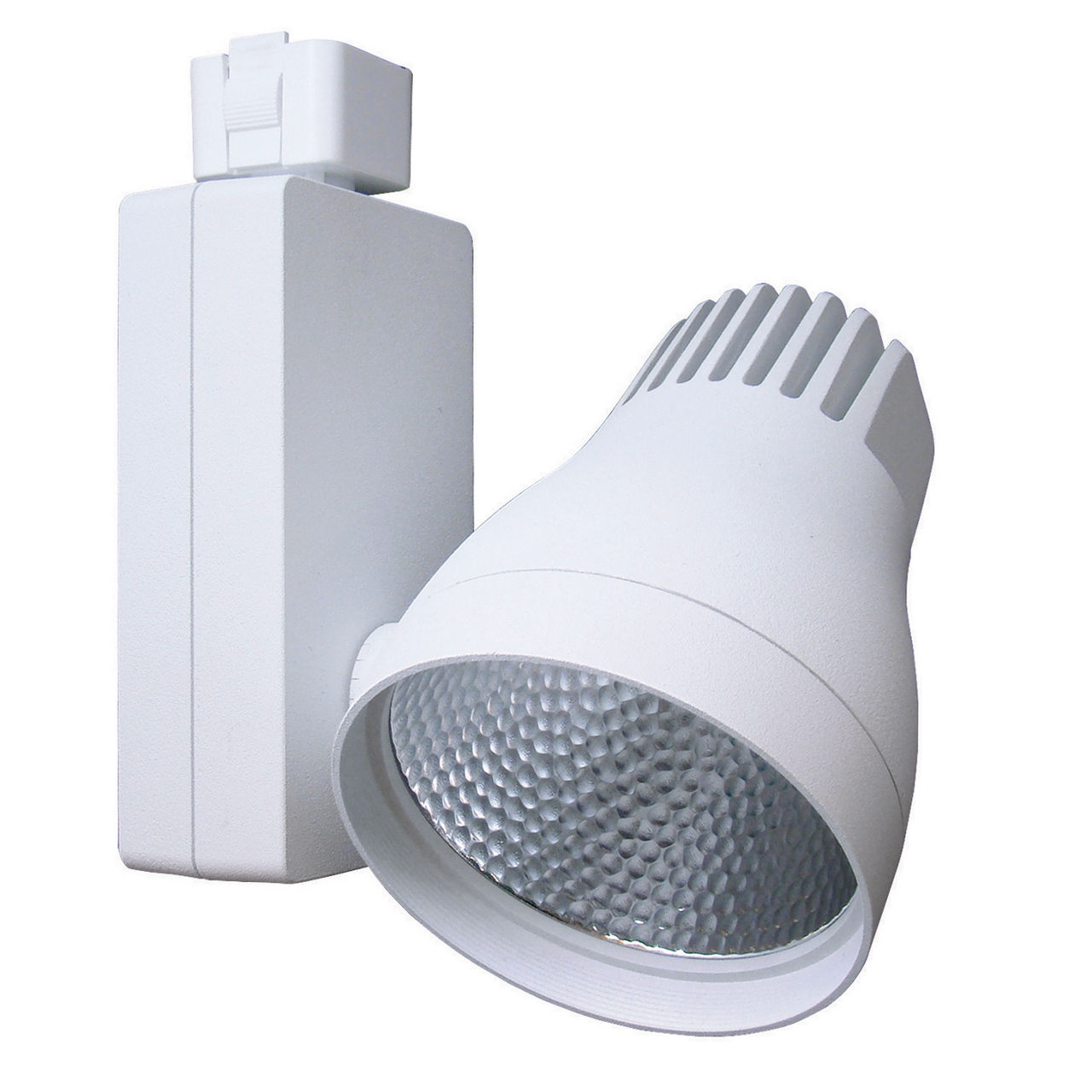

O3 Track Luminaire: Vertical Housing

CTL825 V

  • Available in five (5) wattage/lumen packages: 18W/2029Lm, 26W/2819Lm, 33W/3424Lm, 38W/3798Lm, and 44W/4263Lm
  • Thermally engineered Heat Sink provides optimal heat dissipation, ensuring long life and consistant performance
  • Available in 2700K, 3000K, 3500K and 4000K; excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
  • CRI of 80 min., 83 typical; High CRI of 90+ available
  • 13° Spot, 25° Medium, 42° Flood and 59° Wide Flood beams utilize specular spun metal reflectors that are optically engineered to provide a smooth uniform beam; maximizing output and minimizing glare
  • Optics are interchangeable and can be easily changed in the field
  • Dimming allows smooth illumination down to 1%; 120V only
  • For Dimmer compatibility, refer to Dimming Specification sheet
  • Can accept up to two (2) media by using the FA-49 Accessory Holder or the FA-45 Snoot/Accessory Holder
  • cCSAus Certified to UL Standards; Suitable for Dry Locations
  • DLC Listed

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Driver Orientation : Vertical

    Light Distribution Detail : Flood,Medium,Spot,Wide Flood

    Light Source : LED

    Lumen Output : 1501-2000,2001-3000,3001-4000,4001-5000

    Product Type : Track Head
