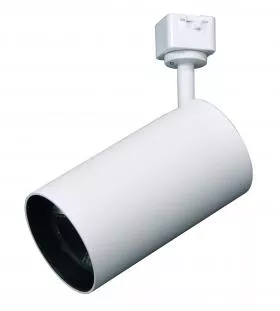

Xicato Gallery Series Cylinder Track Luminaire


  • Luminaire designed for gallery, museum or retail applications
  • Constructed of die-cast aluminum, the cylindrical body provides thermal management
  • The Standard Series Xicato LED Module is available in 2700K, 3000K, 3500K and 4000K; CRI 80 min., 83 Typical
  • In addition to the Xicato Standard Series, the following options are also available:
    • Artist Series: Delivering exceptional color rendering for natural color, the artist series provides CRI 98 and R9 greater than or equal to 90
    • Vibrant Series: For striking color, the vibrant series is available in both standard CRI 83 and high CRI 98. 3000K Only
  • Xicato Modules feature extraordinary color consistency within 1x2-step MacAdam ellipse
  • Select from 19° Spot, 23° Medium, 41° Flood and 56° Wide Flood beam distributions
  • eams are achieved using specular spun metal reflectors that feature a twist-and-lock attachment method, allowing them to easily be changed in the field
  • Also available in a wall wash configuration; providing smooth even illumination on vertical surfaces
  • Dimming is standard for all wattage options (120V only), allowing smooth illumination down to 10%. Compatible with most Incandescent (Forward Phase) and ELV (Reverse Phase) dimmers. For dimmer compatibility, refer to Dimming Specifications sheet.
  • Lockable, precision aiming adjustment: 360°+ aiming horizontal rotation, 90° vertical rotation
  • The FA-84 Accessory Holder, FA-85 Snoot, or BD84 Black Barn Doors can accept up to (2) LF16 60MM Lenses or FA-16 60MM Black Honeycomb Louvers, ordered separately
  • Integral ON/OFF switch and track polarity indicator are standard
  • cCSAus Certified to UL Standards
  • Suitable for Dry Locations
  • ENERGY STAR® Certified for all variations except Wall Wash and High CRI (98+) options
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Driver Orientation : Vertical

    Light Distribution Detail : Flood|Medium|Spot|Wall Wash|Wide Flood

    Light Source : LED

    Light Source Features : Vibrant White

    Lumen Output : 1001-1500|1501-2000|2001-3000

    Product Type : Track Head
