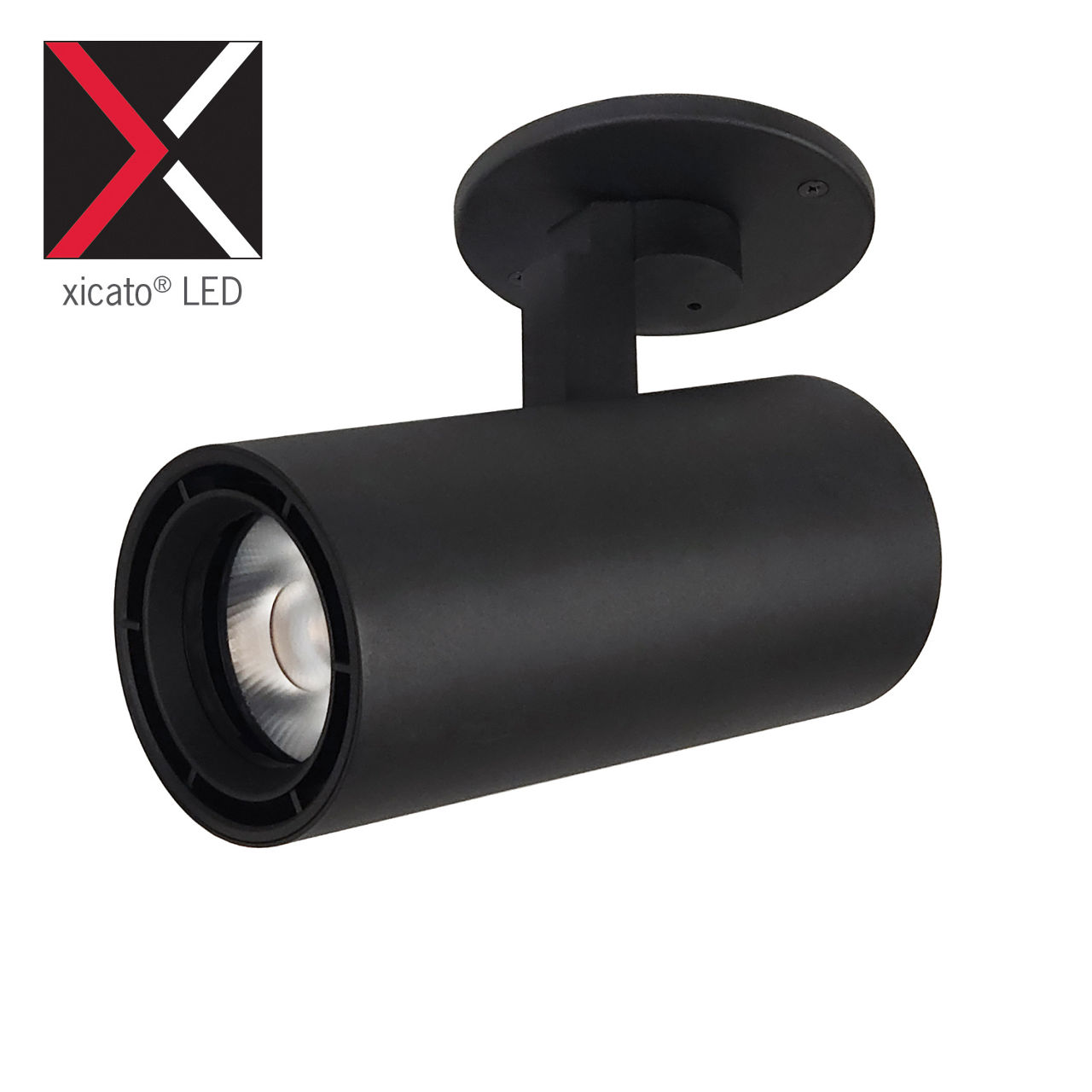

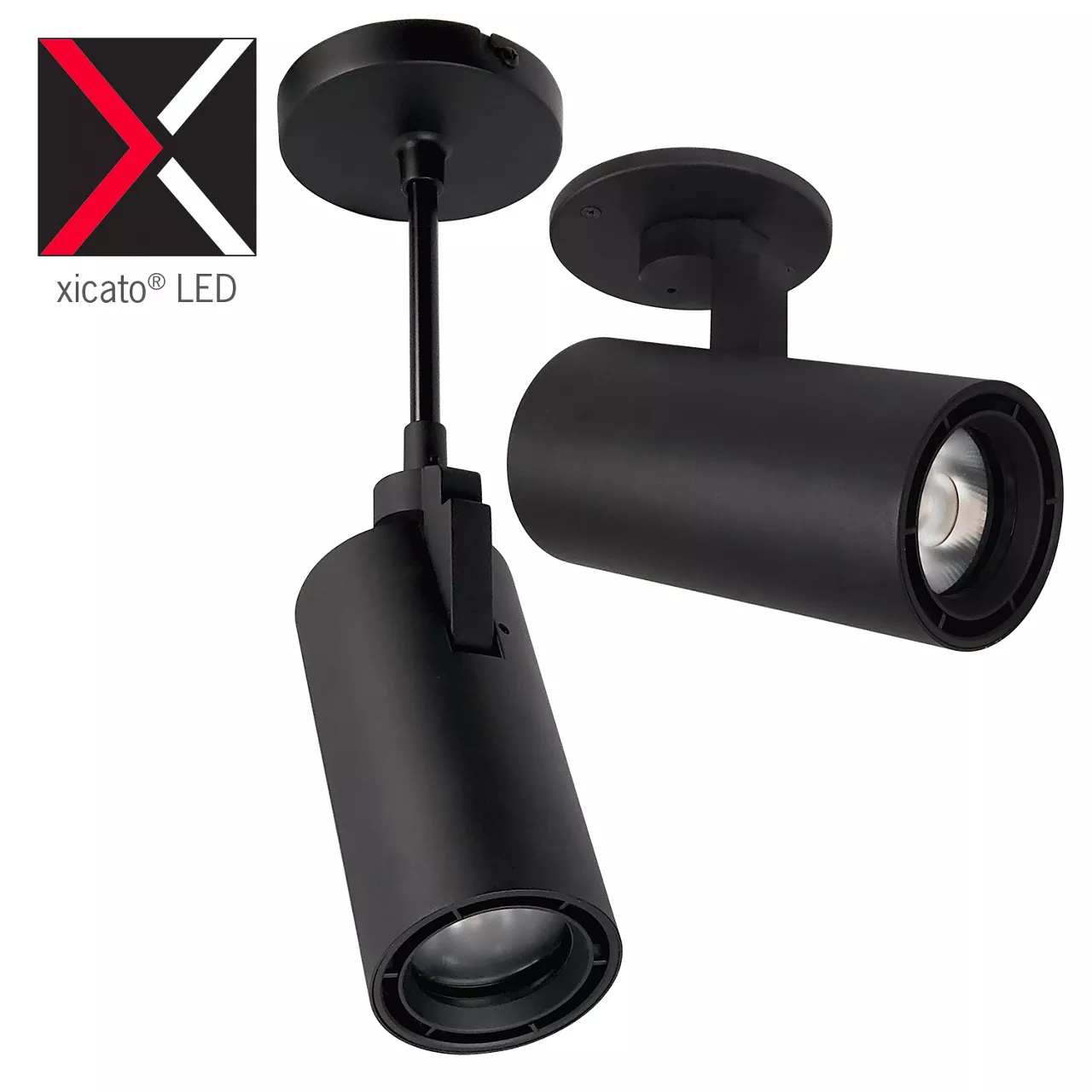

Gallery M Mono-Point Luminaire with Xicato 95CRI Static White LED
CTL93 C X
- A revolutionary luminaire with superior optics designed to bring theatre grade beam control to traditional gallery and commercial mono-points
- The 3-1/2" diameter flat-back cylinder is constructed of die-cast aluminum, the cylindrical body providing thermal management for the luminaire
- Flat, cast aluminum, 4-1/2-inch diameter canopy for ceiling or wall junction boxes
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR optic options delivering tight beam and glare control from 13° to 80° with minimal field
- Optics are field changeable
- The Xicato 95 CRI Series COBs are designed to perfectly emulate natural light sources, with precise color rendering by CIE or IES standards, for the most exacting illumination of art, architecture, or other surfaces
- Available in 2700K, 3000K, 3500K and 4000K Color temperatures; the Vibrant Series, also at 95 CRI, is only available in 3000K
- Multiple output options up to 2,400 delivered lumens
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- Dimming is standard for all wattage options using compatible 120V Forward or Reverse OR 120V/277V 0-10V Dimming systems. For dimmer compatibility and performance, refer to Specification sheet.
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Canopy Mount Luminaire
Mounting : Ceiling Mount,Wall Mount
Environment : Dry Location
LED Manufacturer/Type : Xicato® 95CRI
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 90-100
Light Distribution Detail : Narrow Spot,Spot,Narrow Flood,Medium Flood,Flood,Wide Flood
Wattage : 0-10W,11W - 20W,21W - 30W,31W - 40W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000
Voltage : 120V/277V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming,120V/277V 0-10V Dimming
