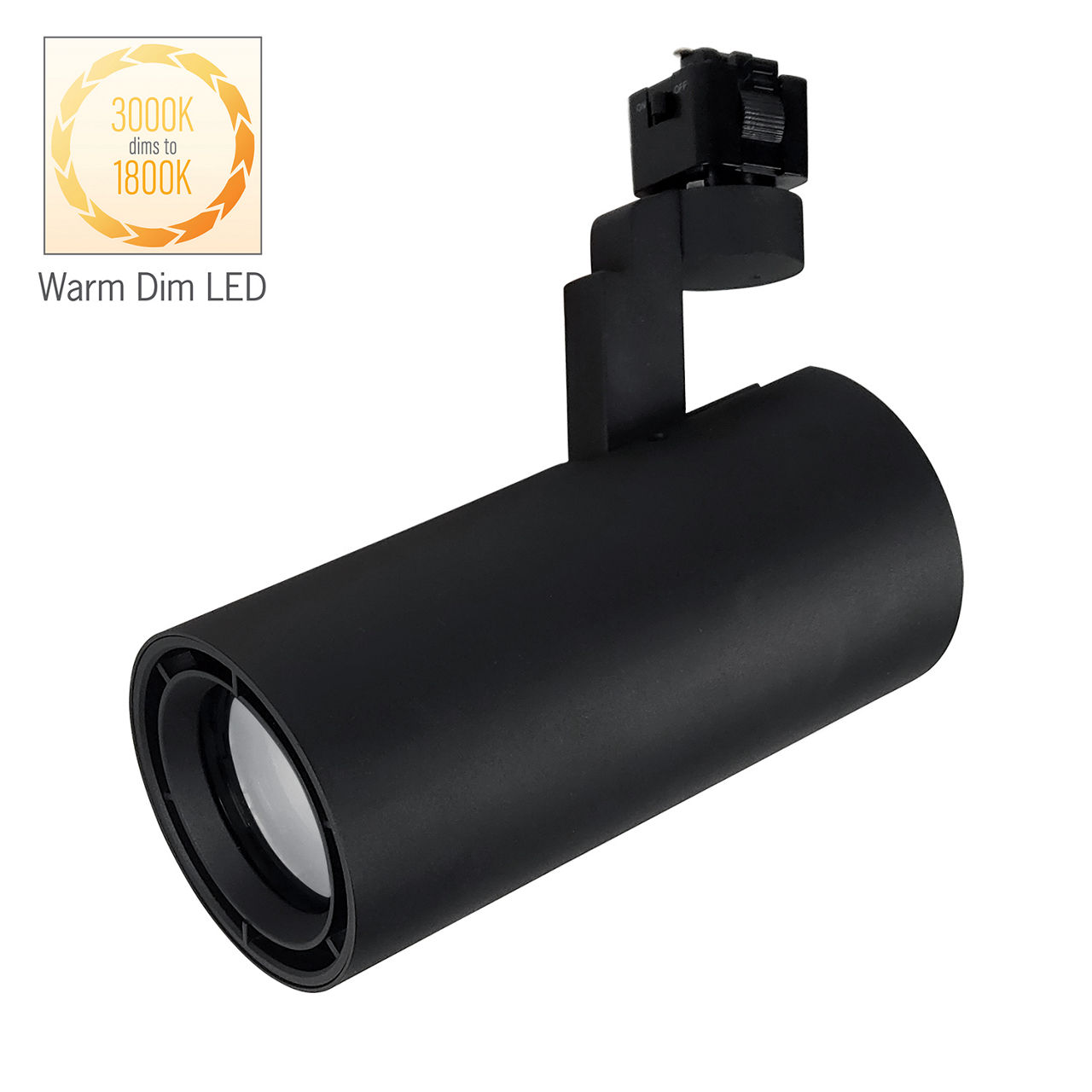

Gallery M Track Luminaire with Warm Dim LED
CTL93 WD
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- The 3-1/2-inch diameter flat-back cylinder is constructed of die-cast aluminum, the cylindrical body providing thermal management
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR Optic options delivering tight beam and glare control from 14° to 40° with minimal field; Optics are field changeable
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- Bridgelux Warm Dim LED
- Light that Warms as it Dims: CCT Range from 3000K at 100% to 1800K at <3%, CRI of 90
- 120V Forward Phase or Reverse Phase Dimming is standard for all wattage options, for dimmer compatibility and performance, refer to Specification sheet
- Standard ConTech “CTL” track luminaires are cCSAus certified as-is for use with ConTech Lighting’s LT/LT2 Single Circuit/Two Circuit Track and Luxbeam Systems as well as Juno® Lighting Trac-Master™ Systems
- By changing the prefix of the part number, ConTech can install inserts which make our fixtures compatible with other track manufacturers' systems, consult factory for details
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Mounting : Track Mount
Compatible with : ConTech LT Single Circuit Track,ConTech LT2 Two Circuit Track,ConTech Luxbeam Track System,Juno® Lighting Trac-Master™ Systems,Halo® Power-Trac System,Halo® Lazer Track,Lightolier® Lytespan® System
Environment : Dry Location
LED Manufacturer/Type : Warm Dim
Correlated Color Temperature : 3000K to 1800K
Color Rendering Index : 90-100
Light Distribution Detail : Spot,Narrow Flood,Medium Flood
Wattage : 11W - 20W,31W - 40W
Lumen Output : 1001-1500,2001-3000
Voltage : 120V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming
