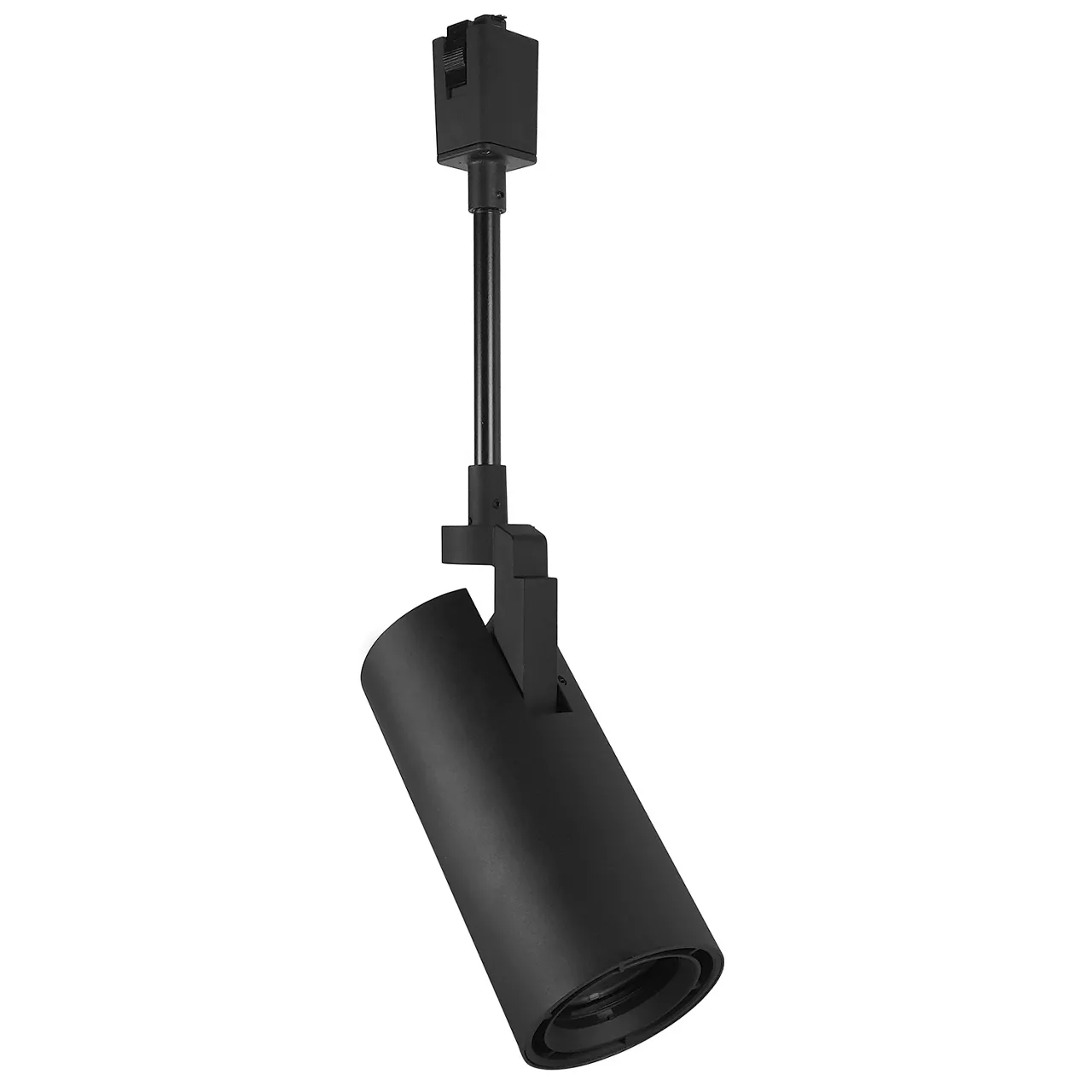

Gallery M Track Luminaire with Rigid Stem and Standard Luminous LED
CTL93
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- 3-1/2-Inch diameter flat-back cylinder constructed of die-cast aluminum, cylindrical body providing thermal management
- Rigid Stem available in 6-, 12-, and 18-inch lengths
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR optic options delivering tight beam and glare control from 11° to 79° with minimal field
- Optics are field changeable
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver). Accessories are ordered separately.
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; a high CRI of 90+ is available
- 120V Forward Phase or Reverse Phase Dimming is standard for all wattage options, for dimmer compatibility and performance, refer to Specification sheet
- Standard ConTech “CTL” track luminaires are cCSAus certified as-is for use with ConTech Lighting’s LT/LT2 Single Circuit/Two Circuit Track and Luxbeam Systems as well as Juno® Lighting Trac-Master™ Systems
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Mounting : Rigid Stem Track Mount
Compatible with : ConTech LT Single Circuit Track,ConTech LT2 Two Circuit Track,ConTech Luxbeam Track System,Juno® Lighting Trac-Master™ Systems
Environment : Dry Location
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Narrow Spot,Spot,Narrow Flood,Medium Flood,Flood,Wide Flood
Wattage : 11W - 20W,21W - 30W,31W - 40W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000
Voltage : 120V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming
