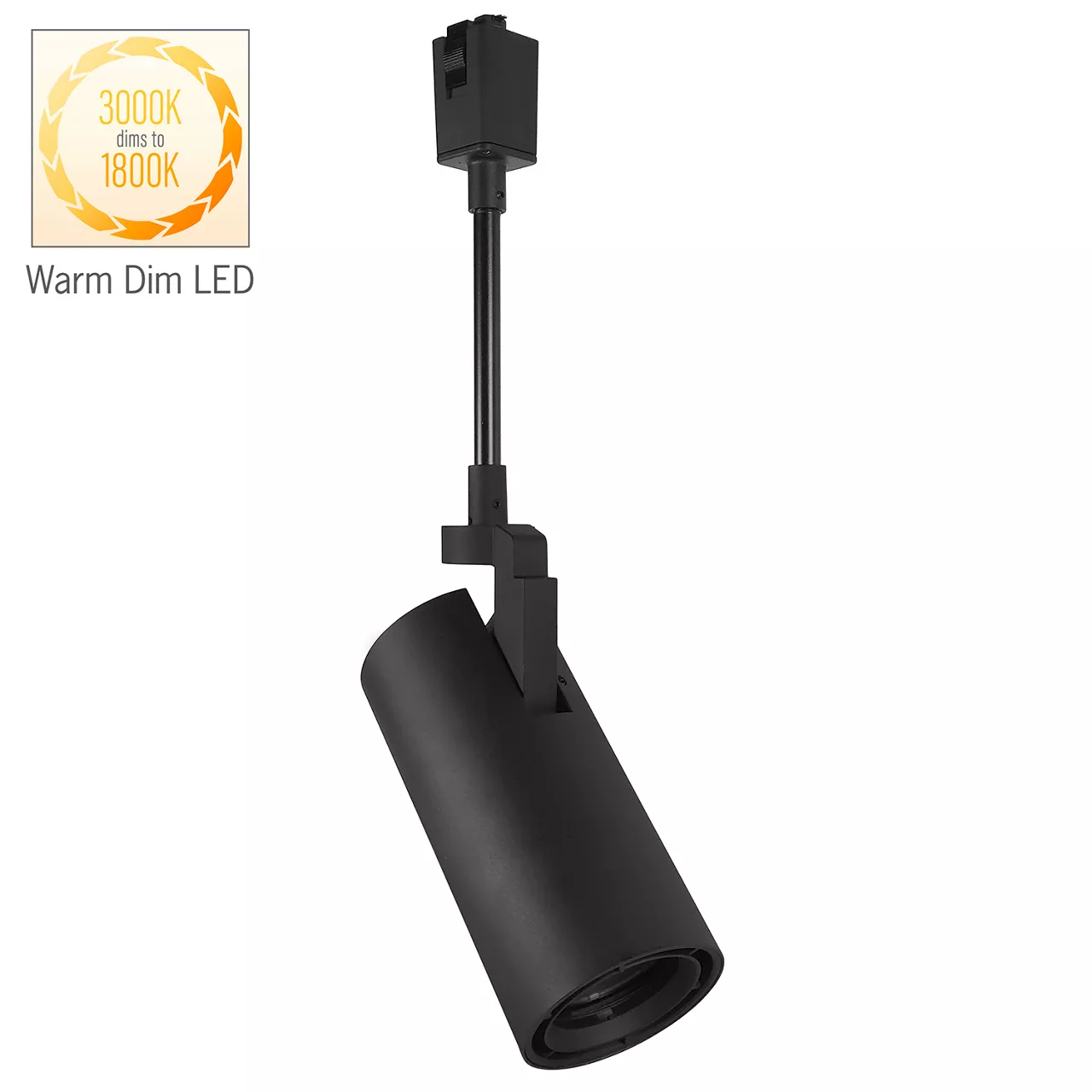

Gallery M Track Luminaire with Rigid Stem featuring Warm Dim LED
CTL93RS WD
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- The 3-1/2-inch diameter flat-back cylinder is constructed of die-cast aluminum, the cylindrical body providing thermal management
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Rigid Stem available in 6-, 12-, and 18-inch lengths
- Engineered TIR Optic options delivering tight beam and glare control from 14° to 40° with minimal field; Optics are field changeable
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- Bridgelux Warm Dim LED
- Light that Warms as it Dims: CCT Range from 3000K at 100% to 1800K at <3%, CRI of 90
- 120V Forward Phase or Reverse Phase Dimming is standard for all wattage options, for dimmer compatibility and performance, refer to Specification sheet
- Standard ConTech “CTL” track luminaires are cCSAus certified as-is for use with ConTech Lighting’s LT/LT2 Single Circuit/Two Circuit Track and Luxbeam Systems as well as Juno® Lighting Trac-Master™ Systems
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Mounting : Rigid Stem Track Mount
Compatible with : ConTech LT Single Circuit Track,ConTech LT2 Two Circuit Track,ConTech Luxbeam Track System,Juno® Lighting Trac-Master™ Systems
Environment : Dry Location
LED Manufacturer/Type : Warm Dim
Correlated Color Temperature : 3000K to 1800K
Color Rendering Index : 90-100
Light Distribution Detail : Spot,Narrow Flood,Medium Flood
Wattage : 11W - 20W,31W - 40W
Lumen Output : 1001-1500,2001-3000
Voltage : 120V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming
