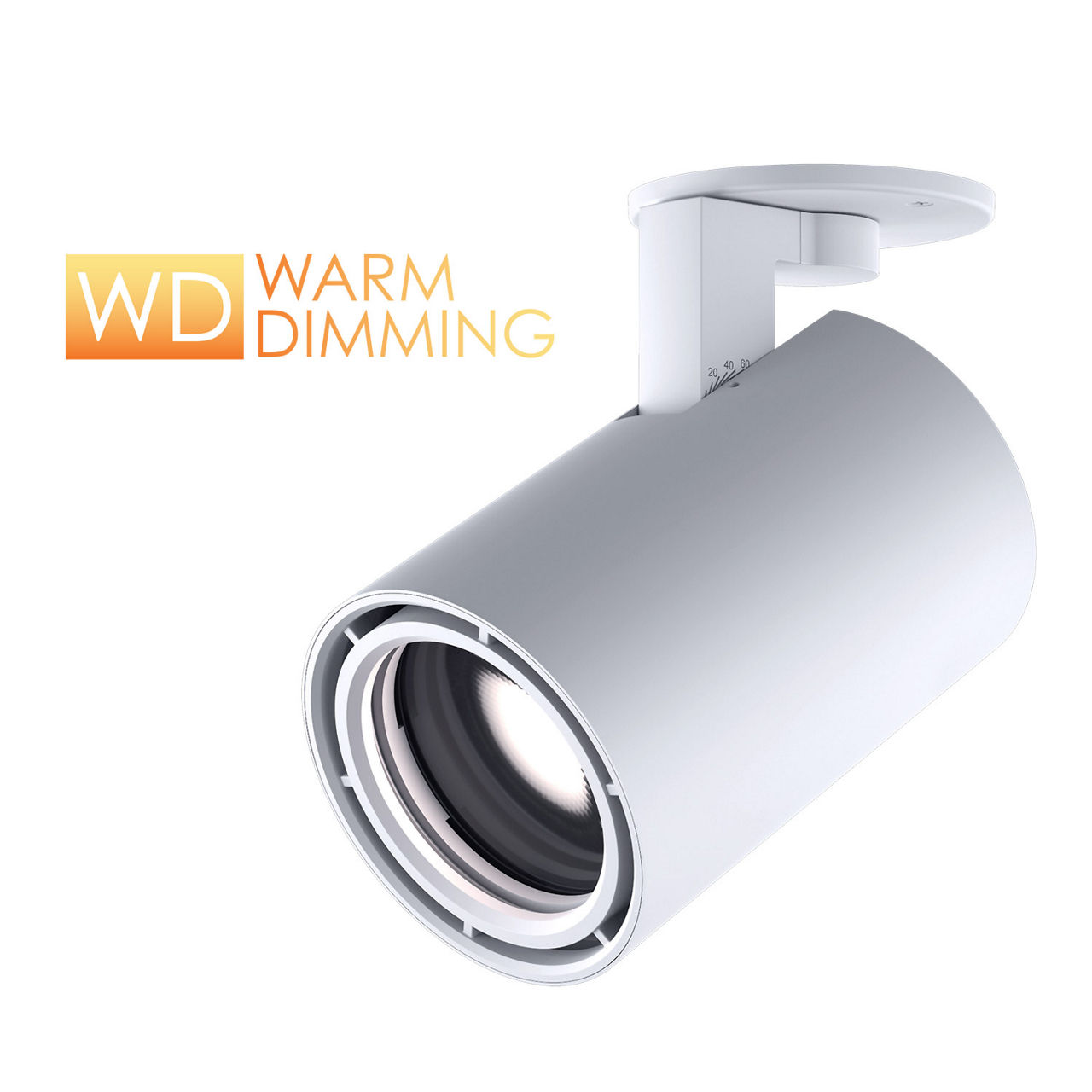

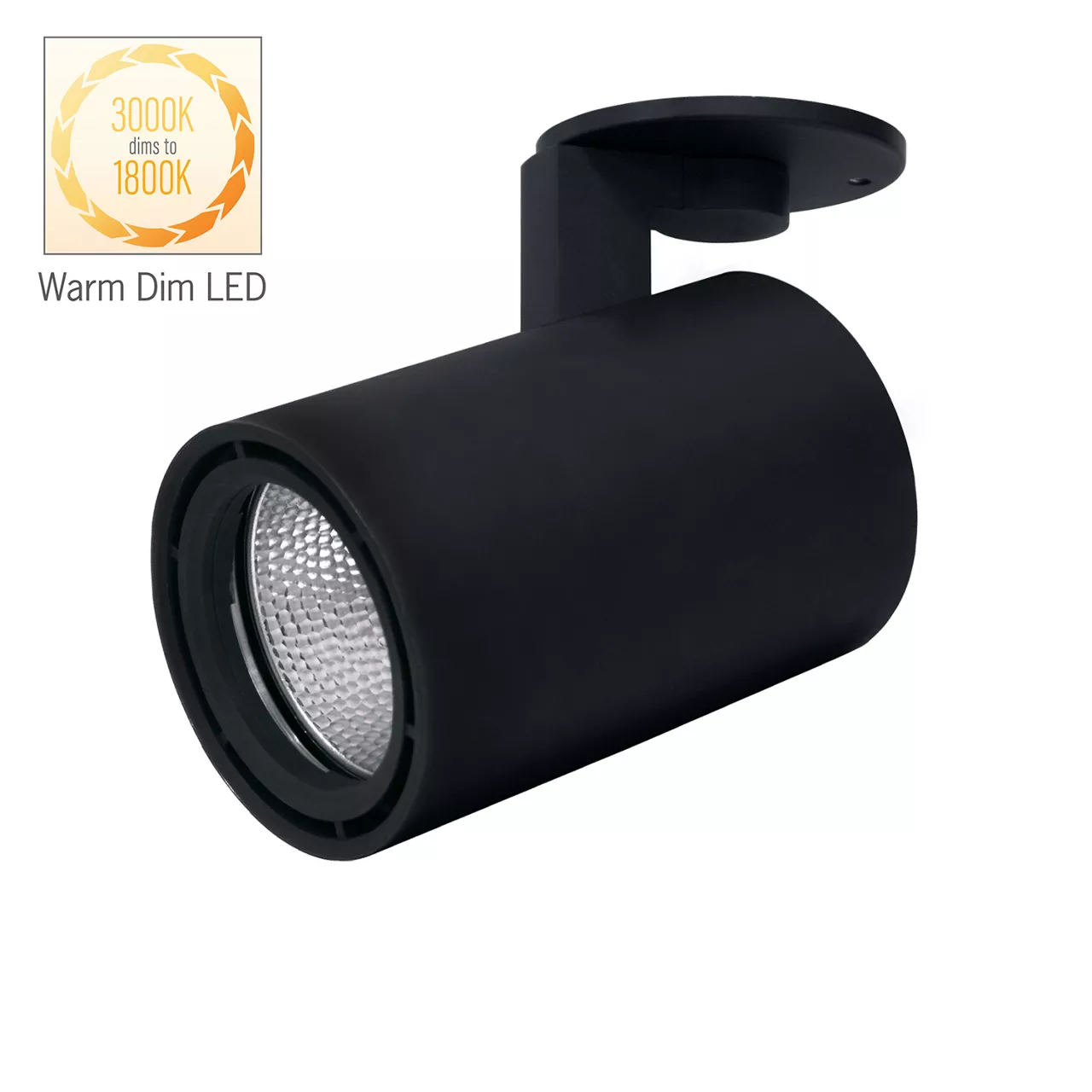

Gallery XL Warm Dim Canopy Mount Luminaire


  • Cylindrical body constructed of die-cast aluminum to provide thermal management
  • Mono-Point Canopy Housing is constructed of cast aluminum, may be ceiling or wall mounted
  • Lockable, precision aiming adjustment: 360°+ aiming horizontal, 220° vertical rotation
  • Precision engineered Dual Lens Optic used for Very Narrow Spot (VN) and Narrow Spot (NS) beam distributions. Design provides a tight beam angle and field to highlight target objects with mimimal stray illumination.
  • Specular Aluminum Reflectors used for 24° Medium, 42° Flood, and 51° Wide Flood beam distributions. Optically engineered for even illumination and glare control.
  • Full collection of accessories to produce a myriad of filtering and framing effects; can accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot or BD94-B Black Barn Doors, ordered separately. Snoot or Barn  Door count as one (1) piece.
  • Light that Warms as it Dims; CCT Range from 3000K to 1800K (3000K at full brightness to 1800K when dimmed), CRI of 90
  • Dimming is standard for all wattage options using compatible 120V TRIAC/ELV or 120/277V 0-10V dimming systems. For dimmer compatibility and performance, refer to Dimming Specification sheet.
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : 1800K - 3000K

    Driver Orientation : Integrated

    Light Distribution Detail : Very Narrow Spot Optic|Narrow Spot Optic|Medium Reflector|Flood Reflector|Wide Flood Reflector

    Light Source : LED

    Light Source Features : Warm Dimming

    Lumen Output : 500-1000|1001-1500|1501-2000|2001-3000

    Product Type : Mono-Point
