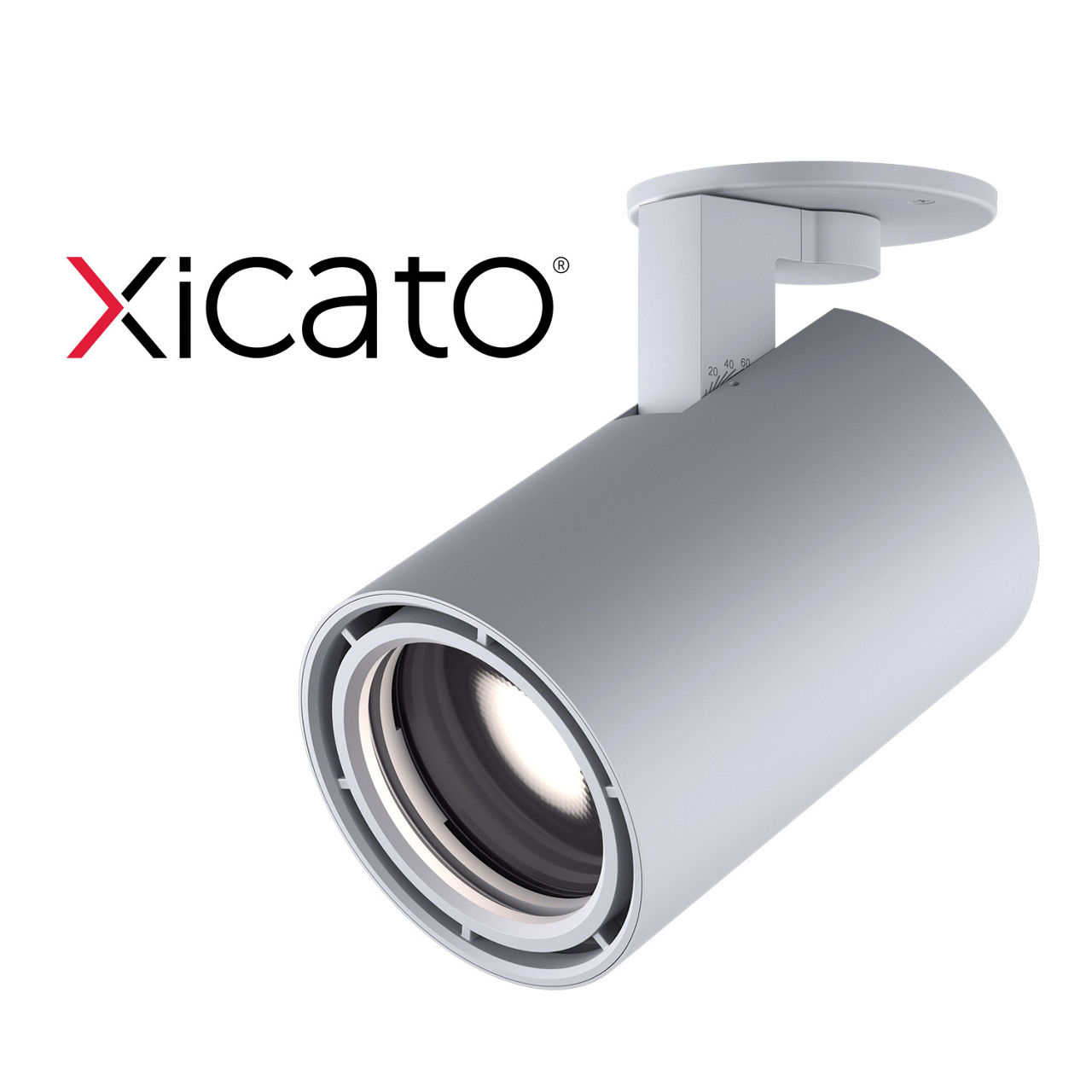

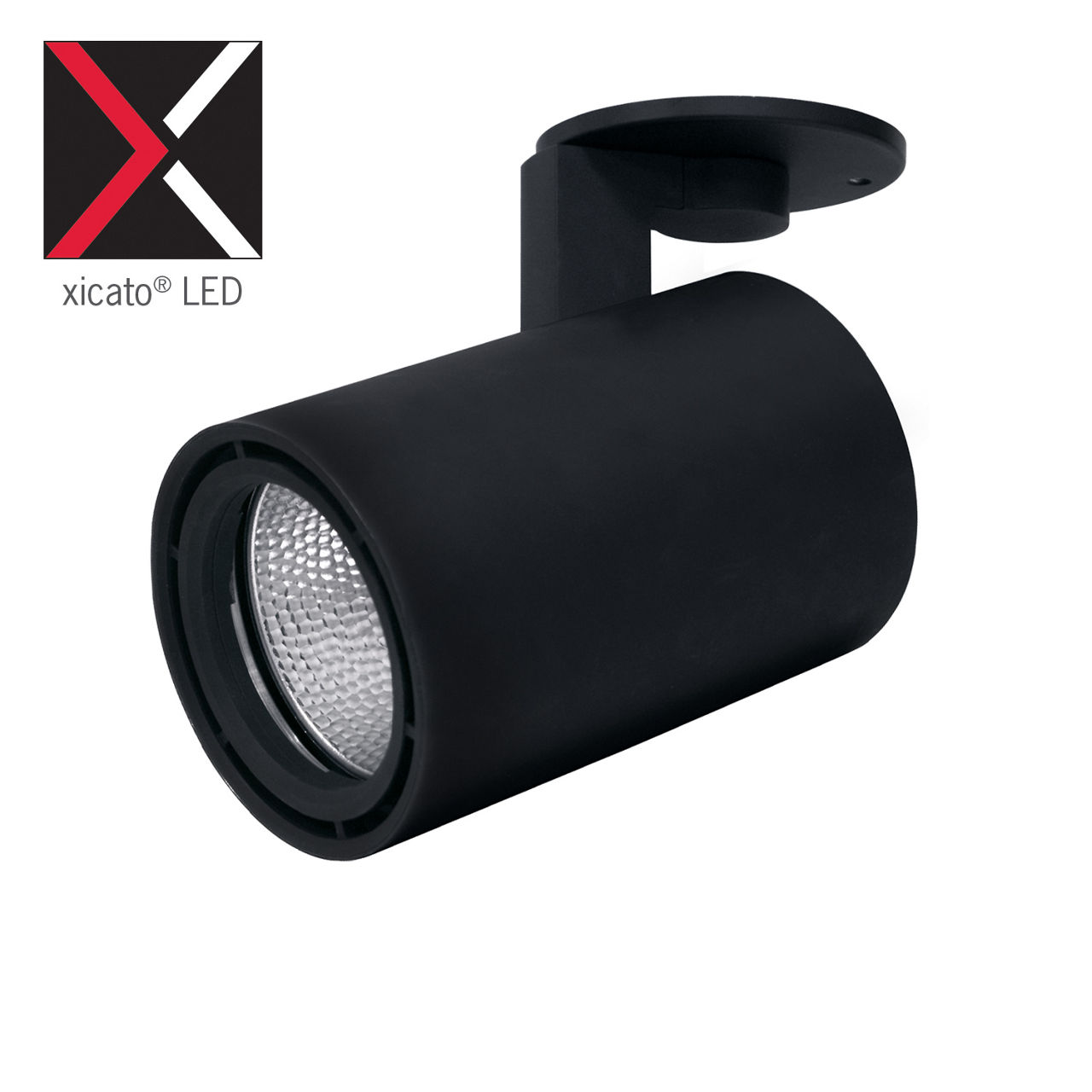

Gallery XL Mono-Point Luminaire with Xicato 95CRI Static White LED
CTL94*C X
- A revolutionary luminaire with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- The Xicato 95 CRI Series COBs are designed to perfectly emulate natural light sources, with precise color rendering by CIE or IES standards, for the most exacting illumination of art, architecture, or other surfaces
- Available in 2700K, 3000K, 3500K and 4000K Color temperatures; the Vibrant Series, also at 95 CRI, is only available in 3000K
- Constructed of die-cast aluminum, the cylindrical body provides thermal management for the luminaire
- Flat, cast aluminum, 4-1/2-inch diameter canopy for ceiling or wall junction boxes
- Lockable, precision aiming adjustment: 360°+ aiming horizontal, 220° vertical rotation
- A precision engineered Dual Lens Optic is used for the 8° Very Narrow Spot and 11° Narrow Spot beam distributions, providing a tight beam angle and field to highlight target objects with minimal stray illumination
- Specular Aluminum Reflectors are used for 11° Spot, 22° Medium, 41° Flood, and 50° Wide Flood beam distributions; optically engineered for even illumination and glare control
- Optics are field changeable
- The Luminaire an accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot, or BD94-B Black Barn Doors; Snoot or Barn Door count as one (1) piece. Accessories are ordered separately.
- Dimming is standard for all wattage options using compatible 120V Forward or Reverse OR 120V/277V 0-10V Dimming systems. For dimmer compatibility and performance, refer to Specification sheet.
- Integrated Rotary Dimmer option available; this option should not be used if luminaire will be controlled by other dimmers
Product Information
Product Features
Product Category : Track Lighting
Product Type : LED Canopy Mount Luminaire
Mounting : Ceiling Mount,Wall Mount
Environment : Dry Location
Compliance : cCSAus Certified,DesignLights Consortium (DLC) Certified
LED Manufacturer/Type : Xicato® 95CRI
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 90-100
Light Distribution Detail : Very Narrow Spot,Narrow Spot,Spot,Medium,Flood,Wide Flood
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000
Voltage : 120V/277V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming,120V/277V 0-10V Dimming,120V Integrated Rotary Dimming Option
