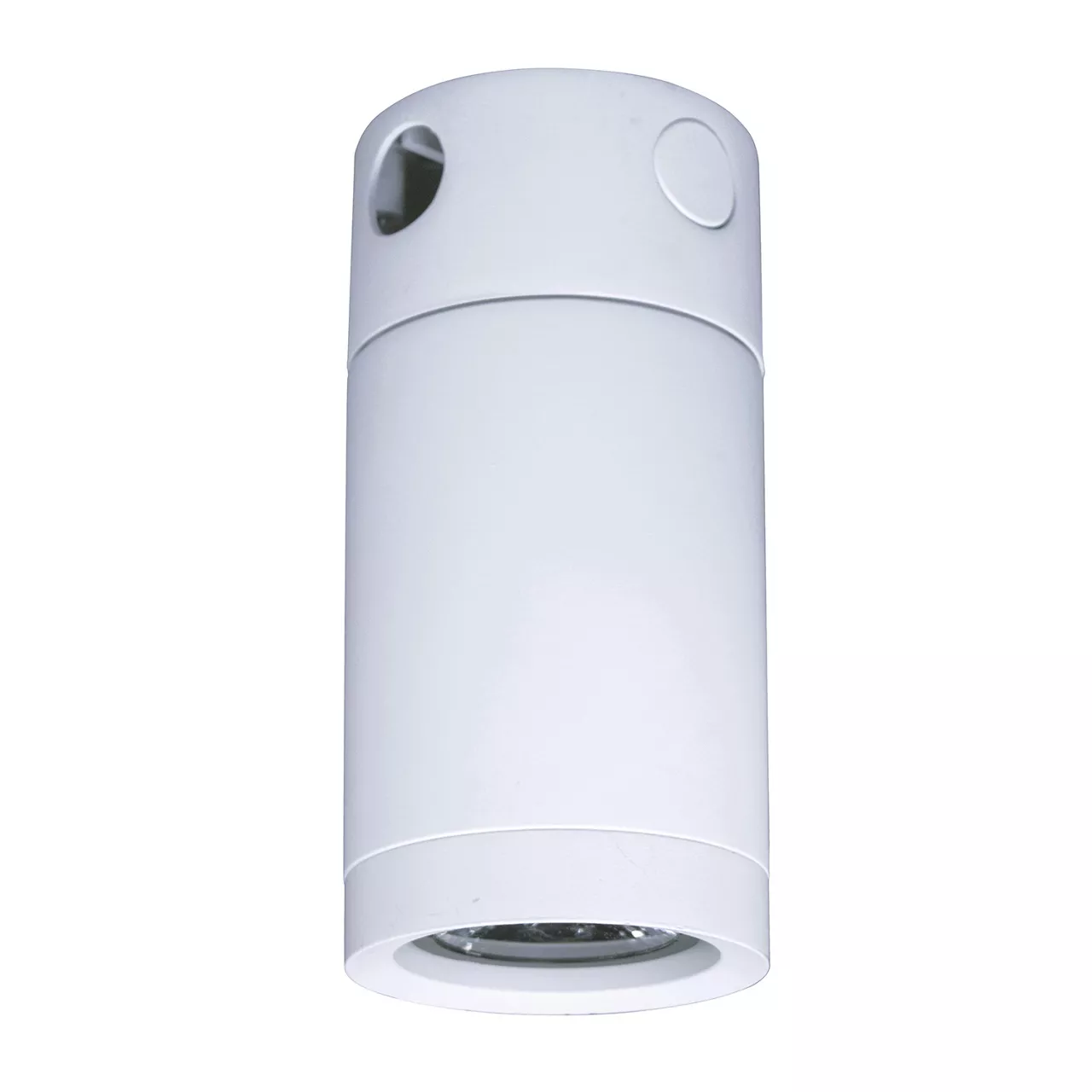

3-1/2-Inch Round Surface Mount Cylinder with Conduit Feed Mounting Box
CY3 SC
- Specification Grade 3-1/2-inch diameter Aluminum Housing with Cast Aluminum Driver Canopy
- Driver Canopy with a four (4) outlet, 3-1/2–inch diameter Junction Box with hardware for 3/4–inch EMT Conduit and Hubs
- Available in 7-3/4- and 12-1/8-inch heights; Matte Black, Satin Bronze, Matte White, and Matte Silver finishes
- Custom Color finishes available; consult factory for pricing, minimum order quantities, and lead time
- Suitable for Dry/Damp (Indoor) location types
- Optics are optically engineered to provide a smooth, uniform beam, maximizing output, minimizing glare and can be easily changed in the field
- Available in 13° Spot, 29° Medium, 44° Flood, 60° Wide Flood Beam Distributions, and a Wall Wash option
- Wall Wash Optic may be rotated 360° to aim distribution pattern; it is not field interchangeable with Spot, Medium, Flood or Wide Flood Optics
- 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI 80 of min., 83 typical; high of CRI 90+ available
- Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
- Hang support for hands-free wiring
- Battery Backup option provides 90 minutes of power
- UL8750 and Class 2 compliant: RoHS compliant, U.S. only
- Output over voltage, over current and short circuit protected
- Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification sheet
- Cylinders must be installed per specific product installation instructions and all appropriate NEC Codes
- ENERGY STAR® Certified
RoHS Compliant:
Yes – Click Here
Product Information
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Environment : Indoor
Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash
Light Source : LED
Listings : cCSAus,Damp Location,ENERGY STAR® Certified
Lumen Output : 1001-1500,1501-2000
Mounting : Surface,Conduit Feed Mount
Product Type : Cylinder
Size : 3-1/2 in
