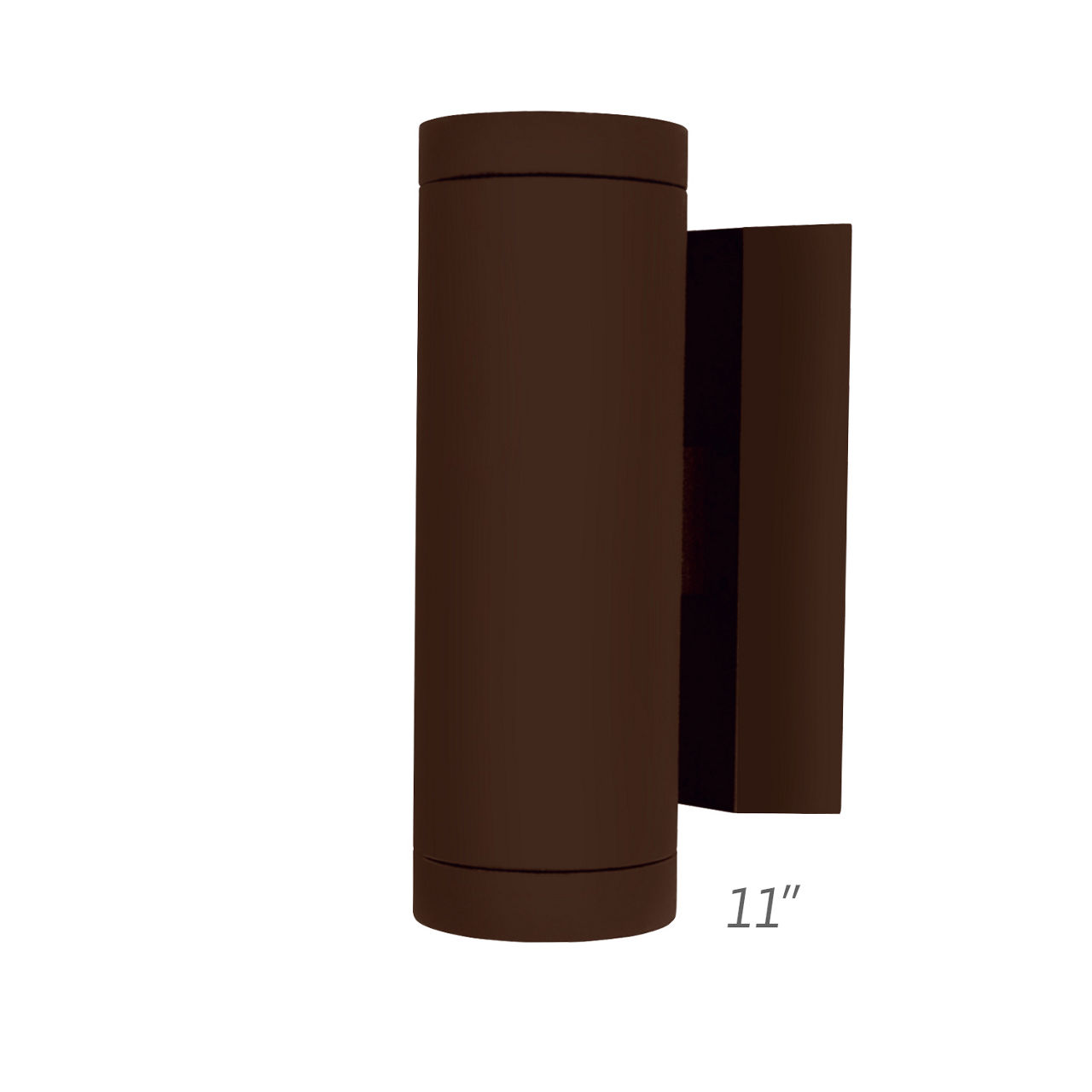

3-1/2-Inch Indoor/Outdoor Round Up/Down Wall Mount Cylinder

CY3 UD WM

  • Specification Grade 3-1/2-inch diameter Aluminum Housing with Cast Aluminum Driver Canopy
  • Available in 11-inch height only; Matte Black, Satin Bronze, Matte White, and Matte Silver finishes
  • Custom Color finishes available; consult factory for pricing, minimum order quantities, and lead time
  • Includes a 4-3/4-inch W x 5-1/8-inch H optional Mounting Plate for use with larger Junction Boxes
  • Consists of dual Light Engines: one oriented down and one oriented up
  • Standard Up/Down Luminaire construction uses identical Light Engines, Color Temperatures and Beam Distributions in both the Up and Down direction; consult factory if different Light Engines, Color Temperatures, or Beam Distributions are required
  • Battery Backup option powers only the down Light Engine; consult factory for alternate options
  • Optics are optically engineered to provide a smooth uniform beam; maximizing output, minimizing glare, and can be easily changed in the field
  • Beam Distributions available in 13° Spot, 29° Medium, 44° Flood, 60° Wide Flood, and a Wall Wash option
  • Wall Wash Optic may be rotated 360° to aim distribution pattern; this Optic (WW) is not field interchangeable with Spot, Medium, Flood or Wide Flood Optics
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI 80 of minimum, 83 typical; high CRI of 90+ available
  • Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
  • Battery Backup option provides 90 minutes of power
  • Output over voltage, over current and short circuit protected
  • UL8750 and Class 2 compliant
  • RoHS compliant, U.S. only
  • Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification sheet
  • Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight
  • Wet Location Models are IP65 Rated
  • Cylinders must be installed per specific product installation instructions and all appropriate NEC Codes
  • ENERGY STAR® Certified
RoHS Compliant: Yes – Click Here

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Environment : Indoor,Outdoor

    Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash

    Light Source : LED

    Listings : cCSAus,Wet Location,Damp Location,IP65

    Lumen Output : 1001-1500,1501-2000

    Mounting : Up/Down,Wall

    Product Type : Cylinder

    Size : 3-1/2 in
