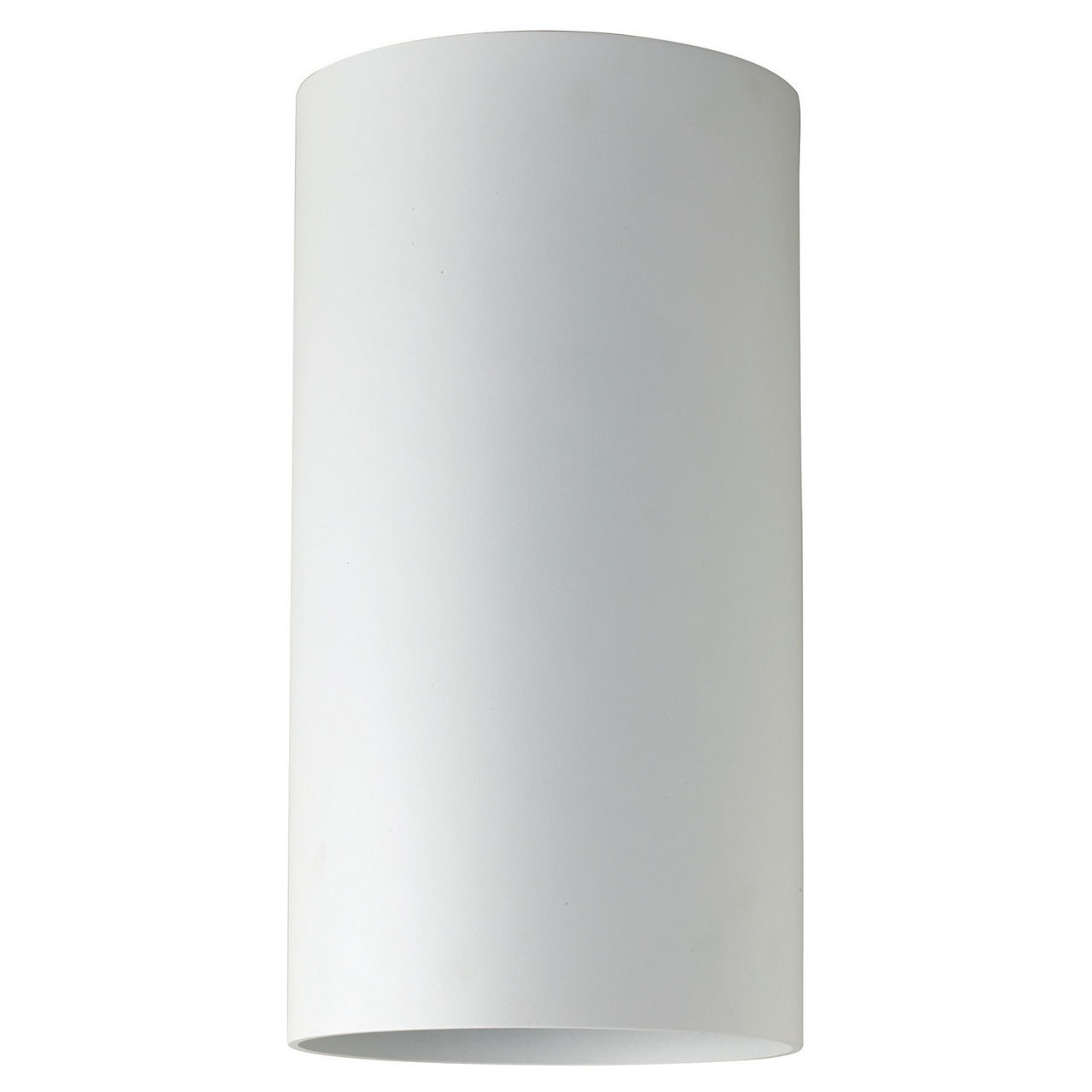

8 Inch Indoor/Outdoor Round Cylinders: Ceiling Mount
CYL8 CM
- Specification Grade 8 inch diameter Aluminum Housing suitable for Dry/Damp (indoor) or Wet (outdoor) location types
- Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight
- Hang support for hands-free wiring
- Clear Alzak Reflector is available in 34° Narrow, 66° Medium and 75° Wide beam distributions
- Platinum Reflector is available in a 69° Medium beam distribution
- Wall Wash and Pencil Beam Optic accessories are also available
- 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
- Battery Backup option provides 90 minutes of power
- UL8750 and Class 2 compliant: RoHS compliant, U.S. only
- Output over voltage, over current and short circuit protected
- CYL8 Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet
- Assembled in the USA
Country of Origin: Please Contact Customer Service
Product Information
Updated
Updated
IES
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Environment : Indoor,Outdoor
Light Distribution Detail : Narrow,Medium,Wide,Wall Wash,Pencil Beam
Light Source : LED
Listings : cCSAus,Damp Location,Wet Location,Energy Star
Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000
Mounting : Ceiling
Product Type : Cylinder
Size : 8 in
