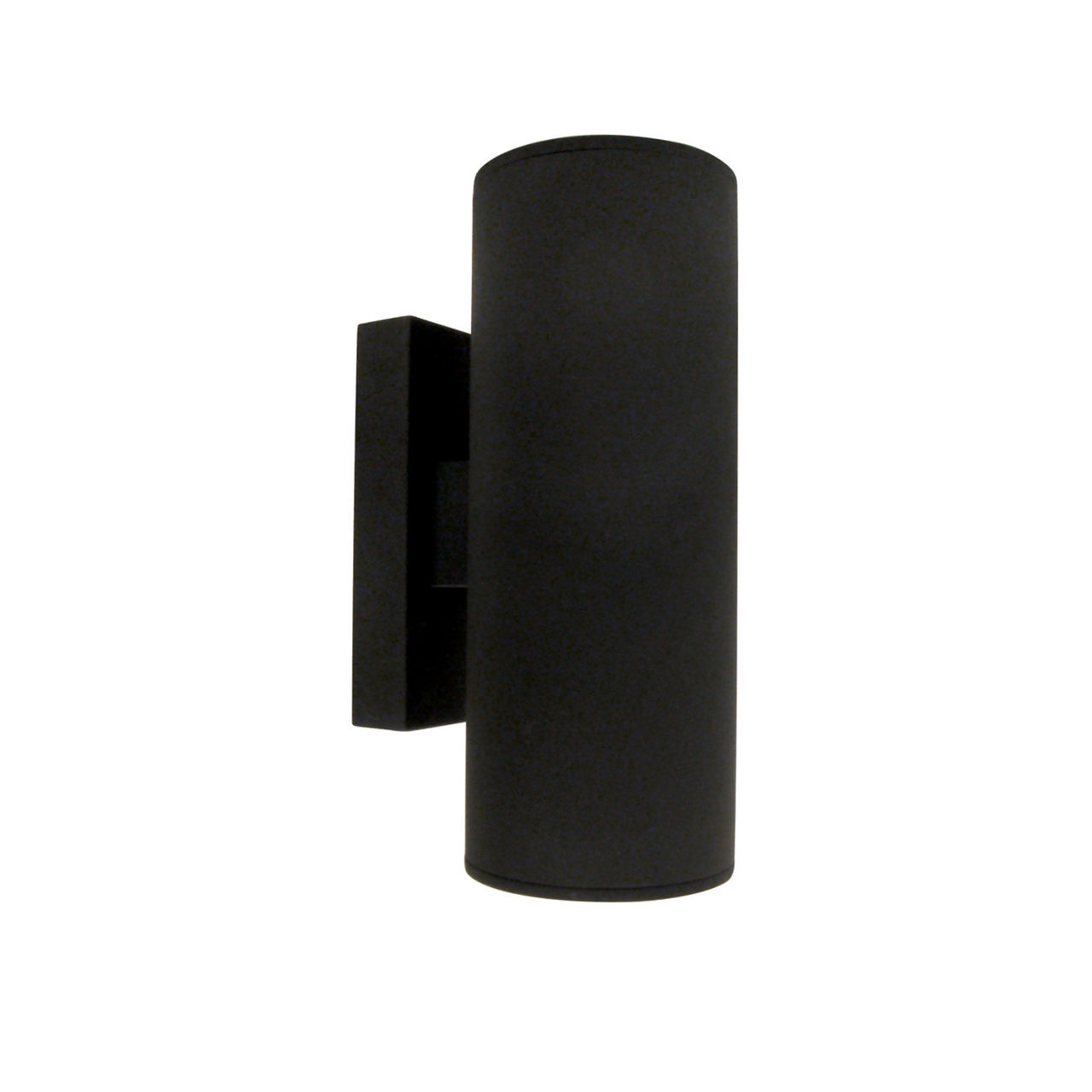

8 Inch Indoor/Outdoor Round Cylinders: Up/Down Wall Mount

CYL8 UD WM

  • Specification Grade 8 inch diameter Aluminum Housing suitable for Dry/Damp (indoor) or Wet (outdoor) location types
  • Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight
  • Bracket Support for hands-free wiring
  • Standard Up/Down Luminaire construction uses identical LED Light Engines, Color Temperatures and Beams in both the Up and Down direction; consult factory if different Light Engines, Color Temperatures or Beam Spreads are required in each direction of an Up/Down Luminaire
  • Clear Alzak Reflector is available in 34° Narrow, 66° Medium and 75° Wide beam distributions
  • Platinum Reflector is available in a 69° Medium beam distribution
  • Wall Wash and Pencil Beam Optic accessories are also available
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
  • Battery Backup option provides 90 minutes of power only to the Down Light Engine; consult factory for alternate options
  • UL8750 and Class 2 compliant: RoHS compliant, U.S. only
  • Output over voltage, over current and short circuit protected
  • CYL8 Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet
  • Assembled in the USA
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Environment : Indoor|Outdoor

    Light Distribution Detail : Narrow|Medium|Wide|Wide Flood|Pencil Beam

    Light Source : LED

    Listings : cCSAus|Damp Location|Wet Location

    Lumen Output : 501-1000|1001-1500|1501-2000|2001-3000|3001-4000

    Mounting : Up/Down|Wall

    Product Type : Cylinder

    Size : 8 in
