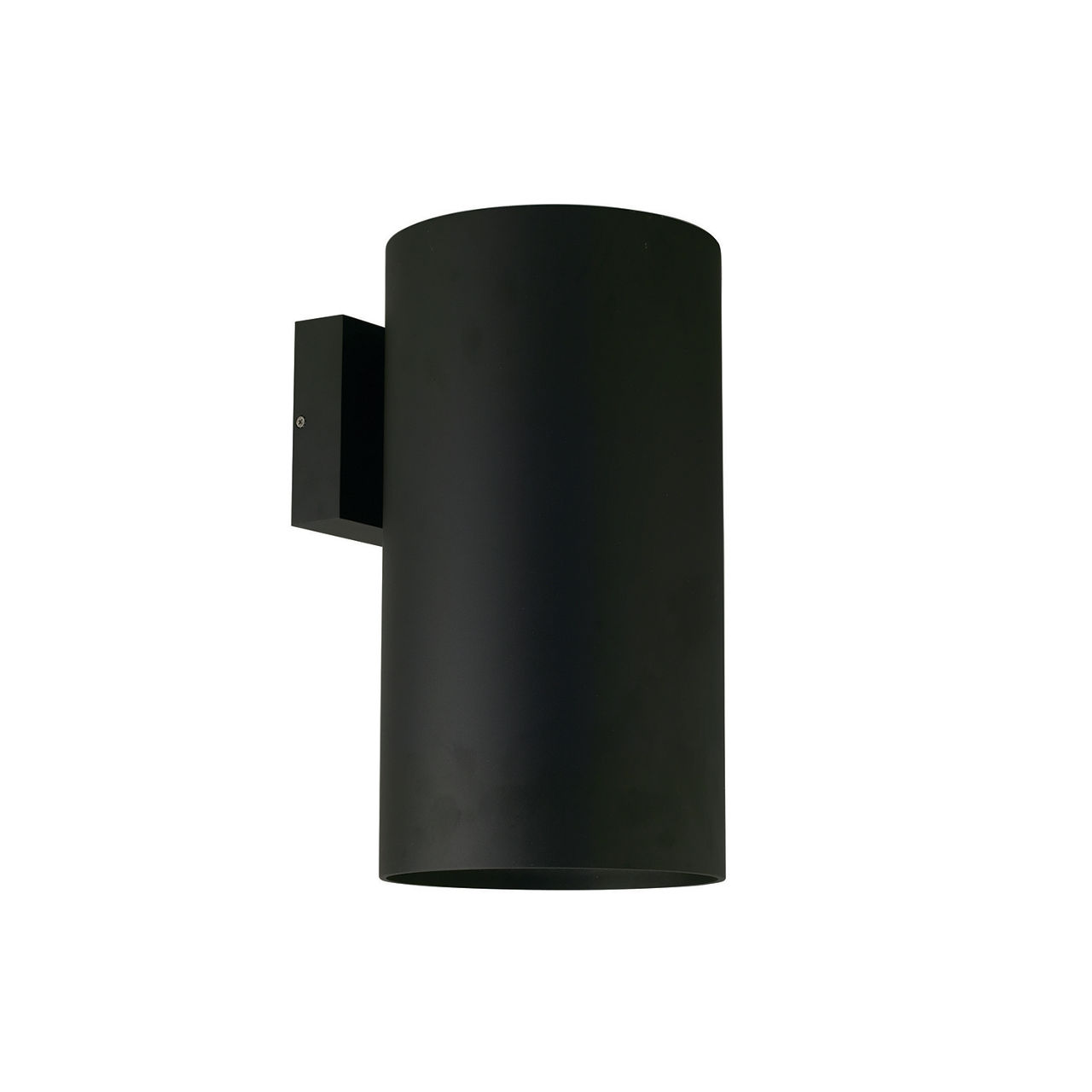

8 Inch Indoor/Outdoor Round Cylinders: Wall Mount

CYL8 WM

  • Specification Grade 8 inch diameter Aluminum Housing suitable for Dry/Damp (indoor) or Wet (outdoor) location types
  • Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight
  • Bracket Support for hands-free wiring
  • Available in Up or Down mounting orientation; specific mounting style must ordered from factory
  • Clear Alzak Reflector is available in 34° Narrow, 66° Medium and 75° Wide beam distributions
  • Platinum Reflector is available in a 69° Medium beam distribution
  • Wall Wash and Pencil Beam Optic accessories are also available
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
  • Battery Backup option provides 90 minutes of power
  • UL8750 and Class 2 compliant: RoHS compliant, U.S. only
  • Output over voltage, over current and short circuit protected
  • CYL8 Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet
  • Assembled in the USA
Country of Origin: Please Contact Customer Service

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Environment : Indoor,Outdoor

    Light Distribution Detail : Narrow,Medium,Wide,Wall Wash,Pencil Beam

    Light Source : LED

    Listings : cCSAus,Damp Location,Wet Location,Energy Star

    Lumen Output : 501-1000,1001-1500,1501-2000,2001-3000,3001-4000

    Mounting : Wall

    Product Type : Cylinder

    Size : 8 in
