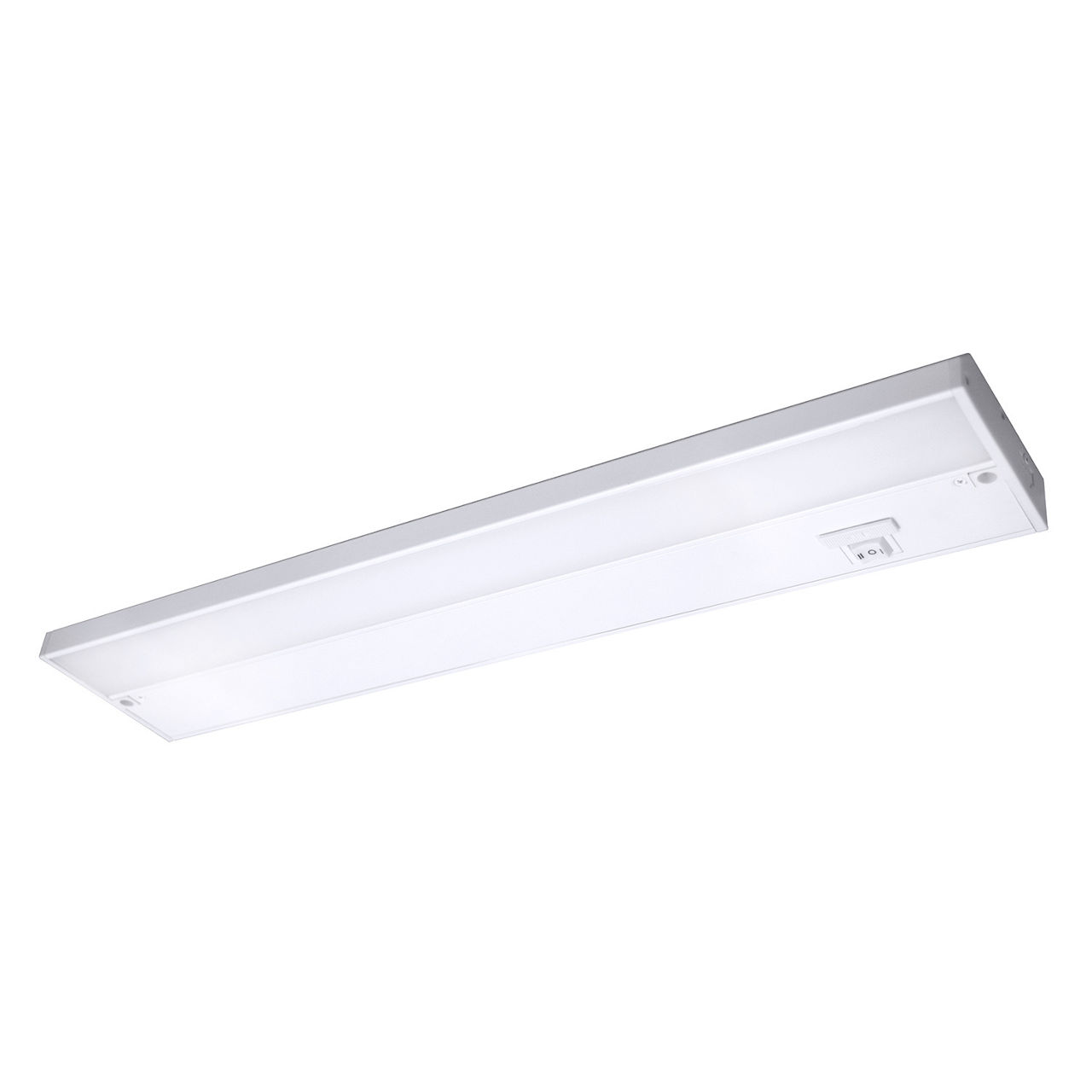

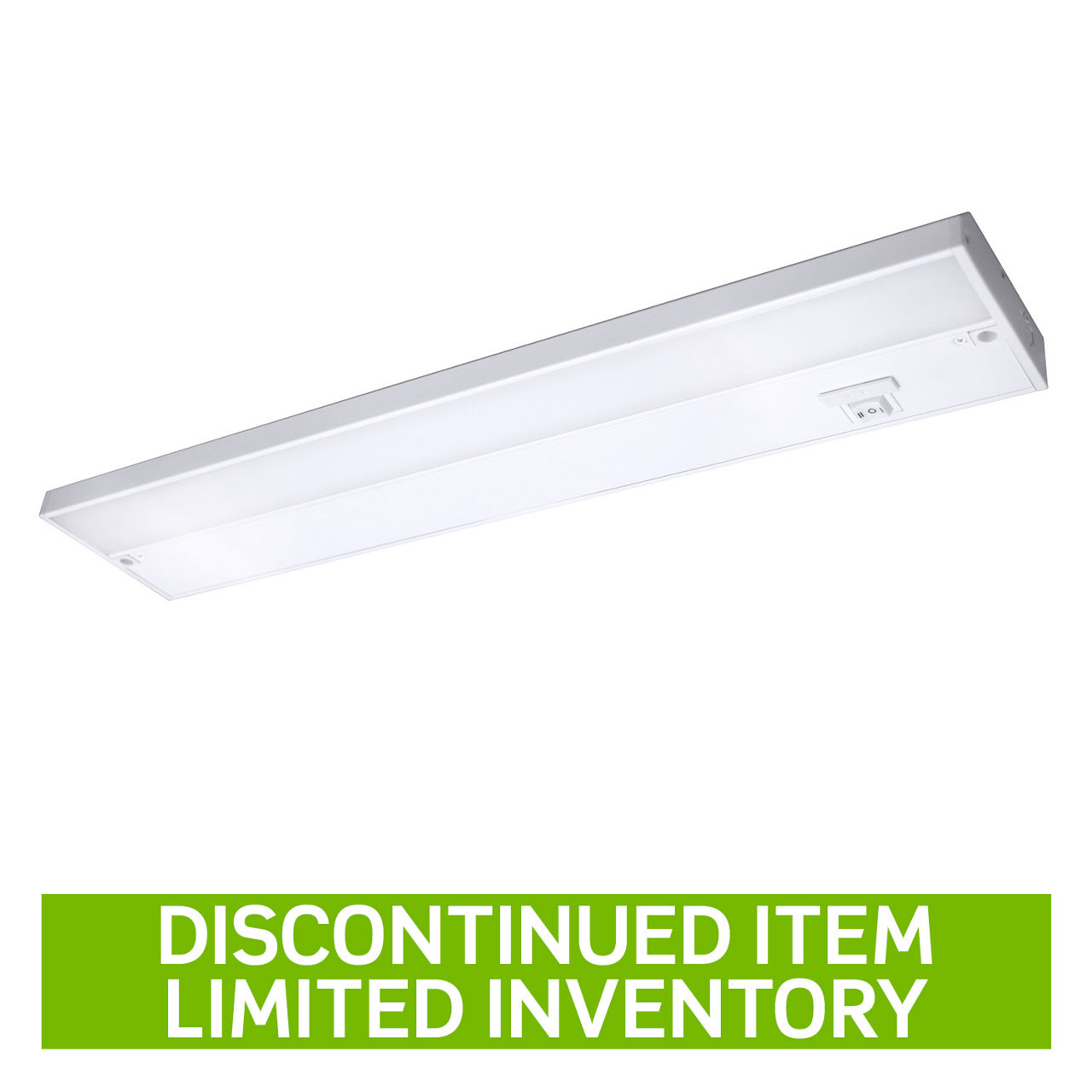

120V 3-CCT (27K-30K-40K) LED Undercabinet Lighting

LPU2 120V

  • 120V Triac dimmable; Integral driver in each unit
  • Superior versatility, color rendering and efficiency
  • Resistant to shock and vibration
  • No infrared or ultraviolet radiation
  • Thin profile; less than 1" in depth
  • White finish with Frosted Lens
  • Each unit includes: 72" Power Connector (LPAPL72), 12" Jumper Cable (LPAC12), End-to-End Connector (LPACE), Conduit Connector and Mounting Screws
  • Assorted Flexible Connections allow for continuous row applications as well as applications with bends and corners
  • Linkable to 200W max.
  • Integral ON/OFF switch, along with High/Low switch
  • Selectable switch allows selection between three (3) different color temperatures: 2700K, 3000K, and 4000K
  • CRI: 90
  • 12": 5W/250Lm - 300Lm
    18": 8W/380Lm - 450Lm
    24": 12W/850Lm - 900Lm
    32": 16W/950Lm - 1050Lm
  • Built in LED driver and large knockout plate in the back makes for effortless installation
  • cETLus listed; suitable for dry locations
  • Can be used to comply with 2019 Title 24 Part 6 JA8 high efficacy LED light source requirements

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : Variable

    Light Source : LED

    Listings : Dry Location,Title 24 JA8

    Lumen Output : Under 500,501-1000,1001-1500

    Product Shape : Rectangular

    Product Type : Accent
