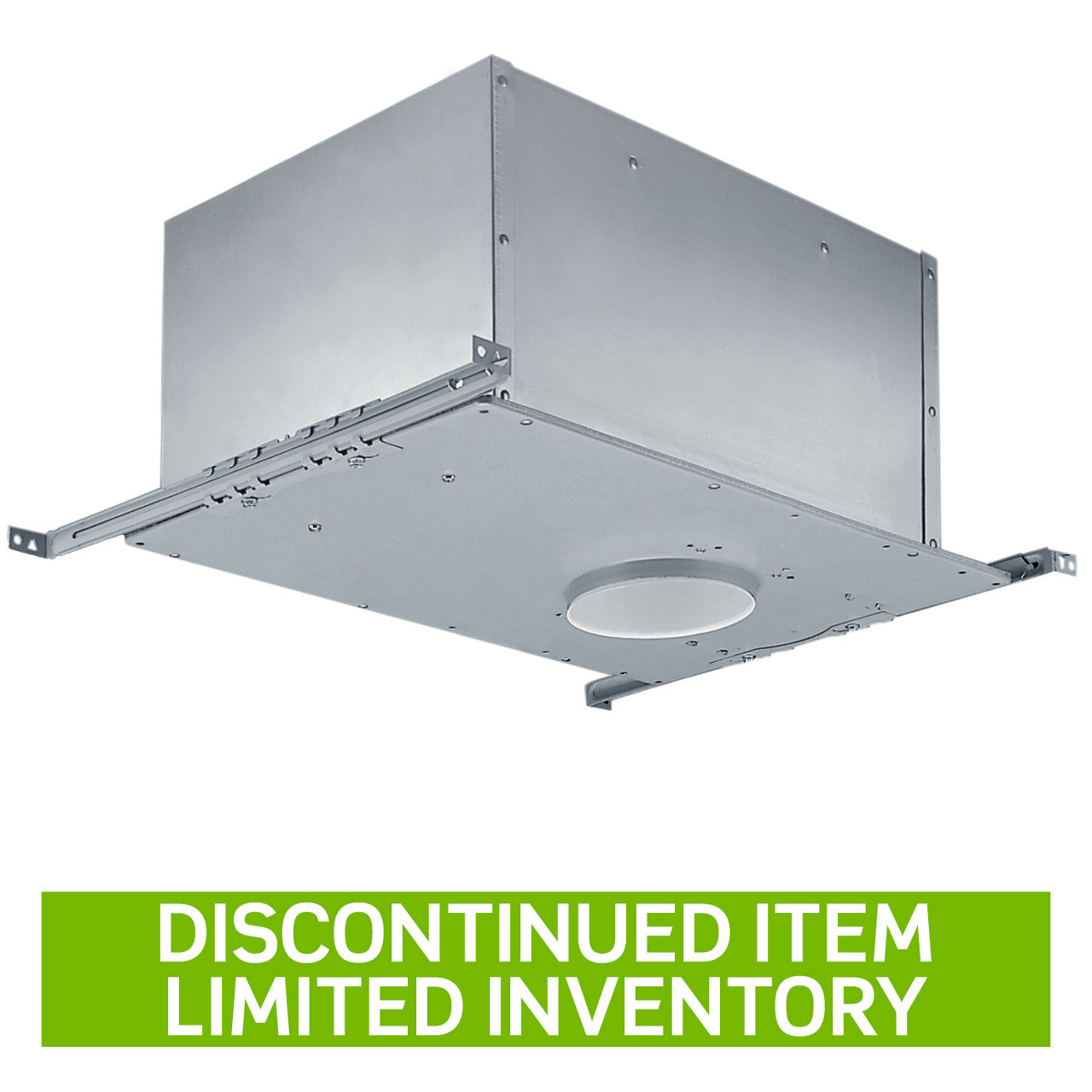

4" Insulated Ceiling/StopAire™ Low Voltage Downlight

LVR16-IC

  • For use in applications with direct contact with insulation materials
  • StopAire™ rated for Air-Tight Applications
  • For solid or suspended ceilings
  • Sure-grip Spring permits inner Housing to be lowered for adjustment to ceiling thicknesss
  • Junction Box cover is removable through ceiling aperture for access to Junction Box with four (4) 1/2-inch and two (2) 3/4-inch Knock-Outs with Spring Latch Access Plates
  • Dual extension Hanger Bars span 15- to 25-1/4-inches with reversible placement feature
  • Hanger Bars may be extended to rest on T-bar Grid
  • Pre-wired, Thermally Protected Magnetic Class H Transformer: 120V in/12V out
  • Transformer is removeable through ceiling aperture
  • Can be used with Low Voltage Magnetic Dimming Controls
  • Max. Lamp: (1) 12V 50W MR16; 50W max., GU5.3 base
  • Discontinued item, limited inventory; consult factory for availability

Product Information

  • Product Features

    Product Type : 4-Inch Low Voltage Downlight

    Aperture Size : 4-Inch

    Housing : New Construction

    Environment : Damp Location,Insulated Ceiling (IC),Stop Aire ASTM E283

    Max. Lamp Wattage : 50W MR16, GU5.3 Base
