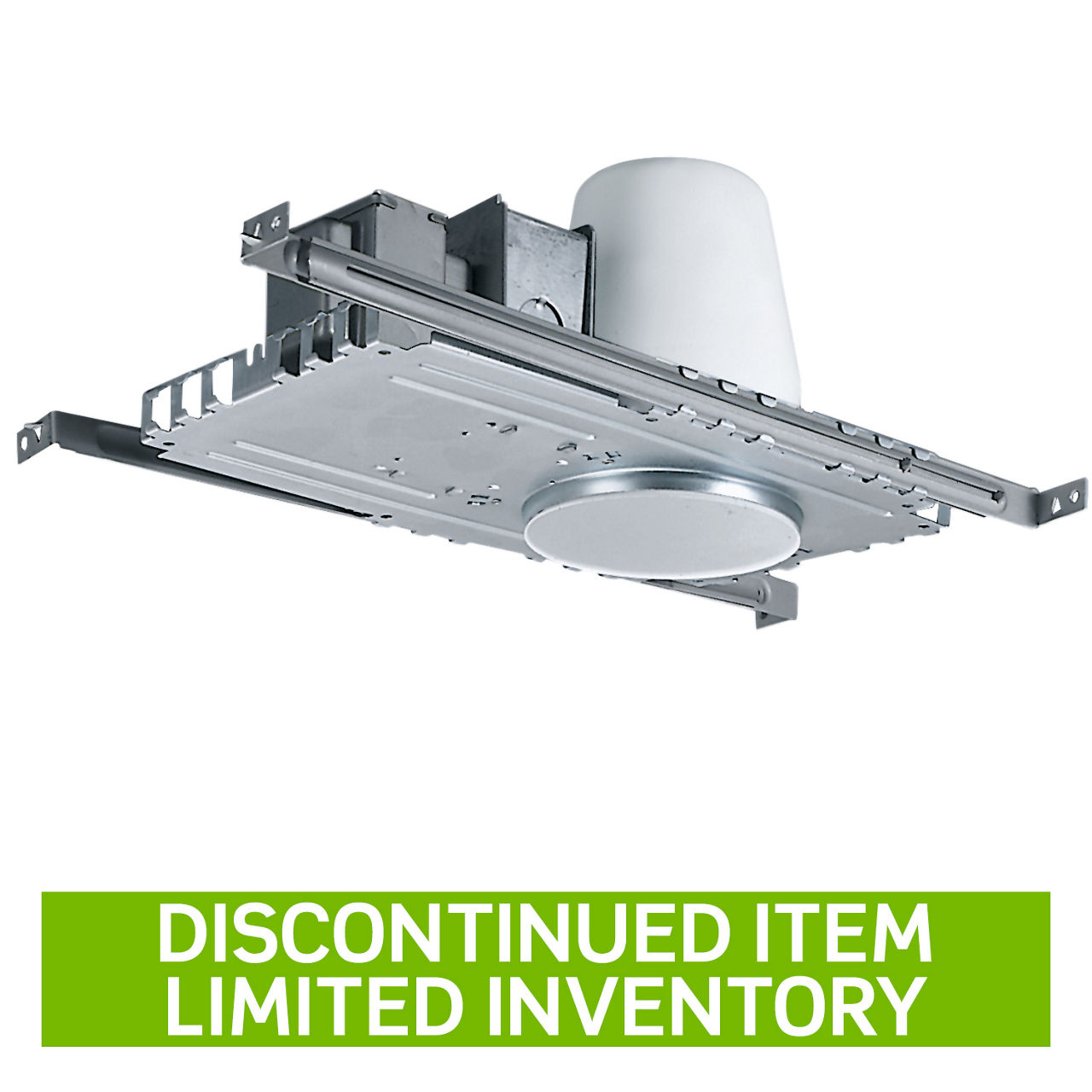

75W 4" Low Voltage New Construction Recessed Housing

LVR1675-TH

  • New Construction housing for use in any type of ceiling application
  • 120/12V and 277/12V Options
  • Sure-grip Springs permit housing to be lowered and precisely adjust to ceiling thicknesses from 1/2- to 1-1/2-inches
  • Lamp Housing is removable through the ceiling aperture to access the Junction Box
  • Magnetic Class H transformer with Molex Disconnect in Junction Box
  • Junction Box is approved for through circuit wiring; four (4) 1/2-inch knockouts, two (2) 3/4-inch knockouts with Spring Latch Access Plates
  • Dual extension Hanger Bars span from 15- to 25-1/4-inches with reversible placement feature
  • Hanger Bars may be extended to rest on T-bar grid
  • Transformer is fully dimmable using Magnetic Low Voltage Dimmers
  • Porcelain socket assembly with Molex Connector
  • Transformer has Internal Thermal Protection
  • Max. Lamp: (1) 75W 12V MR16Lamp, GU5.3 base
  • Discontinued item, limited inventory; consult factory for availability

Product Information

  • Product Features

    Aperture Size : 4-Inch

    Environment : Damp Location

    Housing : New Construction

    Product Type : 4-Inch Low Voltage Downlight

    Max. Lamp Wattage : 75W MR16, GU5.3 Base
