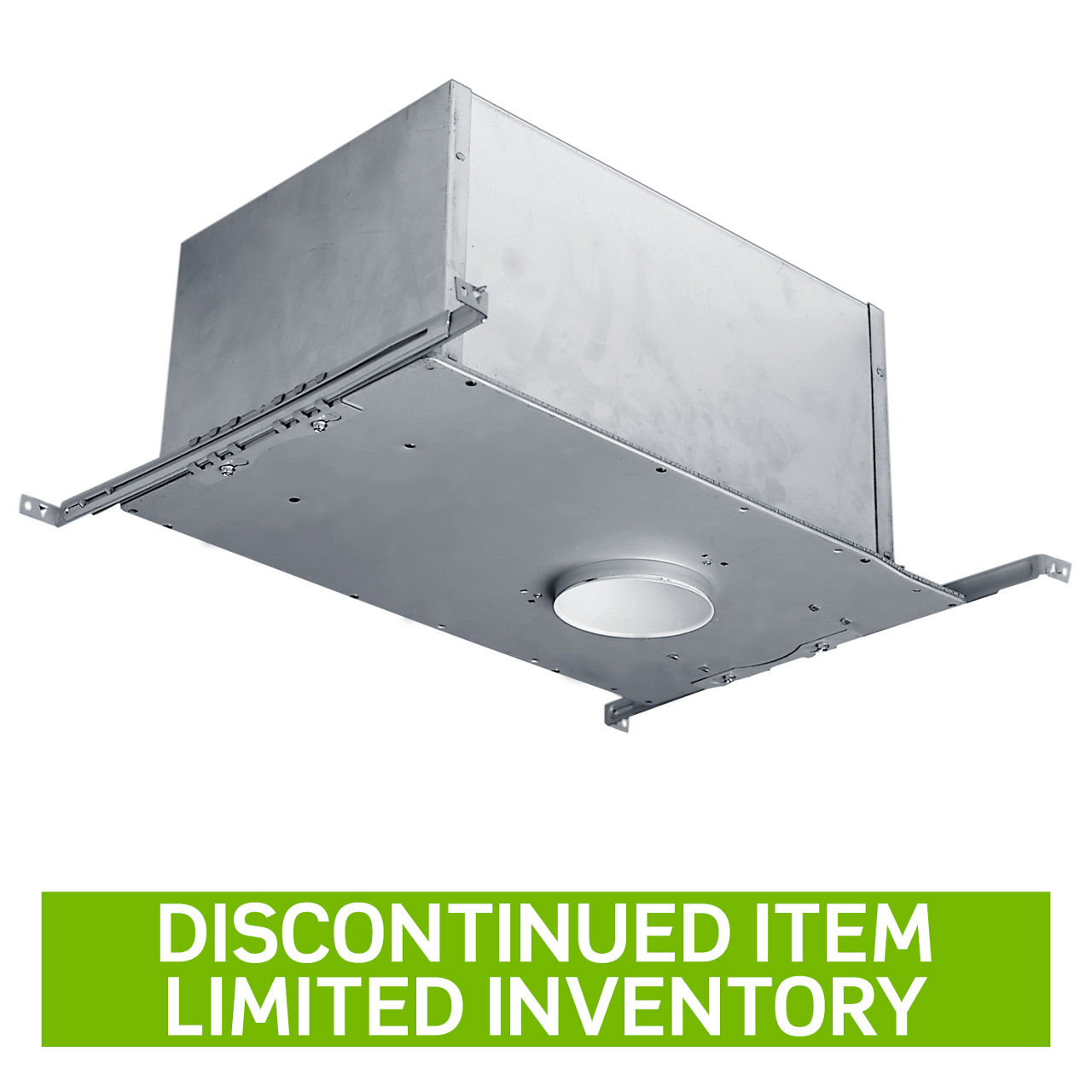

3" Low Voltage New Construction StopAire™ Downlight

LVR316-SA

  • For solid or suspended ceilings
  • Conforms to Washington State Energy Code (WSEC) for low air infiltration, StopAire™ rated for air-tight applications
  • Lamp housing is removable through ceiling aperture for access to Junction Box that has three (3) 1/2" knockouts with spring latch access plates
  • Housing adjusts to various ceiling thicknesses with three (3) screws
  • Reversible dual extension hanger bars span 15" - 25-1/4" with integral holding spikes for easy mounting to wood joists. Hanger bars may also be extended to rest on T-bar ceilings (optional clip-on T-bar hangers available).
  • Max Lamp: (1) 50W 12V MR16, GU5.3 base.
  • Procelain Halogen socket with spring clip, rated 200°C
  • Class H Magnetic transformer, thermally protected. Mounted to junction box cover for snap on/off convenience
  • Approved for (5) #12 AWG (max.) branch through-circuit 90°C wiring
  • Can be used with low voltage magnetic dimming controls
  • Discontinued item, limited inventory; consult factory for availability

Product Information

  • Product Features

    Aperture Size : 3-Inch

    Environment : Damp Location,Stop Aire ASTM E283

    Housing : Recessed

    Product Shape : New Construction

    Product Type : 3-Inch Low Voltage Downlight
