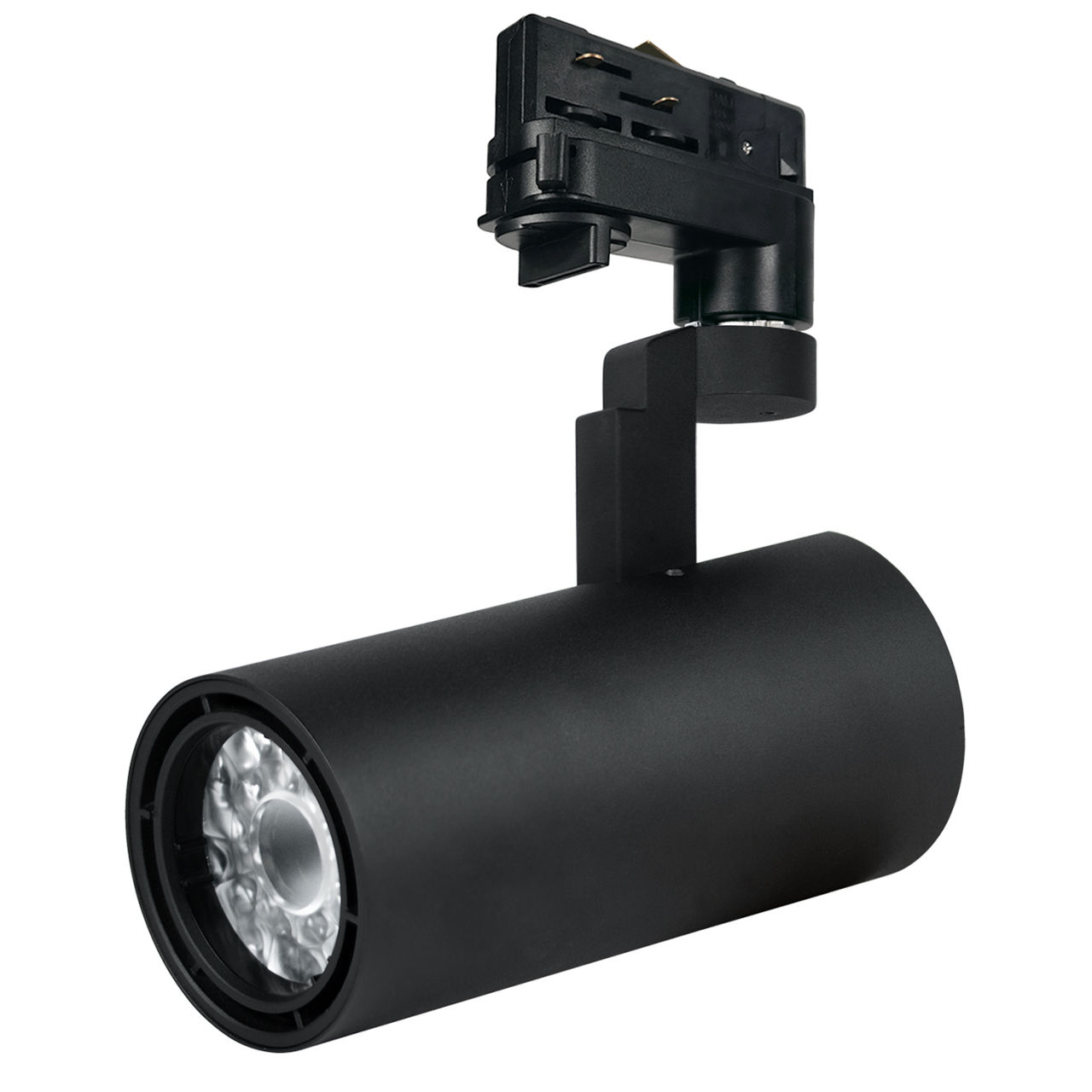

Gallery M Nordic/Global Track Luminaire with Adjustable Beam
NCTL93
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- 3-1/2-Inch diameter flat-back cylinder constructed of die-cast aluminum, cylindrical body providing thermal management
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Seven (7) position, field adjustable optic with three (3) different beam range options, the increments in the adjustments average 4-degrees per increment
- Engineered to provide superior glare control through the full range of beam spreads; from 13° to 41°
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; a high CRI of 90+ is available
- 120V Forward Phase or Reverse Phase Dimming is standard for all wattage options, for dimmer compatibility and performance, refer to Specification sheet
- Compatible with Nordic Aluminum Inc. TEK100 Track Systems; ConTech can switch out this adapter with others adapters for compatibility with other Nordic Aluminum Inc. Track Systems. For more information, consult factory.
Instruction Sheet
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Compatible with : 2C/2N Nordic Aluminum Inc. TEK100 Track System (NTEK/NHTEK)
Mounting : Track Mount
Environment : Dry Location
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Variable Spot,Variable Medium,Variable Flood
Wattage : 1W-10W,11W - 20W,21W - 30W,31W - 40W,41W - 50W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000
Voltage : 120V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming
