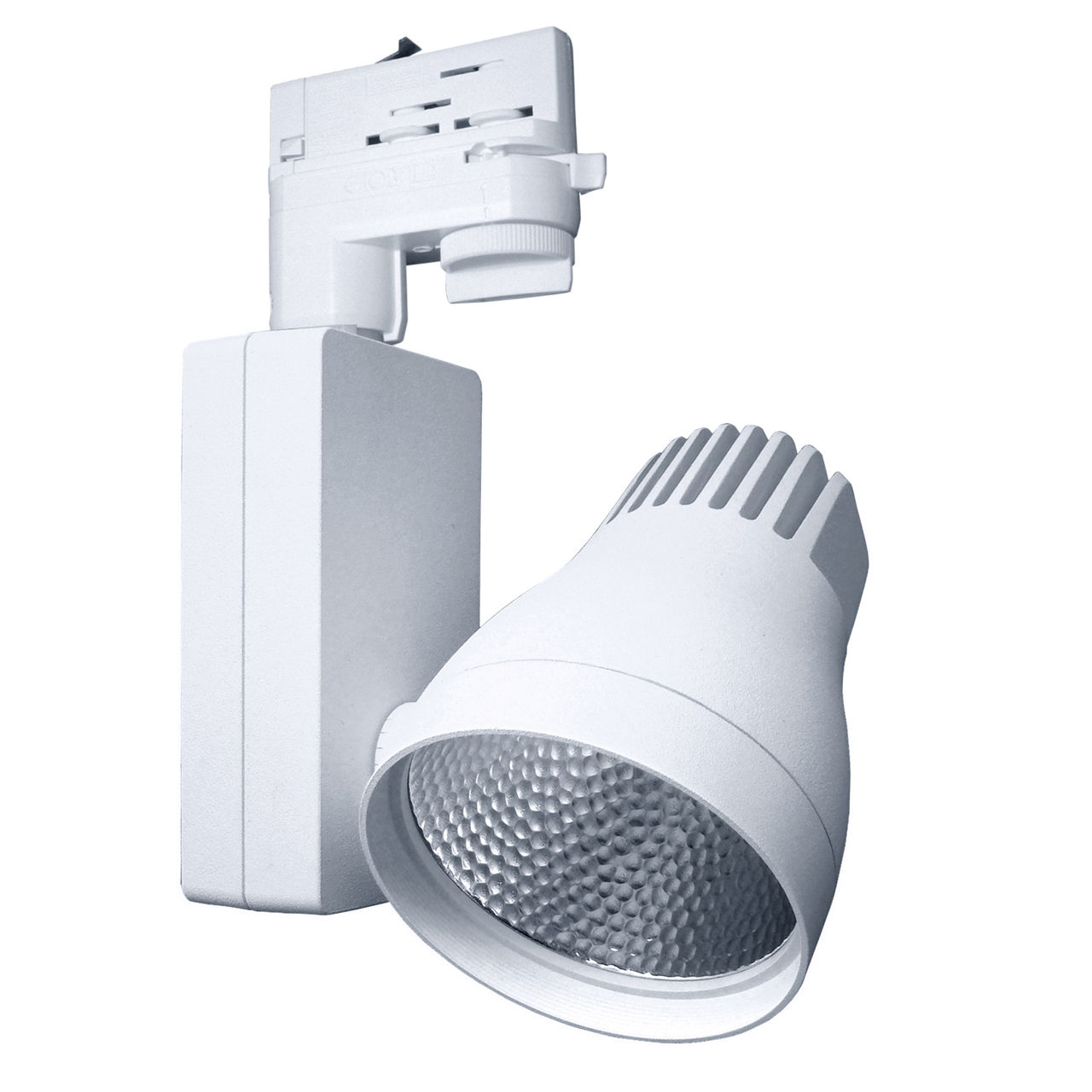

O3 Vertical Housing LED Track Luminaire for Nordic Track Systems


  • High performance, eco-friendly LED track luminaire available in five wattage/lumen packages
  • Heat sink is thermally engineered to provide optimal heat dissipation ensuring long life and consistant performance
  • Light engine consists of a single, high lumen output multi-chip LED array, available in 2700K, 3000K, 3500K and 4000K; CRI 80 min., 83 Typical. High CRI 90+ available
  • Excellent fixture to fixture color consistency within a 3-step MacAdam Ellipse tolerance
  • Available in 13° Spot, 25° Medium, 42° Flood, and 59° Wide Flood beams; each distribution is achieved utilizing specular spun metal reflectors. Each reflector has been optically engineered to provide a smooth uniform beam, maximizing output and minimizing glare.
  • Optics can be easily changed in the field for optimal flexibility
  • Dimming is available (120V only) and allows smooth illumination down to 1%. O3 fixtures utilize drivers manufactured by ERP and Lutron. For additional information, consult factory.
  • Lockable, precision aiming adjustment: 360°+ aiming horizontal and 360°+ vertical rotation
  • Integral ON/OFF switch and track polarity indicator are standard
  • The FA-45 Snoot/Accessory Holder or the FA-49 Accessory Holder can accept up to two (2) media
  • cCSAus Certified to UL standards
  • Suitable for dry locations
  • DLC Listed except for D3 dimming option

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Driver Orientation : Vertical

    Light Distribution Detail : Flood|Medium|Spot|Wide Flood

    Light Source : LED

    Lumen Output : 1501-2000|2001-3000|3001-4000|4001-5000

    Product Type : Track Head
