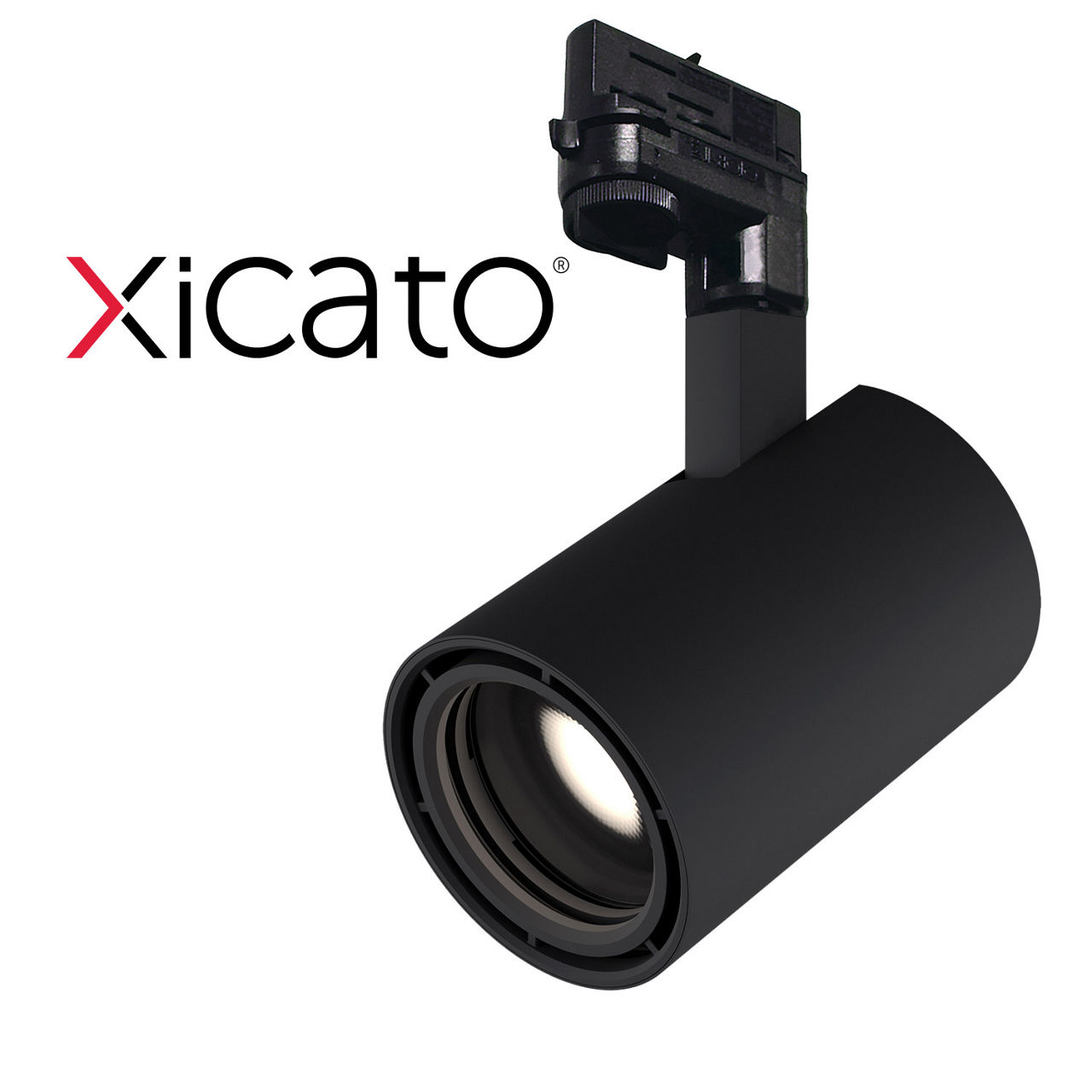

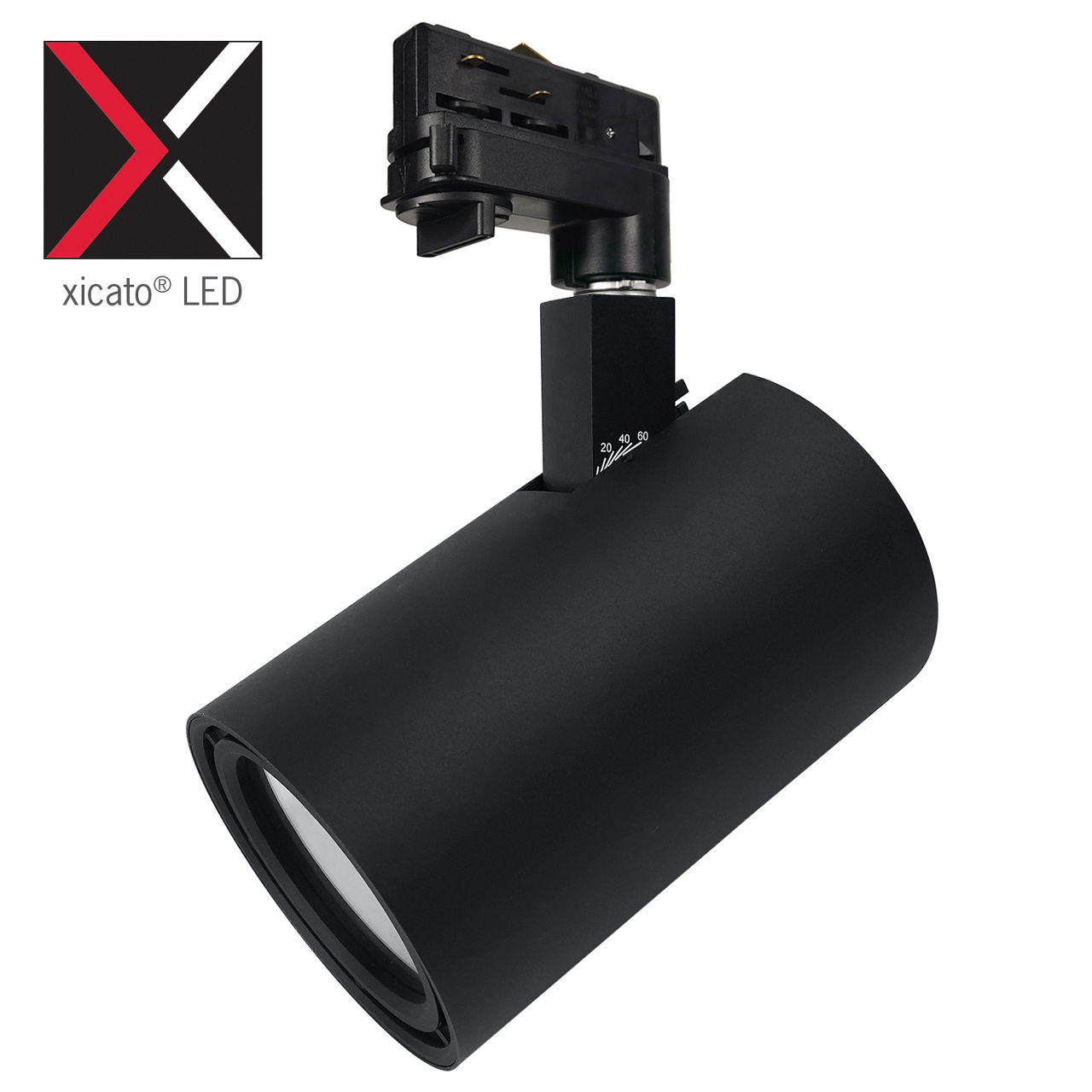

Gallery XL Track Luminaire with Xicato LED for Nordic Track Systems


  • Cylindrical body constructed of die-cast aluminum to provide thermal management
  • Adjustable, lockable aiming arm with 0° to 100° tilt for precision aiming; 365° horizontal rotation
  • Precision engineered Dual Lens Optic used for Very Narrow Spot (VN) and Narrow Spot (NS) beam distributions. Design provides a tight beam angle and field to highlight target objects with mimimal stray illumination.
  • Specular Aluminum Reflectors used for 24° Medium, 42° Flood, and 51° Wide Flood beam distributions. Optically engineered for even illumination and glare control.
  • Full collection of accessories to produce a myriad of filtering and framing effects; can accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot or BD94-B Black Barn Doors, ordered separately. Snoot or Barn  Door count as one (1) piece.
  • The Xicato 95 CRI Series COBs are designed to perfectly emulate natural light sources, with precise color rendering by CIE or IES standards, for the most exacting illumination of art, architecture, or other surfaces
  • 2700K, 3000K, 3500K and 4000K Color temperatures; Vibrant Series only available in 3000K
  • Xicato Modules feature extraordinary color consistency within 1x2-step MacAdam ellipse
  • 120V TRIAC/ELV Dimming is standard for all wattage options. For dimmer compatibility and performance, refer to Dimming Specification sheet.
  • Compatible with Nordic Aluminum Inc. TEK100 Track Systems
  • ConTech can switch out the standard Nordic TEK00 adapter with either the GES66 or GA100 adapters for compatibility with other Nordic Aluminum Inc. Track Systems. For more information, consult factory.

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Driver Orientation : Integrated

    Light Distribution Detail : Very Narrow Spot Optic|Narrow Spot Optic|Medium Reflector|Flood Reflector|Wide Flood Reflector

    Light Source : LED

    Light Source Features : Xicato

    Lumen Output : 500-1000|1001-1500|1501-2000|2001-3000

    Product Type : Track Head
