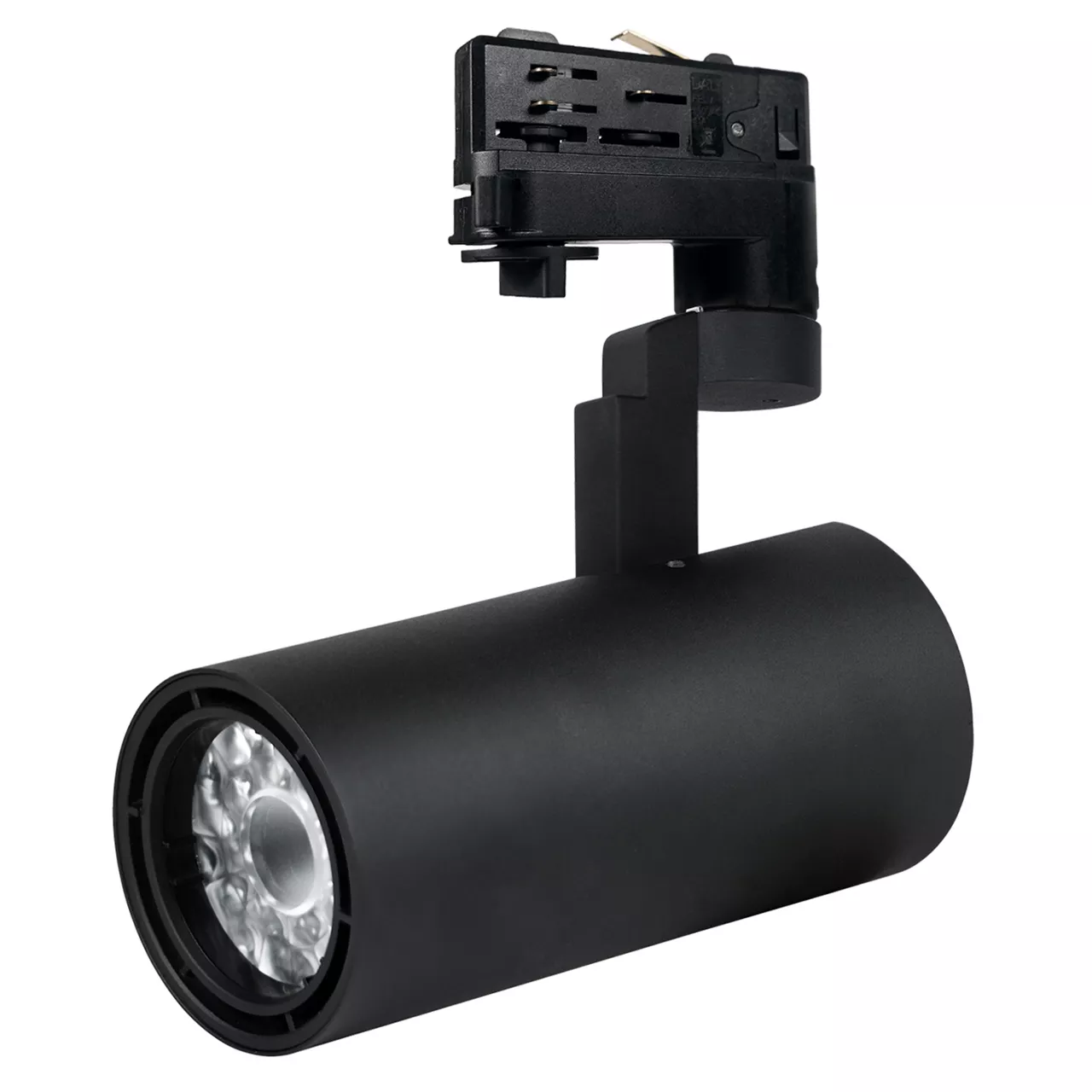

Gallery M OneTrack 0-10V Dimming Track Luminaire with Adjustable Beam
OTL93C
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads with an integrated adapter for use on the ConTech O2CD 0–10V Dimming Track System
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Seven (7) position, field adjustable optic with three (3) different beam range options, the increments in the adjustments average 4-degrees per increment
- Engineered to provide superior glare control through the full range of beam spreads; from 13° to 41°
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; a high CRI of 90+ is available
- 120V or 277V 0-10V Dimming; for dimmer compatibility and performance, refer to Specification sheet
- OTL Track Luminaires are compatible with the ConTech Lighting O2CD 0–10V Dimming Track System
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Compatible with : ConTech Lighting O2CD 0-10V Dimming Track System
Mounting : Track Mount
Environment : Dry Location
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Variable Spot,Variable Medium,Variable Flood
Wattage : 1W - 10W11W - 20W,21W - 30W,31W - 40W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000
Voltage : 120V,277V
Dimming Technology : 0-10V Dimming
