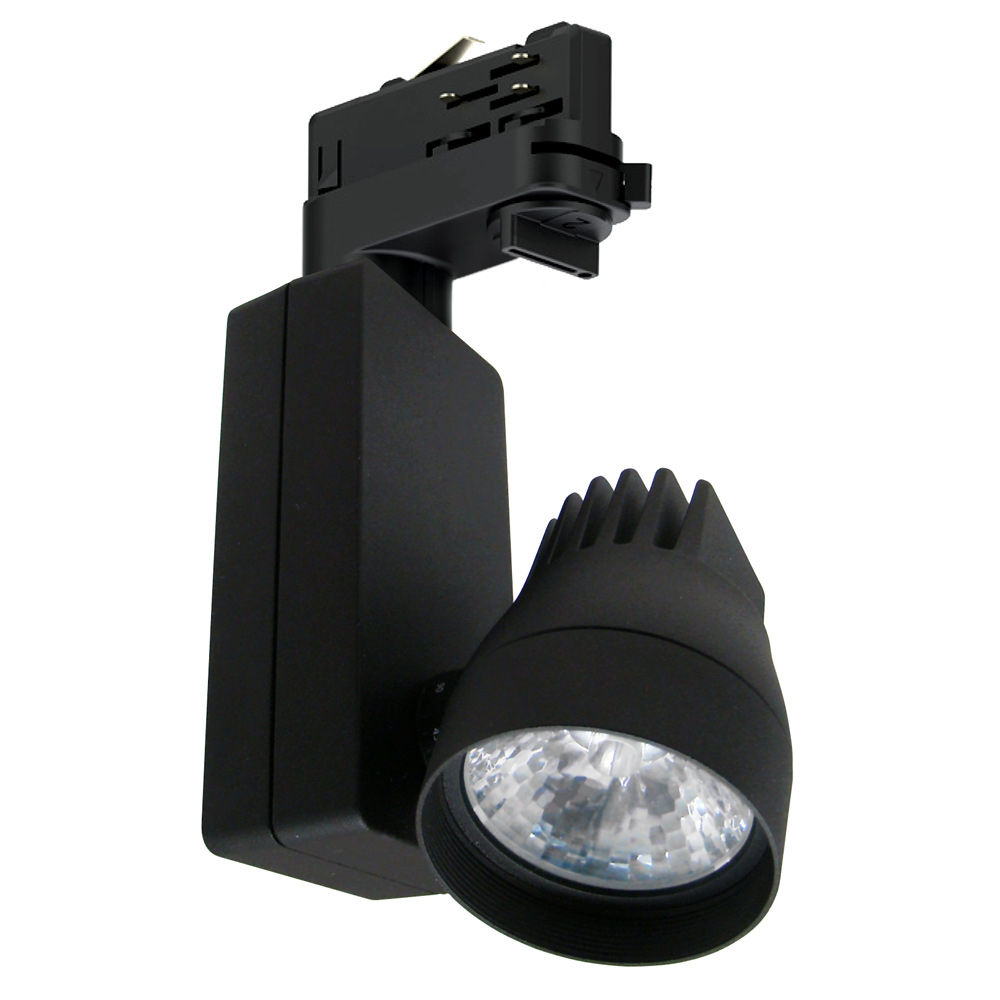

O2 Mini Vertical Housing Track Luminaire for Data Track System

OTL806 V

  • High performance, small scale LED track luminaire
  • Luminaires have an integrated adapter for use on the ConTech O2CD 0-10V Dimming Track System
  • Constructed of die-cast aluminum, heat-sink and driver housing provide a sleek modern look
  • Lockable, precision aiming adjustment. 360°+ aiming horizontal rotation, 180° vertical rotation
  • Can accept up to (2) LF16 60MM lens or FA-16 60MM Black Honeycomb Louvers when used with the FA-43 Snoot/Accessory Holder, ordered separately
  • Available in 12° Spot, 28° Medium and 39° Flood beam distributions;optics have been optically engineered to provide a smooth uniform beam, maximizing output and minimizing glare
  • Optics can be easily changed in the field for optimal flexibility
  • Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI 80 min., 83 typical; high CRI 90+ available
  •  3000K Crisp White LED available, delivering 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Excellent fixture-to-fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Dimming allows smooth illumination down to 10%

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Driver Orientation : Vertical

    Light Distribution Detail : Flood|Medium|Spot

    Light Source : LED

    Light Source Features : Crisp White

    Lumen Output : 1001-1500|1501-2000

    Product Type : Track Head
