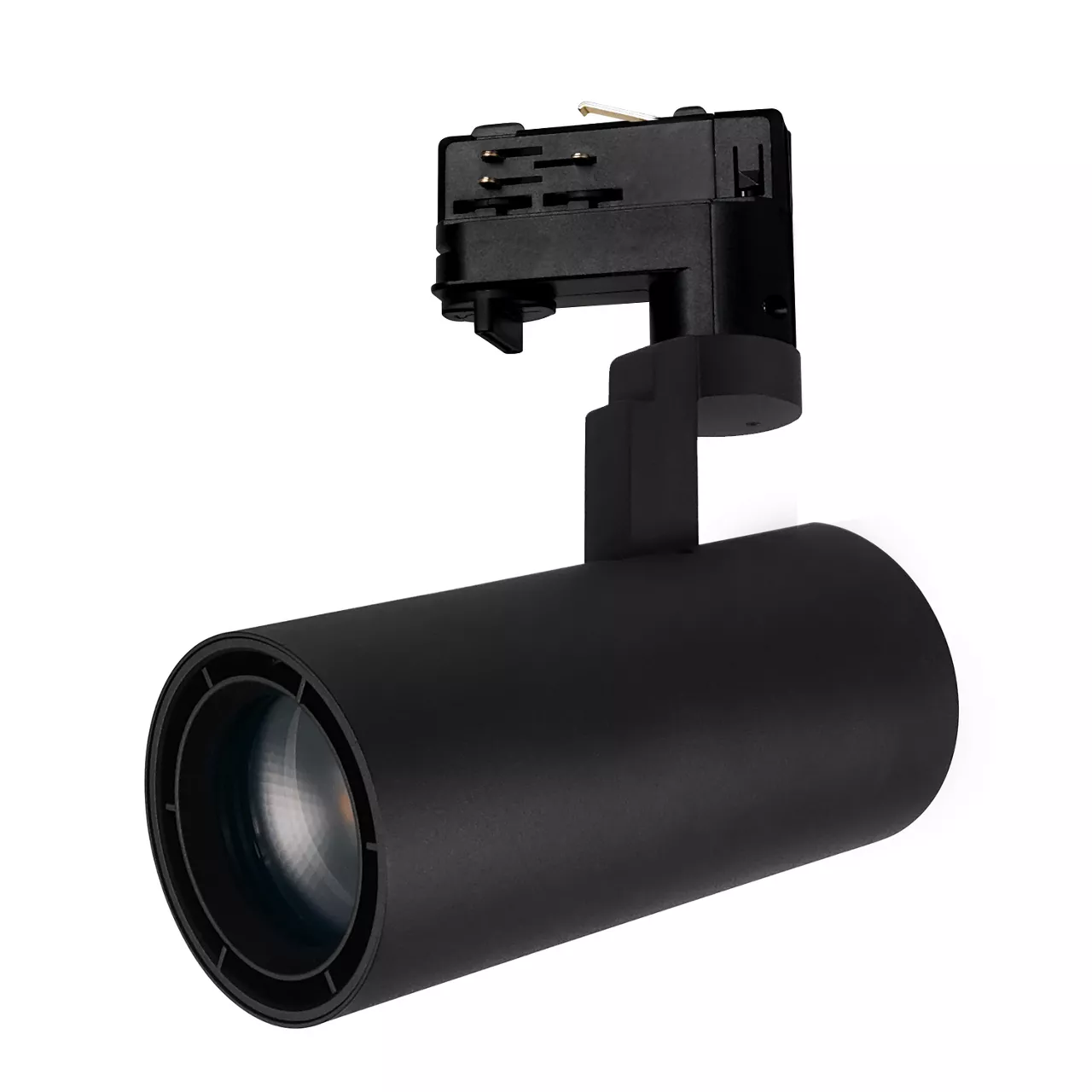

Gallery M OneTrack 0-10V Dimming Track Luminaire with Static White LED
OTL93
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads with an integrated adapter for use on the ConTech O2CD 0–10V Dimming Track System
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR Optic options delivering tight beam and glare control from 11° to 79° with minimal field; Optics are field changeable
- Multiple output options up to 3,700 delivered lumens and efficacies exeeding 105Lm/W
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; a high CRI of 90+ is available
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- 120V or 277V 0-10V Dimming; for dimmer compatibility and performance, refer to Specification sheet
- OTL Track Luminaires are compatible with the ConTech Lighting O2CD 0–10V Dimming Track System
Product Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Compatible with : ConTech Lighting O2CD 0-10V Dimming Track System
Mounting : Track Mount
Environment : Dry Location
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Narrow Spot,Spot,Narrow Flood,Medium Flood,Flood,Wide Flood
Wattage : 1W - 10W11W - 20W,21W - 30W,31W - 40W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000
Voltage : 120V,277V
Dimming Technology : 0-10V Dimming
