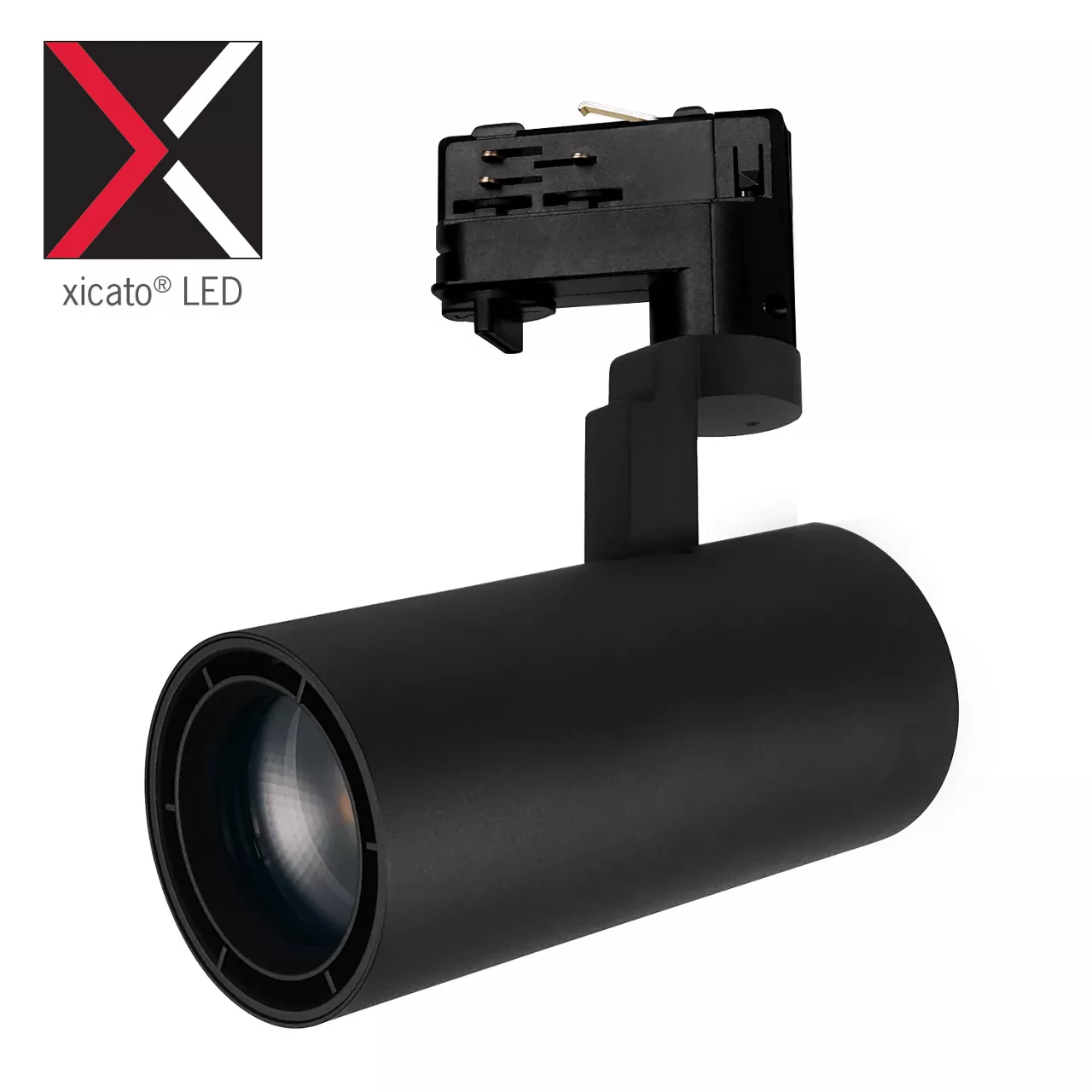

Gallery M OneTrack 0-10V Dimming Track Luminaire with Xicato 95CRI Static White LED
OTL93 X
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads with an integrated adapter for use on the ConTech O2CD 0–10V Dimming Track System
- The 3-1/2-inch diameter flat-back cylinder is constructed of die-cast aluminum, the cylindrical body providing thermal management for the luminaire
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR Optic options delivering tight beam and glare control from 13° to 80° with minimal field; Optics are field changeable
- The Xicato 95 CRI Series COBs are designed to perfectly emulate natural light sources, with precise color rendering by CIE or IES standards, for the most exacting illumination of art, architecture, or other surfaces
- Multiple output options up to 2400 delivered lumens
- Select from 2700K, 3000K, 3500K and 4000K Color temperatures; the Vibrant Series is only available in 3000K, all with 95 CRI
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- 120V or 277V 0-10V Dimming. For dimmer compatibility and performance, refer to the Specification Sheet
- OTL Track Luminaires are compatible with the ConTech Lighting O2CD 0–10V Dimming Track System
Product Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Mounting : Track Mount
Environment : Dry Location
LED Manufacturer/Type : Xicato® 95CRI
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 90-100
Light Distribution Detail : Narrow Spot,Spot,Narrow Flood,Medium Flood,Flood,Wide Flood
Compatible with : ConTech Lighting O2CD 0-10V Dimming Track System
Wattage : 1W - 10W,11W - 20W,21W - 30W,31W - 40W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000
Voltage : 120V,277V
Dimming Technology : 0-10V Dimming
