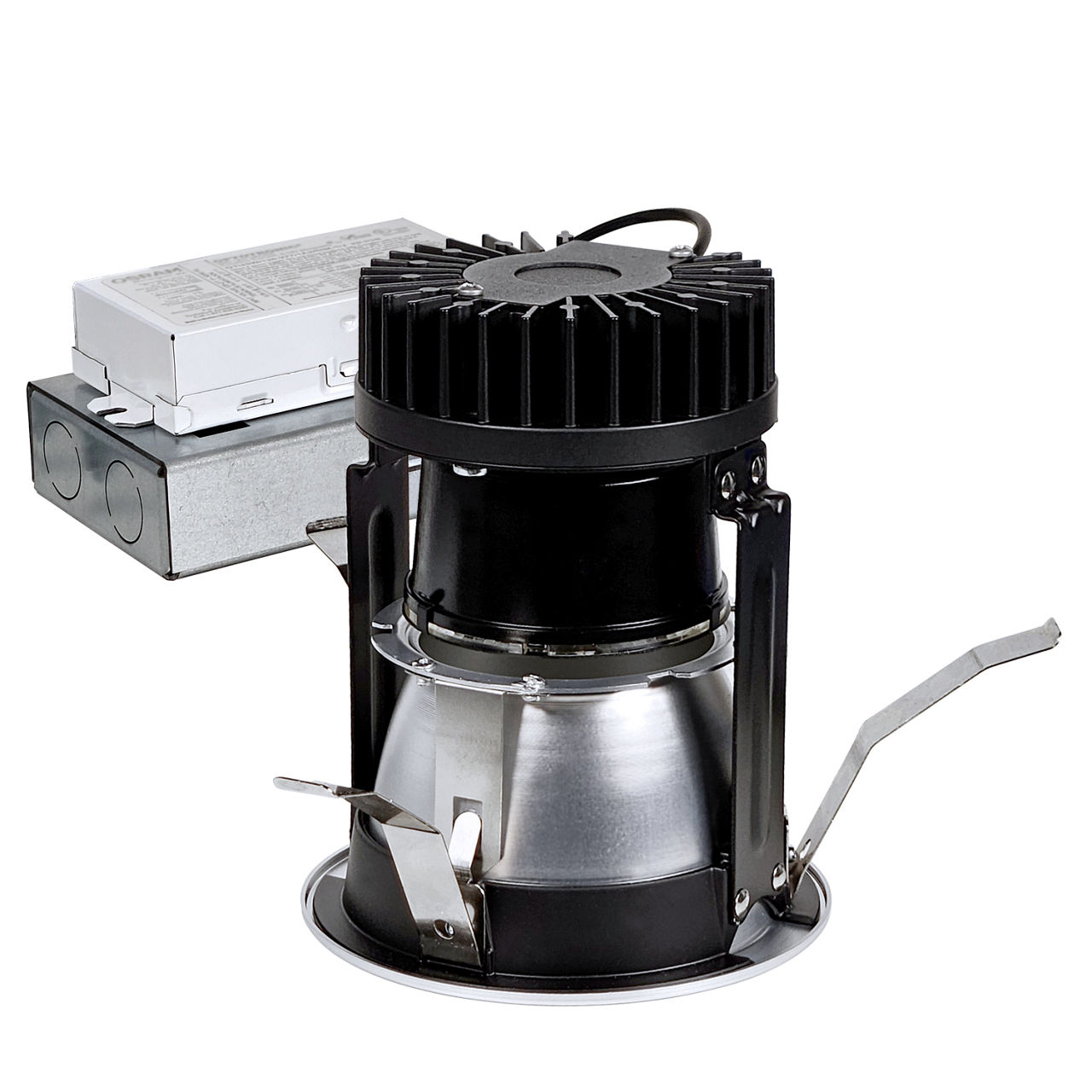

3-Inch Downlight

P3RD

  • 2700K, 3000K, 3500K and 4000K; 80 or 90 CRI with a color consistency within 2 SDCM
  • Five (5) beam distributions are available: Spot (15°), Narrow (20°), Medium (34°), Flood (50°), and Wide Flood (73°); Optics are field interchangeable
  • Driver Options include Universal Voltage 120–277V; 347V optional
  • Flicker free Dimming Options include 0–10V, Phase (Forward/Reverse), EldoLED (0-10V and DALI), and Lutron EcoSystem
  • 6W Emergency Battery Backup option provides illumination for a minumum duration of 90 minutes; certified to UL924 Standard for Emergency Lighting
  • Self-flanged, Spun Aluminum Reflectors provide deep regression (>2-1/2- inches) and 50° visual cutoff to source image
  • Reflector available in various finishes: Specular and Semi-specular with and without White Painted Flanges and White and Black Painted finishes
  • A Die-cast Bevel Trim is available in White and Black painted finishes
  • For Wet Location applications, the trim must inlcude a lens; all Trim Options will accept up to one (1) Lens or Louver
  • General Fixture construction is designed for quick, direct install into Non-IC applications
  • Downlight Module Quick-connect design enables easy installation and removal of Universal LED Module; three (3) Spring Steel Supports secure Module into Housing/ceiling
  • Optional Non-IC Mounting Frame and Insulated Ceiling / StopAire™ (ICSA) Housing available

Product Information

  • Product Features

    Lumen Output : 1000Lm|1500Lm|2000Lm|2500Lm

    Input Voltage : 120V-277V|347V

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Color Rendering Index : 80|90+

    Light Distribution Detail : Spot|Narrow|Medium|Flood|Wide Flood

    Dimming Technology : Phase (Forward / Reverse)|0-10V|Lutron EcoSystem|DALI

    Mounting : Direct Mount Remodel|Non-IC New Construction Frame|Insulated Ceiling (IC)/StopAire™/Chicago Plenum Housing

    Product Type : Downlight

    Product Shape : Round

    Listings : cCSAus Certified|Suitable for Damp Locations|CCEA Listed|ICSA Housing conforms to Washington State Energy Code (WSEC)
