3-Inch Square Adjustable Downlight Module
P3SA
- 2700K, 3000K, 3500K and 4000K; 80 or 90 CRI with a color consistency within 2 SDCM
- Three (3) beam distributions are available: Narrow (19°), Medium (34°), and Flood (46°); Optics are field interchangeable
- Driver Options include Universal Voltage 120–277V; 347V optional
- Flicker free Dimming Options include 0–10V, Phase (Forward/Reverse), EldoLED (0-10V and DALI), and Lutron EcoSystem
- 6W Emergency Battery Backup option provides illumination for a minumum duration of 90 minutes; certified to UL924 Standard for Emergency Lighting

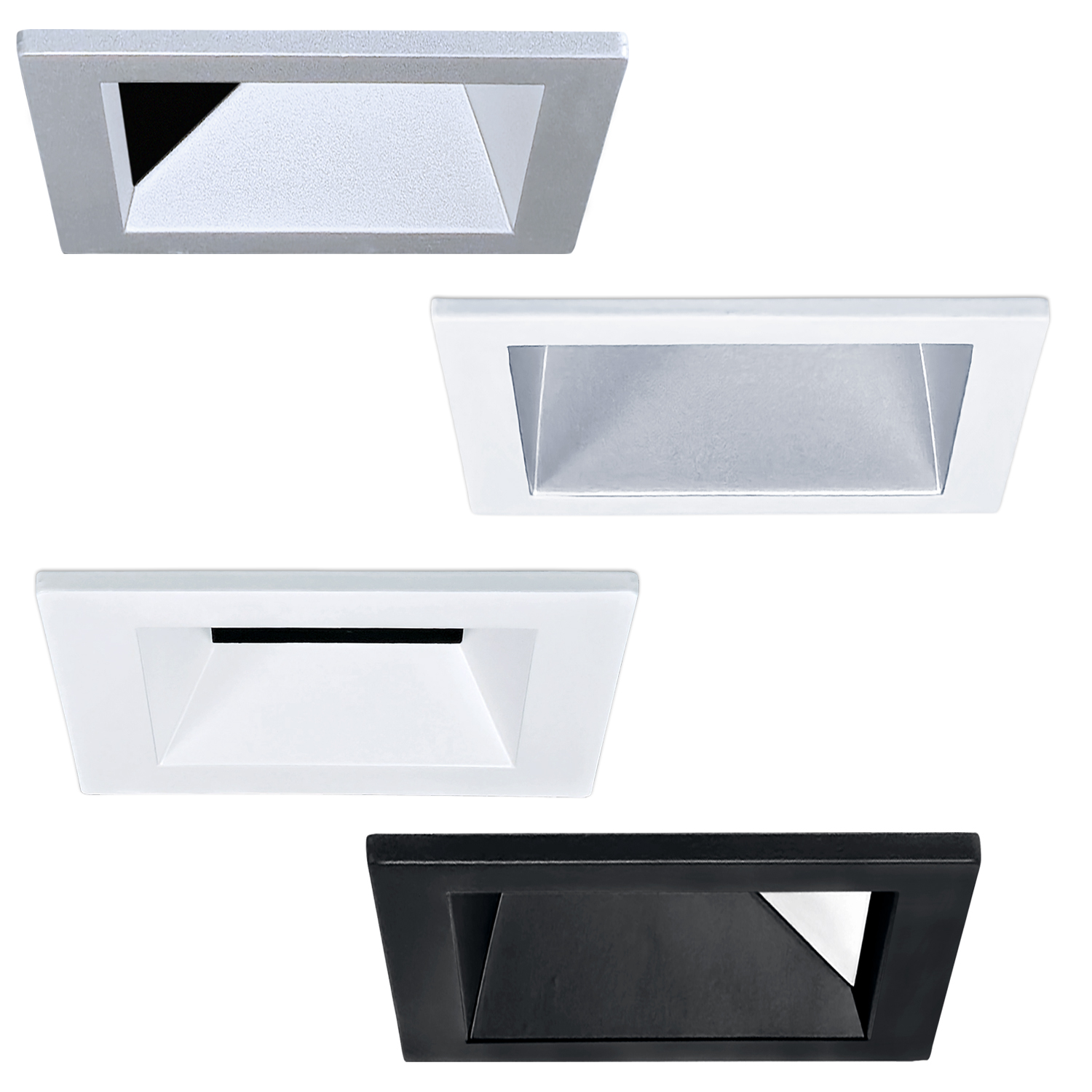

- Self-flanged, die-cast Aluminum Angle-Cut Reflectors are available in Silver, White, and Black Painted finishes with and without White Painted Flanges
- A Die-cast Bevel Trim is available in White and Black painted finishes
- For Wet Location applications, the trim must inlcude a lens; all Trim Options will accept up to one (1) Lens
- General Fixture construction is designed for quick, direct install into Non-IC applications

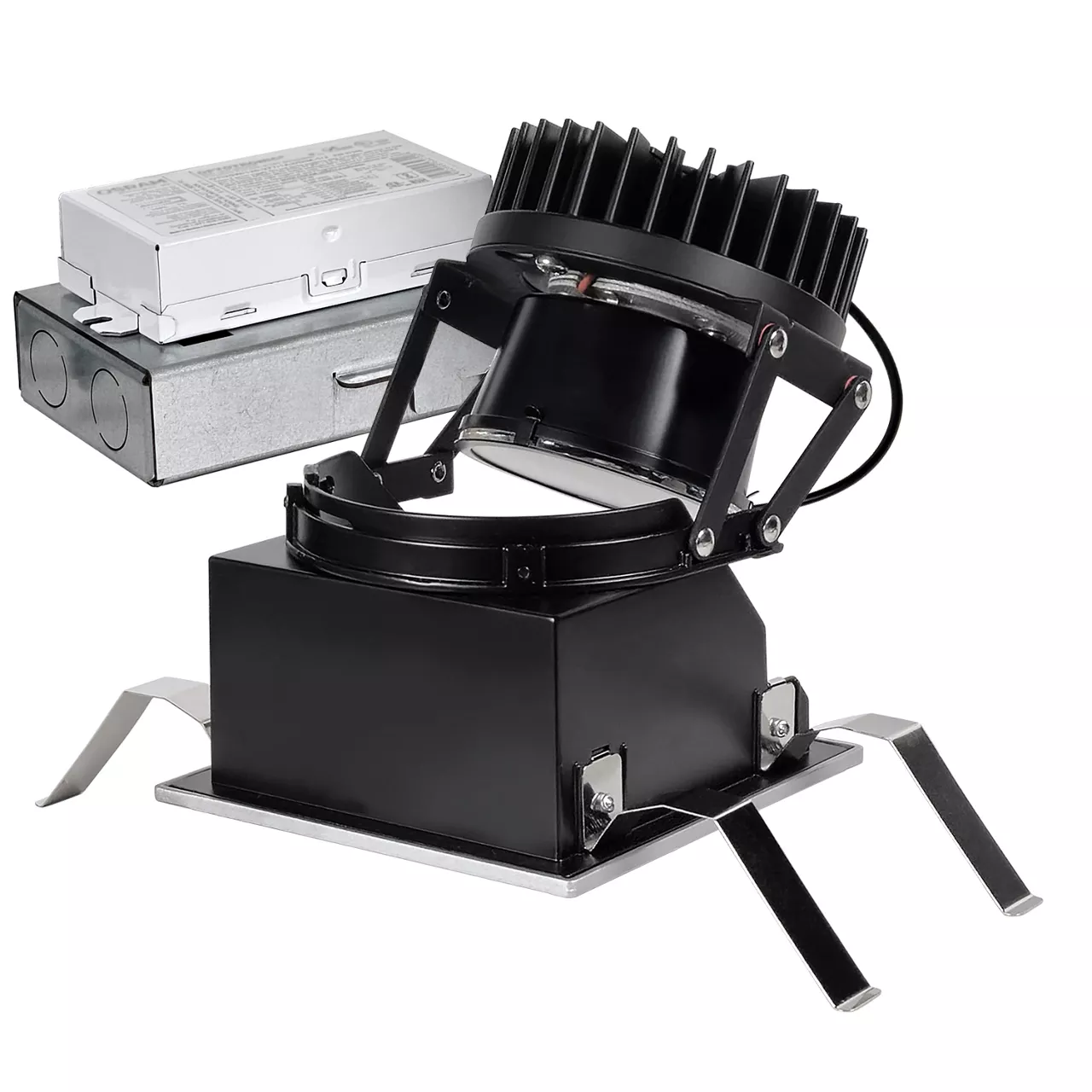

- Downlight Module Quick-connect design enables easy installation and removal of Universal LED Module; four (4) Spring Steel Supports secure Module into the housing/ceiling

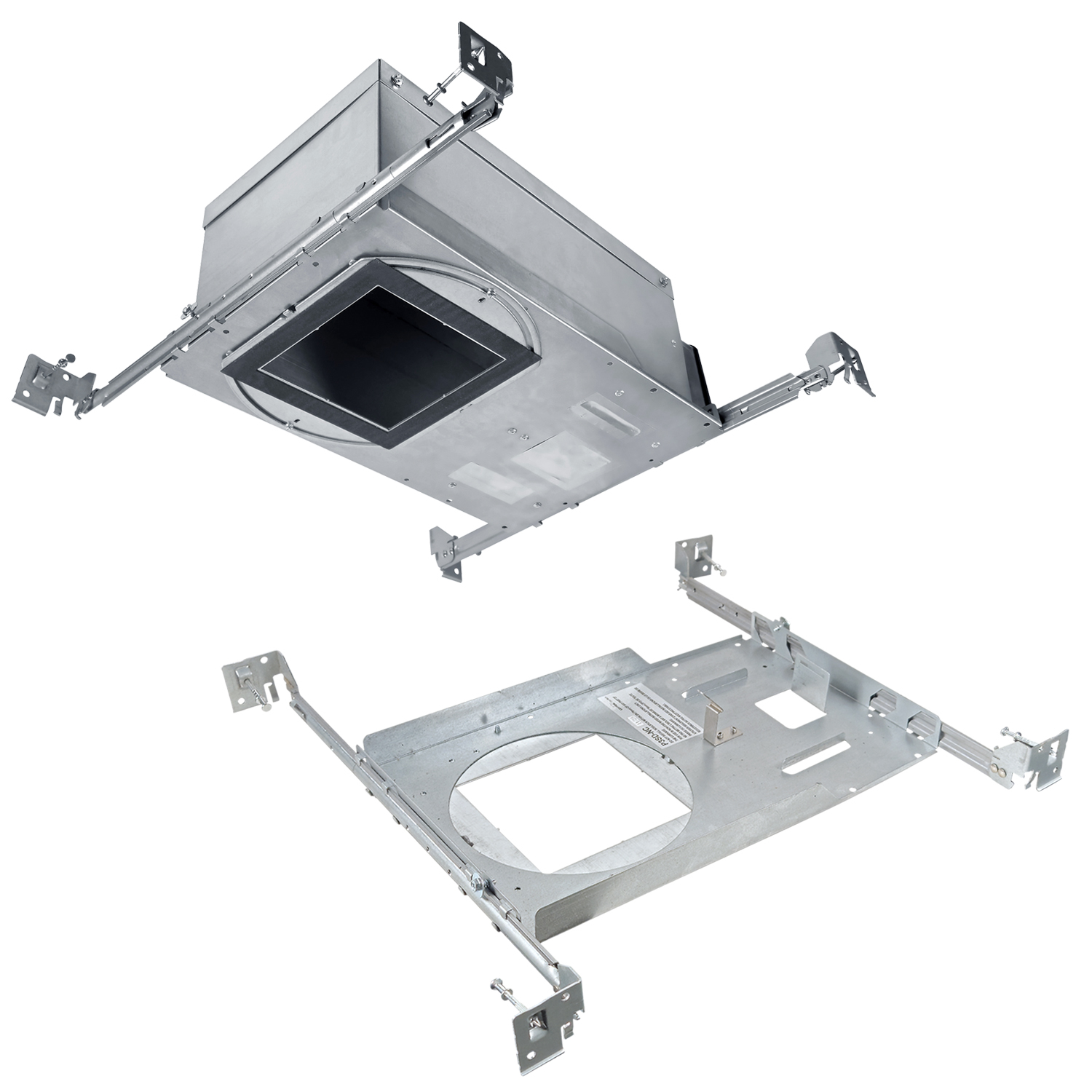

- Optional Non-IC Mounting Frame and Insulated Ceiling / StopAire™ (ICSA) Housing available
