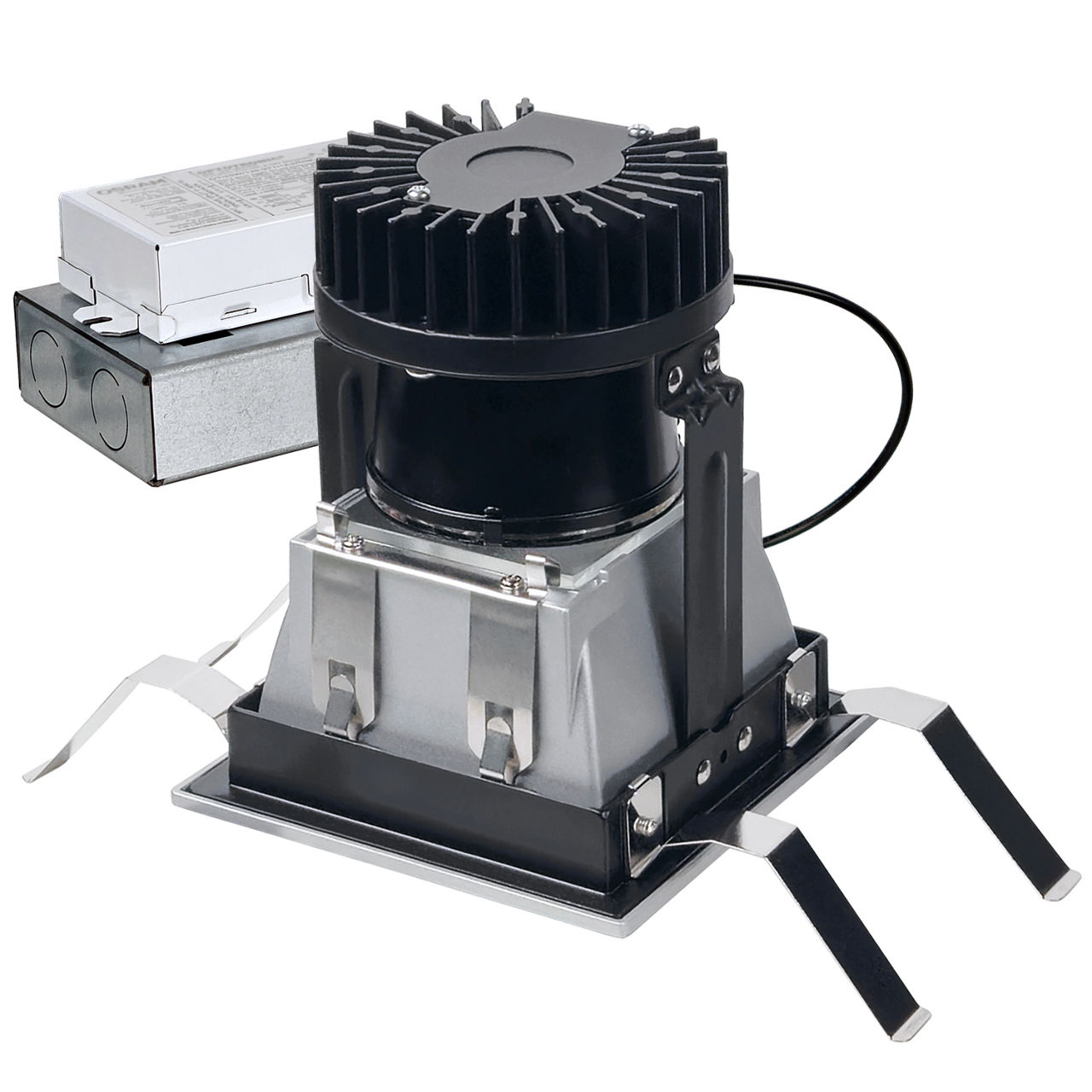

3-Inch Square Downlight Module
P3SD
- 2700K, 3000K, 3500K and 4000K; 80 or 90 CRI with a color consistency within 2 SDCM
- Five (5) beam distributions: Spot (16°), Narrow (22°), Medium (35°), Flood (52°), and Wide Flood (72°)
- Optics are field interchangeable
- Driver Options: Universal Voltage 120–277V, 347V optional
- Flicker free Dimming Options: 0–10V, Phase (Forward/Reverse), EldoLED (0-10V and DALI), and Lutron EcoSystem
- 6W Emergency Battery Backup option provides illumination for a minimum duration of 90 minutes; certified to UL924 Standard for Emergency Lighting
- Self-flanged, Spun Aluminum Reflectors provide deep regression (>2-1/2- inches) and 50° visual cutoff to source image
- Reflector available in various finishes: Satin SIlver with and without White Painted Flange and White and Black Painted finishes
- A Die-cast Bevel Trim is available in White and Black painted finishes
- For Wet Location applications, the trim must inlcude a lens; all Trim Options will accept up to one (1) Lens
- General Fixture construction is designed for quick, direct install into Non-IC applications
- Downlight Module Quick-connect design enables easy installation and removal of Universal LED Module; four (4) Spring Steel Supports secure Module into the housing/ceiling
- Optional Non-IC Mounting Frame and Insulated Ceiling / StopAire™ (ICSA) Housing available
