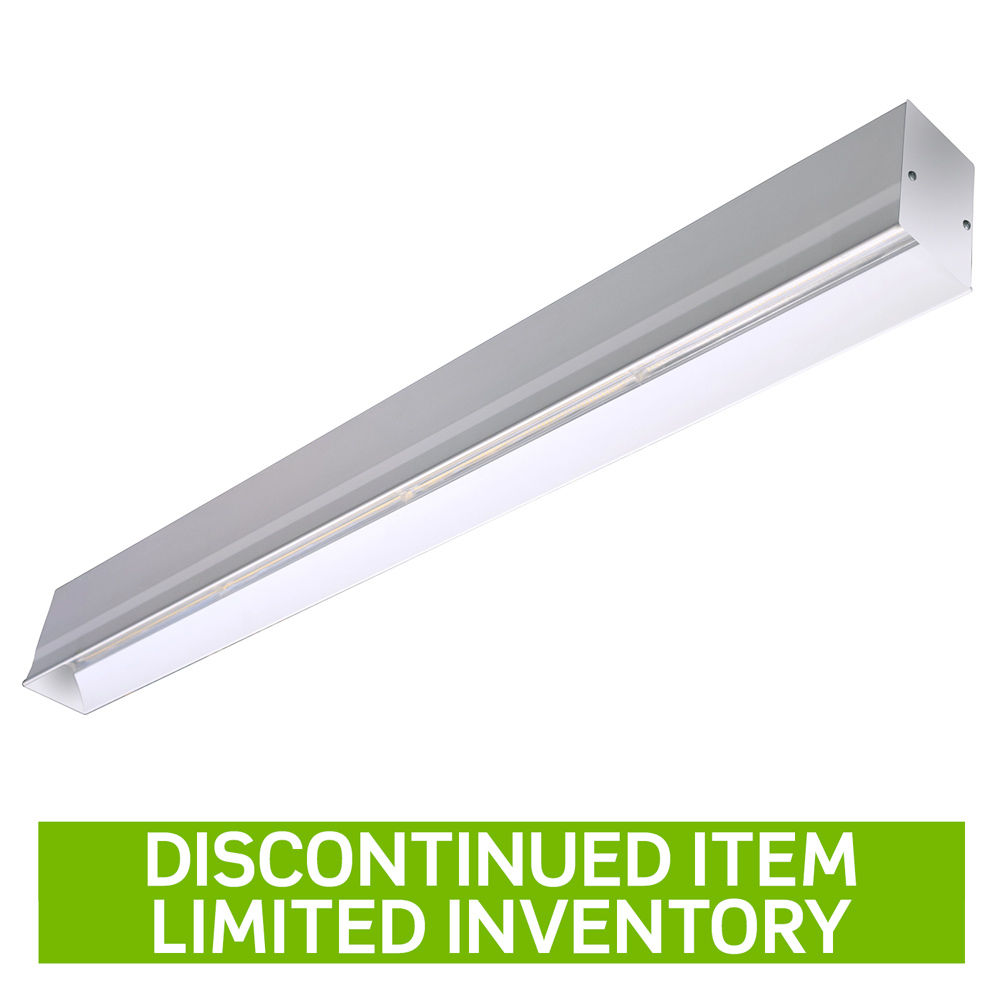

4 Ft and 8 Ft LED Performance Linear Series

Precedent PL Series

  • An innovative LED solution for general illumination in grocery, retail, and other aisle environments
  • Custom designed optics provide varied distributions to allow for superior beam control and lighting uniformity in both vertical and horizontal planes
  • Delivers up to 1500 Lm/Ft at 3000K, 90+CRI; ensuring superior lighting coverage, consistency and glare control
  • Extruded Aluminum housings in 4 foot and 8 foot lengths for installation in both new and retrofit environments
  • Sections come complete with Quick Connects between units to allow for easy runs of multiple luminaires
  • Suspended or surface mounting; body construction accepts 1/4 inch Threaded Rod (Rod and hardware provided by others
  • Luminaire accepts standard 1/2 inch electrical fittings and mounting hardware (provided by others) for surface mounting applications
  • Optional Horizontal Louvers
  • Light engine consists of 4 foot LED boards designed with integrated thermal management components
  • Five CCTs available at 83+, or four CCTs at 90+CRI
  • 120-277V, 50/60Hz Input; Single, Two or Three Circuit wiring
  • 0 -10V Dimming control options
  • Three (3) custom optics designed to provide industry leading illumination levels and consistency: Flood, Shelf/Stack and Asymmetric
  • Up-Light Kits available for indirect accent lighting additions
  • Certain models are DLC Qualified; Consult “DLC Qualified PL Series” sheet for complete list of DLC qualified luminaires
  • Discontinued item, limited inventory; consult factory for availability

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K,5000K

    Light Distribution Detail : Flood,Shelf/Stack,Asymmetric

    Light Source : LED

    Listings : Dry Location,DLC

    Lumen Output : 3001-4000,4001-5000,5001-10000,10001-20000

    Mounting : Surface,Suspended,Wall

    Product Type : Linear
