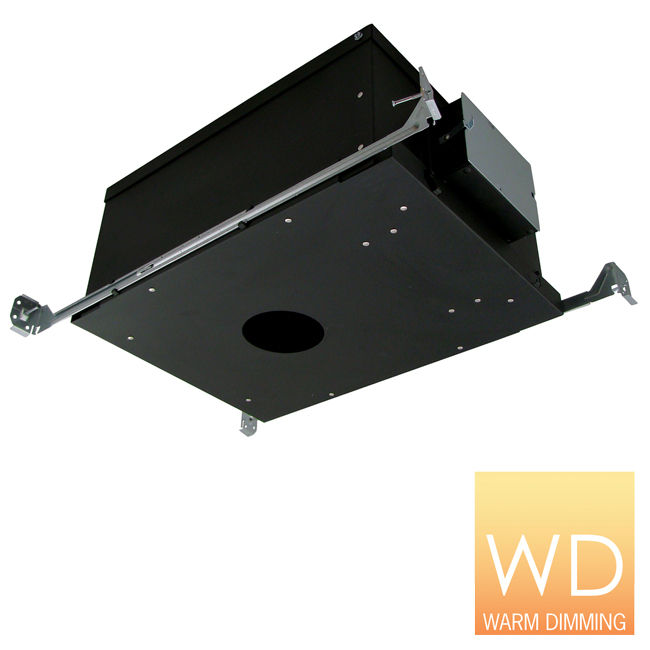

2-In. Warm Dimming LED Adjustable New Construction Insulated Ceiling (IC)/StopAire™ Housing

R2ANCWD

  • Housing rated for Insulated Ceiling (IC) and StopAire applications; for use in direct contact with insulation materials
  • 16-Gauge Galvanized Steel Housing, painted matte black inside and out with dual extension Nailer Bars
  • Housing has a removable cover for driver access and utilizes a spring latch tether to provide secondary support of the Universal LED Module
  • Matte black painted aiming mechanism is constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic TIR optic, and a thermoplastic optic holder
  • The Mechanism adjustment features white graduation marks every 15° for consistent aiming, as well as a set screw to lock tilt adjustment in place
  • Many trim options available to complement any design style. See trim sheet for information and details.
    NOTE: R2A and R2RM Series’ trims are NOT compatible with each other
  • Warm Dim CCT Range from 3000K to 1800K, delivering up to 800 lumens (3000K at 100%, 1800K at greater than or equal to 5%)
  • Precision Optics produce smooth spot, medium and flood beam distributions; optics are interchangeable and can be field replaced
  • All R2A Adjustable Downlights are available for non-dimming and dimming applications; for a list of compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : Warm Dim: 3000K - 1800K

    Light Distribution Detail : Spot|Medium|Flood

    Listings : cCSAus|Damp Location|WSEC ASTM E283|Chicago Plenum CCEA Listed

    Lumen Output : 501-1000

    Product Shape : Round

    Product Type : 2-Inch Adjustable Downlight

    Housing : Adjustable|New Construction|Insulated Ceiling (IC)|StopAire™

    Rated Wattage : 13W

    Dimmable : Y

    Title 24 Compliant : Y
