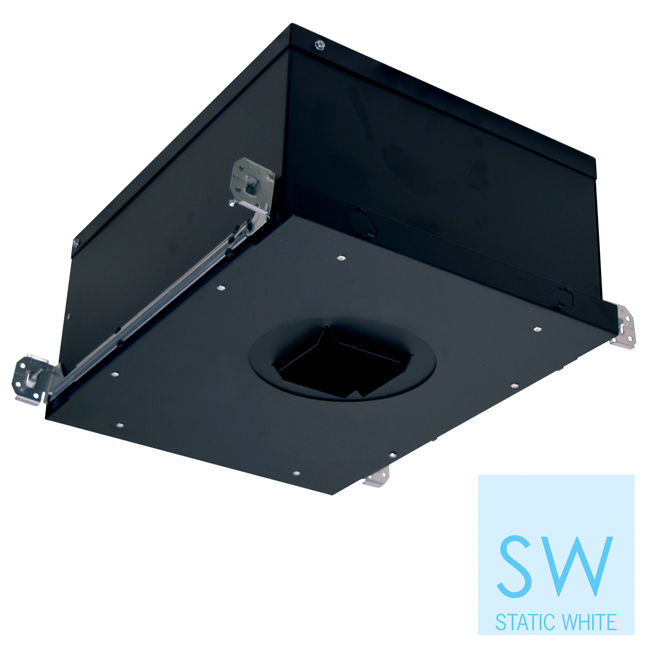

2-In. Square Static White LED Adjustable New Construction Insulated Ceiling (IC)/StopAire™ Downlight

R2ASQNC

  • Housing rated for Insulated Ceiling (IC) and StopAire™ applications; for use in direct contact with insulation materials
  • Mounting Frame features a post-installation mechanism that allows 1/4-inch adjustment in all directions, as well as 5-degrees of rotation adjustment to ensure proper alignment
  • Quick-connect design enables easy installation and removal of Universal LED Module; three (3) Spring Steel Supports secure Module into housing/ceiling
  • Removable cover for Driver access
  • Matte Black painted Adjustment Mechanism is constructed of 16-gauge Sheet Metal, Aluminum Die-cast Heat Sink, Acrylic Optic and Thermoplastic Optic Holder.; White Graduation Marks are painted every 15-degrees for consistent aiming plus Set Screw to lock tilt adjustment in place.
  • Module features rotational adjustability of 30° per side (60° total)
  • Available in 2700K, 3000K, 3500K and 4000K in both 83 and 90+ CRI, also available in 3000K Crisp White
  • Crisp White LED option delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Precision Optics produce Spot, Medium, and Flood beam distributions; Optics are interchangeable and can be field replaced
  • Many Trim options available to complement any design style. See ordering information for details. NOTE: R2A series and R2RM series trims are not compatible with each other.
  • All R2ASQ Adjustable Downlights are available for non-dimming and dimming applications; for a list of compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K,3000K Crisp White

    Light Distribution Detail : Spot,Medium,Flood

    Listings : cCSAus,Damp Location,WSEC ASTM E283,Chicago Plenum CCEA Listed

    Lumen Output : 501-1000,1001-1500,1501-2000

    Product Shape : Square

    Product Type : 2-Inch Downlight

    Housing : Adjustable,New Construction,Insulated Ceiling (IC),StopAire™

    Rated Wattage : 8W,10W,14W,21W

    Dimmable : Y

    Title 24 Compliant : N
