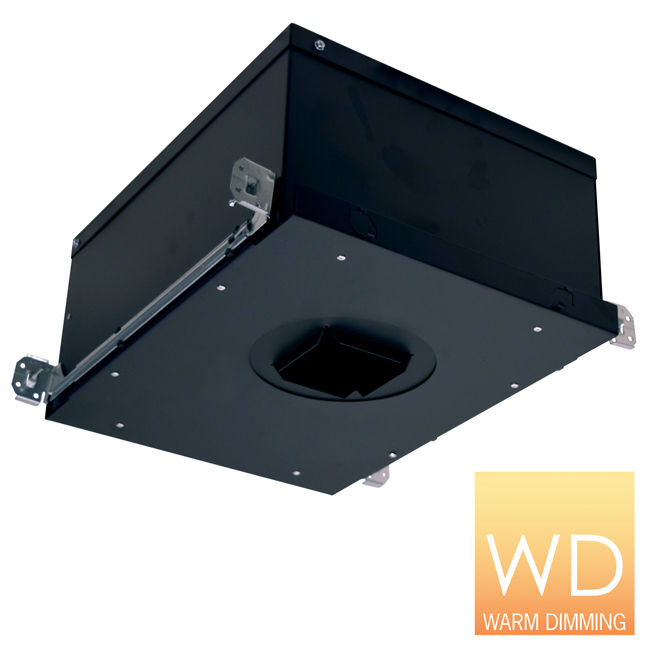

2-In. Square Warm Dimming LED Adjustable New Construction Insulated Ceiling (IC)/StopAire™ Downlight

R2ASQNCWD

  • Housing rated for use in direct contact with insulation materials
  • 16-Gauge Galvanized Steel Housing, painted matte black inside and out; removable cover for driver access, spring latch tether provides secondary support of the Universal LED Module
  • Quick-Connect design for easy installation and removal of Universal LED Module; three (3) Spring Steel Supports secure Module into housing/ceiling
  • Matte black painted mechanism is constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic optic, and a thermoplastic optic holder; Adjustment feature has white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
  • Module features rotational adjustability of 30-degrees per side (60-degrees total)
  • Mounting frame features a post installation mechanism that allows 1/4-inch adjustment in all directions, as well as 5-degrees of rotation adjustment to ensure proper alignment
  • Warm Dim CCT Ranges from 3000K to 1800K, delivering up to 800 lumens (3000K at 100%, 1800K at greater than or equal to 5%)
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision TIR Optics produce Spot, Medium, and Flood beam distributions; Optics are interchangeable and can be field replaced
  • Many trim options available; see ordering information for details. Note: R2ASQ and R2SQRM Series' Trims are not compatible with each other.
  • All RN2ASQ Trimless Adjustable Downlights are available for non-dimming and dimming applications. For a list of compatible dimmers, refer to the Dimming Specification sheet.

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : Warm Dim: 3000K - 1800K

    Light Distribution Detail : Spot|Medium|Flood

    Listings : cCSAus|Damp Location|WSEC ASTM E283|Chicago Plenum CCEA Listed

    Lumen Output : 501-1000

    Product Shape : Square

    Product Type : 2-Inch Downlight

    Housing : Adjustable|New Construction|Insulated Ceiling (IC)|StopAire™

    Rated Wattage : 13W

    Dimmable : Y

    Title 24 Compliant : Y
