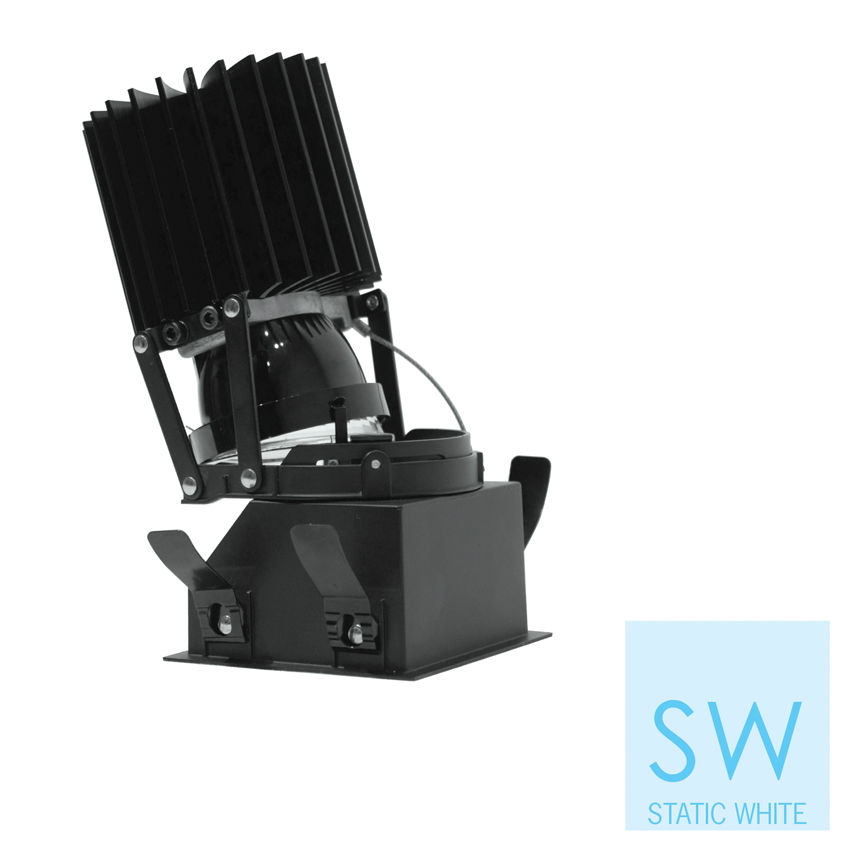

2-In. Square Static White LED Adjustable Remodel Downlight
R2ASQRM
- Module and Driver Kit require a minimum 3-inch clearance from insulation material; thermal protection provided in case of improper insulation use
- 16-Gauge galvanized steel Driver Kit utilizes a spring latch tether to provide secondary support of the Universal LED Module; four (4) steel spring supports secure Module into ceiling
- Quick-connect design enables easy installation and removal of Universal LED Module
- Module is painted matte black and constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic optic, and a thermoplastic optic holder
- Adjustment mechanism features white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
- Select from four (4) Wattage/Lumen packages: 8W/700Lm, 10W/1100Lm, 14W/1200Lm,and 21W/1700Lm
- Available in 2700K, 3000K, 3500K and 4000K in both 83 and 90+ CRI, also available in 3000K Crisp White
- Crisp White LED option delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
- Precision Optics produce Spot, Medium, and Flood beam distributions; Optics are interchangeable and can be field replaced
- Many Trim options available to complement any design style. See ordering information for details. NOTE: R2ASQ and R2SQRM Series' Trims are not compatible with each other.
- All R2ASQ Adjustable Downlights are available for non-dimming and dimming applications; for a list of compatible dimmers, refer to the Dimming Specification sheet
Product Information
Updated
Updated
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K,3000K Crisp White
Light Distribution Detail : Spot,Medium,Flood
Listings : Damp Location
Lumen Output : 501-1000,1001-1500,1501-2000
Product Shape : Square
Product Type : 2-Inch Downlight
Housing : Adjustable,Remodel
Rated Wattage : 8W,10W,14W,21W
Dimmable : Y
Title 24 Compliant : N
