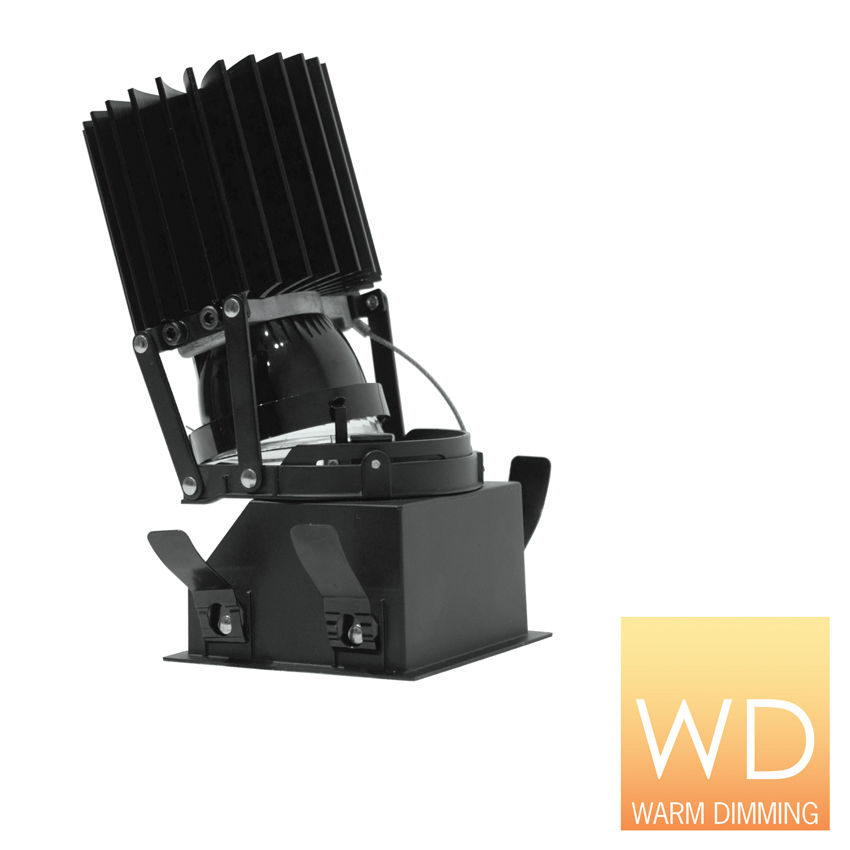

2-In. Square Warm Dimming LED Adjustable Remodel Downlight

R2ASQRMWD

  • Housing and driver kit require a minimum 3-inch clearance from insulation material; thermal protection provided in case of improper insulation use
  • Quick-connect design enables easy installation and removal of Universal LED Module
  • Drivers are fully accessible from below the ceiling
  • Matte Black painted mechanism is constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic optic, and a thermoplastic optic holder; rotational adjustability of 30° per side (60° total)
  • Mechanism adjustment features white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
  • Pre-wired Junction Box; a duplex electrical connector is provided to simplify daisy-chain wiring
  • Output over voltage, over-current and short circuit protection
  • Many trim options available to complement any design style; see ordering information for details
  • All R2A adjustable downlights are available for non-dimming and dimming applications; for a list of compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : Warm Dim: 3000K - 1800K

    Light Distribution Detail : Spot|Medium|Flood

    Listings : cCSAus|Damp Location

    Lumen Output : 501-1000

    Product Shape : Square

    Product Type : 2-Inch Downlight

    Housing : Adjustable|Remodel

    Rated Wattage : 13W

    Dimmable : Y

    Title 24 Compliant : N
