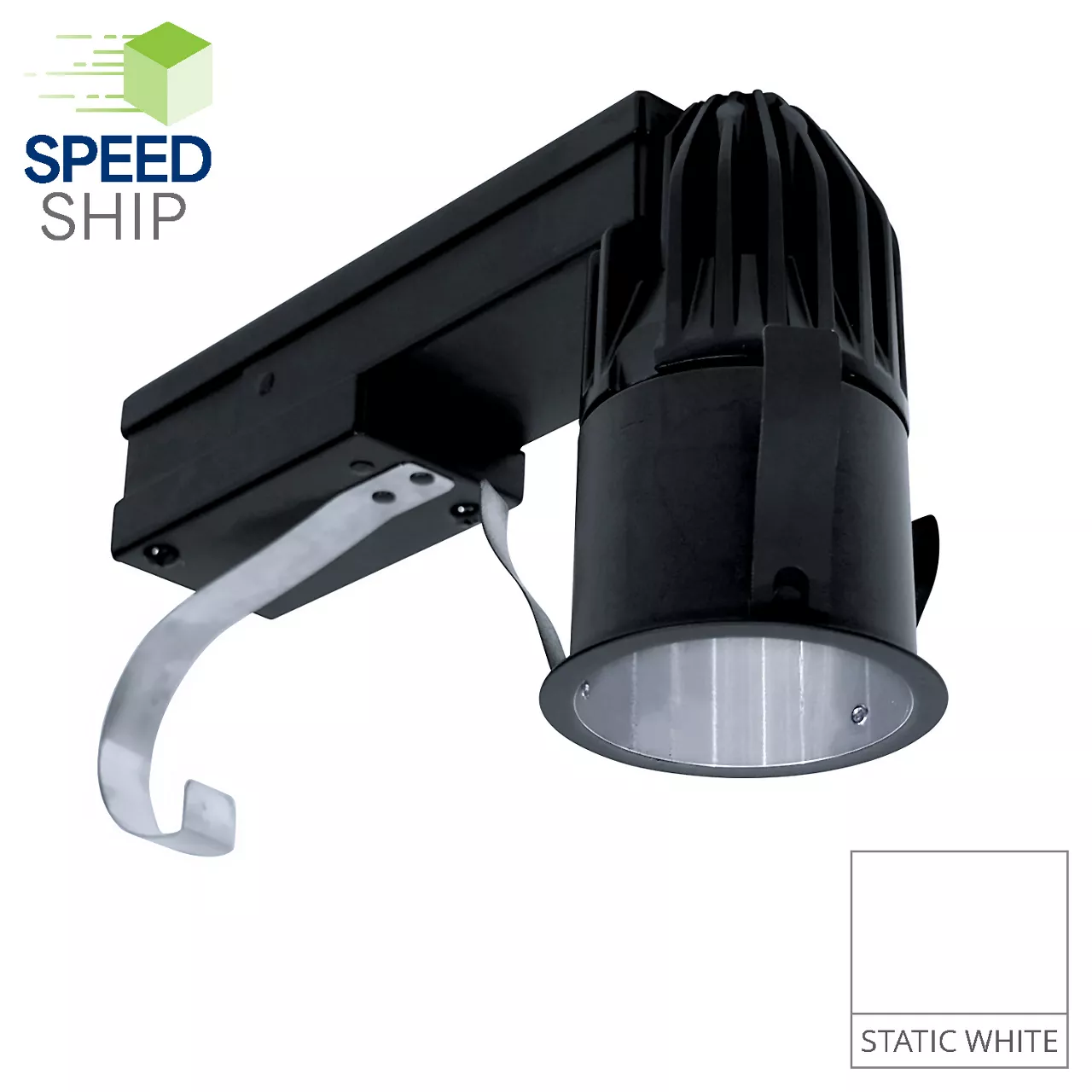

Static White LED New Construction and Remodel Downlight
R2RM
- R2RM05 (8W/800lm) and R2RM1 (10W/1100lm) are Insulated Ceiling (IC)/StopAire™ Housings thermally protected for direct contact with insulation materials
- R2RM2 (14W/1400lm) is a Non-Insulated Ceiling (Non-IC)/StopAire™ Housing, requiring a minimum 3-inch clearance around housing from insulation material. Thermal protection provided in case of improper insulation use.
- Three (3) steel friction springs provide secure support in ceiling thicknesses from 1/2- to 1-inch.
NOTE: Certain regions require the use of a Housing Mounting Frame in conjunction with the R2RM. The NCF1 New Construction Mounting Frame should be specified when required (ordered separately). - Minimum plenum clearance required: 6-inches
- Available in 2700K, 3000K, 3500K and 4000K in both 83 (80 min.) and 90+ CRI; excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
- Precision TIR Optics produce Spot, Medium, Flood, and Wide Flood beam distributions; optics are interchangeable and can be field replaced
- A Wall Wash option is also available. The Wall Wash Housing/Trim combination utilizes a unique angled Optic mounted to the trim to create a smooth, uniform beam. Wall Wash Housing is dedicated for use only with a Wall Wash trim. There is no interchangeability with other housings or optics.
- Many trim options available; see ordering information for details
- All R2RM Downlights are available for non-dimming and dimming applications, for a list of compatible dimmers, refer to the Dimming Specification sheet
Product Information
Updated
Updated
Updated
IES
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash
Listings : cCSAus Certified,Damp Location,Wet Location,ENERGY STAR® Certified,WSEC ASTM E283,Chicago Plenum CCEA Listed,Title 24 JA8 Part 6
Lumen Output : 501-1000,1001-1500
Product Shape : Round
Product Type : 2-Inch Downlight
Housing : New Construction,Remodel

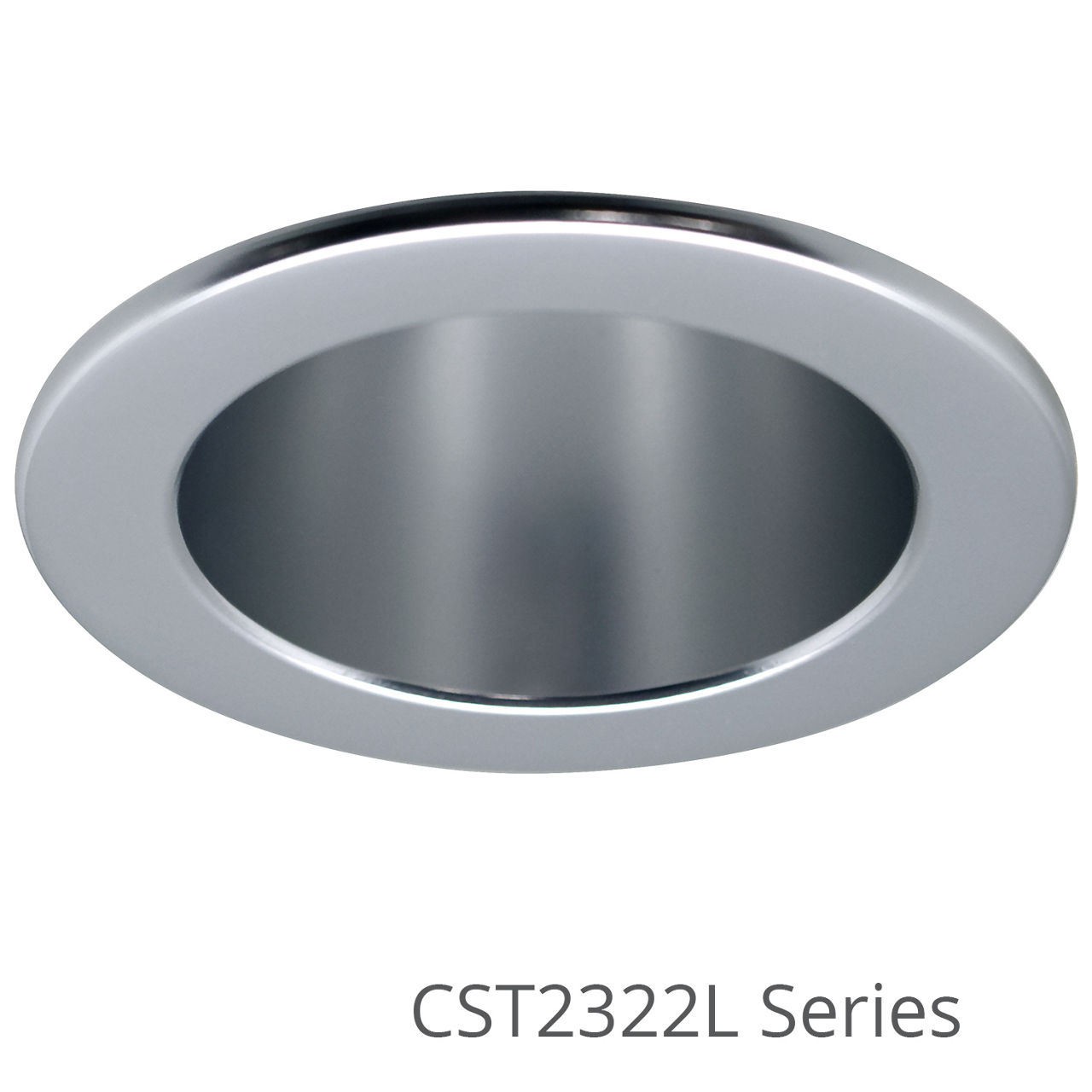

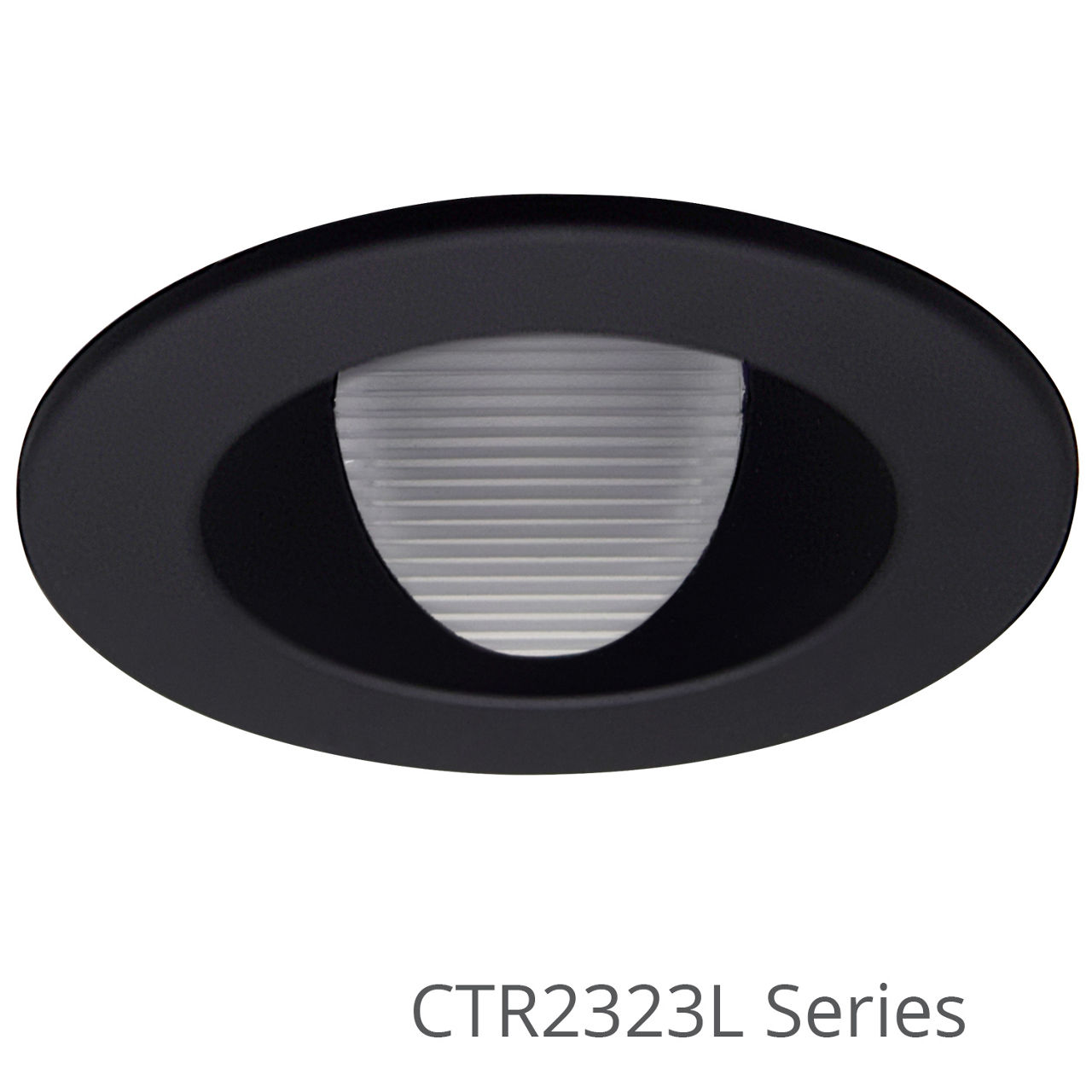

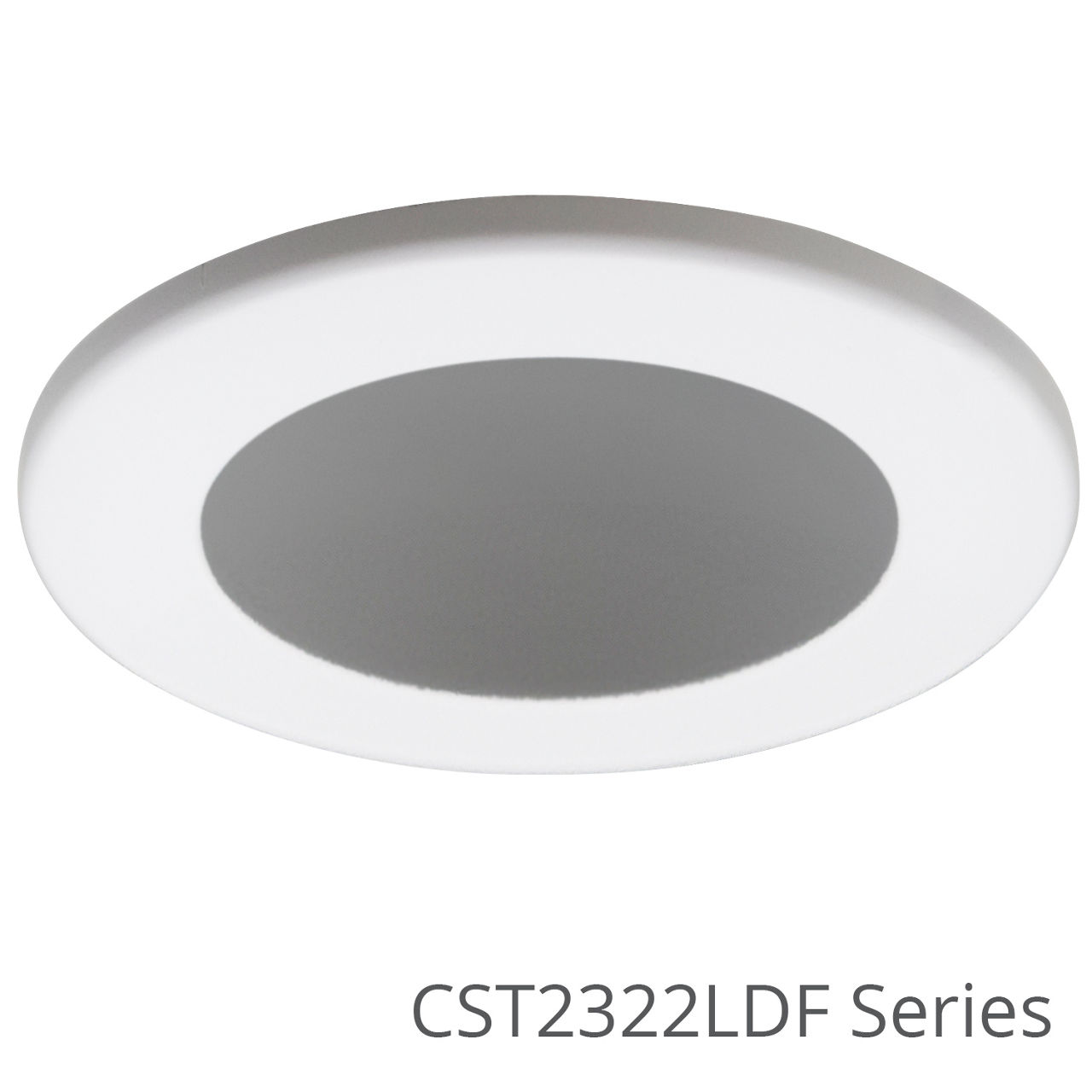

Use With : CTR2323L Series Trims,CST2322L Series Trims,CST2322LDF Series Trims
Dimmable : Y
Standards and Certifications
Buy American Act (BAA) Compliant : Yes
