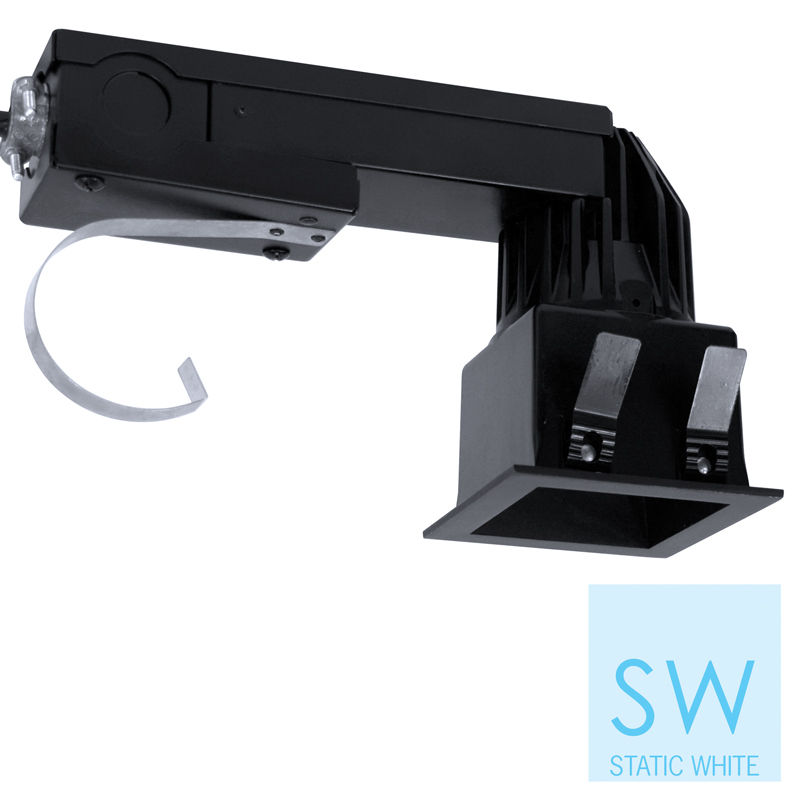

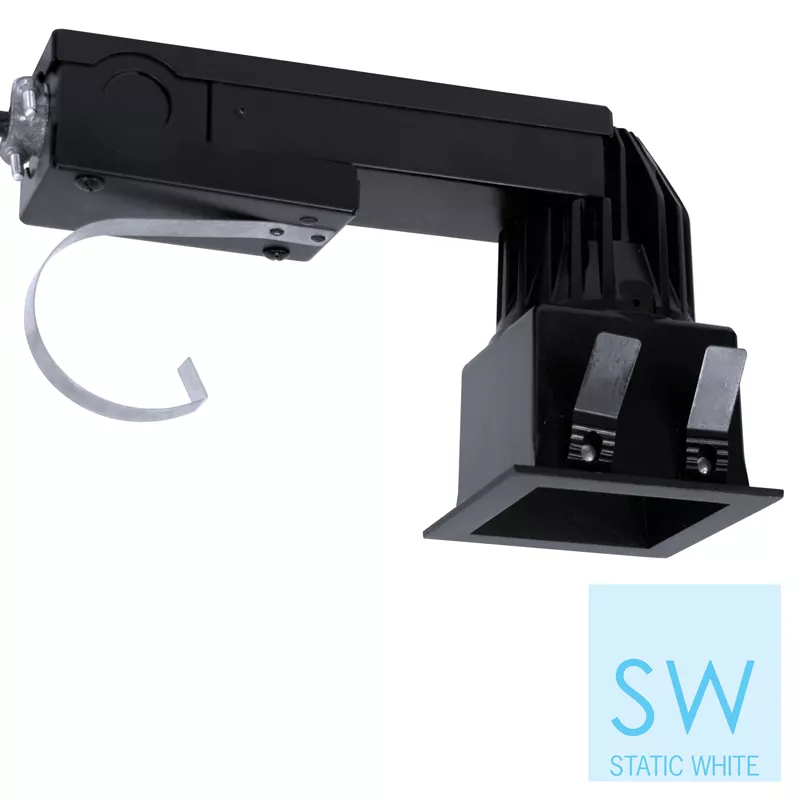

2-In. Square Static White LED New Construction and Remodel Downlight

R2SQRM

  • LED Series 05 (8W/900lm) and 1 (10W/1100lm) are Insulated Ceiling (IC)/StopAire™ Housings; thermally protected for use in applications with direct contact with insulation materials
  • LED Series 2 (14W/1400lm) is a Non-Insulated Ceiling (Non-IC)/StopAire™ Housing, requiring a minimum 3-inch clearance around housing from insulation material. Thermal protection provided in case of improper insulation use.
  • Die-cast aluminum collar and heat sink, driver compartment and junction box made from 16-gauge steel. Housing has a black painted finish.
  • Drivers are fully accessible from below the ceiling
  • Four (4) steel friction springs provide secure support in ceiling thicknesses from 1/2- to 1-inch. NOTE: Certain regions require the use of a housing mounting frame in conjunction with the R2SQRM housing. The NCSQF1 new construction mounting frame should be specified when required (ordered separately).
  • Minimum plenum clearance required: 6-inches
  • Four (4) Wattage/Lumen packages: 8W/900Lm, 10W/1100Lm, and 14W/1400Lm
  • Available in 2700K, 3000K, 3500K and 4000K in both 83 (80 min.) and 90+ CRI
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision TIR Optics produce Spot, Medium, Flood, and Wide Flood beam distributions; optics are interchangeable and can be field replaced
  • Wall Wash also available;. Wall Wash housing is dedicated for use only with Wall Wash trim. There is no interchangeability with other housings or optics
  • Many trim options available; see ordering information for details
  • All R2SQRM downlights are available for non-dimming and dimming applications, for a list of compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash

    Listings : cCSAus,Damp Location,Wet Location,WSEC ASTM E283,Chicago Plenum CCEA Listed

    Lumen Output : 501-1000,1001-1500

    Product Shape : Square

    Product Type : 2-Inch Downlight

    Housing : New Construction,Remodel

    Rated Wattage : 8W,10W,14W

    Dimmable : Y

    Title 24 Compliant : Y
